Product description

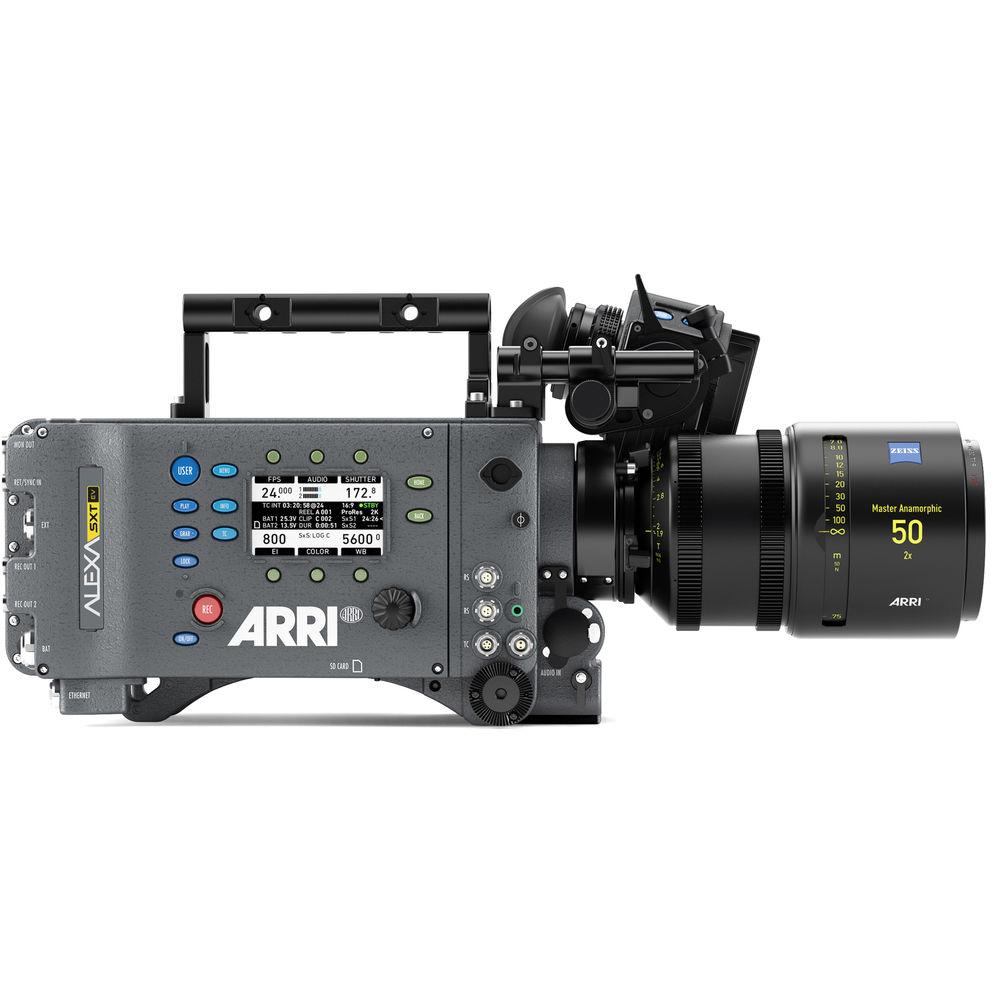

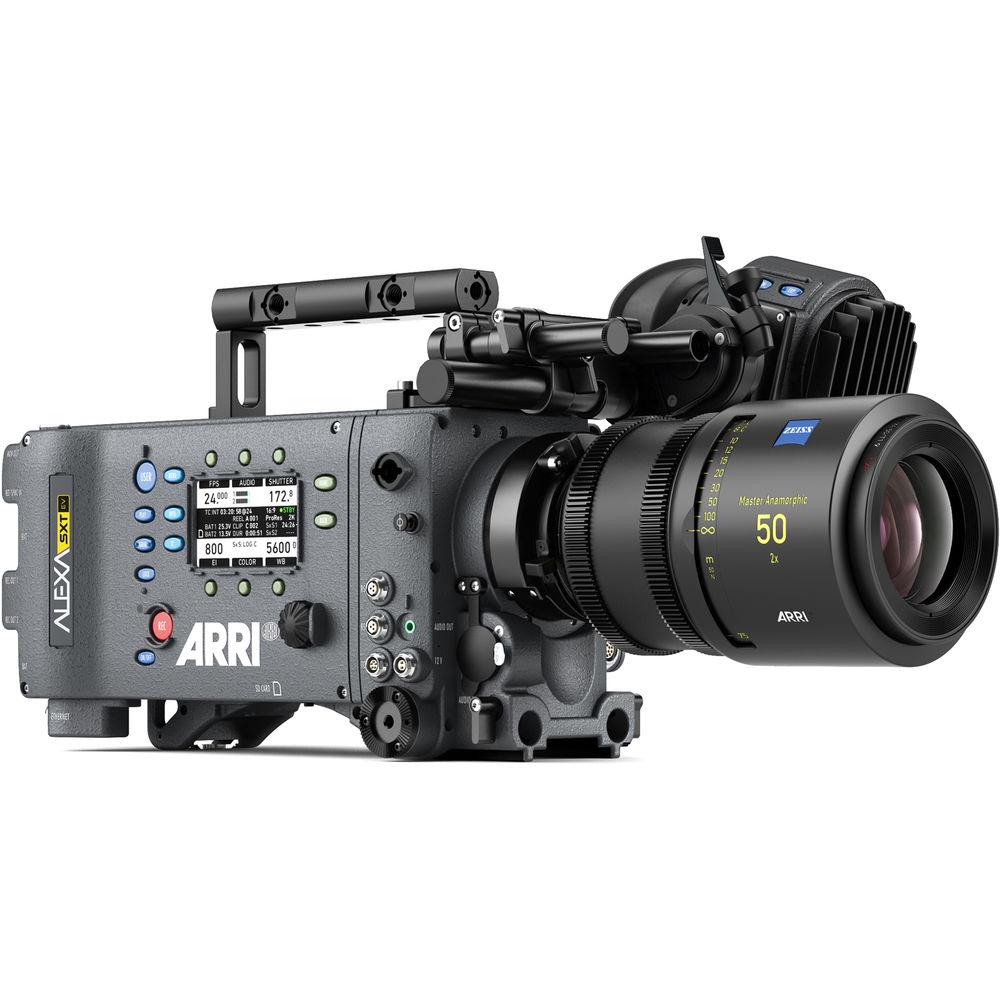

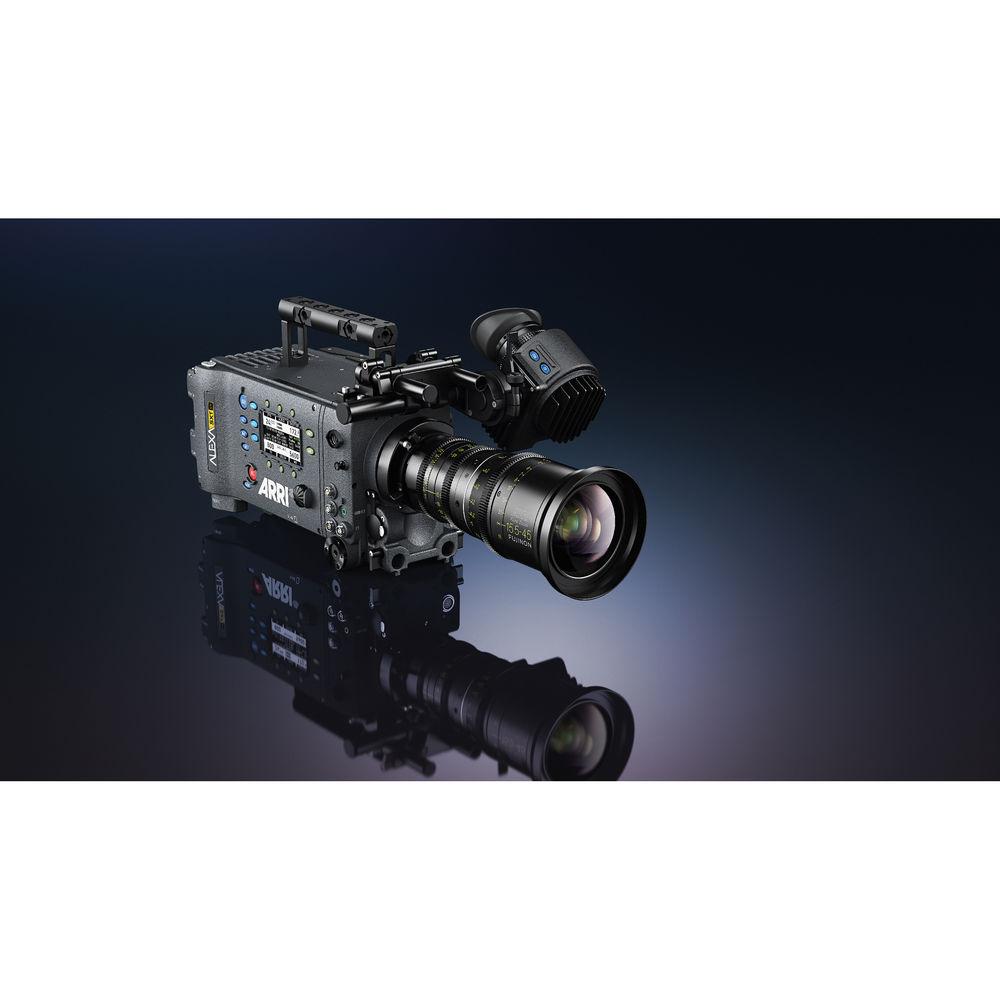

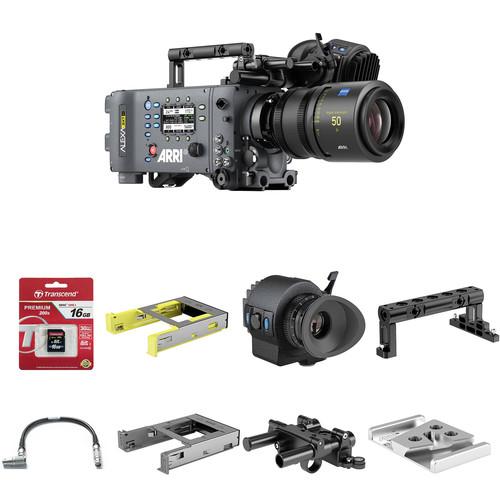

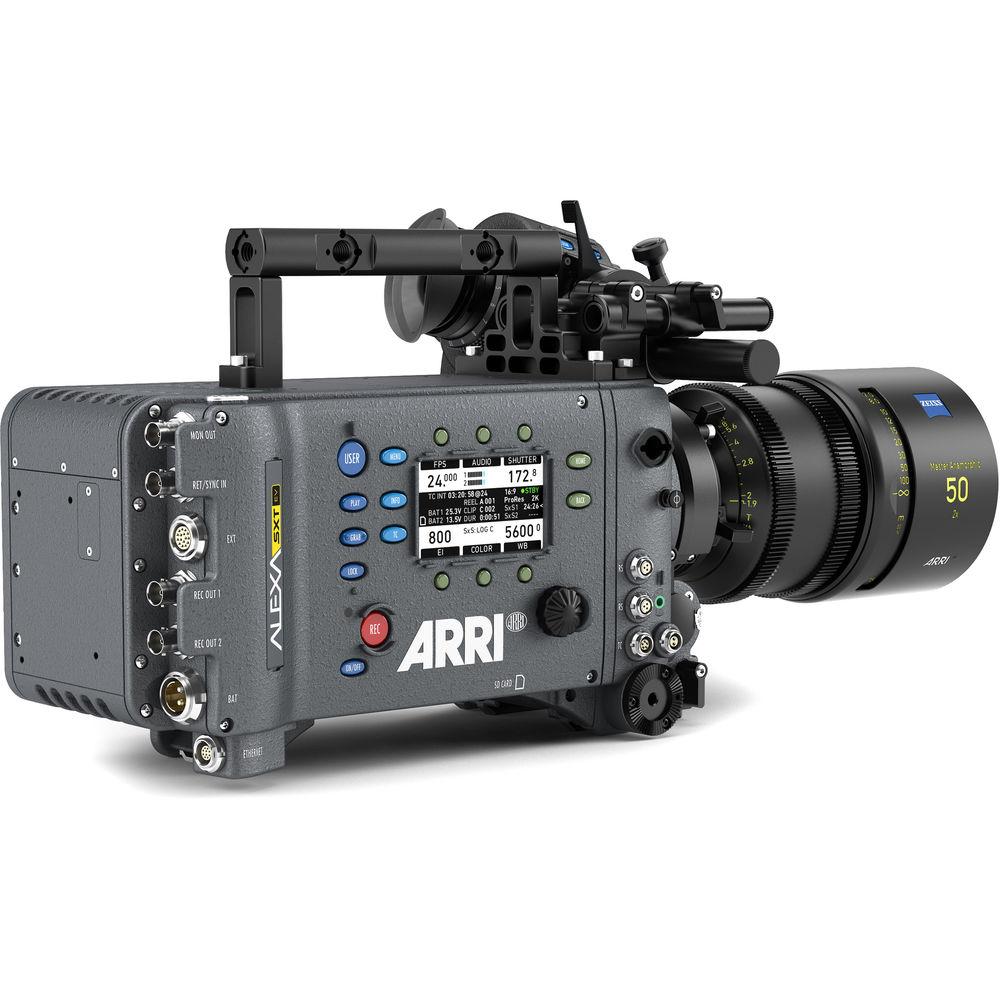

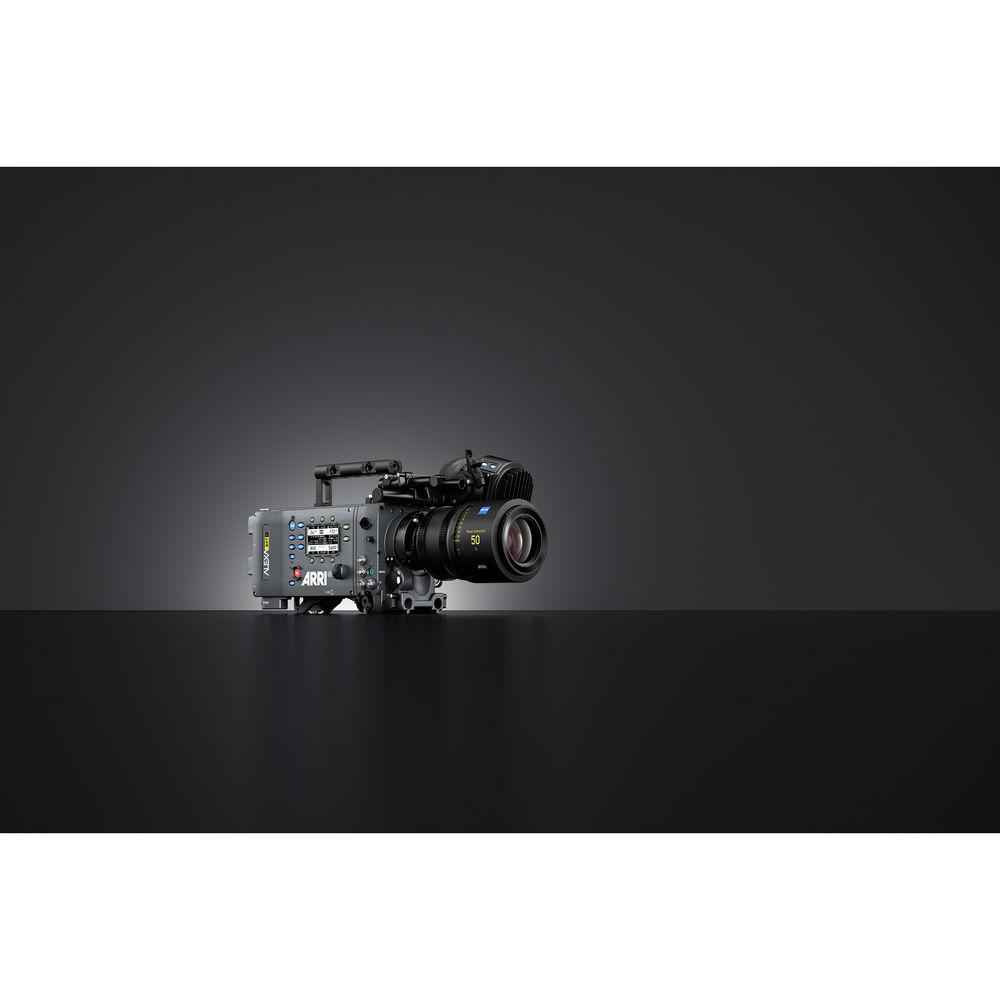

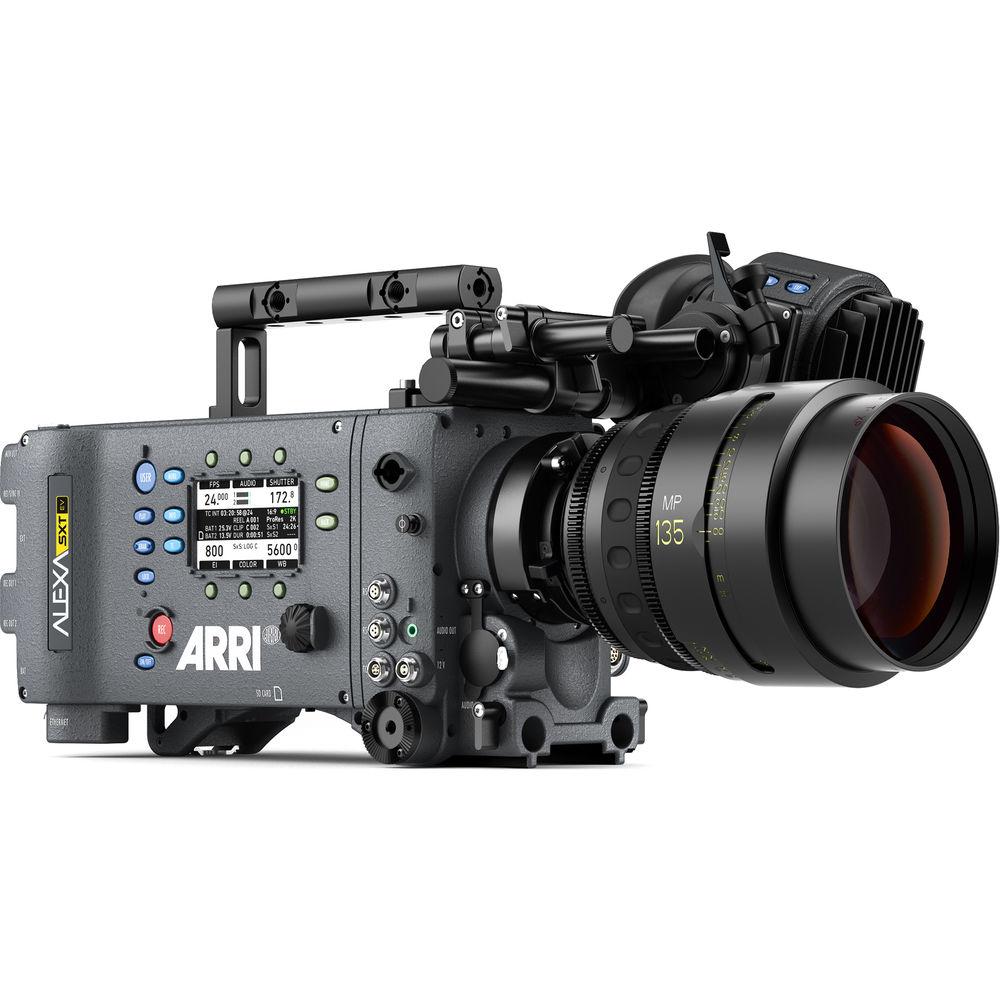

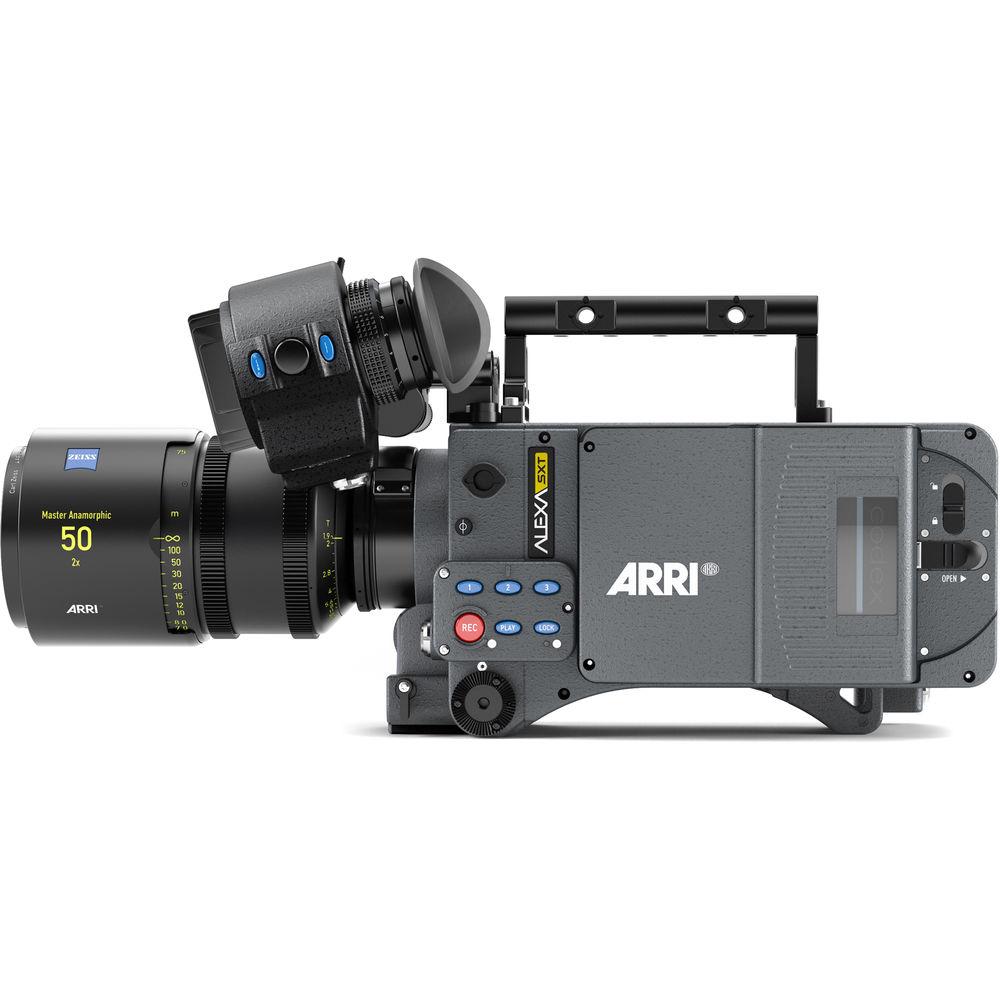

• ALEXA SXT EV Camera Body (LDS PL) Expanding upon the original ALEXA digital cinema camera, the ARRI ALEXA SXT EV Camera Body (LDS PL) records in UHD 4K, Cine 4K, 2K, and HD with 16-bit processing for sharp, natural-looking images. The versatile ALEXA SXT EV delivers an array of recording format choices in ARRIRAW and ProRes including 6:5 and 8:9 anamorphic modes (with SUP 3.0). With a base sensitivity of EI 800 and a dynamic range of 14 plus stops, your footage is effectively future-proofed for compatibility with HDR displays. The ALEXA SXT EV's Wide Color Gamut exceeds current display standards and is compatible with the Rec 2020 color space. Full-image frame rates of up to 120 fps enable capture for higher-clarity HFR (high frame rate) projects.The ALEXA SXT EV's improved image-processing system includes the ability to "bake-in" 3D LUTs at capture, a mild noise reduction feature (ANR), and a pixel correction function. ARRIRAW recording is optimized for VFX and archival capture, with uncompressed data available for sculpting with today and tomorrow's latest post-production processing. The look management architecture has been updated with the new ARRI Color Tool (ACT) and ARRI Look File (ALF-2), offering the ability to maintain your look from prep to post with on-set grading. Look files are stored in your recordings' metadata, enabling the automatic application of your on-set look to dailies, proxies, and editing files using popular NLE systems.User-friendly features include the ability to apply customized settings to each of the ALEXA SXT EV's outputs (EVF and three monitor outs), enabling the director, DP, DIT, or A.C. to see just the on-screen information they need, in SDR or HDR, in the color space of their choice. Standard and high-speed recording rates are now accessible in the same mode, eliminating the need to switch to a high-speed mode. Multiple control options include the right-side 3" LCD display, a condensed operator-side (left) interface, Ethernet-based browser control, and compatibility with the optional RCU-4 or WCU-4 control units.The modular ALEXA SXT family includes the flexibility of recording to the current or future media of your choice for each of your projects. Capture options include XR, and SXR capture drives with write speeds of up to 20 Gb/s, SxS PRO and SxS PRO+ cards, and CFast 2.0 cards. Faster in-camera processing speeds and capture to SXR drives boost the ALEXA SXT EV's maximum frame rates. RAID 1 (mirroring) capture provides additional data security for ALEXA SXT ProRes files.The ARRI LDS (lens data system) PL mount, the IFM-1 filter holder, shoulder mount, and 15mm LWS rod support are integrated into the ALEXA SXT EV. A 5-pin XLR connector supports 2-channel, 24-bit, 48 kHz audio. Choose from separately available Gold or V-mount battery plates, or an AC power supply to power the camera. Note: An EVF, ND filters, and recording-media adapter are not included with the SXT EV body, and must be ordered separately.

  Excellent Image Quality & High Dynamic Range

  • • The ALEXA SXT family combines the powerful image processing of the ALEXA 65 with the familiar design of the original ALEXA user interface, producing sharp, natural-looking footage.
    • A base sensitivity of EI 800 with a dynamic range of 14 plus stops effectively future-proofs your output for compatibility with HDR displays.
    • The ALEXA SXT records in a WCG (Wide Color Gamut) exceeding current displays, and is compatible with the Rec 2020 color space.
    • Record up to 120 fps for compatibility with HFR (high frame rate) display outputs.

  Wide Array of Recording Formats

  • • Choose from 14 in-camera recording formats, all of which are available in both full-fledged ARRIRAW, and smaller file ProRes options.
    • Format options include 16:9 ProRes UHD 4K, Open Gate ProRes 4K Cine, economical 6:5 ProRes 2K Anamorphic and 6:5 ProRes 4K Cine Anamorphic, the VFX-friendly 4:3 ProRes 2.8K, the high-res Open Gate ProRes 3.4K, and the versatile 16:9 ARRIRAW 3.2K.

  Anamorphic Solutions

  • • The ALEXA's tall sensor is sized almost exactly the same as 35mm film, enabling anamorphic lenses to maintain their native fields of view.
    • The ALEXA SXT'S efficient 6:5 sensor mode is equivalent to 1.194:1 image area, the same as half of the classic 2.39:1 CinemaScope aspect ratio. Use this mode to capture only the image area needed for a 2.39 output, with higher frame rates, higher ProRes resolutions, and fewer steps in post than the earlier 4:3 mode.
    • ALF-2 files are stored in your recording's metadata, enabling your dailies and proxy editing files to display the same look as your master files. Supported systems include DaVinci Resolve, Colorfront OSD, Codex Production Suite, Pomfort Silverstack, and Filmlight Daylight.

  Consistent Look Management

  • • A new ARRI Color Tool (ACT) and ARRI Look File (ALF-2) enable you to create new looks in-camera. For easy multi-camera coordination, these looks are compatible with ALEXA Mini and AMIRA cameras.
    • Lock in your look on set with the ALEXA SXT's live, on-set grading in Rec 709 or Rec 2020. Compatible third-party systems include Pomfort LiveGrade, Codex Live, Colorfront On-Set Live, Filmlight Prelight, Technicolor DP Lights, and more.
    • The same look management can be automatically applied when using NLE systems such as Avid Media Composer, Apple Final Cut Pro X, and Adobe Premiere Pro.

  Features

  • • Use with the adapter of your choice to record to SxS PRO or SxS PRO+ cards, CFast 2.0 cards, and XR or SXR capture drives
    • Multiple control options include Ethernet-based browser control and compatibility with the optional RCU-4 and WCU-4 control units
    • Integrated PL lens mount with LDS (lens data system)
    • The built-in IFM-1 filter holder accepts one of eight separately available ND filters
    • Use with separately available Gold or V-mount battery plates
    • Integrated shoulder arch, and 15mm LWS rod support

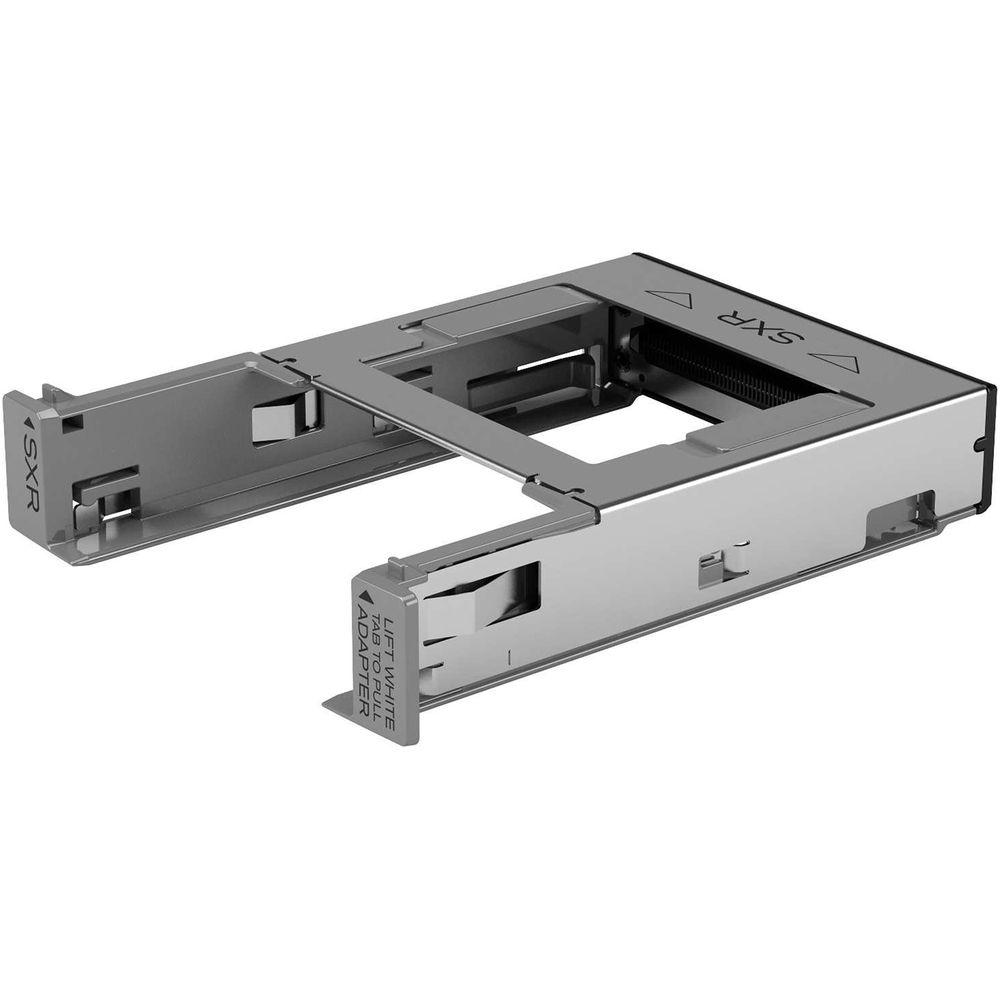

• Codex SXR Capture Drive Adapter Use the Codex SXR Capture Drive Adapter from ARRI to mount an SXR drive on an ALEXA SXT or ALEXA LF camera. Compatible ALEXA SXT models include the ALEXA SXT EV, SXT Plus, SXT Studio, and SXT W. Note: This adapter is not compatible with ALEXA XT/XR cameras, nor Codex XR capture drives.
  Compatible Cameras
  • ALEXA LF

    ALEXA SXT EV
    ALEXA SXT Plus
    ALEXA SXT Studio
    ALEXA SXT W
  Codex Product Code
  • CDX-37097

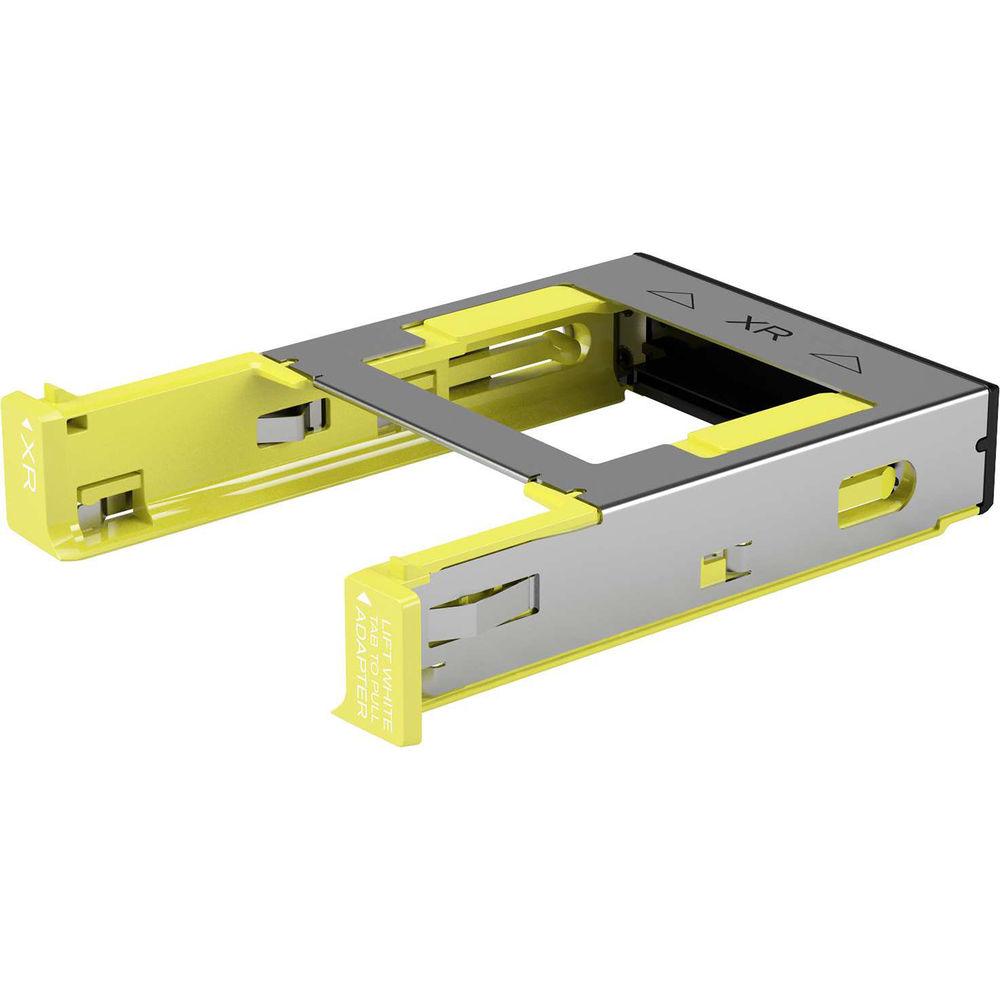

• XR Adapter for ALEXA SXT Cameras The ARRI XR Adapter is used to mount an XR capture drive on an ALEXA SXT camera, such as the ALEXA SXT EV, SXT Plus, SXT Studio, and SXT W. Note: This adapter is not compatible with SXR capture drives.
  Compatible Cameras
  • ALEXA SXT EV
    ALEXA SXT Plus
    ALEXA SXT Studio
    ALEXA SXT W
  Codex Product Code
  • CDX-37096
• SD Memory Card for ALEXA Cameras This 16GB SD Memory Card for ALEXA Cameras from ARRI can be used for saving or loading a variety of camera functions. Use it for LUTs, user preference settings, framelines, frame grabs, license keys, and lens tables for the LDS archive. It may also be employed when installing SUPs (software update packets).
• EVF-1 Electronic Viewfinder for Most ALEXA Cameras The ARRI EVF-1 Electronic Viewfinder for ALEXA provides a low-latency, film-style image display. An on-screen menu provides both EVF and basic camera control. This FLCOS micro-display panel has a resolution of 1280 x 784, and includes a surround view that enables you to spot objects just outside your recorded image frame. Glass optics give the EVF-1 a high-contrast, evenly-illuminated viewing area. Controls include a jog wheel, a Zoom button with 2.25x pixel-to-pixel magnification for checking focus, and an Exposure button for engaging a false-color exposure check. Features include customizable framelines, camera and lens info displays, and an image flip function. Note: The EVF-1 is not compatible with ALEXA Mini, nor ALEXA AMIRA cameras.
  Features
  • • Film-style image display with latency of <1 frame
    • Provides EVF and basic camera controls
    • Glass optics provide a high-contrast, low-distortion display
    • Surround view enables you to spot objects just outside your recorded frame
    • 2.25x zoom function for checking focus
    • False-color exposure check, and an image-flip function
  Compatible Cameras
  • • ALEXA Classic, ALEXA Classic with XR Module
    • ALEXA XT, ALEXA SXT (requires EVA-1 adapter)
    • ALEXA Classic Studio, ALEXA Classic Studio with XR Module
    • ALEXA XT Studio (requires EVA-1 adapter)
• VMB-3 Viewfinder Mounting Bracket The ARRI VMB-3 Viewfinder Mounting Bracket provides a sturdy mounting option for your ALEXA's electronic viewfinder. This bracket provides left/right, and up/down movement of the EVF, as well as 360° of rotation, and left- or right-side positioning on the camera. Features include an integrated bubble level, and one 3/8"-16 accessory-mounting thread.
  Features
  • • For ARRI ALEXA cameras
    • Compatible with ARRI EVF-1, and select 15mm LWS-mount viewfinders
    • Enables left/right, and up/down movement of the EVF, 360° of rotation, and left- or right-side positioning on the camera
    • 15mm LWS rod standard
    • Built-in bubble level, and one 3/8"-16 accessory thread
  Compatible Cameras
  • • ALEXA XT, ALEXA SXT
    • ALEXA Mini
    • ALEXA Classic, ALEXA Classic with XR Module

      Requires EVA-1 adapter:

    • ALEXA Classic Studio, ALEXA Classic Studio with XR Module
    • ALEXA XT Studio, ALEXA SXT Studio
• KC 150-S Short EVF-1 Viewfinder Cable (1.2') The 1.2' KC 150-S Short EVF-1 Viewfinder Cable from ARRI connects the EVF-1 viewfinder to select ALEXA cameras. This shorter cable eliminates the need to wrap any excess length of cable.
• CCH-1 Center Camera Handle for Select ALEXA Cameras The ARRI CCH-1 Center Camera Handle is a sturdy carrying handle featuring multiple 3/8"-16 threaded holes for attaching accessories. Designed for use with select ALEXA cameras (listed below), it attaches to the top of the camera via three screws. Note: The CCH-1 handle may be used with the BAT-G battery adapter attached, but it will not work with the BAT-V battery adapter, nor when any on-board battery is mounted to the top of the camera.
  Compatible ARRI Cameras
  • ALEXA, ALEXA Plus, ALEXA Plus 4:3
    ALEXA M body
    ALEXA Studio
    ALEXA XT, ALEXA XT M body, ALEXA XT Plus, ALEXA XT Studio
    ALEXA SXT EV, ALEXA SXT Plus, ALEXA SXT Studio
• WA-1 Wedge Adapter The ARRI WA-1 Wedge Adapter is designed for use with ARRI, Sony, and Panasonic video-style quick release plates. The WA-1 attaches to the bottom of most ARRI ALEXA camera models including the ALEXA, ALEXA Plus, ALEXA Plus 4:3, ALEXA M body, ALEXA XT, ALEXA XT M body, ALEXA XT Plus, ALEXA SXT EV, ALEXA SXT Plus, and the ALEXA SXT W. It is not compatible with ALEXA Studio, ALEXA XT Studio, or ALEXA SXT Studio cameras.
  Compatible Cameras
  • ALEXA, ALEXA Plus, ALEXA Plus 4:3
    ALEXA M body, ALEXA XT M body
    ALEXA XT, ALEXA XT Plus
    ALEXA SXT EV, ALEXA SXT Plus, ALEXA SXT W

• LDS PL Lens Mount

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Mounting Screws

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ALEXA SXT EV Camera Body (LDS PL)

  Type	35 mm Format CMOS
  Color Filter System	Bayer Pattern
  Active Photo Sites	Sensor Mode 16:9 ARRIRAW 2.8K: 2880 x 1620 ARRIRAW 3.2K: 3168 x 1782 16:9 ProRes HD: 2880 x 1620 Down-Sampled to 1920 x 1080 16:9 ProRes 2K: 2880 x 1620 Down-Sampled to 2048 x 1152 16:9 ProRes 3.2K: 3200 x 1800 16:9 ProRes UHD 4K: 3200 x 1800 Up-Sampled to 3840 x 2160 Sensor Mode 6:5 6:5 ARRIRAW 2.6K: 2578 x 2160 6:5 ProRes 2K Anamorphic: 2560 x 2146 Down-Sampled to 2048 x 858 6:5 ProRes 4K Anamorphic: 2560 x 2146 Re-Sampled to 4096 x 1716 Sensor Mode 4:3 4:3 ARRIRAW 2.8K: 2880 x 2160 4:3 ProRes 2.8K: 2880 x 2160 Sensor Mode Open Gate Open Gate ARRIRAW 3.4K: 3424 x 2202 Open Gate ProRes 3.4K: 3424 x 2202 Open Gate ProRes 4K Cine: 3414 x 2198 Up-Sampled to 4096 x 2636
  Operating Modes	16:9, 6:5, 4:3 or Open Gate Sensor Modes Switching takes approximately 60 seconds; all sensor modes are available in ARRIRAW and ProRes.
  Image Processing	Internal: 16-Bit linear processing in full ALEXA Wide Gamut/Log C color space Target Output: Log C, Rec 709 or Rec 2 color spaces

  Lens Mount	54 mm Stainless Steel LDS PL Mount, Super 35-Centered 52.00 mm Nominal Flange Focal Depth (Without FSND Filters)
  Frame Rates	16:9: 0.75 - 120 fps 6:5: 0.75 - 96 fps 4:3: 0.75 - 96 fps Open Gate: 0.75 - 90 fps All speeds are adjustable with 1/1000 fps precision; some limitations based on recording media or recording format apply.
  Electronic Shutter	5-358° up to 60 fps 5.0° to 356° Above 60 fps Adjustable Shutter Angle: 1/10° Increments
  Built-In Filters	Optical Low-Pass UV IR
  Exposure Latitude	14+ Stops from EI 160-3200 As measured with the ARRI Dynamic Range Test Chart (DRTC).
  Exposure Index	Number of Stops Above/Below 18% Gray: EI 160 +5.2/-9.3 EI 200 +5.6/-8.9 EI 400 +6.6/-7.9 EI 800 +7.8/-6.7 EI 1600 +8.6/-5.9 EI 3200 +9.7/-4.8
  White Balance Modes	Presets: 3200 (Tungsten) 4300 (Fluorescent) 5600 (Daylight) 7000 (Daylight Cool) Automatic or Manual: 2000 to 11,000 Kelvin, Adjustable in 100K Steps
  Color Correction	Green/Magenta Adjustable Range: -12 to +12 CC 1 CC corresponds to 035 Kodak CC values or 1/8 Rosco values

  Sound Level	<19 dba While recording ProRes 4444 16:9 HD @ 24 fps, ≤ +86°F (+30°C) with a lens attached, fan mode set to Regular, measured 3' (1 m) in front of the lens.
  Audio Input	1 x 5-Pin XLR for 2-Channel, Line Level, Balanced Audio A/D Conversion: 24-Bit, 48 kHz
  Audio Recording	Uncompressed PCM Audio: ARRIRAW, ProRes, Embedded in HD-SDI Output Only available with same project/sensor speed at 23.976, 24, 25, 29.97 and 30 fps
  Headphone Output	Maximum: 2.5 dBm

  Control Interface	Transflective Color LCD Screen: 3" (76.2 mm) 400 x 240 pixels

  Recording Codecs	16:9: ProRes UHD 4K/3.2K/2K/HD: 4444 XQ, 4444, 422 HQ, 422 ARRIRAW 3.2K, 2.8K 6:5: ProRes 4K Cine Anamorphic 4444 XQ, 4444, 422 HQ, 422 ProRes 2K Anamorphic 4444 XQ, 4444, 422 HQ, 422 ARRIRAW 2.6K 4:3: ProRes 2.8K: 4444 XQ, 4444, 422 HQ, 422 ARRIRAW 2.8K Open Gate: ProRes 4K Cine: 4444 XQ, 4444, 422 HQ, 422 ProRes 3.4K: 4444 XQ, 4444, 422 HQ, 422 ARRIRAW 3.4K
  Recording Media	SxS PRO or SxS PRO+ Cards (Requires SxS Adapter 2) CFast 2.0 Cards (Requires CFast 2.0 Adapter 2) XR Capture Drives (Requires XR Adapter) SXR Capture Drives (Requires SXR Adapter) XR Capture Drive Docks require Codex Production Suite to read XR Capture Drives recorded with ALEXA SXT.
  Supported Media	SXR Capture Drive: Requires SXR Adapter B&H # ARK2.0008429 ARRI # K2.0008429 SXR Capture Drive 1 TB (Red Collar) CDX-37019 B&H # ARK2.0006942 ARRI # K2.0006942 SXR Capture Drive 2 TB (Blue Collar) CDX-37021 B&H # ARK2.0006157 ARRI # K2.0006157 Codex XR Capture Drive: Requires XR Adapter B&H # ARK2.0008430 ARRI # K2.0008430 XR Capture Drive 512 GB CDX-3730 ARRI # --- SxS (ExpressCard/34): Requires SxS Adapter 2 B&H # ARK2.0006338 ARRI # K2.0006338 Sony SxS PRO/PRO+ 64 GB SBP-64A-D B&H # SOSBP64E Mfr. # SBP64E Sony SxS PRO 128 GB SBP-128B-E B&H # SOSBP128E ARRI # K2.0003106 Sony SxS PRO 256 GB SBP-256D/E B&H # ARSXSP256 GB ARRI # K2.0014951 CFast 2.0: Requires Cfast 2.0 Adapter B&H # ARK2.00063 ARRI # K2.0006337 Lexar 3600x Cfast 2.0 256 GB LC256Cxxxx3600/G2 ARRI # --- With SXT SUP 2.0 installed.

  Connectors	Media Slot: 1 x SD Card Slot Monitor Out 1.5G HD/SD-SDI: 3 x BNC Audio In: 1 x XLR, 5-Pin Analog Return/Sync In 1.5G HD-SDI: 1 x BNC External Accessory Interface: 1 x 16-Pin LEMO Battery In: 1 x Fischer 2-Pin, 24 V Remote Start/Accessory Out: 2 x 3-Pin Fischer, 24 V Accessory Power Out: 1 x 2-Pin LEMO, 12 V Timecode In/Out: 1 x 5-Pin LEMO Headphone Out: 1 x TRS 3.5 mm Mini Stereo EVF: 1 x Custom 16-Pin LEMO Ethernet: 1 x Custom 10-Pin LEMO with 24 V Power The BNC connectors may be swapped out without camera disassembly using the K5.72915.0 ALEXA Plus BNC Removal Tool.
  Power Input	12 V Connector: Limited to 12 V, up to 2.2 A RS, EXT and Ethernet: Input Below 24 V is Regulated up to 24 V Input Above 24 V: Input Voltage = Output Voltage RS and EXT Connectors: Combined are Limited to 2.2 A Ethernet: Limited to 1.2 A The maximum power draw is also limited by the power source.

  Operating Temperature	-4 to 113°F / -20 to 45°C
  Dust and Humidity	95% maximum Humidity (Non-Condensing) Splash and Dustproof

  Dimensions (LxWxH)	13 x 6.5 x 6.2" / 33.1 x 16.6 x 15.8 cm
  Weight	14.3 lb / 6.5 kg

• Codex SXR Capture Drive Adapter

  Dimensions	0.8 x 3.3 x 4.7" / 21 x 84 x 120 mm
  Weight	1.8 oz / 52 g

  Box Dimensions (LxWxH)	4.2 x 3.4 x 1.0"

• XR Adapter for ALEXA SXT Cameras

  Dimensions	0.9 x 3.3 x 4.7" / 24 x 84 x 120 mm
  Weight	1.8 oz / 52 g

  Box Dimensions (LxWxH)	4.2 x 3.3 x 0.9"

• SD Memory Card for ALEXA Cameras

  Card Type	SD
  Storage Capacity	16 GB

• EVF-1 Electronic Viewfinder for Most ALEXA Cameras

  Resolution	1280 x 784
  Latency	<1 frame
  Dimensions and Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	8.2 x 8.0 x 6.1"

• VMB-3 Viewfinder Mounting Bracket

  Rod Standard	15 mm LWS
  Accessory Mount Thread	1 x 3/8"-16
  Dimensions and Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	6.3 x 4.3 x 2.2"

• KC 150-S Short EVF-1 Viewfinder Cable (1.2')

  Length

  1.2' (36.6 cm)

  Box Dimensions (LxWxH)	7.4 x 4.85 x 1.25"

• CCH-1 Center Camera Handle for Select ALEXA Cameras

  Threaded Holes	3/8"-16
  Mounting Screw	3 mm Allen
  Dimensions and Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	6.4 x 2.9 x 2.8"

• WA-1 Wedge Adapter

  Dimensions and Weight

  Not specified by manufacturer

  Box Dimensions (LxWxH)	2.9 x 2.4 x 0.9"
