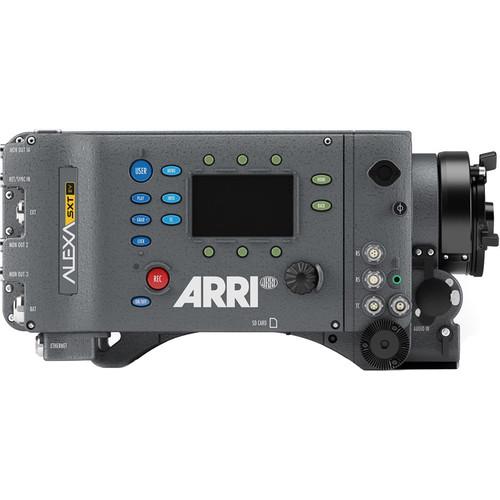

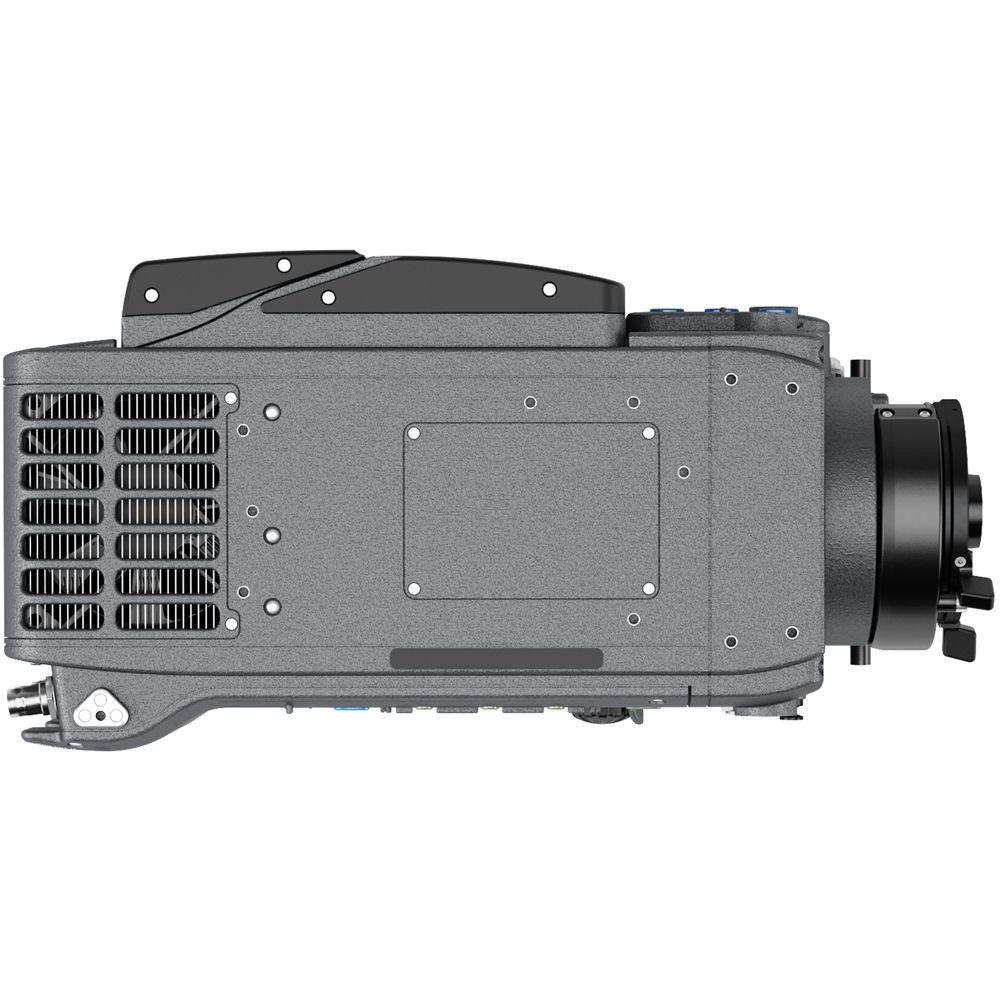

Product description Expanding upon the original ALEXA digital cinema camera, the ARRI ALEXA SXT EV Camera Body (LDS PL) records in UHD 4K, Cine 4K, 2K, and HD with 16-bit processing for sharp, natural-looking images. The versatile ALEXA SXT EV delivers an array of recording format choices in ARRIRAW and ProRes including 6:5 and 8:9 anamorphic modes (with SUP 3.0). With a base sensitivity of EI 800 and a dynamic range of 14 plus stops, your footage is effectively future-proofed for compatibility with HDR displays. The ALEXA SXT EV's Wide Color Gamut exceeds current display standards and is compatible with the Rec 2020 color space. Full-image frame rates of up to 120 fps enable capture for higher-clarity HFR (high frame rate) projects.The ALEXA SXT EV's improved image-processing system includes the ability to "bake-in" 3D LUTs at capture, a mild noise reduction feature (ANR), and a pixel correction function. ARRIRAW recording is optimized for VFX and archival capture, with uncompressed data available for sculpting with today and tomorrow's latest post-production processing. The look management architecture has been updated with the new ARRI Color Tool (ACT) and ARRI Look File (ALF-2), offering the ability to maintain your look from prep to post with on-set grading. Look files are stored in your recordings' metadata, enabling the automatic application of your on-set look to dailies, proxies, and editing files using popular NLE systems.User-friendly features include the ability to apply customized settings to each of the ALEXA SXT EV's outputs (EVF and three monitor outs), enabling the director, DP, DIT, or A.C. to see just the on-screen information they need, in SDR or HDR, in the color space of their choice. Standard and high-speed recording rates are now accessible in the same mode, eliminating the need to switch to a high-speed mode. Multiple control options include the right-side 3" LCD display, a condensed operator-side (left) interface, Ethernet-based browser control, and compatibility with the optional RCU-4 or WCU-4 control units.The modular ALEXA SXT family includes the flexibility of recording to the current or future media of your choice for each of your projects. Capture options include XR, and SXR capture drives with write speeds of up to 20 Gb/s, SxS PRO and SxS PRO+ cards, and CFast 2.0 cards. Faster in-camera processing speeds and capture to SXR drives boost the ALEXA SXT EV's maximum frame rates. RAID 1 (mirroring) capture provides additional data security for ALEXA SXT ProRes files.The ARRI LDS (lens data system) PL mount, the IFM-1 filter holder, shoulder mount, and 15mm LWS rod support are integrated into the ALEXA SXT EV. A 5-pin XLR connector supports 2-channel, 24-bit, 48 kHz audio. Choose from separately available Gold or V-mount battery plates, or an AC power supply to power the camera. Note: An EVF, ND filters, and recording-media adapter are not included with the SXT EV body, and must be ordered separately. Excellent Image Quality & High Dynamic Range -
- The ALEXA SXT family combines the powerful image processing of the ALEXA 65 with the familiar design of the original ALEXA user interface, producing sharp, natural-looking footage.
- A base sensitivity of EI 800 with a dynamic range of 14 plus stops effectively future-proofs your output for compatibility with HDR displays.
- The ALEXA SXT records in a WCG (Wide Color Gamut) exceeding current displays, and is compatible with the Rec 2020 color space.
- Record up to 120 fps for compatibility with HFR (high frame rate) display outputs.
Wide Array of Recording Formats -
- Choose from 14 in-camera recording formats, all of which are available in both full-fledged ARRIRAW, and smaller file ProRes options.
- Format options include 16:9 ProRes UHD 4K, Open Gate ProRes 4K Cine, economical 6:5 ProRes 2K Anamorphic and 6:5 ProRes 4K Cine Anamorphic, the VFX-friendly 4:3 ProRes 2.8K, the high-res Open Gate ProRes 3.4K, and the versatile 16:9 ARRIRAW 3.2K.
Anamorphic Solutions -
- The ALEXA's tall sensor is sized almost exactly the same as 35mm film, enabling anamorphic lenses to maintain their native fields of view.
- The ALEXA SXT'S efficient 6:5 sensor mode is equivalent to 1.194:1 image area, the same as half of the classic 2.39:1 CinemaScope aspect ratio. Use this mode to capture only the image area needed for a 2.39 output, with higher frame rates, higher ProRes resolutions, and fewer steps in post than the earlier 4:3 mode.
- ALF-2 files are stored in your recording's metadata, enabling your dailies and proxy editing files to display the same look as your master files. Supported systems include DaVinci Resolve, Colorfront OSD, Codex Production Suite, Pomfort Silverstack, and Filmlight Daylight.
Consistent Look Management -
- A new ARRI Color Tool (ACT) and ARRI Look File (ALF-2) enable you to create new looks in-camera. For easy multi-camera coordination, these looks are compatible with ALEXA Mini and AMIRA cameras.
- Lock in your look on set with the ALEXA SXT's live, on-set grading in Rec 709 or Rec 2020. Compatible third-party systems include Pomfort LiveGrade, Codex Live, Colorfront On-Set Live, Filmlight Prelight, Technicolor DP Lights, and more.
- The same look management can be automatically applied when using NLE systems such as Avid Media Composer, Apple Final Cut Pro X, and Adobe Premiere Pro.

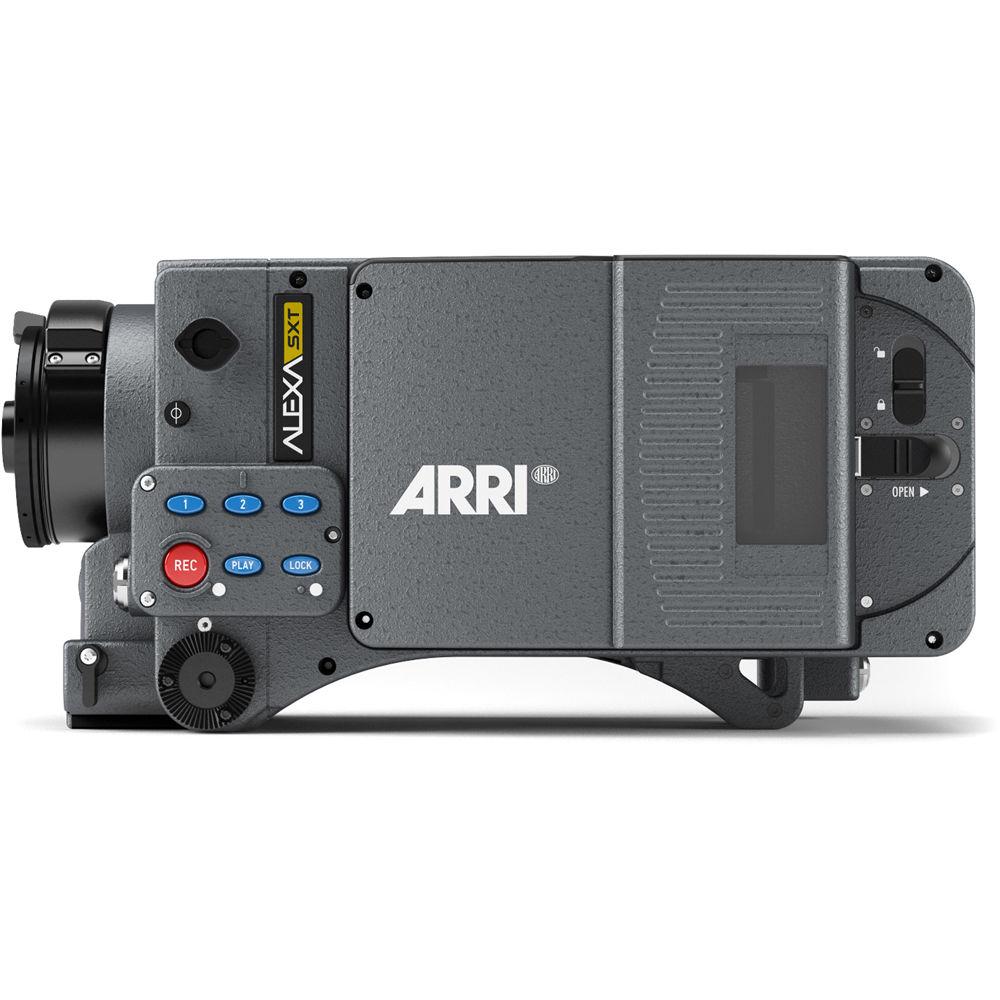

Features -
- Use with the adapter of your choice to record to SxS PRO or SxS PRO+ cards, CFast 2.0 cards, and XR or SXR capture drives
- Multiple control options include Ethernet-based browser control and compatibility with the optional RCU-4 and WCU-4 control units

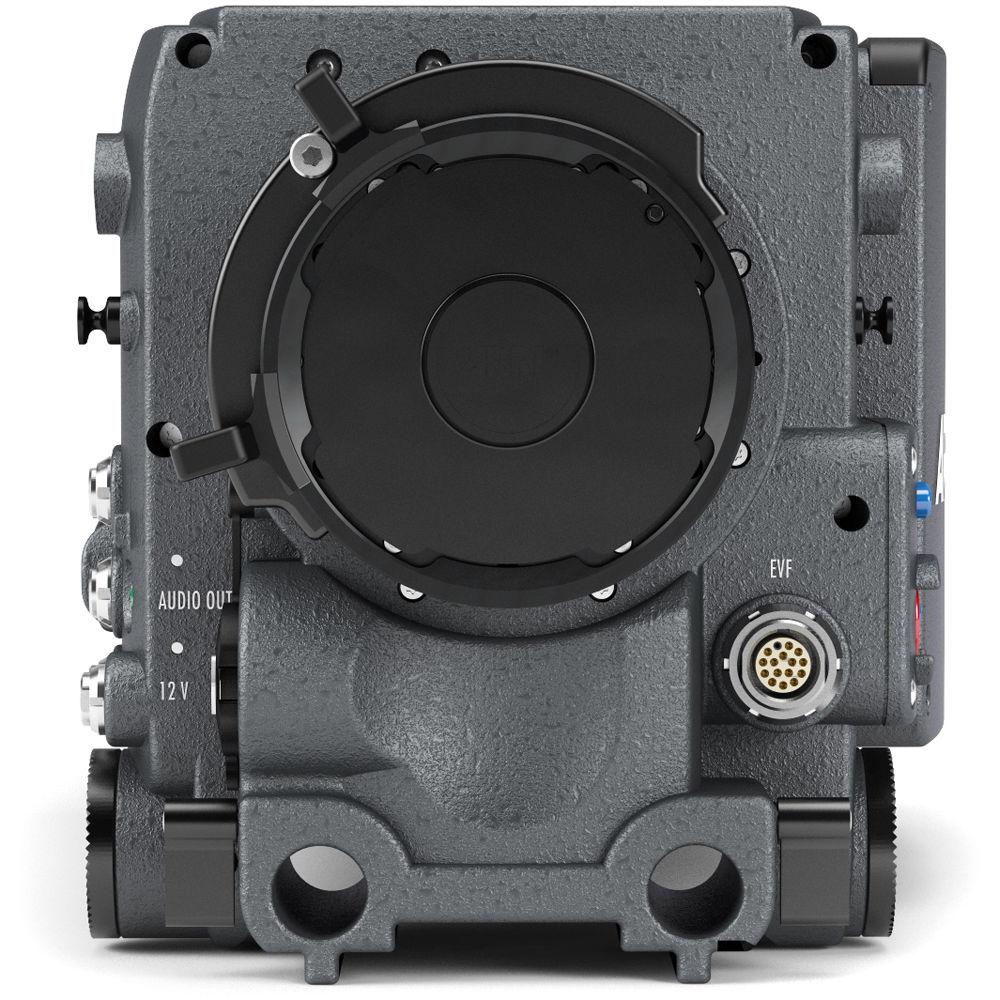

- Integrated PL lens mount with LDS (lens data system)
- The built-in IFM-1 filter holder accepts one of eight separately available ND filters
- Use with separately available Gold or V-mount battery plates
- Integrated shoulder arch, and 15mm LWS rod support
In the Box ARRI ALEXA SXT EV Camera Body (LDS PL) LDS PL Lens Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI ALEXA SXT EV Camera Body in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI ALEXA SXT Specs | | | Type | 35 mm Format CMOS | | Color Filter System | Bayer Pattern | | Active Photo Sites | Sensor Mode 16:9
ARRIRAW 2.8K: 2880 x 1620
ARRIRAW 3.2K: 3168 x 1782
16:9 ProRes HD: 2880 x 1620 Down-Sampled to 1920 x 1080
16:9 ProRes 2K: 2880 x 1620 Down-Sampled to 2048 x 1152
16:9 ProRes 3.2K: 3200 x 1800
16:9 ProRes UHD 4K: 3200 x 1800 Up-Sampled to 3840 x 2160
Sensor Mode 6:5
6:5 ARRIRAW 2.6K: 2578 x 2160
6:5 ProRes 2K Anamorphic: 2560 x 2146 Down-Sampled to 2048 x 858
6:5 ProRes 4K Anamorphic: 2560 x 2146 Re-Sampled to 4096 x 1716
Sensor Mode 4:3
4:3 ARRIRAW 2.8K: 2880 x 2160
4:3 ProRes 2.8K: 2880 x 2160
Sensor Mode Open Gate
Open Gate ARRIRAW 3.4K: 3424 x 2202
Open Gate ProRes 3.4K: 3424 x 2202
Open Gate ProRes 4K Cine: 3414 x 2198 Up-Sampled to 4096 x 2636 | | Operating Modes | 16:9, 6:5, 4:3 or Open Gate Sensor Modes Switching takes approximately 60 seconds; all sensor modes are available in ARRIRAW and ProRes. | | Image Processing | Internal: 16-Bit linear processing in full ALEXA Wide Gamut/Log C color space
Target Output: Log C, Rec 709 or Rec 2 color spaces | | | | Lens Mount | 54 mm Stainless Steel LDS PL Mount, Super 35-Centered
52.00 mm Nominal Flange Focal Depth (Without FSND Filters) | | Frame Rates | 16:9:
0.75 - 120 fps
6:5:
0.75 - 96 fps
4:3:
0.75 - 96 fps
Open Gate:
0.75 - 90 fps All speeds are adjustable with 1/1000 fps precision; some limitations based on recording media or recording format apply. | | Electronic Shutter | 5-358° up to 60 fps
5.0° to 356° Above 60 fps
Adjustable Shutter Angle: 1/10° Increments | | Built-In Filters | Optical Low-Pass
UV
IR | | Exposure Latitude | 14+ Stops from EI 160-3200 As measured with the ARRI Dynamic Range Test Chart (DRTC). | | Exposure Index | Number of Stops Above/Below 18% Gray:
EI 160 +5.2/-9.3
EI 200 +5.6/-8.9
EI 400 +6.6/-7.9
EI 800 +7.8/-6.7
EI 1600 +8.6/-5.9
EI 3200 +9.7/-4.8 | | White Balance Modes | Presets:
3200 (Tungsten)
4300 (Fluorescent)
5600 (Daylight)
7000 (Daylight Cool)
Automatic or Manual:
2000 to 11,000 Kelvin, Adjustable in 100K Steps | | Color Correction | Green/Magenta Adjustable Range: -12 to +12 CC 1 CC corresponds to 035 Kodak CC values or 1/8 Rosco values | | | | Sound Level | <19 dba While recording ProRes 4444 16:9 HD @ 24 fps, ≤ +86°F (+30°C) with a lens attached, fan mode set to Regular, measured 3' (1 m) in front of the lens. | | Audio Input | 1 x 5-Pin XLR for 2-Channel, Line Level, Balanced Audio A/D Conversion: 24-Bit, 48 kHz | | Audio Recording | Uncompressed PCM Audio: ARRIRAW, ProRes, Embedded in HD-SDI Output Only available with same project/sensor speed at 23.976, 24, 25, 29.97 and 30 fps | | Headphone Output | Maximum: 2.5 dBm | | | | Control Interface | Transflective Color LCD Screen:
3" (76.2 mm)
400 x 240 pixels | | | | Recording Codecs | 16:9:
ProRes UHD 4K/3.2K/2K/HD: 4444 XQ, 4444, 422 HQ, 422
ARRIRAW 3.2K, 2.8K
6:5:
ProRes 4K Cine Anamorphic 4444 XQ, 4444, 422 HQ, 422
ProRes 2K Anamorphic 4444 XQ, 4444, 422 HQ, 422
ARRIRAW 2.6K
4:3:
ProRes 2.8K: 4444 XQ, 4444, 422 HQ, 422
ARRIRAW 2.8K
Open Gate:
ProRes 4K Cine: 4444 XQ, 4444, 422 HQ, 422
ProRes 3.4K: 4444 XQ, 4444, 422 HQ, 422
ARRIRAW 3.4K | | Recording Media | SxS PRO or SxS PRO+ Cards (Requires SxS Adapter 2)
CFast 2.0 Cards (Requires CFast 2.0 Adapter 2)
XR Capture Drives (Requires XR Adapter)
SXR Capture Drives (Requires SXR Adapter) XR Capture Drive Docks require Codex Production Suite to read XR Capture Drives recorded with ALEXA SXT. | | Supported Media | SXR Capture Drive: Requires SXR Adapter B&H # ARK2.0008429 ARRI # K2.0008429
SXR Capture Drive 1 TB (Red Collar) CDX-37019 B&H # ARK2.0006942 ARRI # K2.0006942
SXR Capture Drive 2 TB (Blue Collar) CDX-37021 B&H # ARK2.0006157 ARRI # K2.0006157
Codex XR Capture Drive: Requires XR Adapter B&H # ARK2.0008430 ARRI # K2.0008430
XR Capture Drive 512 GB CDX-3730 ARRI # ---
SxS (ExpressCard/34): Requires SxS Adapter 2 B&H # ARK2.0006338 ARRI # K2.0006338
Sony SxS PRO/PRO+ 64 GB SBP-64A-D B&H # SOSBP64E Mfr. # SBP64E
Sony SxS PRO 128 GB SBP-128B-E B&H # SOSBP128E ARRI # K2.0003106
Sony SxS PRO 256 GB SBP-256D/E B&H # ARSXSP256 GB ARRI # K2.0014951
CFast 2.0: Requires Cfast 2.0 Adapter B&H # ARK2.00063 ARRI # K2.0006337
Lexar 3600x Cfast 2.0 256 GB LC256Cxxxx3600/G2 ARRI # --- With SXT SUP 2.0 installed. | | | | Connectors | Media Slot: 1 x SD Card Slot
Monitor Out 1.5G HD/SD-SDI: 3 x BNC
Audio In: 1 x XLR, 5-Pin Analog
Return/Sync In 1.5G HD-SDI: 1 x BNC

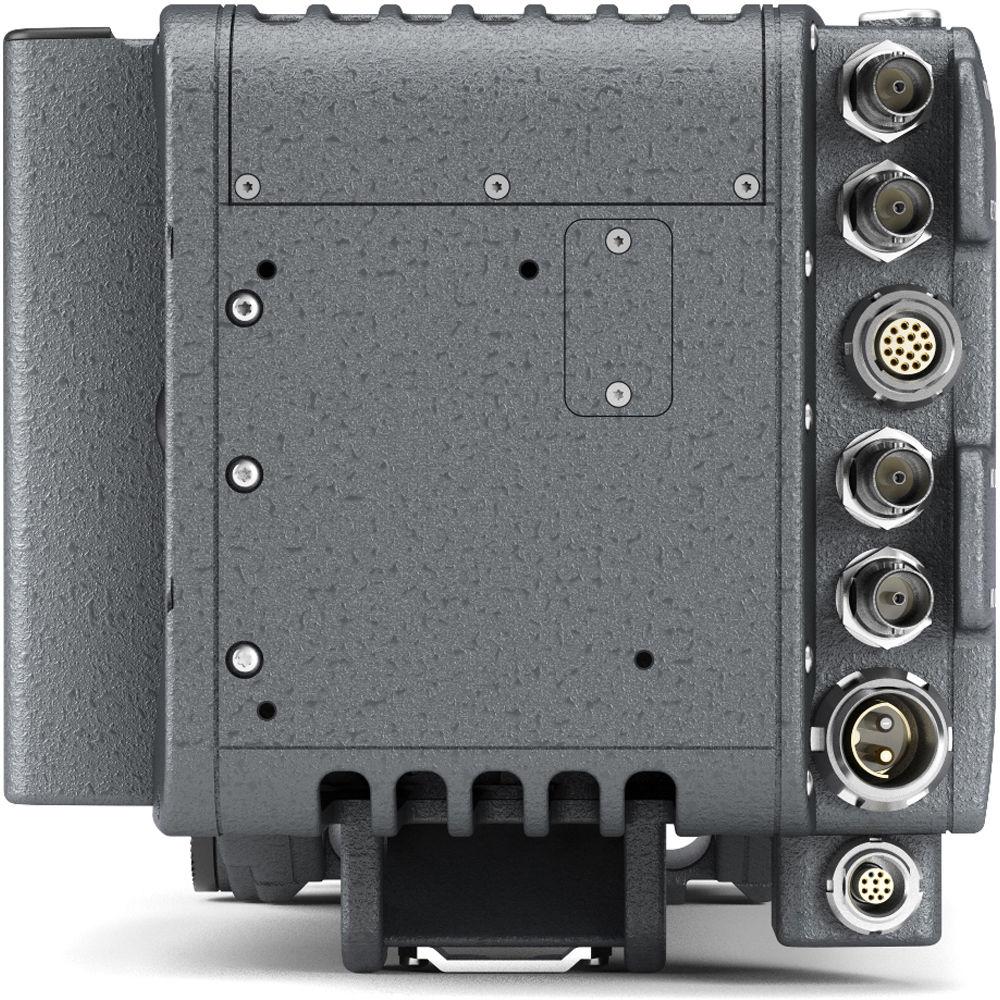

External Accessory Interface: 1 x 16-Pin LEMO
Battery In: 1 x Fischer 2-Pin, 24 V
Remote Start/Accessory Out: 2 x 3-Pin Fischer, 24 V
Accessory Power Out: 1 x 2-Pin LEMO, 12 V
Timecode In/Out: 1 x 5-Pin LEMO
Headphone Out: 1 x TRS 3.5 mm Mini Stereo
EVF: 1 x Custom 16-Pin LEMO
Ethernet: 1 x Custom 10-Pin LEMO with 24 V Power The BNC connectors may be swapped out without camera disassembly using the K5.72915.0 ALEXA Plus BNC Removal Tool. | | Power Input | 12 V Connector: Limited to 12 V, up to 2.2 A
RS, EXT and Ethernet:
Input Below 24 V is Regulated up to 24 V
Input Above 24 V: Input Voltage = Output Voltage
RS and EXT Connectors: Combined are Limited to 2.2 A
Ethernet: Limited to 1.2 A The maximum power draw is also limited by the power source. | | | | Operating Temperature | -4 to 113°F / -20 to 45°C | | Dust and Humidity | 95% maximum Humidity (Non-Condensing)
Splash and Dustproof | | | | Dimensions (LxWxH) | 13 x 6.5 x 6.2" / 33.1 x 16.6 x 15.8 cm | | Weight | 14.3 lb / 6.5 kg |
