Product description

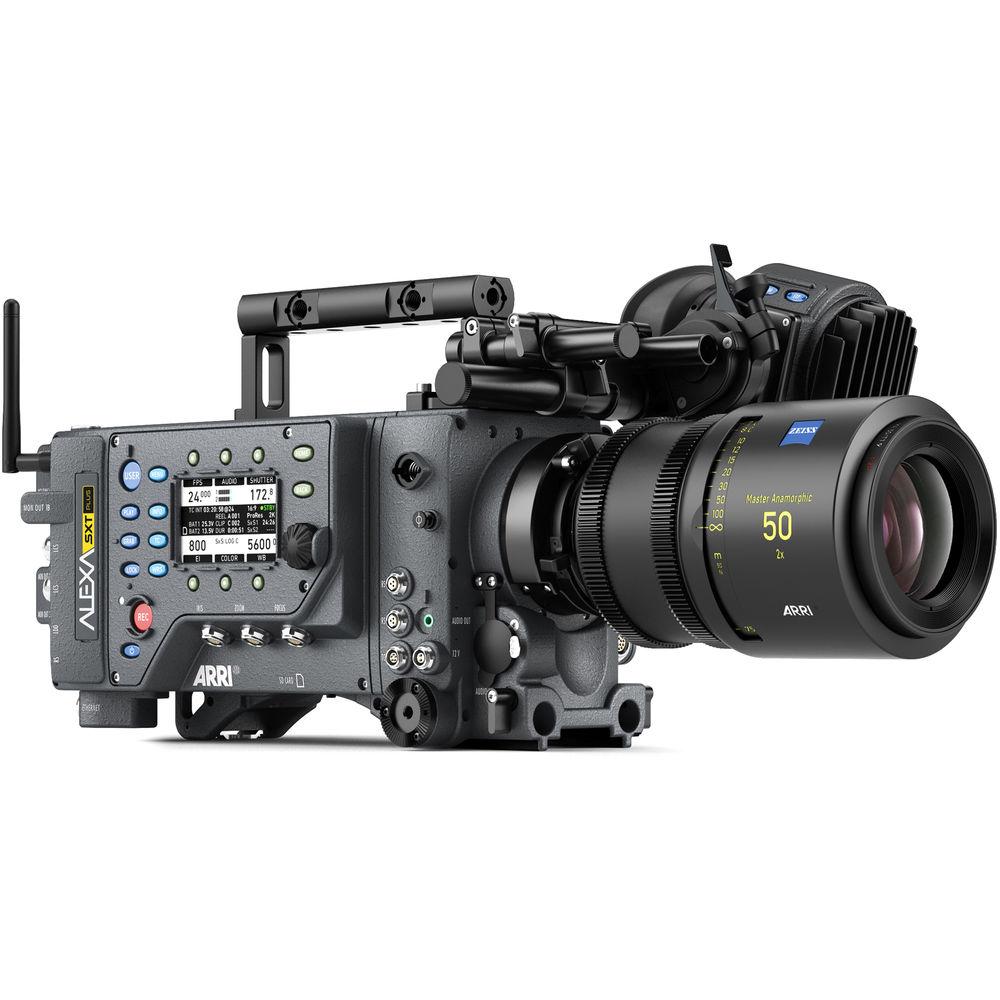

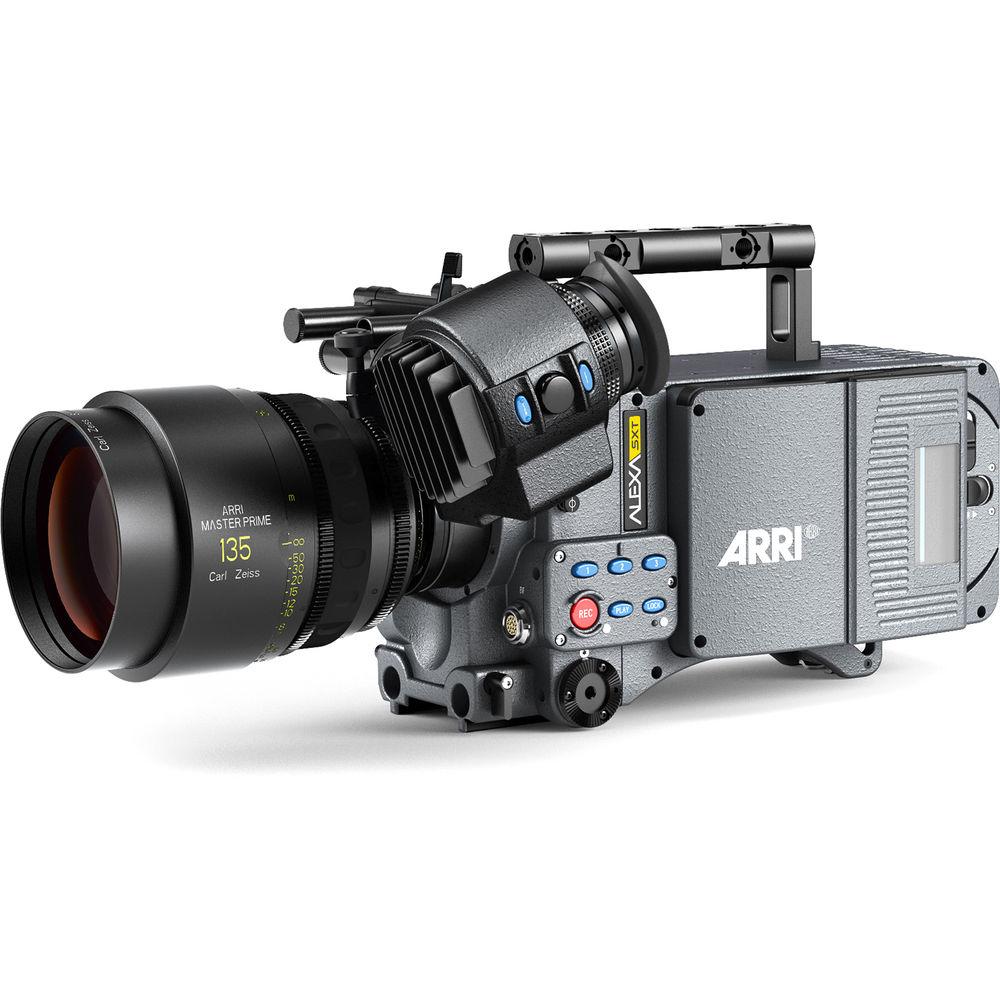

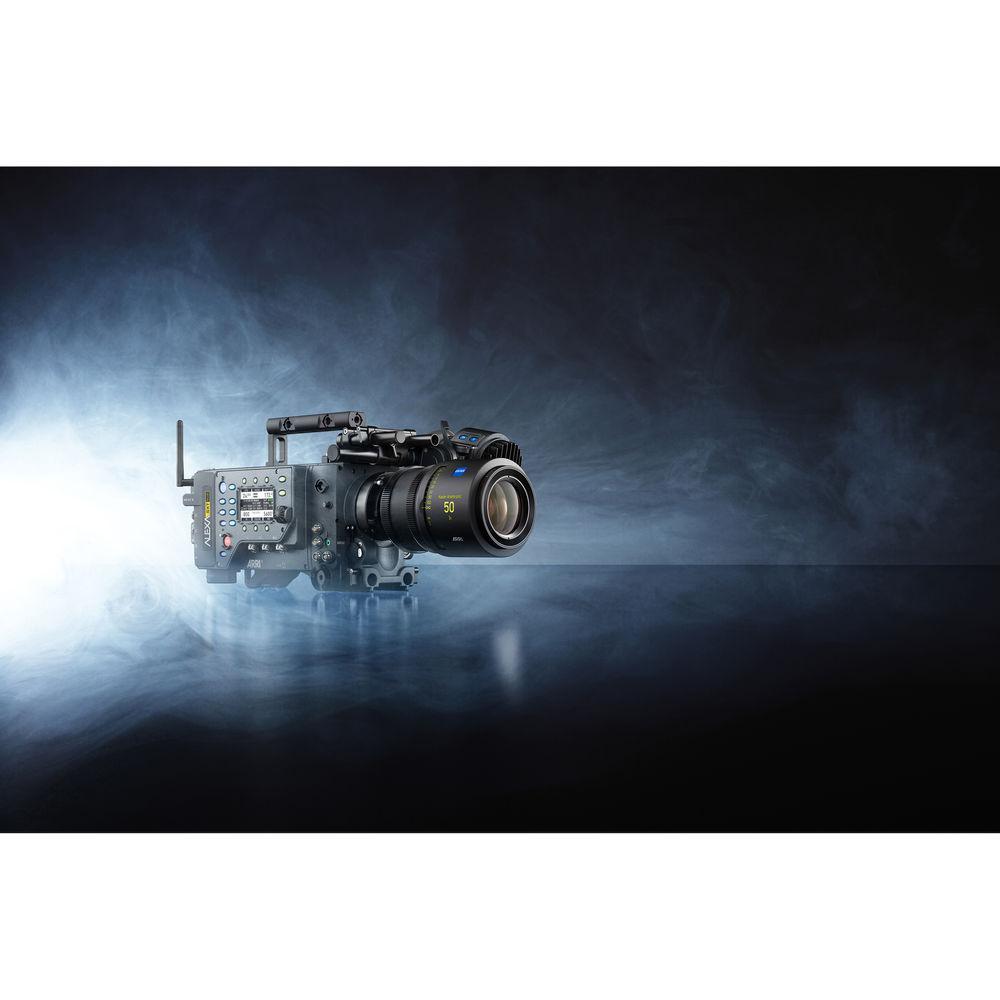

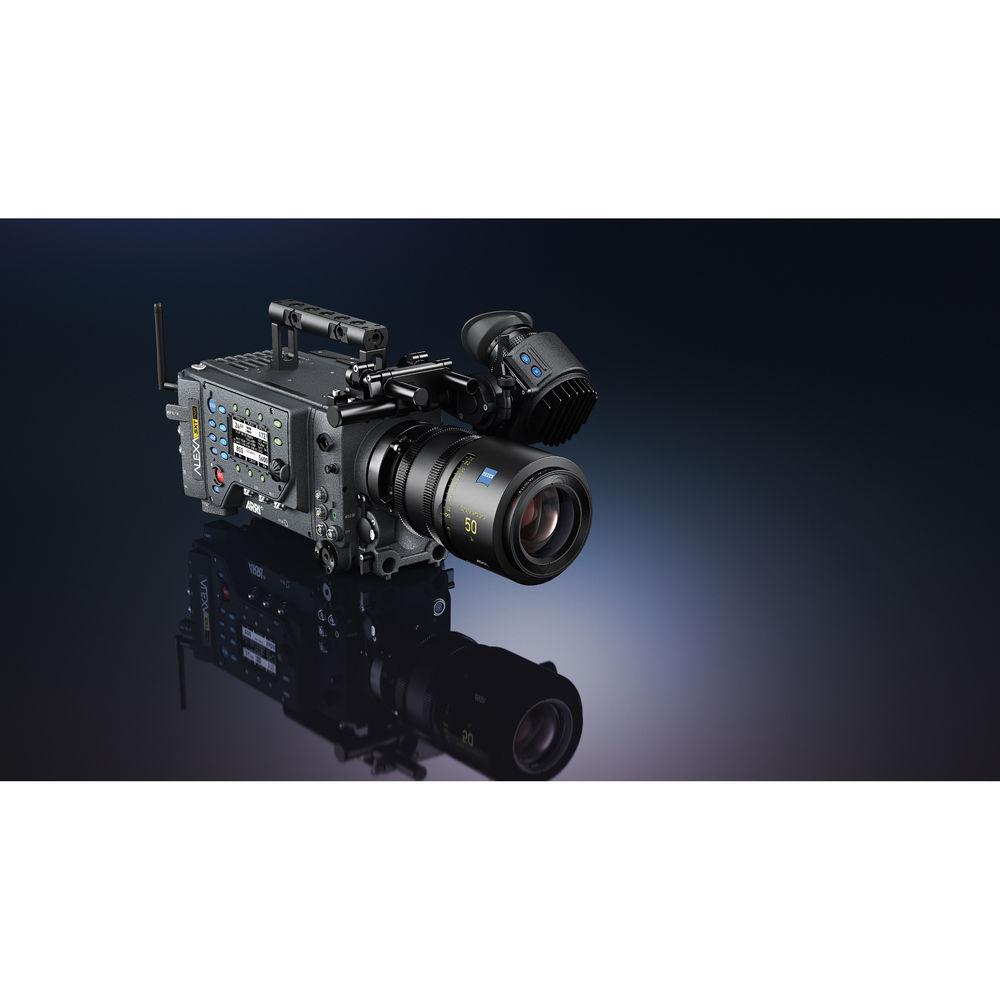

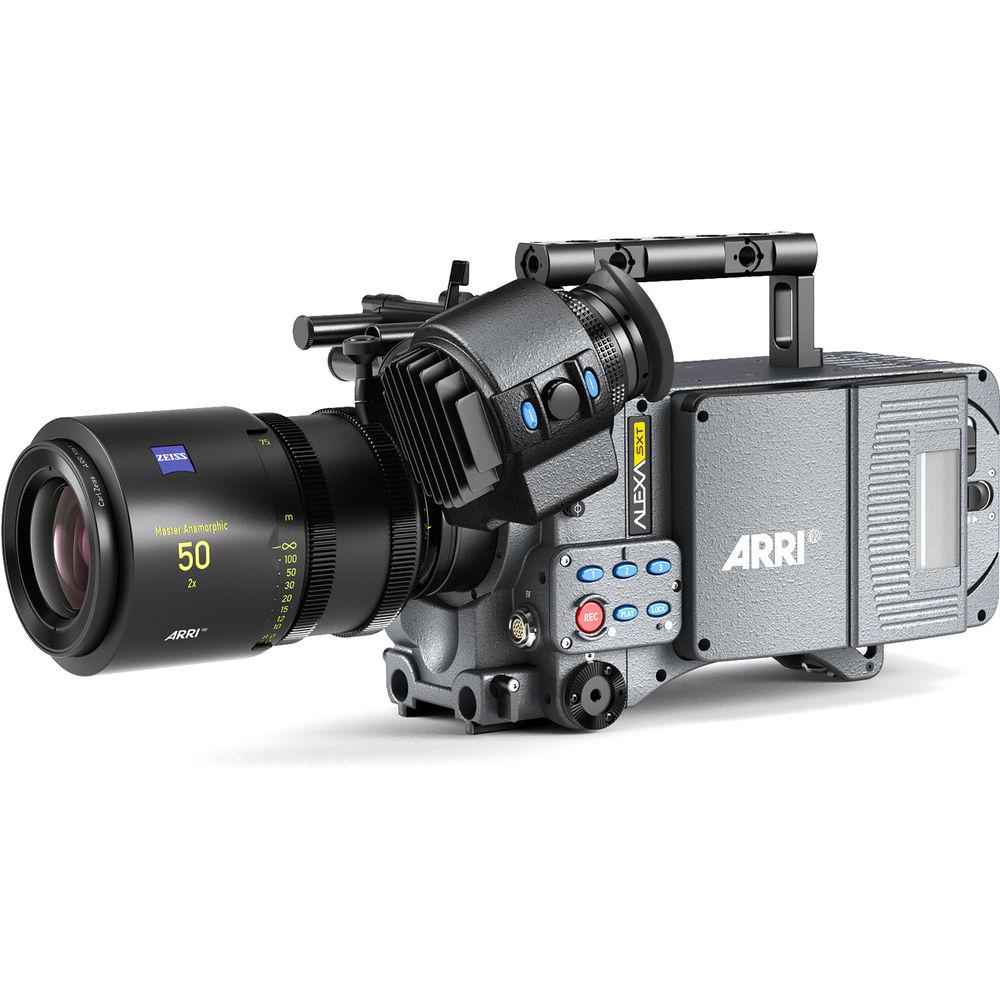

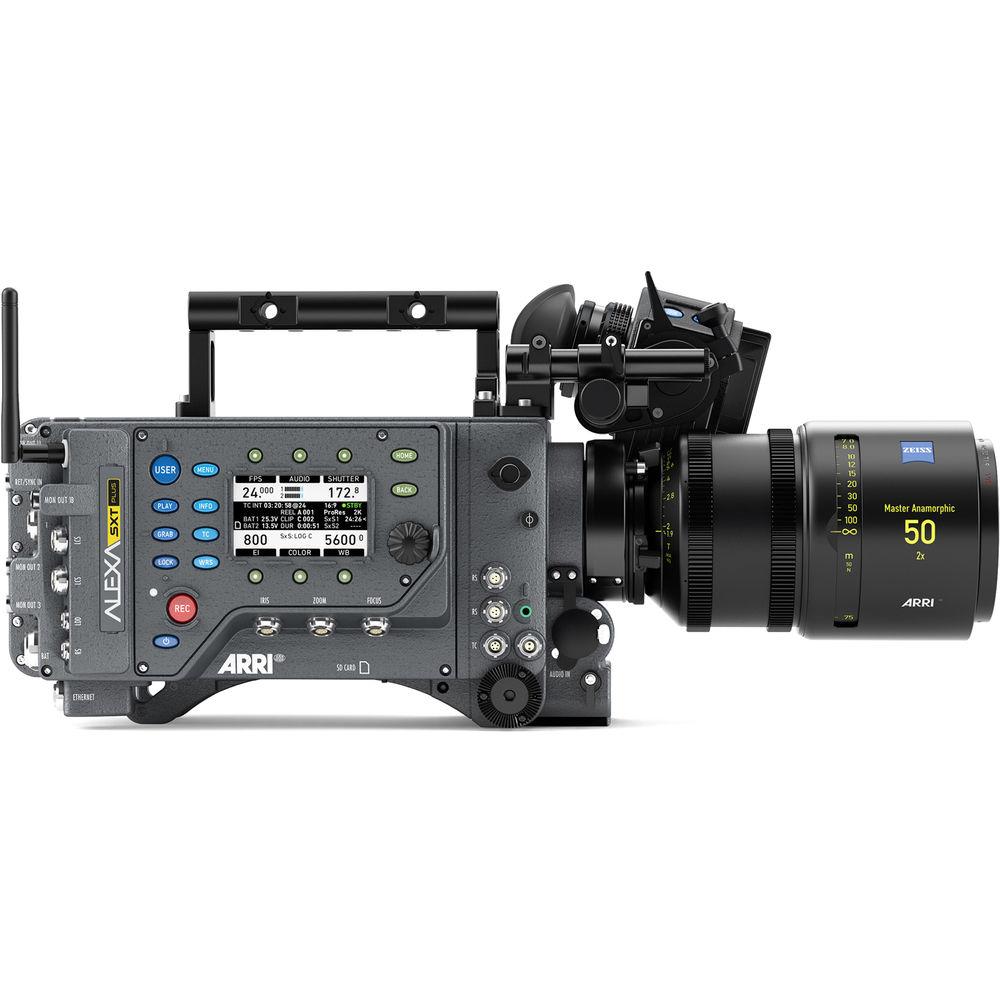

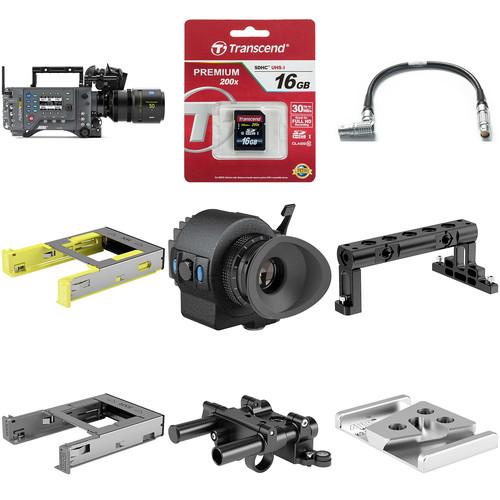

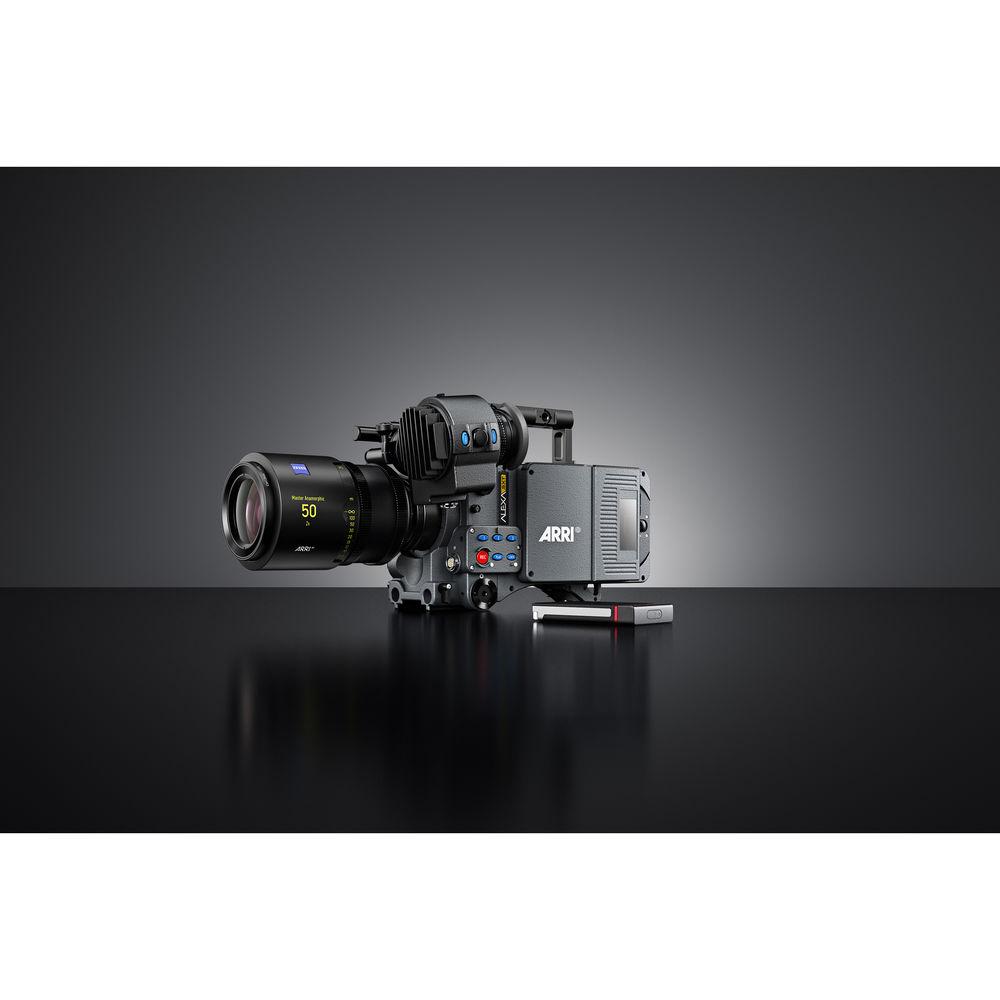

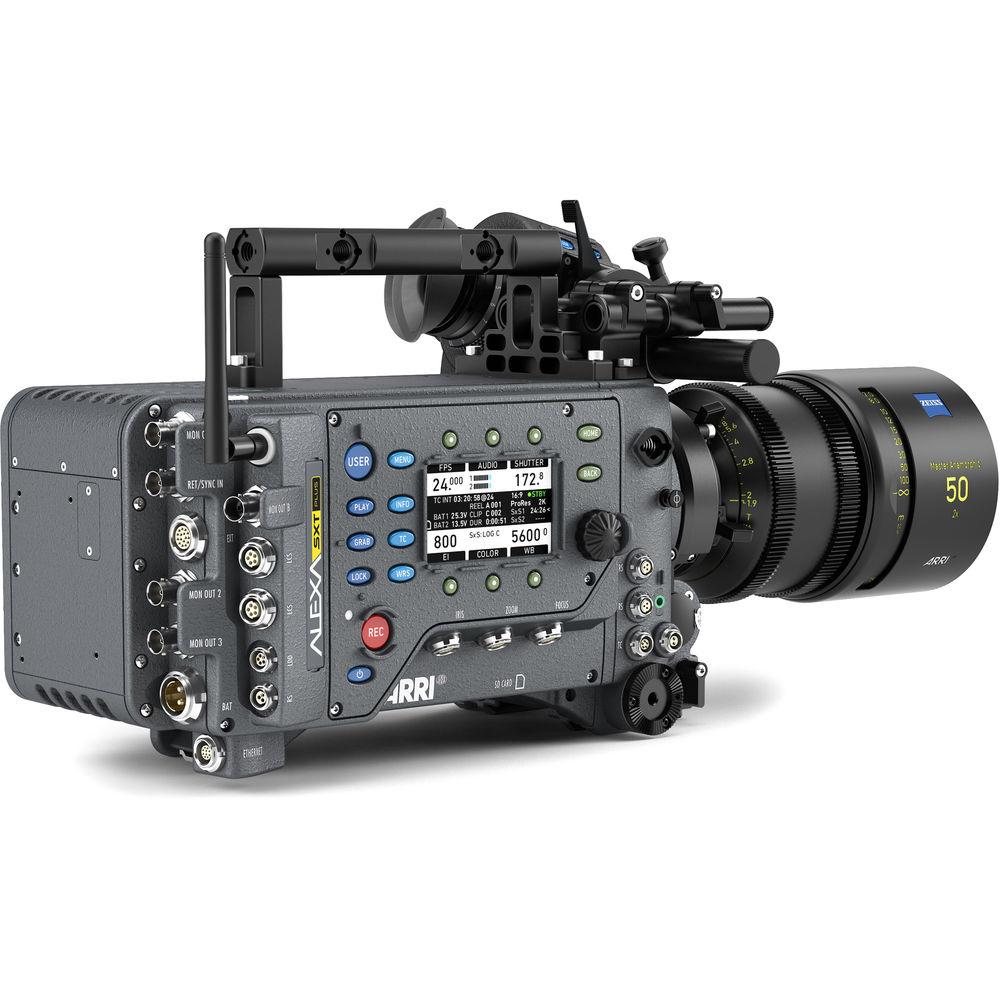

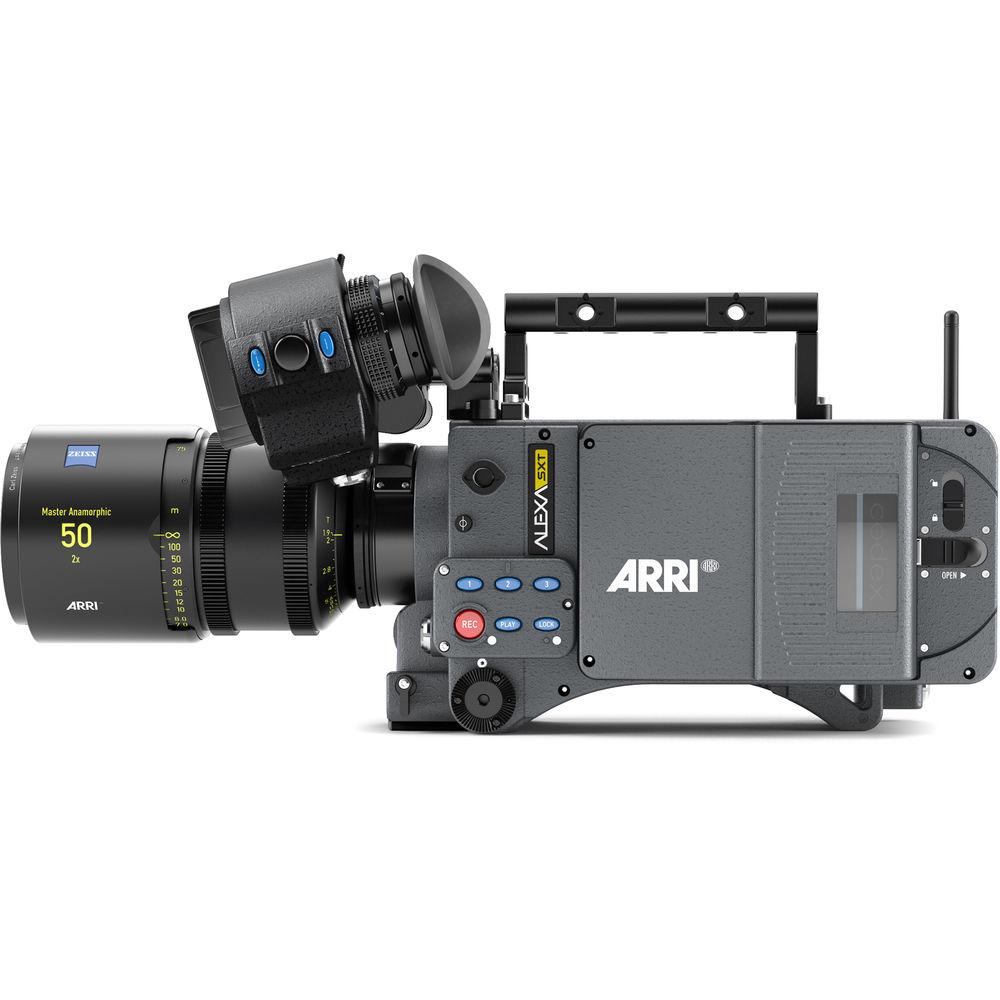

• ALEXA SXT Plus Camera Body (LDS PL) The most versatile of the ALEXA SXT digital cinema cameras, the ARRI ALEXA SXT Plus Camera Body (LDS PL) features built-in, wireless camera and lens control, tilt and roll sensors, a fourth monitor-out port, and a third RS/accessory connector. Wireless lens and camera control is increasingly popular, and the SXT Plus saves time on set by enabling you to plug lens motors directly into the camera, no motor control box is needed.The SXT Plus is compatible with ARRI controllers like the WCU-4, as well as with the cmotion hand units. The integrated wireless control also eliminates the weight of a motor controller from your camera rig. The built-in tilt and roll sensors are viewed as an electronic horizon in the EVF by the operator, and the information is stored in your recording metadata for VFX and shot-matching uses.Record in UHD 4K, Cine 4K, 2K, or HD with 16-bit processing for sharp, natural-looking images. The ALEXA SXT Plus provides an array of recording format choices in ARRIRAW and ProRes including 6:5 and 8:9 anamorphic modes (with SUP 3.0). With a base sensitivity of EI 800, and a dynamic range of 14-plus stops, your footage is effectively future-proofed for compatibility with HDR displays. The ALEXA SXT Plus' Wide Color Gamut exceeds current display standards, and is compatible with the Rec 2020 color space. Full-image frame rates up to 120 fps enable capture for higher-clarity HFR (High Frame Rate) projects.The ALEXA SXT Plus' improved image-processing system includes the ability to "bake-in" 3D LUTs at capture, a mild noise reduction feature (ANR), and a pixel correction function. ARRIRAW recording is optimized for VFX and archival capture, with uncompressed data available for sculpting with today and tomorrow's latest post-production processing. The look management architecture has been updated with the new ARRI Color Tool (ACT) and ARRI Look File (ALF-2), offering the ability to maintain your look from prep to post with on-set grading. Look files are stored in your recordings' metadata, enabling the automatic application of your on-set look to dailies, proxies, and editing files using popular NLE systems.User-friendly features include the ability to apply customized settings to each of the ALEXA SXT Plus' outputs (EVF and four monitor outs), enabling the director, DP, DIT, or AC to see just the on-screen information they need, in SDR or HDR, in the color space of their choice. Standard and high-speed recording rates are now accessible in the same mode, eliminating the need to switch to a high-speed mode.The modular ALEXA SXT family includes the flexibility of recording to the current or future media of your choice for each of your projects. Capture options include XR and SXR Capture Drives with write speeds up to 20 Gb/s, SxS PRO and SxS PRO+ cards, and CFast 2.0 cards. Faster in-camera processing speeds, and capture to SXR drives boost the ALEXA SXT Plus' maximum frame rates. RAID 1 (mirroring) capture provides additional data security for ALEXA SXT ProRes files.The ARRI LDS (lens data system), the IFM-1 filter holder, shoulder mount, and 15mm LWS rod support are built into the ALEXA SXT Plus. A 5-pin XLR connector supports 2-channel, 24-bit, 48 kHz audio. Choose from separately available Gold or V-mount battery plates, or an AC power supply to power the camera. Note: An EVF, ND filters, and recording media adapter are not included with the SXT Plus body, and must be ordered separately.

  Excellent Image Quality & High Dynamic Range

  • • The ALEXA SXT family combines the powerful image processing of the ALEXA 65 with the familiar design of the original ALEXA user interface, producing sharp, natural-looking footage.
    • A base sensitivity of EI 800 with a dynamic range of 14 plus stops effectively future-proofs your output for compatibility with HDR displays.
    • The ALEXA SXT records in a WCG (Wide Color Gamut) exceeding current displays, and compatible with the Rec 2020 color space.
    • Record up to 120 fps for compatibility with HFR (High Frame Rate) display outputs.

  SXT Plus Features

  • • Wireless or wired remote lens and camera control
    • Plug-and-play with ARRI Electronic Control System (ECS)
    • Compatible with cmotion cvolution lens control systems
    • Integrated tilt and roll sensors with an EVF-viewable horizon, and stored position metadata
    • Additional (fourth) monitor output (1.5G HD-SDI), and third RS accessory port
  Wide Array of Recording Formats
  • • Choose from 14 in-camera recording formats, all of which are available in both full-fledged ARRIRAW, and smaller file ProRes options.
    • Format options include 16:9 ProRes 4K UHD, Open Gate ProRes 4K Cine, economical 6:5 ProRes 2K Anamorphic and 6:5 ProRes 4K Cine Anamorphic, the VFX-friendly 4:3 ProRes 2.8K, the high-res Open Gate ProRes 3.4K, and the versatile 16:9 ARRIRAW 3.2K.

  Anamorphic Solutions

  • • The ALEXA's tall sensor is sized almost the same as 35mm film, enabling anamorphic lenses to maintain their native fields of view.
    • The ALEXA SXT'S efficient 6:5 sensor mode is equivalent to 1.194:1 image area, the same as half of the classic 2.39:1 CinemaScope aspect ratio. Use this mode to capture only the image area needed for a 2.39 output, with higher frame rates, higher ProRes resolutions, and fewer steps in post than the earlier 4:3 mode.
    • ALF-2 files are stored in your recording's metadata, enabling your dailies and proxy editing files to display the same look as your master files. Supported systems include DaVinci Resolve, Colorfront OSD, Codex Production Suite, Pomfort Silverstack, and Filmlight Daylight.

  Consistent Look Management

  • • A new ARRI Color Tool (ACT) and ARRI Look File (ALF-2) enable you to create new looks in-camera. For easy multicamera coordination, these looks are compatible with ALEXA Mini and AMIRA cameras.
    • Lock in your look on set with the ALEXA SXT's live, on-set grading in Rec 709 or Rec 2020. Compatible third-party systems include Pomfort LiveGrade, Codex Live, Colorfront On-Set Live, Filmlight Prelight, Technicolor DP Lights, and more.
    • The same look management can be automatically applied when using NLE systems such as Avid Media Composer, Apple Final Cut Pro X, and Adobe Premiere Pro.

  Features

  • • Use with the adapter of your choice to record to SxS PRO or SxS PRO+ cards, CFast 2.0 cards, XR or SXR Capture Drives
    • Multiple control options including Ethernet-based browser control, and compatibility with the optional RCU-4 and WCU-4 control units
    • The built-in IFM-1 filter holder accepts one of eight separately available ND filters
    • Use with separately available Gold or V-mount battery plates
    • Integrated shoulder arch, and 15mm LWS rod support

  Supported Media

  • SXR Capture Drive: Requires SXR Adapter # ARK2.0008429 ARRI # K2.0008429
    SXR Capture Drive 1 TB (Red Collar) CDX-37019 # ARK2.0006942 ARRI # K2.0006942
    SXR Capture Drive 2 TB (Blue Collar) CDX-37021 # ARK2.0006157 ARRI # K2.0006157
  • Codex XR Capture Drive: Requires XR Adapter # ARK2.0008430 ARRI # K2.0008430
    XR Capture Drive 512GB CDX-3730 ARRI # ---
  • SxS (ExpressCard/34): Requires SxS Adapter 2 # ARK2.0006338 ARRI # K2.0006338
    Sony SxS PRO/PRO+ 64GB SBP-64A-D # SOSBP64E Mfr. # SBP64E
    Sony SxS PRO 128GB SBP-128B-E # SOSBP128E ARRI # K2.0003106
    Sony SxS PRO 256GB SBP-256D/E # ARSXSP256GB ARRI # K2.0014951
  • CFast 2.0: Requires CFast 2.0 Adapter # ARK2.00063 ARRI # K2.0006337
    Lexar 3600x CFast 2.0 256GB LC256Cxxxx3600/G2 ARRI # ---
• Codex SXR Capture Drive Adapter Use the Codex SXR Capture Drive Adapter from ARRI to mount an SXR drive on an ALEXA SXT or ALEXA LF camera. Compatible ALEXA SXT models include the ALEXA SXT EV, SXT Plus, SXT Studio, and SXT W. Note: This adapter is not compatible with ALEXA XT/XR cameras, nor Codex XR capture drives.
  Compatible Cameras
  • ALEXA LF

    ALEXA SXT EV
    ALEXA SXT Plus
    ALEXA SXT Studio
    ALEXA SXT W
  Codex Product Code
  • CDX-37097
• XR Adapter for ALEXA SXT Cameras The ARRI XR Adapter is used to mount an XR capture drive on an ALEXA SXT camera, such as the ALEXA SXT EV, SXT Plus, SXT Studio, and SXT W. Note: This adapter is not compatible with SXR capture drives.
  Compatible Cameras
  • ALEXA SXT EV
    ALEXA SXT Plus
    ALEXA SXT Studio
    ALEXA SXT W
  Codex Product Code
  • CDX-37096
• SD Memory Card for ALEXA Cameras This 16GB SD Memory Card for ALEXA Cameras from ARRI can be used for saving or loading a variety of camera functions. Use it for LUTs, user preference settings, framelines, frame grabs, license keys, and lens tables for the LDS archive. It may also be employed when installing SUPs (software update packets).
• EVF-1 Electronic Viewfinder for Most ALEXA Cameras The ARRI EVF-1 Electronic Viewfinder for ALEXA provides a low-latency, film-style image display. An on-screen menu provides both EVF and basic camera control. This FLCOS micro-display panel has a resolution of 1280 x 784, and includes a surround view that enables you to spot objects just outside your recorded image frame. Glass optics give the EVF-1 a high-contrast, evenly-illuminated viewing area. Controls include a jog wheel, a Zoom button with 2.25x pixel-to-pixel magnification for checking focus, and an Exposure button for engaging a false-color exposure check. Features include customizable framelines, camera and lens info displays, and an image flip function. Note: The EVF-1 is not compatible with ALEXA Mini, nor ALEXA AMIRA cameras.
  Features
  • • Film-style image display with latency of <1 frame
    • Provides EVF and basic camera controls
    • Glass optics provide a high-contrast, low-distortion display
    • Surround view enables you to spot objects just outside your recorded frame
    • 2.25x zoom function for checking focus
    • False-color exposure check, and an image-flip function
  Compatible Cameras
  • • ALEXA Classic, ALEXA Classic with XR Module
    • ALEXA XT, ALEXA SXT (requires EVA-1 adapter)
    • ALEXA Classic Studio, ALEXA Classic Studio with XR Module
    • ALEXA XT Studio (requires EVA-1 adapter)
• VMB-3 Viewfinder Mounting Bracket The ARRI VMB-3 Viewfinder Mounting Bracket provides a sturdy mounting option for your ALEXA's electronic viewfinder. This bracket provides left/right, and up/down movement of the EVF, as well as 360° of rotation, and left- or right-side positioning on the camera. Features include an integrated bubble level, and one 3/8"-16 accessory-mounting thread.
  Features
  • • For ARRI ALEXA cameras
    • Compatible with ARRI EVF-1, and select 15mm LWS-mount viewfinders
    • Enables left/right, and up/down movement of the EVF, 360° of rotation, and left- or right-side positioning on the camera
    • 15mm LWS rod standard
    • Built-in bubble level, and one 3/8"-16 accessory thread
  Compatible Cameras
  • • ALEXA XT, ALEXA SXT
    • ALEXA Mini
    • ALEXA Classic, ALEXA Classic with XR Module

      Requires EVA-1 adapter:

    • ALEXA Classic Studio, ALEXA Classic Studio with XR Module
    • ALEXA XT Studio, ALEXA SXT Studio
• KC 150-S Short EVF-1 Viewfinder Cable (1.2') The 1.2' KC 150-S Short EVF-1 Viewfinder Cable from ARRI connects the EVF-1 viewfinder to select ALEXA cameras. This shorter cable eliminates the need to wrap any excess length of cable.
• CCH-1 Center Camera Handle for Select ALEXA Cameras The ARRI CCH-1 Center Camera Handle is a sturdy carrying handle featuring multiple 3/8"-16 threaded holes for attaching accessories. Designed for use with select ALEXA cameras (listed below), it attaches to the top of the camera via three screws. Note: The CCH-1 handle may be used with the BAT-G battery adapter attached, but it will not work with the BAT-V battery adapter, nor when any on-board battery is mounted to the top of the camera.
  Compatible ARRI Cameras
  • ALEXA, ALEXA Plus, ALEXA Plus 4:3
    ALEXA M body
    ALEXA Studio
    ALEXA XT, ALEXA XT M body, ALEXA XT Plus, ALEXA XT Studio
    ALEXA SXT EV, ALEXA SXT Plus, ALEXA SXT Studio
• WA-1 Wedge Adapter The ARRI WA-1 Wedge Adapter is designed for use with ARRI, Sony, and Panasonic video-style quick release plates. The WA-1 attaches to the bottom of most ARRI ALEXA camera models including the ALEXA, ALEXA Plus, ALEXA Plus 4:3, ALEXA M body, ALEXA XT, ALEXA XT M body, ALEXA XT Plus, ALEXA SXT EV, ALEXA SXT Plus, and the ALEXA SXT W. It is not compatible with ALEXA Studio, ALEXA XT Studio, or ALEXA SXT Studio cameras.
  Compatible Cameras
  • ALEXA, ALEXA Plus, ALEXA Plus 4:3
    ALEXA M body, ALEXA XT M body
    ALEXA XT, ALEXA XT Plus
    ALEXA SXT EV, ALEXA SXT Plus, ALEXA SXT W

• LDS PL Lens Mount

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Mounting Screws

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ALEXA SXT Plus Camera Body (LDS PL)

  Image Sensor Size	Super35
  Sensor Type	CMOS
  Color Filter	Bayer
  ISO	160 to 3200
  Advertised Dynamic Range	14 Stops

  Lens Mount	PL Mount
  Lens Communication	Yes, ARRI LDS
  Shutter Angle	5 to 358 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 75 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
