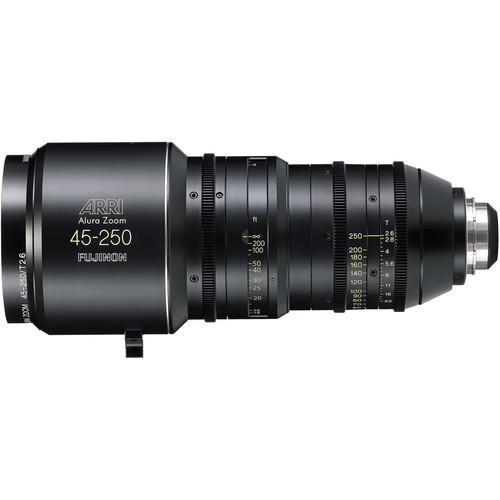

User Manual for ARRI Alura 45-250mm T2.6 F Telephoto Studio Zoom with PL Mount Click to enlarge the picture
Contents of the user manual for the ARRI Alura 45-250mm T2.6 F Telephoto
- Product category: Digital Cine Lenses ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Digital Cine Lenses
|
User manual for the ARRI Alura 45-250mm T2.6 F Telephoto contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description ARRI Lensesthe Current Professional Standard in Cinema Read More The ARRI/Fujinon 45-250mm Alura Studio Zoom (Feet) is a long PL-mount lens that covers up to Super 35mm-sized camera sensors and is optimized for the ARRI ALEXA 2K 16:9 format. The 45-250mm Alura features a fast T2.6 aperture throughout its zoom range and cine-style lens ergonomics. The 45-250mm is the longer of two Alura Studio zooms, complementing the wider 18-80mm lens. Both are designed with color characteristics to match ARRI's wide selection of existing lenses.The Alura zooms' optical features include high resolution and contrast performance, a multi-layer coating to reduce flares and veiling, reduced chromatic aberration, and minimized breathing while focusing. A nine-bladed iris produces a rounded, natural-looking bokeh (out-of-focus highlights).Focus, zoom, and iris barrels are geared in 0.8 mod pitch for interfacing with industry-standard lens accessories such as follow focus units and wireless F/I/Z controls. For easier focus pulling, large focus scales are placed on both sides of the lens barrel. Marked in feet, the focus scales can be quickly changed to meters by an authorized ARRI service provider. Exchangeable front and rear elements are easily serviced and can potentially extend the life of your Alura. - Fast T2.6 is consistent across the entire 45-250mm zoom range
- Optimized for the ARRI ALEXA 2K 16:9 format, the Aluras cover up to Super 35mm camera sensors
- Industry standard 0.8 film pitch gears for focus, zoom, and iris control
- A 9-blade iris produces rounded, natural looking bokeh (out-of-focus highlights)
- The large barrel markings in feet are switchable to meters by an authorized ARRI service provider
In the Box ARRI Alura 45-250mm T2.6 F Telephoto Studio Zoom with PL Mount (Feet) Limited 1-Year Warranty Cinema Lens Care and Maintenance Mary Latvis 03/29/2017 Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Alura 45-250mm T2.6 F Telephoto Studio Zoom with PL Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI Alura 45-250mm T2.6 (ft) Specs | Focal Length | 45 to 250mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Image Circle | 30.0 mm | | Maximum T-Stop | T2.6 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 36.9 to 6.9° at 18mm & 80mm | | Horizontal Angle of View | Super35: 29.9 to 5.5° at 18mm & 80mm | | Minimum Focus Distance from Image Plane | 3.9' / 1.19 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch | | Front Diameter | 134 mm | | Filter Thread | None | | Focus Scales | Imperial | | Electronic Communication | No | | Tripod Mounting Thread | 3/8"-16 | | Dimensions (W x H) | 6.02 x 6.02" / 153 x 153 mm Maximum housing diameter | | Length | 14.57" / 370 mm | | Weight | 16.5 lb / 7.5 kg | | | | Package Weight | 20.4 lb | | Box Dimensions (LxWxH) | 20.3 x 11.4 x 10.7" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
