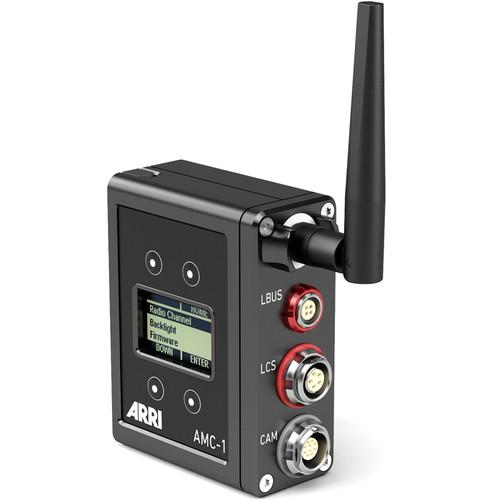

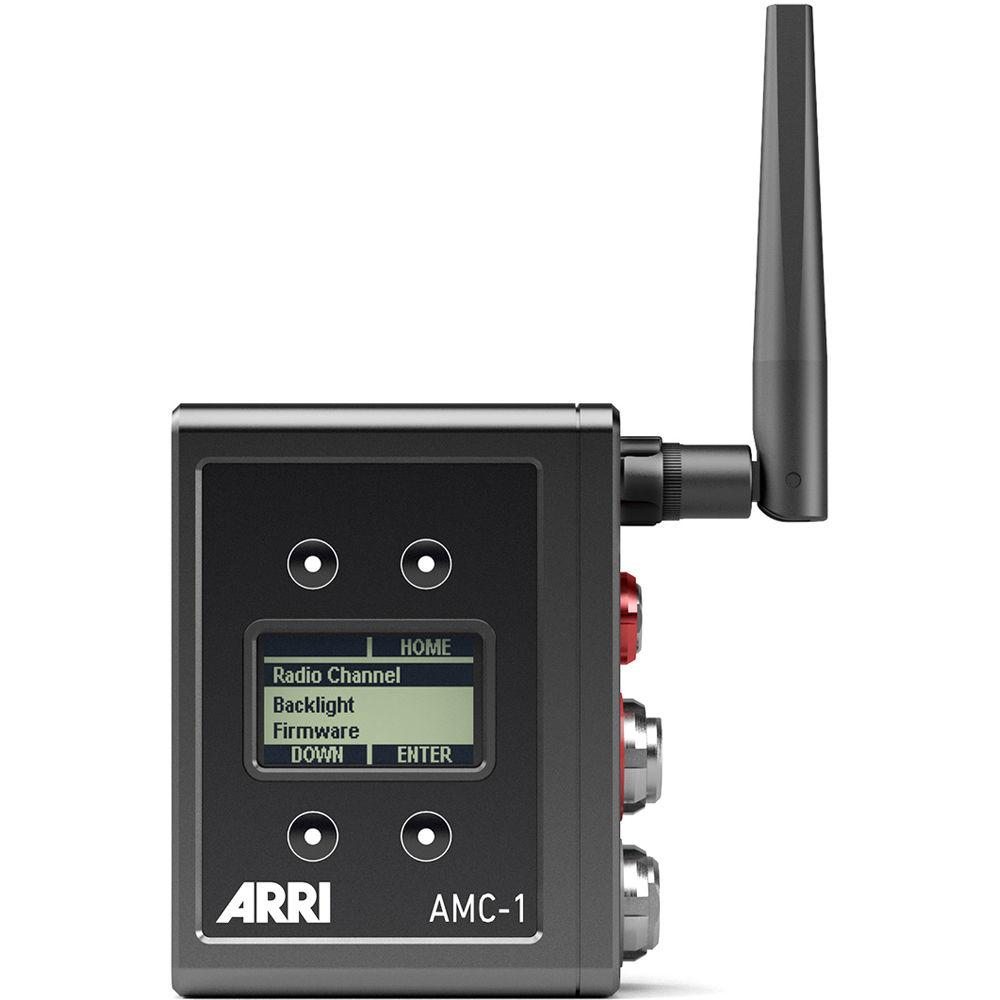

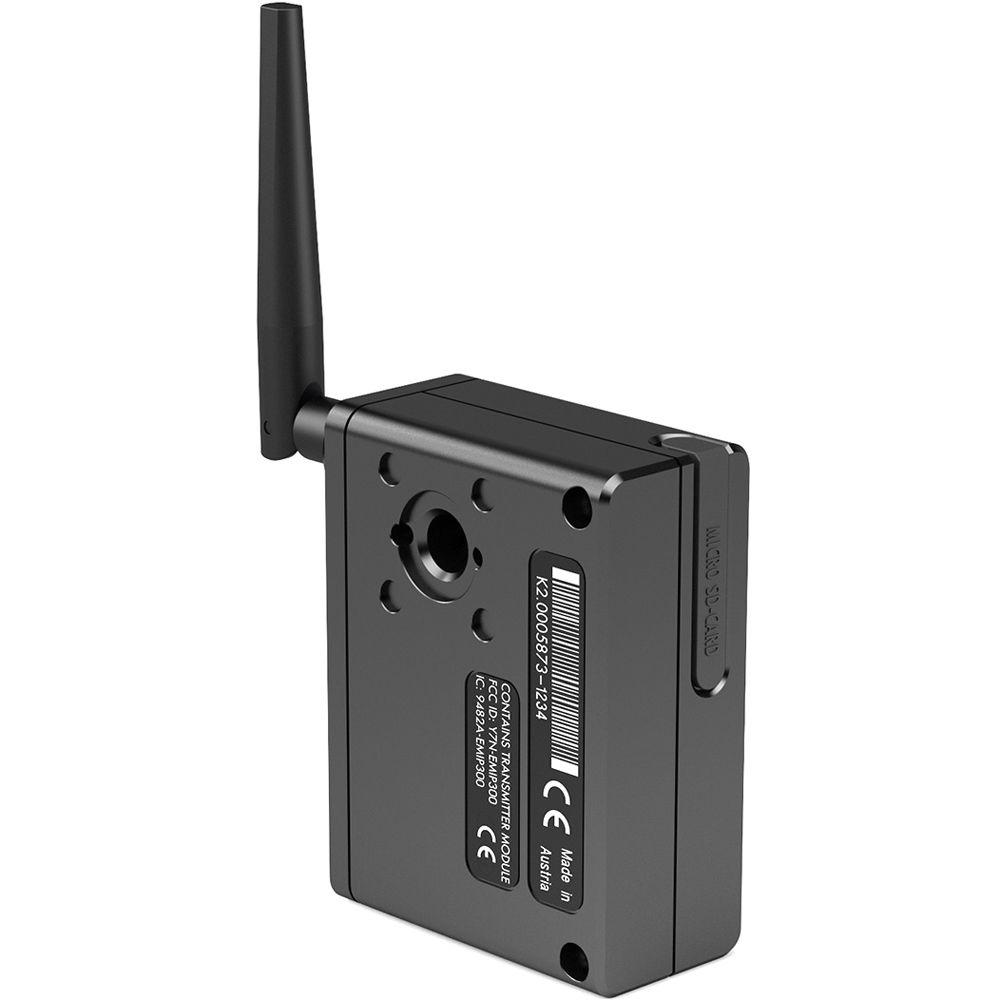

User Manual for ARRI AMC-1 Active cforce Motor Controller with LBUS Interface Click to enlarge the picture
Contents of the user manual for the ARRI AMC-1 Active cforce Motor Controller
- Product category: Wireless Lens Control Accessories ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Wireless Lens Control Accessories
 |
User manual for the ARRI AMC-1 Active cforce Motor Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description Use the ARRI AMC-1 Motor Controller to remotely control focus, iris, and zoom via an LBUS interface. The AMC-1 Controller can link up to three daisy-chained cforce motors, and is compatible with WCU-4, SXU-1, Master Grip, and cmotion units. Compatible cameras include the ARRI ALEXA, AMIRA, and a wide variety of third-party cameras. The AMC-1 mini motor-controller features a compact design, suiting it for handheld, gimbal, drone, and other lightweight camera configurations. Features - Links up to three cforce motors for focus, iris, and/or zoom control
- Works with ARRI and third-party cameras using an LBUS interface or adapter
- Compatible with WCU-4, SXU-1, Master Grips, and the cmotion pan-bar zoom control
- Compact, lightweight design is suitable for use in gimbal, drone, and handheld configurations
Interface - Antenna
LBUS connector - 4-pin connector
ARRI LCS connector - 5-pin connector
CAM connector - 10-pin connector
3/8"-16 mounting thread In the Box ARRI AMC-1 Active cforce Motor Controller with LBUS Interface 3.3" Swivel Antenna for SMC-1/EMC-1/AMC-1 Motor Controller zftxfsyaeewdzyuytcftve Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI AMC-1 Active cforce Motor Controller with LBUS Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI K2.0005872 Specs | Connectors | 1 x antenna
1 x 4-pin LBUS
1 x 5-pin LCS
1 x 10-pin CAM | | Receiver Channel | Eight Channels: 2.410 to 2.475 GHz | | Supply Voltage | 12 to 34 VDC | | Current Consumption | Radio On/Ready:
135 mAh at 12 V
70 mAh at 24 V | | Mounting Thread | 3/8"-16 | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Dimensions (WxDxH) | Without Antenna: 2.4 x 1.1 x 2.9" (61 x 28.8 x 74.5 mm)
With Antenna: 3.2 x 1.1 x 5" (82.3 x 28.8 x 126 mm) | | Weight | With Antenna: 6 oz (173 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.9 x 4.9 x 2.7" |
