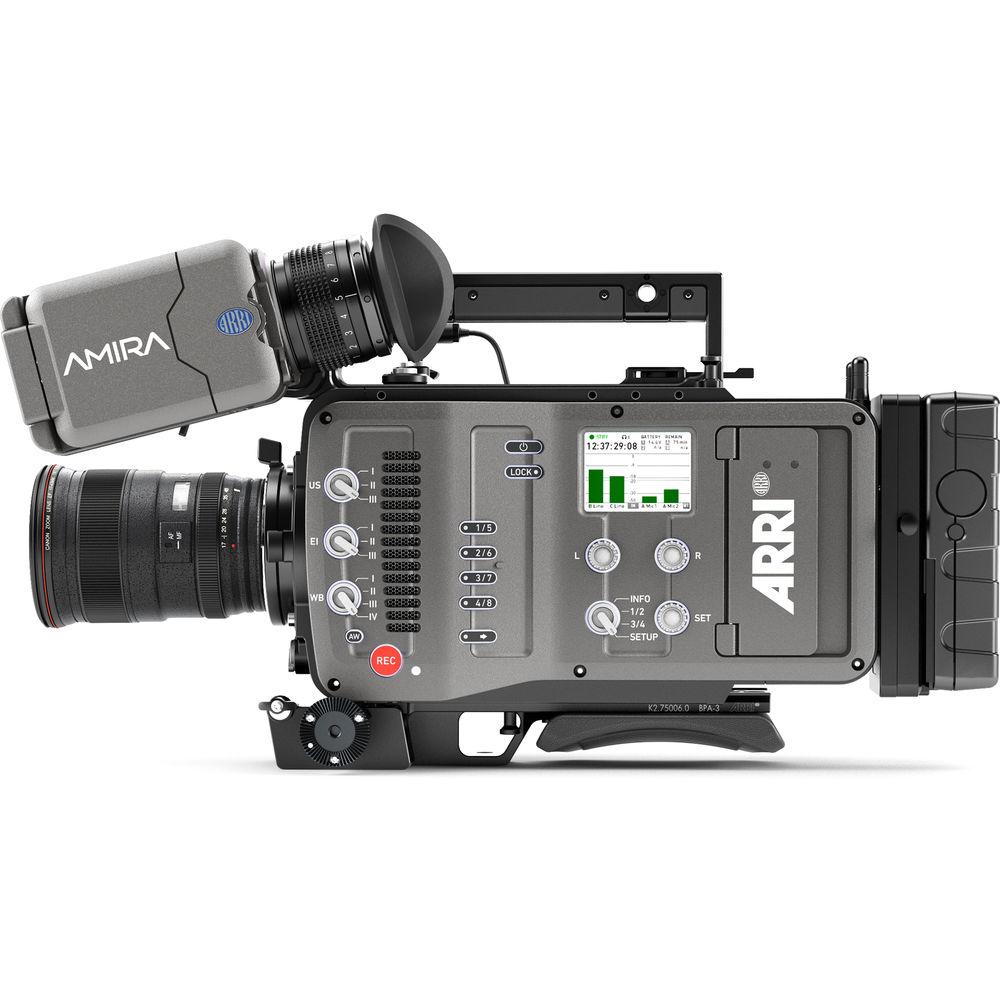

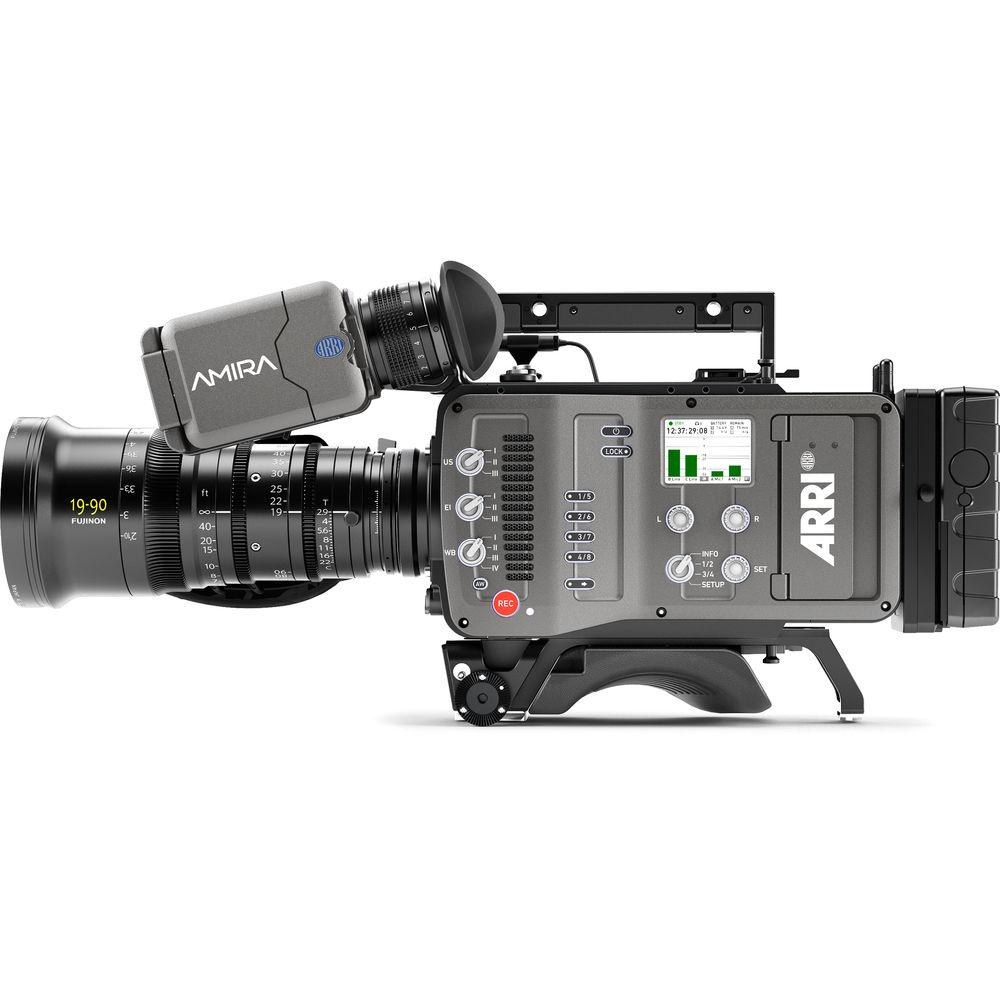

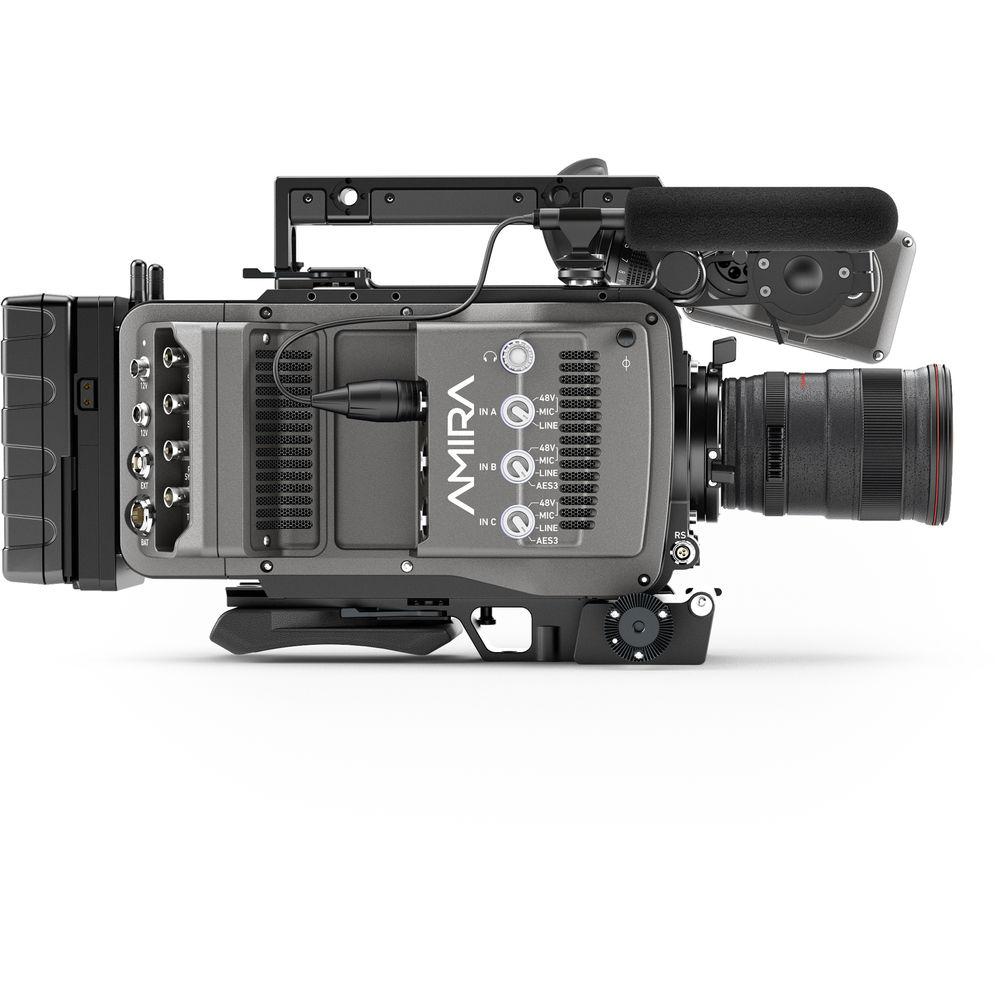

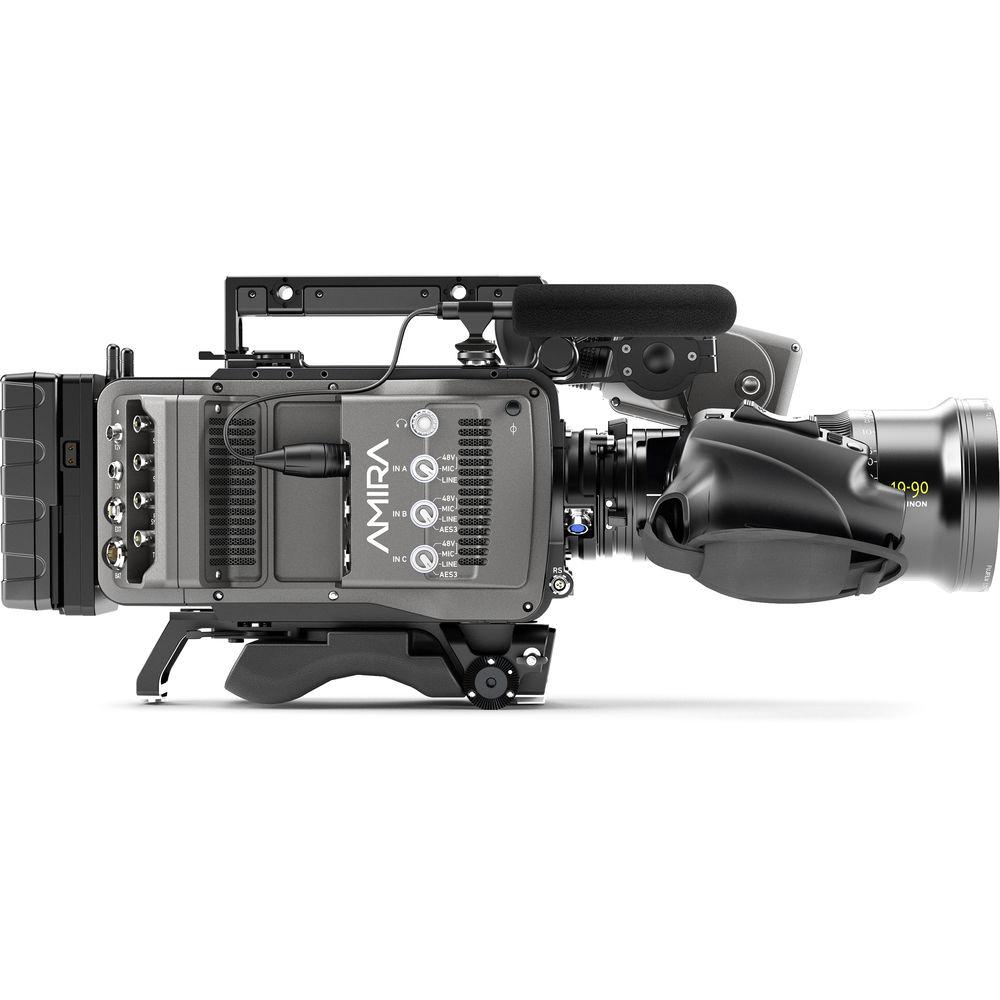

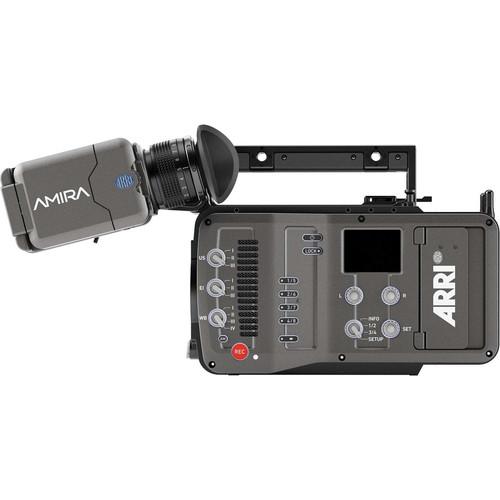

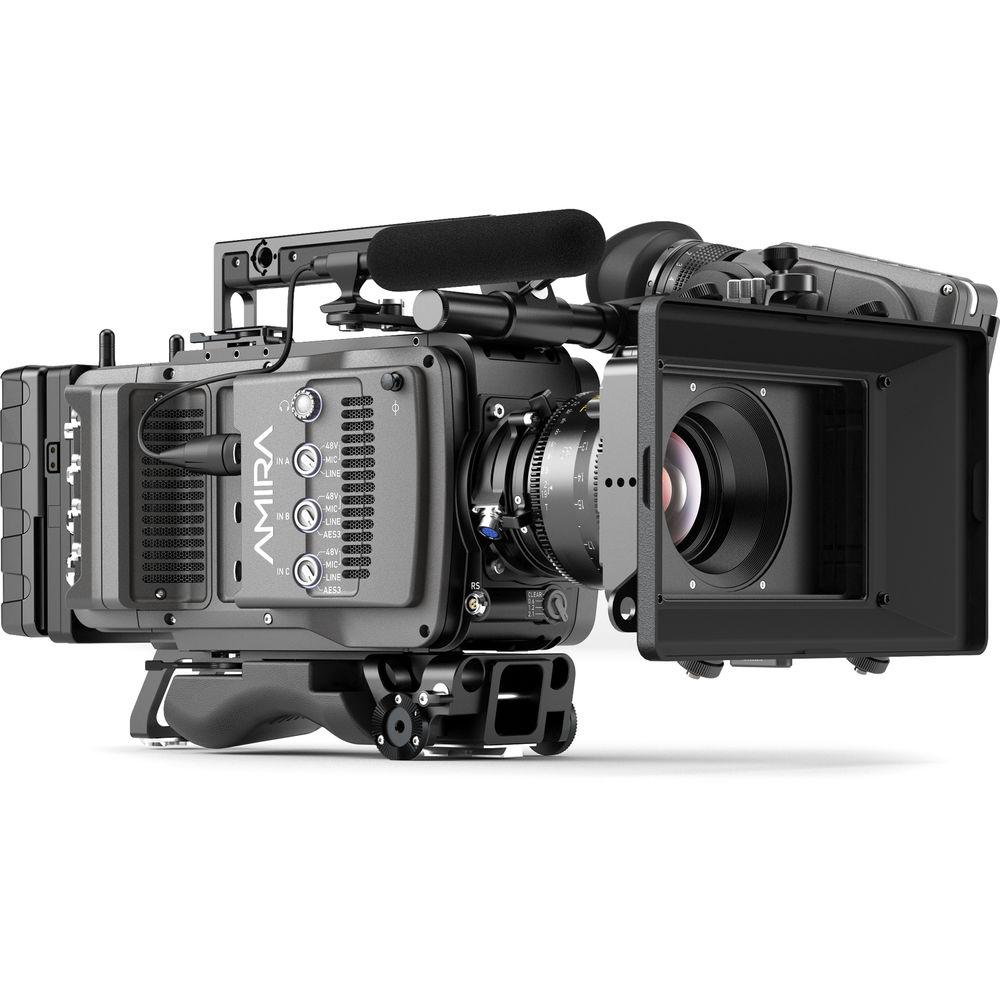

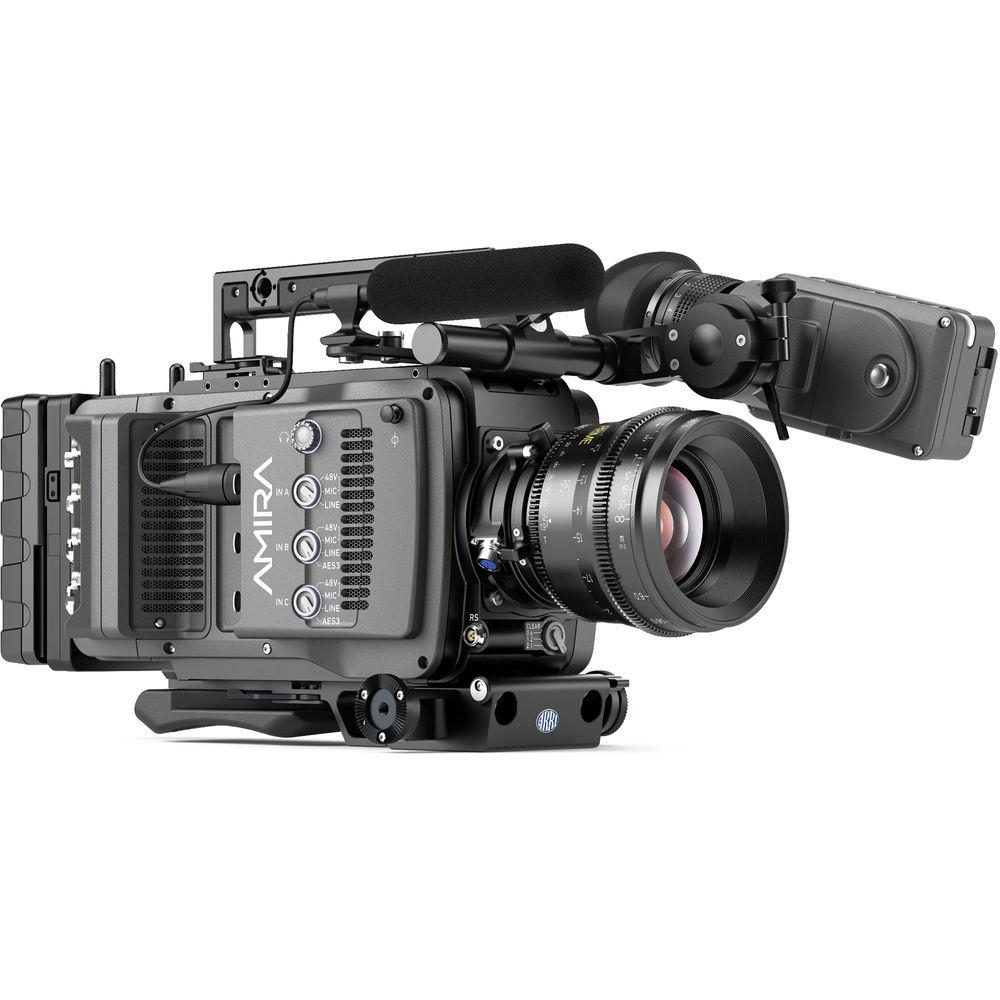

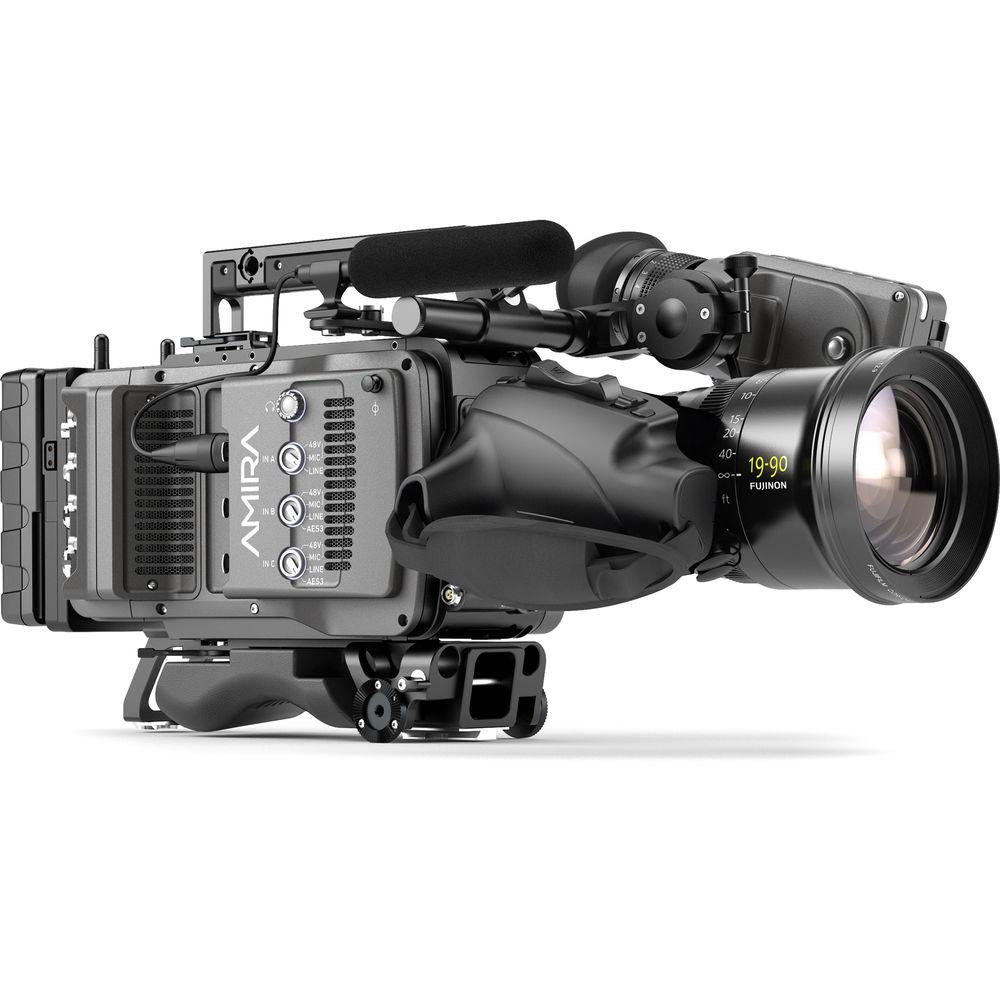

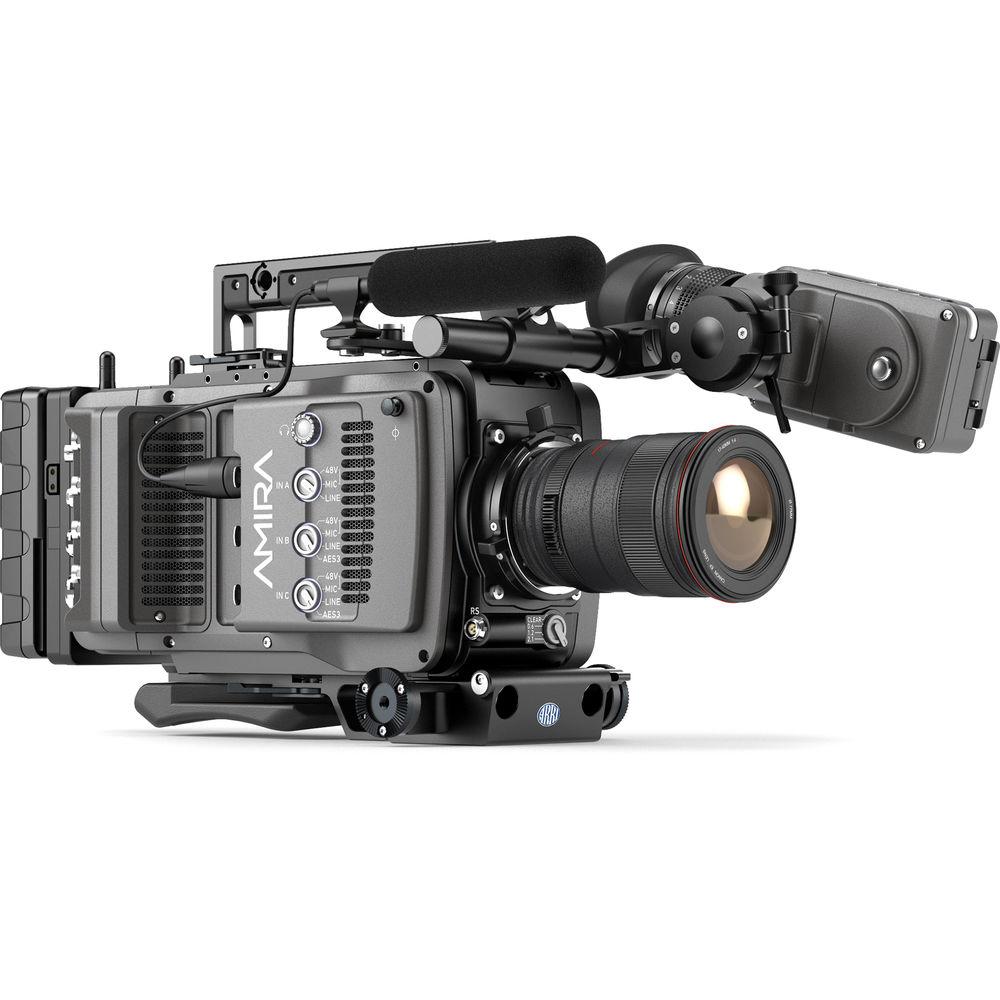

Product description The ARRI AMIRA Camera Set - Economical is designed for extended handheld capture, offering optimal image quality in a ready-to-shoot form factor with single-user, ENG-style features. Built around the same 35mm CMOS sensor as in the ARRI ALEXA, the AMIRA provides a 14-stop dynamic range, natural skin tones, and an EI range of 160 to 3200 with a native 800 ISO. This basic AMIRA set includes the AMIRA body and handle, the MVF-1 electronic viewfinder with mount and cables, and a USB stick for loading user settings, LUTs, etc. Separately available lens-mount options include a PL mount with LDS (lens data system) compatibility, PL, B4, and EF lens mounts.The versatile AMIRA offers ProRes 422, ProRes 422 (LT), and MPEG-2 recording codecs. Record in-camera to relatively affordable CFast 2.0 cards, with an option of simultaneously capturing to the CFast cards and an external recorder. This basic AMIRA captures Rec. 709 HD images in rates up to 1080p/100 fps, or up to UHD 4K with an optional license.For greater creative control, the AMIRA offers pre-loaded 3D LUTs. Burn in your preferred looks, or use the LUTs for monitoring only, and choose your final look later. Peaking, zebra, color bars, and false color functions further enhance your image-control options. Optional Advanced and Premium Licenses are available on a weekly basis, enabling you to tailor the AMIRA's features to each production's requirements.Audio features include XLR inputs, easily accessible operator-side controls, and a headphone jack. Additional AMIRA features include a quick 13-second boot-up time, efficient cooling, and easily accessible user buttons and controls. The AMIRA's innovative viewfinder unit combines an OLED EVF with a fold-out LCD, providing full camera control. -
- Optimal 1080p HD image capture with UHD 4K available with an optional license
- Uses the same 35mm ALEV III CMOS sensor as the ARRI ALEXA
- Ergonomically designed for single-operator handheld use
- Reliable and affordable CFast 2.0 card recording
- Separately available lens mounts include a PL mount with LDS compatibility, B4, and EF options
- Built-in ND filters for quick exposure compensation
- Enhanced HD-SDI outputs for overlaying timecode, etc., on viewfinders and monitors
- Fast boot-up time of around 13 seconds

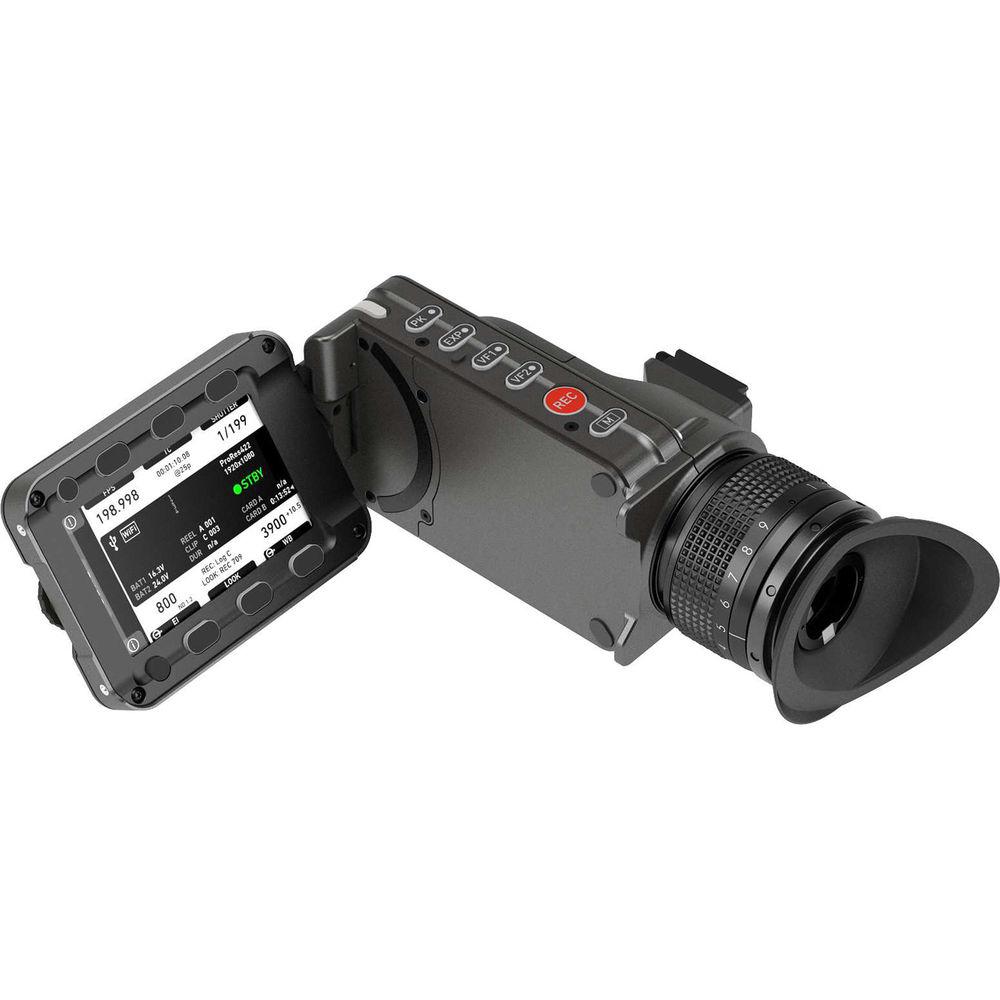

In the Box ARRI AMIRA Camera Set - Economical AMIRA Viewfinder MVF-1 Camera Handle Viewfinder Mount Viewfinder Cables USB Stick Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI AMIRA Camera Set - Economical in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI AMIRA Specs | | | Type | 35 mm Format ARRI ALEV III CMOS | | Pixel Count | Normal:
HD: 2880 x 1620
Surround View:
HD: 3168 x 1772 | | Number of Recording Pixels | 1920 x 1080: ProRes HD, MPEG 2, and HD Outputs | | Image Aperture | HD: 0.935 x 0.526" / 23.76 x 13.37 mm | | Image Circle | HD: 1.073" / 27.26 mm | | | | Electronic Shutter | 5–356° | | Exposure Index | Adjustable from EI 160–3200 in 1/3 Stops
Base Sensitivity: EI 800 | | Exposure Latitude | 14 Stops from EI 160–3200 As measured with the ARRI Dynamic Range Test Chart (DRTC-1) | | Built-In Filters | Motorized NDs:
0.6, 1.2, 2.1 | | | | Viewfinder | MVF-1 (OLED and LCD) with Flip-Out Screen | | Control Panel | CCP-1 LCD Panel (Daisy-Chainable to MVF-1) | | | | Recording Media | CFast 2.0 Cards | | Supported Media Card Types | ARRI 128 GB C-Fast 2.0 Memory Card B&H # ARK2.0003623 MFR # K2.0003623
ARRI 128 GB Extreme PRO C-Fast 2.0 Memory Card (3-Pack) B&H # ARCFAST3X128 MFR # K0.0019005
ARRI 256 GB Extreme PRO C-Fast 2.0 Memory Card B&H # ARCFAST256GB MFR # K2.0015640
ARRI 256 GB Extreme PRO C-Fast 2.0 Memory Card (3-Pack) B&H # ARCFAST3X256 MFR # K0.0019006
ARRI 256 GB AV Pro AR C-Fast 2.0 Memory Card (ARRI Edition) B&H # ARCFST256GB MFR # K2.0021432
ARRI 256 GB AV Pro AR C-Fast 2.0 Memory Card (ARRI Edition, 3-Pack) B&H # ARCFST3X256 MFR # K0.0021433
ARRI 512 GB Extreme PRO C-Fast 2.0 Memory Card B&H # ARCFAST512GB MFR # K2.0016648
ARRI 512 GB Extreme PRO C-Fast 2.0 Memory Card (3-Pack) B&H # ARC3X512GB MFR # K0.0019007 | | Recording Formats | 1080p: 29.97/25/23.98
1080i: 60/59.94/50 | | Recording Frame Rates | 0.75–100 fps (Progressive) | | Recording Codecs | With Embedded Audio and Metadata:
422
422 (LT)
MPEG-2 | | | | Gamma | Rec. 709 | | Look Control | Basic Looks (Adjustable in Camera) | | Adjustable Parameters | Knee, Gamma, Saturation, Black Gamma, Saturation by Hue | | Focus and Exposure Control | Peaking, Zebra, False Color | | White Balance | Auto White Balance | | | | Control Interface | Yes | | Lens Mode | S16 Lens Mode | | | | Video Outputs | 2 x HD-SDI: 6G (dual), 3G (dual), 1.5G
Uncompressed HD Video, Embedded Audio and Metadata | | Video Inputs | Genlock: BNC
HD-SDI: BNC**
Timecode (Input/Output): BNC
** Requires Installed ARRI Look Library License | | Audio Outputs | 3.5 mm Headphone Jack | | Power Outputs | ENG-Type Zoom Lenses: Hirose 12-Pin
12 V Power: D-Tap, 4-Pin Hirose, 2-Pin LEMO
24 V Power: RS 3-Pin | | Additional Inputs/Outputs | USB 2.0:
For Importing and Storing AMIRA Look Files, User Setup Files, Frame Line Files, and Feature License Keys
Stores Captured Still Image Formats in DPX (.dpx, 10-Bit) or JPEG (.jpg, 8-Bit) Format
Stores Log Files
Used for installing Software Update Packets (SUP) | | | | Audio Recording | 4 Channels, 24-Bit PCM, 48 kHz | | Sound Level | <20 dBA | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Dust and Humidity | 95% Maximum Humidity (Non-Condensing)
Splash- and Dust-Proof Through Sealed Electronics | | | | Dimensions (LxWxH) | 12.2 x 5.5 x 5.9" / 30.9 x 13.9 x 14.9 cm | | Weight | 9 lb / 4.1 kg |
