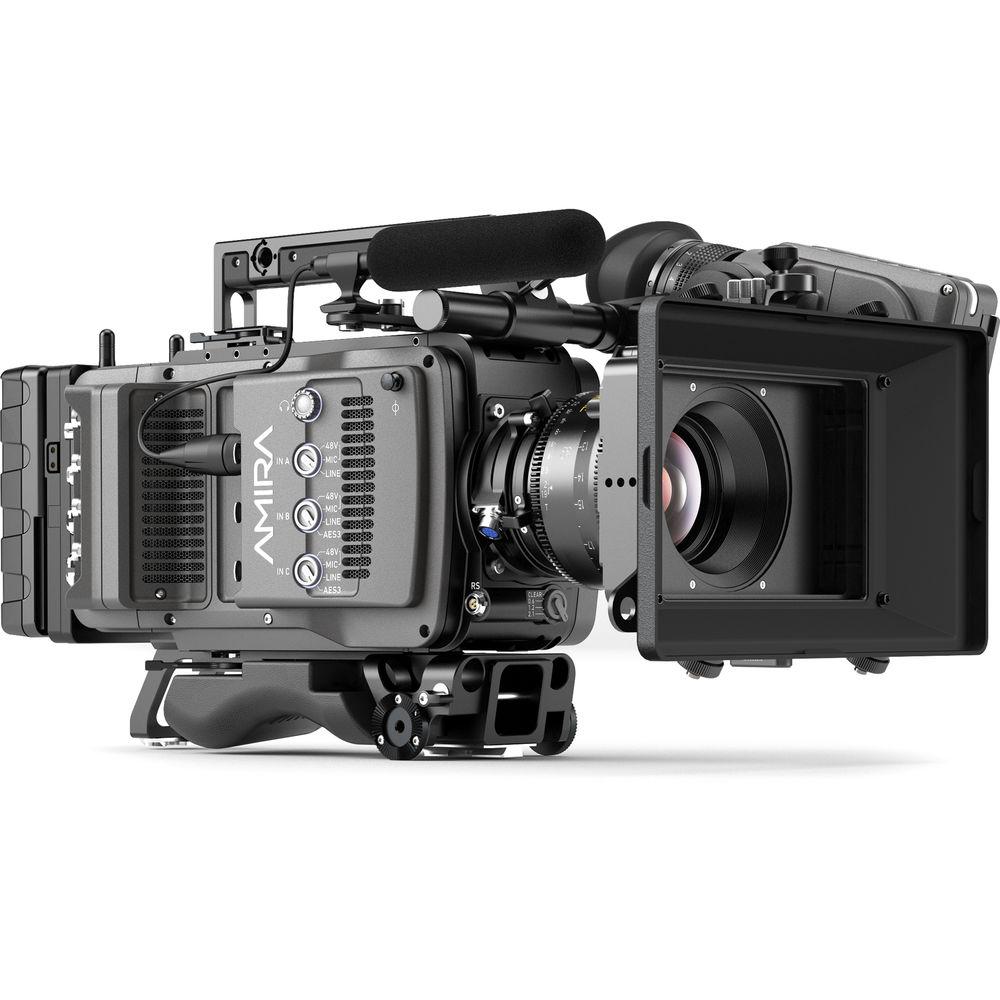

User Manual for ARRI AMIRA Camera Set with Advanced License - The Allrounder Click to enlarge the picture
Contents of the user manual for the ARRI AMIRA Camera Set with Advanced
- Product category: Digital Cine Cameras ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Digital Cine Cameras
 |
User manual for the ARRI AMIRA Camera Set with Advanced contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

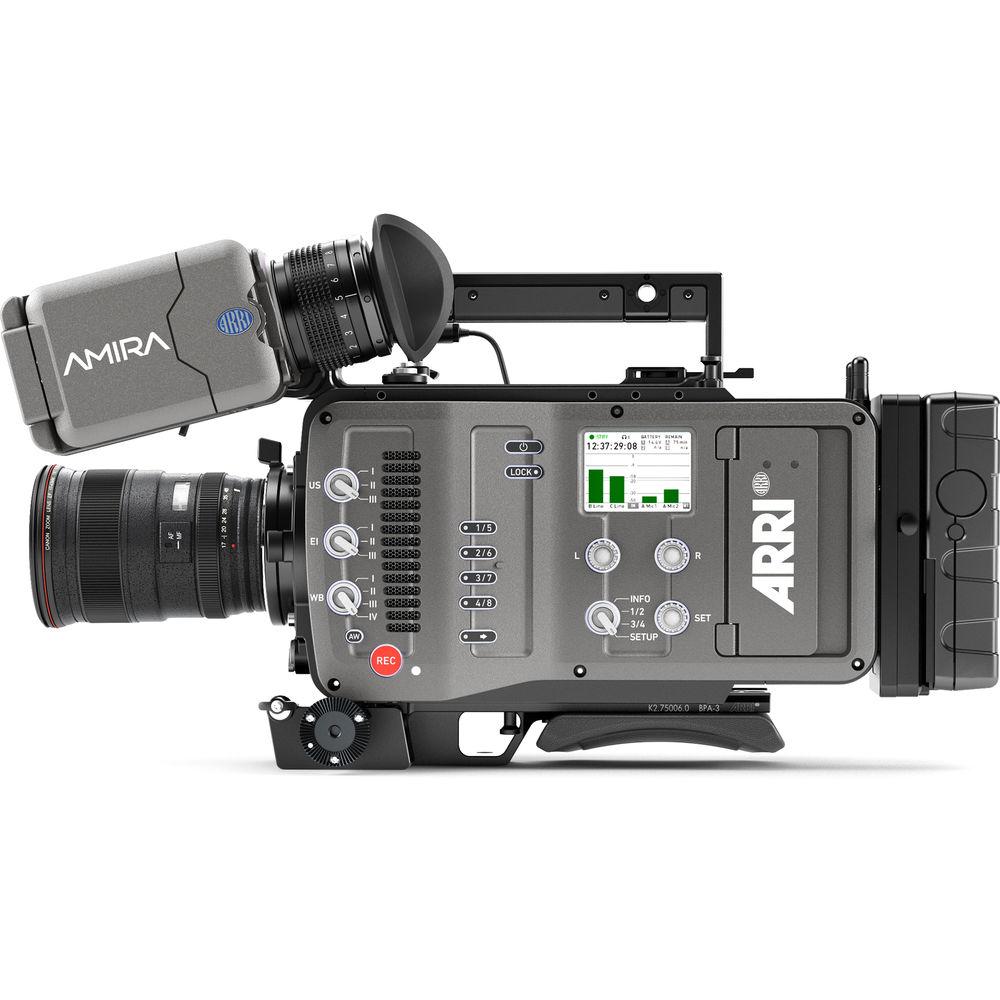

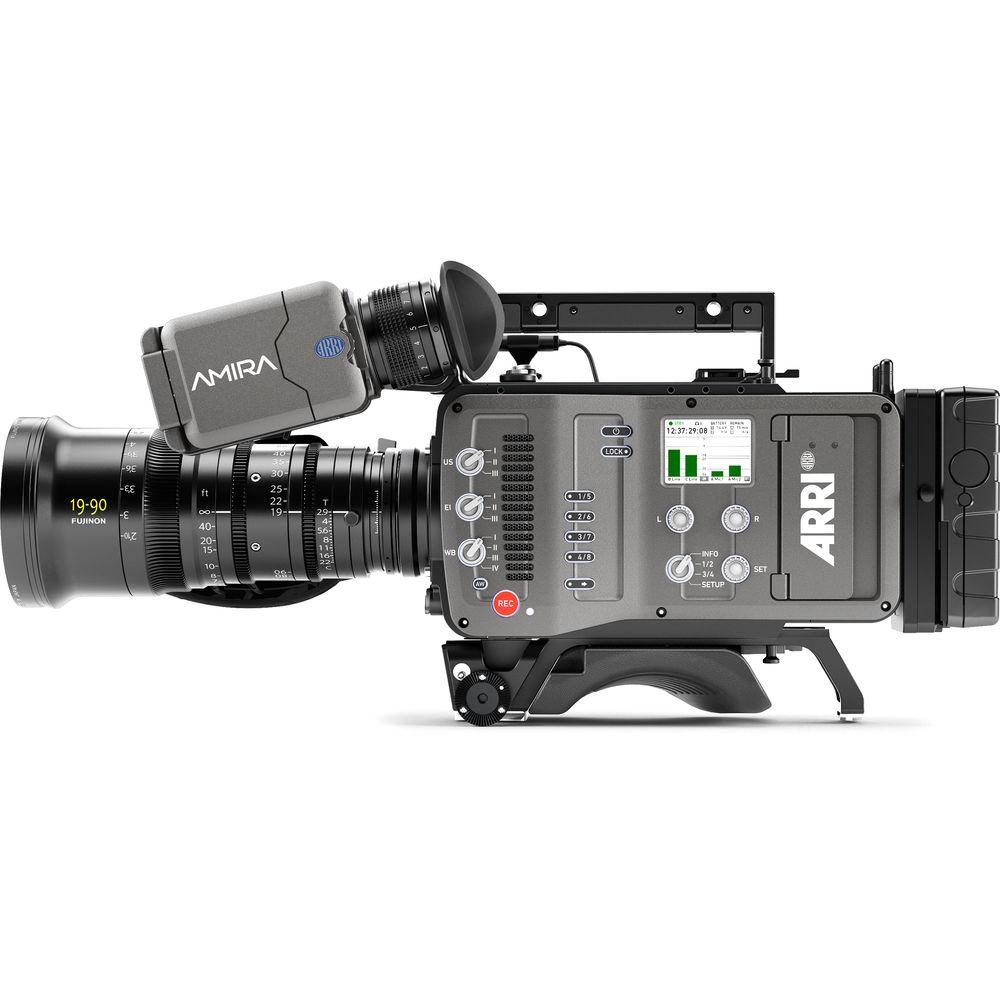

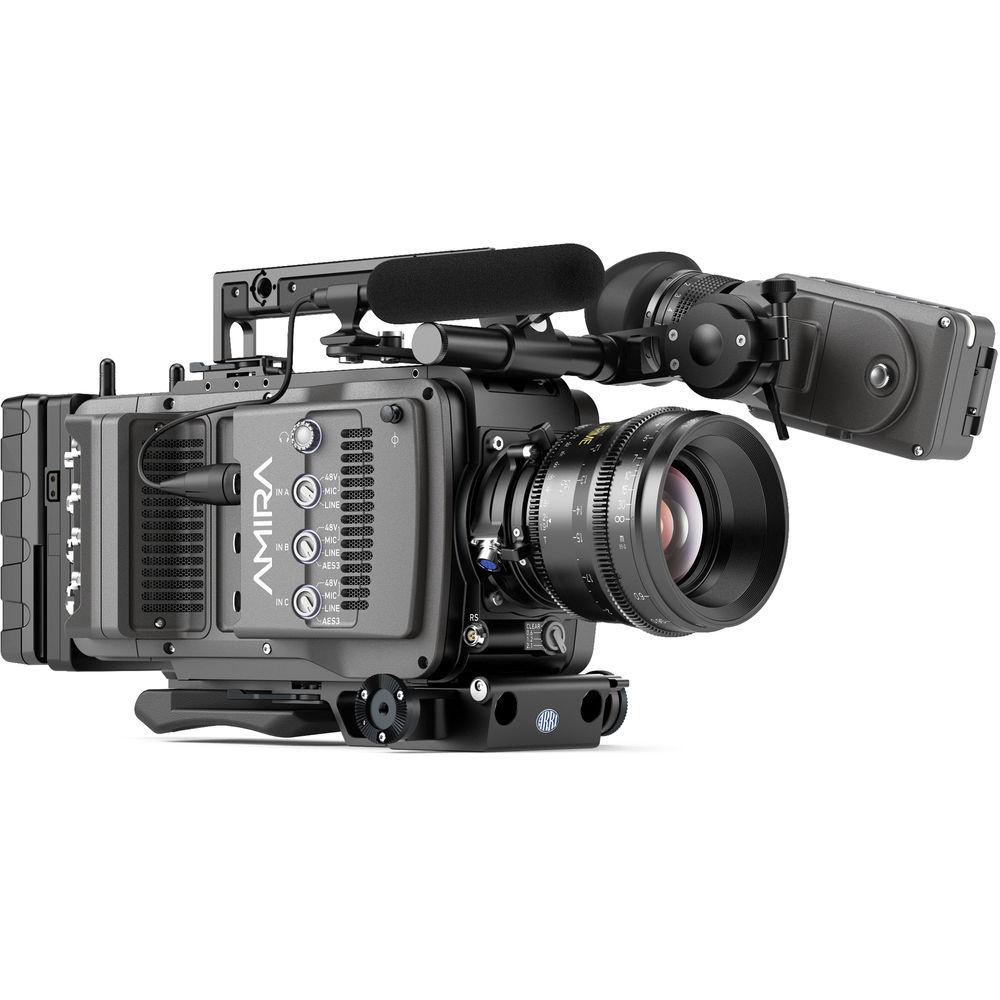

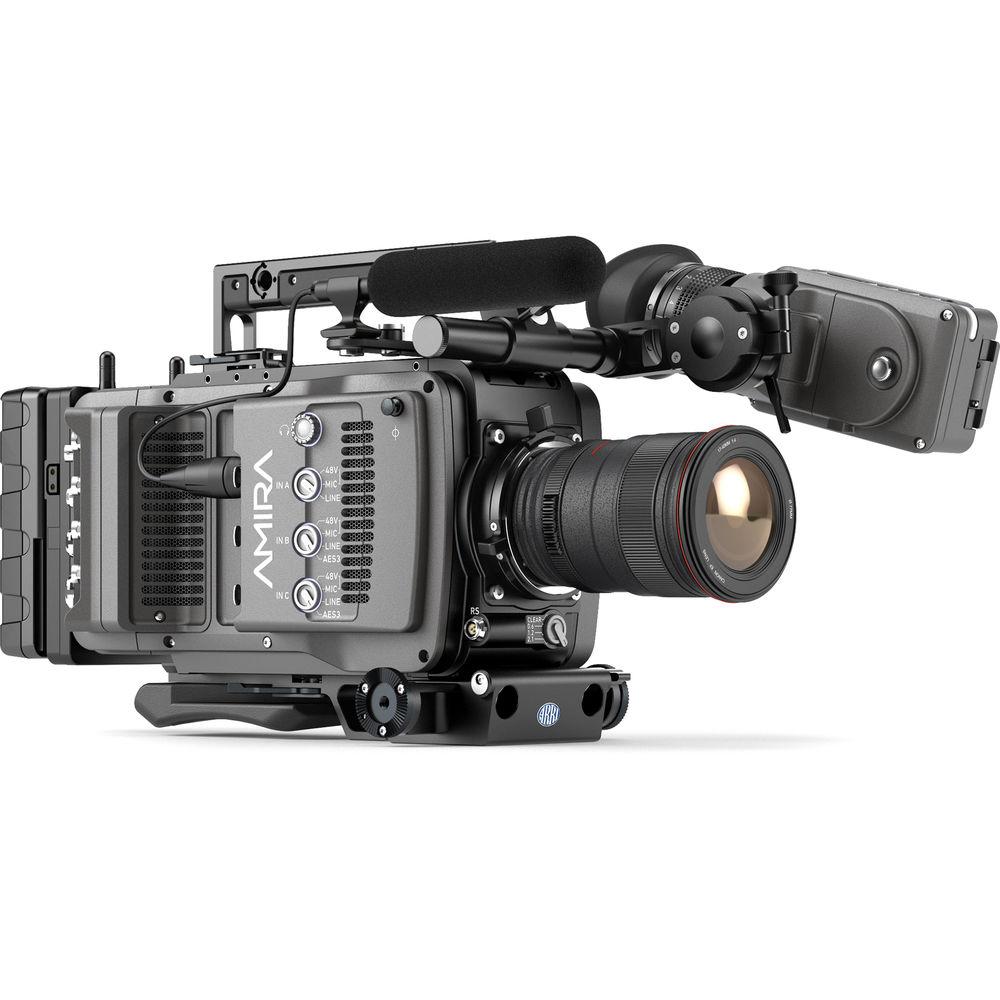

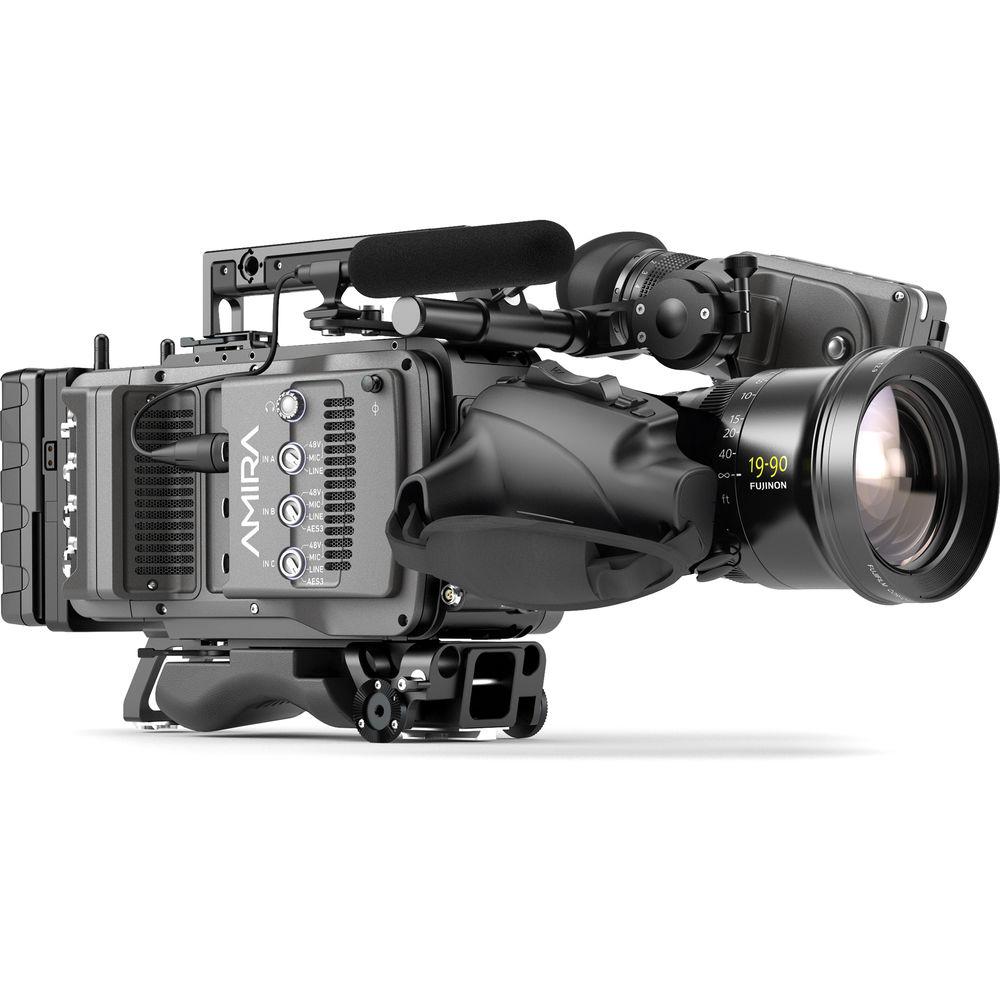

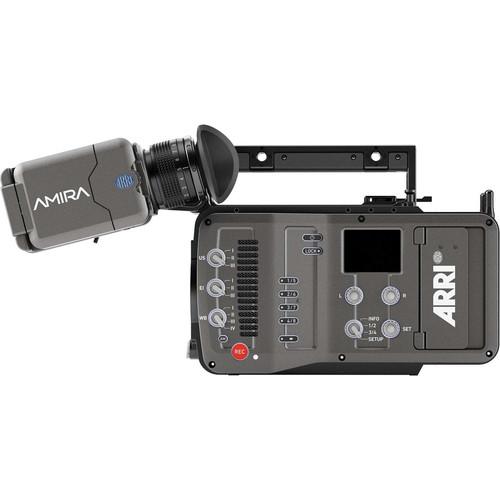

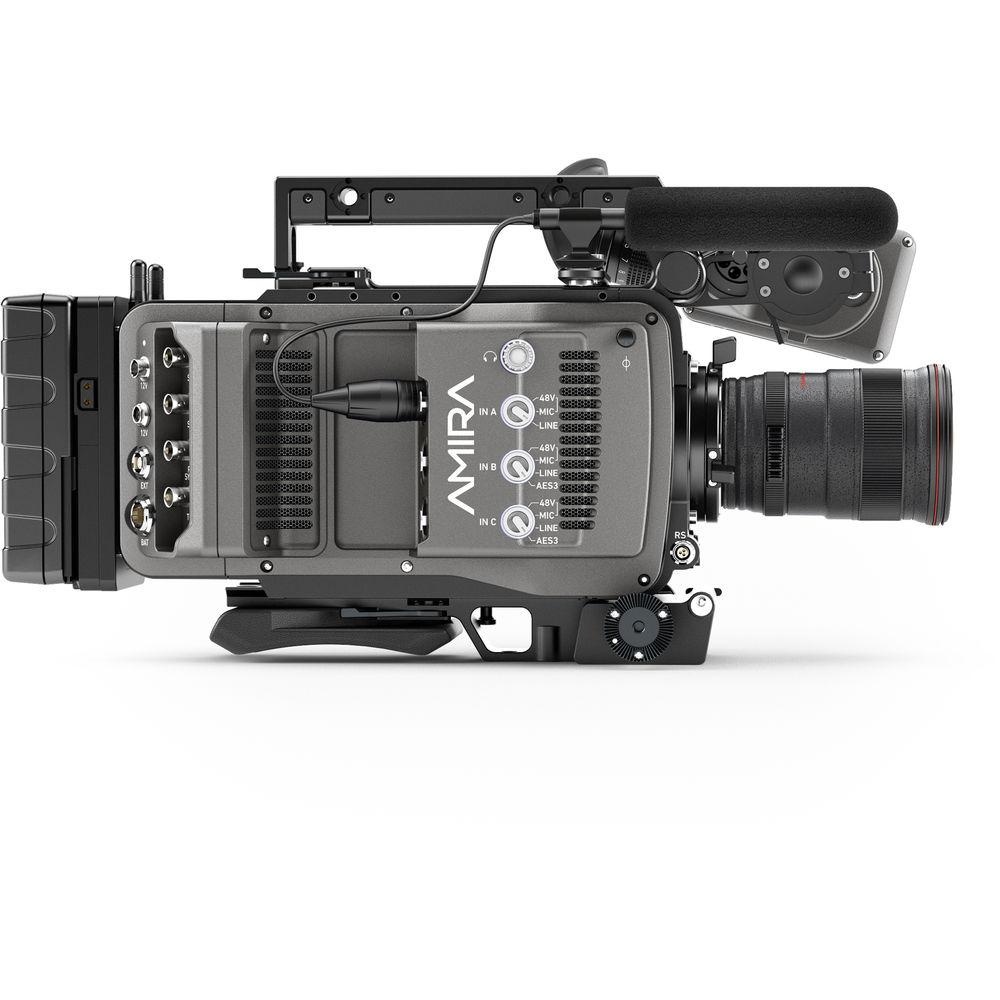

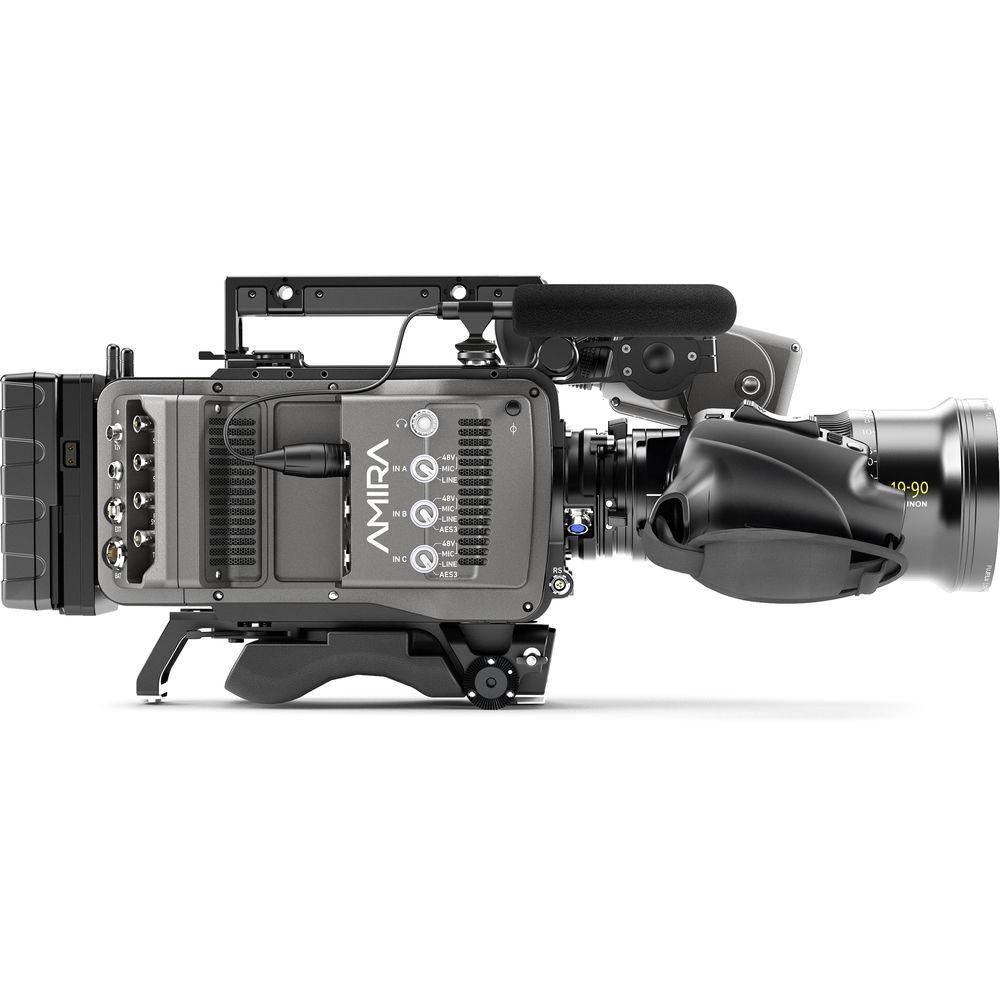

Product description The ARRI AMIRA Advanced Camera Set offers optimal image quality in a ready-to-shoot form factor designed for extended handheld use. This Advanced version expands upon the basic AMIRA with frame rates up to 200 fps, 422 HQ and Log C capture, Wi-Fi and Ethernet remote control, and a pre-recording buffer function. It also adds the ability to import looks, in-camera ASC CDL grading, dynamic, auto-tracking white balance, and Bluetooth audio monitoring. Using the same 35mm CMOS sensor as in the ARRI ALEXA, the AMIRA Advanced provides a 14-stop dynamic range, natural skin tones, and an EI range of 160 to 3200 with a native 800 ISO. It offers a selection of codecs to suit your project, from ProRes 422 HQ to the lower-bandwidth 422 (LT), suitable for digital broadcasting. This AMIRA set includes an Advanced License, and the MVF-1 electronic viewfinder with mount and cables.The versatile AMIRA records in-camera to relatively affordable CFast 2.0 cards, with an option of simultaneously capturing to the CFast cards and an external recorder. Record Rec. 709 and Log C images in 1080p or 1080i, or up to UHD 4K with an optional license. The included Advanced License bumps the basic AMIRA's 100 fps maximum frame rate to a top speed of 200 fps, providing even greater detail for your slow-motion shots. The buffer function captures a pre-recorded segment, enabling you to grab unpredictable wildlife, sports, and action shots. A lens mount is not included with this set; choose from separately available LDS PL, PL, EF, and B4 mounts.For greater creative control, the AMIRA Advanced offers both complete look functions, and the ability to import looks. Burn in your preferred looks, or use the LUTs for monitoring only, and choose your final look later. Peaking, zebra, false color, and dynamic auto-tracking white balance functions further enhance your image-control options.Audio features include XLR inputs, easily accessible operator-side controls, and Bluetooth compatibility. Use the AMIRA Advanced Bluetooth functions to monitor your audio via a wireless headset, or to record editing or other commentary to a fifth audio track separate from your main sound. Additional AMIRA Advanced features include a quick 13-second boot-up time, efficient cooling, and easily accessible user buttons and controls. The AMIRA Advanced innovative viewfinder unit combines an OLED EVF with a fold-out LCD, providing full camera control. Features -
- Optimal 1080p HD image capture with UHD 4K available via an optional license
- Uses the same 35mm ALEV III CMOS sensor as the ARRI ALEXA
- Ergonomically designed for single-operator handheld use
- Adds ProRes 422 HQ, Log C capture, Dynamic ATW, and CDL grading to the basic AMIRA's functions
- Reliable and affordable CFast 2.0 card recording
- Pre-record buffer captures unpredictable wildlife and action shots
- Built-in ND filters for quick exposure compensation
- Auto-tracking white balance feature
- Enhanced HD-SDI outputs for overlaying timecode, etc., on viewfinders and monitors
- Laptop, tablet, and smartphone control via Wi-Fi or Ethernet
- Separately available lens mounts include a PL mount with LDS compatibility, PL, B4, and EF options
- Fast boot-up time of around 13 seconds
- Bluetooth audio monitoring and commentary input
In the Box ARRI AMIRA Camera Set with Advanced License - The Allrounder AMIRA Advanced License AMIRA Viewfinder MVF-1 Camera Handle Viewfinder Mount Viewfinder Cables USB Stick Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI AMIRA Camera Set with Advanced License - The Allrounder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI AMIRA Specs | | | Type | 35 mm Format ARRI ALEV III CMOS | | Pixel Count | Normal:
HD: 2880 x 1620
Surround View:
HD: 3168 x 1772 | | Number of Recording Pixels | 1920 x 1080: ProRes HD, MPEG 2, and HD Outputs | | Image Aperture | HD: 0.935 x 0.526" / 23.76 x 13.37 mm | | Image Circle | HD: 1.073" / 27.26 mm | | | | Electronic Shutter | 5–356° | | Exposure Index | Adjustable from EI 160–3200 in 1/3 Stops
Base Sensitivity: EI 800 | | Exposure Latitude | 14 Stops from EI 160–3200 As measured with the ARRI Dynamic Range Test Chart (DRTC-1) | | Built-In Filters | Motorized NDs:

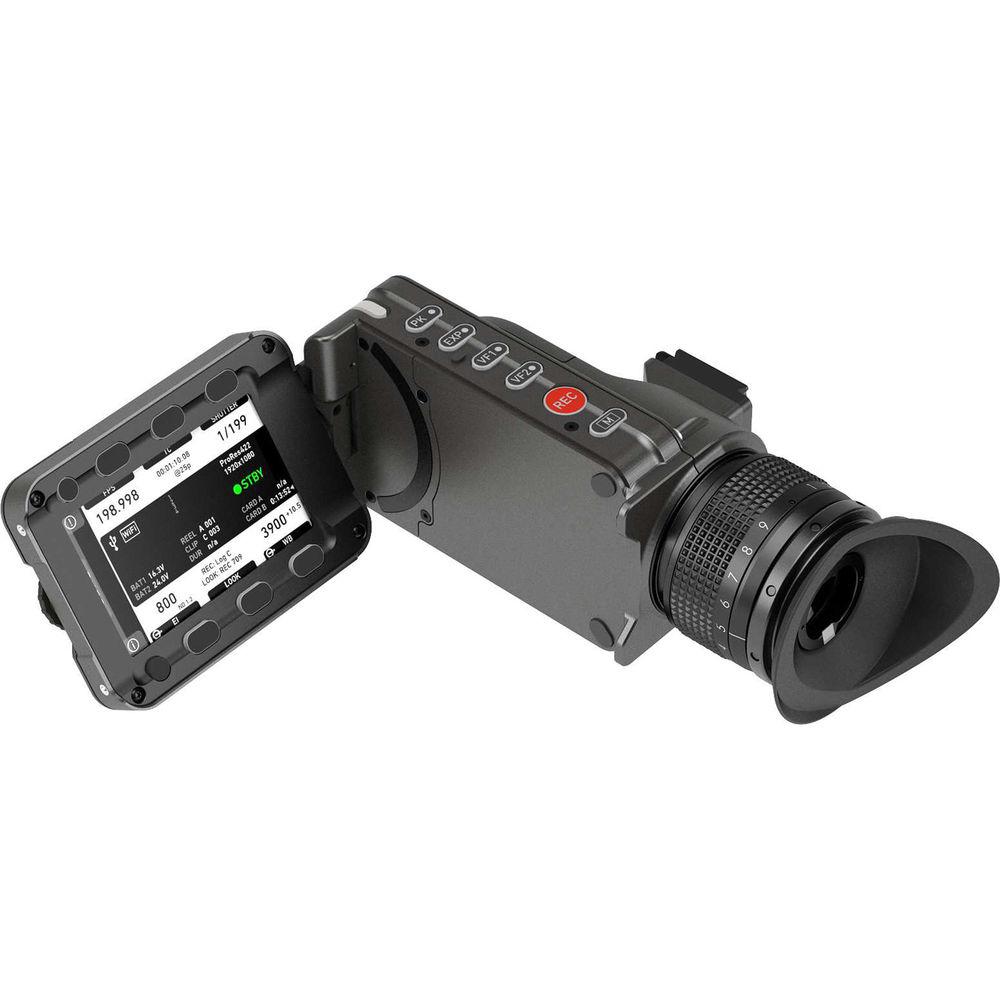

0.6, 1.2, 2.1 | | | | Viewfinder | MVF-1 (OLED and LCD) with Flip-Out Screen | | Control Panel | CCP-1 LCD Panel (Daisy-Chainable to MVF-1) | | | | Recording Media | CFast 2.0 Cards | | Supported Media Card Types | ARRI 128 GB C-Fast 2.0 Memory Card B&H # ARK2.0003623 MFR # K2.0003623
ARRI 128 GB Extreme PRO C-Fast 2.0 Memory Card (3-Pack) B&H # ARCFAST3X128 MFR # K0.0019005
ARRI 256 GB Extreme PRO C-Fast 2.0 Memory Card B&H # ARCFAST256GB MFR # K2.0015640
ARRI 256 GB Extreme PRO C-Fast 2.0 Memory Card (3-Pack) B&H # ARCFAST3X256 MFR # K0.0019006
ARRI 256 GB AV Pro AR C-Fast 2.0 Memory Card (ARRI Edition) B&H # ARCFST256GB MFR # K2.0021432
ARRI 256 GB AV Pro AR C-Fast 2.0 Memory Card (ARRI Edition, 3-Pack) B&H # ARCFST3X256 MFR # K0.0021433
ARRI 512 GB Extreme PRO C-Fast 2.0 Memory Card B&H # ARCFAST512GB MFR # K2.0016648
ARRI 512 GB Extreme PRO C-Fast 2.0 Memory Card (3-Pack) B&H # ARC3X512GB MFR # K0.0019007 | | Recording Formats | 1080p: 29.97/25/23.98
1080i: 60/59.94/50 | | Recording Frame Rates | 0.75–200 fps (Progressive) | | Recording Codecs | With Embedded Audio & Metadata:
422 (HQ)
422
422 (LT)
MPEG-2 | | | | Gamma | Log C
Rec. 709 | | Look Control | Complete Look Functions
Import Looks | | Adjustable Parameters | Knee, Gamma, Saturation, Black Gamma, Saturation by Hue
ASC CDL Parameters (Slope, Offset, Power, Saturation) | | Focus and Exposure Control | Peaking, Zebra, False Color | | White Balance | Dynamic Auto-Tracking White Balance
Auto White Balance | | | | Remote Control | Wi-Fi, Ethernet | | Lens Mode | S16 Lens Mode | | | | Video Outputs | 2 x HD-SDI: 6G (dual), 3G (dual), 1.5G
Uncompressed HD Video, Embedded Audio and Metadata | | Video Inputs | Genlock: BNC
HD-SDI: BNC**
Timecode (Input/Output): BNC
** Requires installed ARRI Look Library License | | Audio Monitoring | Bluetooth
3.5 mm Headphone Jack | | Power Outputs | ENG-Type Zoom Lenses: Hirose 12-Pin
12 V Power: D-Tap, 4-Pin Hirose, 2-Pin LEMO
24 V Power: RS 3-Pin | | Additional Inputs/Outputs | USB 2.0:
For Importing and Storing AMIRA Look Files, User Setup Files, Frame Line Files, and Feature License Keys
Stores Captured Still Image Formats in DPX (.dpx, 10-Bit) or JPEG (.jpg, 8-Bit) Format
Stores Log Files
Used for Installing Software Update Packets (SUP) | | | | Audio Recording | 4 Channels, 24-Bit PCM, 48 kHz | | Sound Level | <20 dBA | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Dust and Humidity | 95% Maximum Humidity (Non-Condensing)
Splash and Dust-Proof Through Sealed Electronics | | | | Dimensions (LxWxH) | 12.2 x 5.5 x 5.9" / 309 x 139 x 149 mm | | Weight | 9 lb / 4.1 kg | | | | Package Weight | 15.3 lb | | Box Dimensions (LxWxH) | 19.0 x 15.0 x 14.0" |
