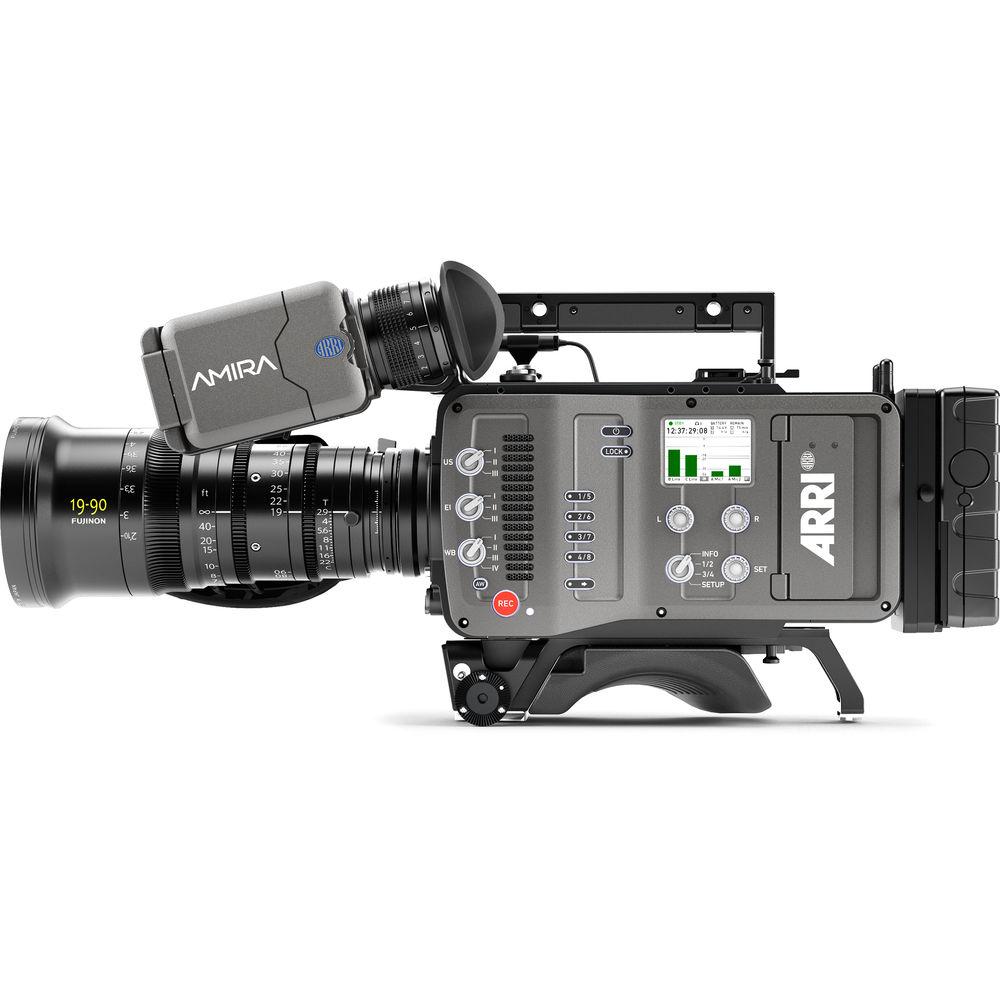

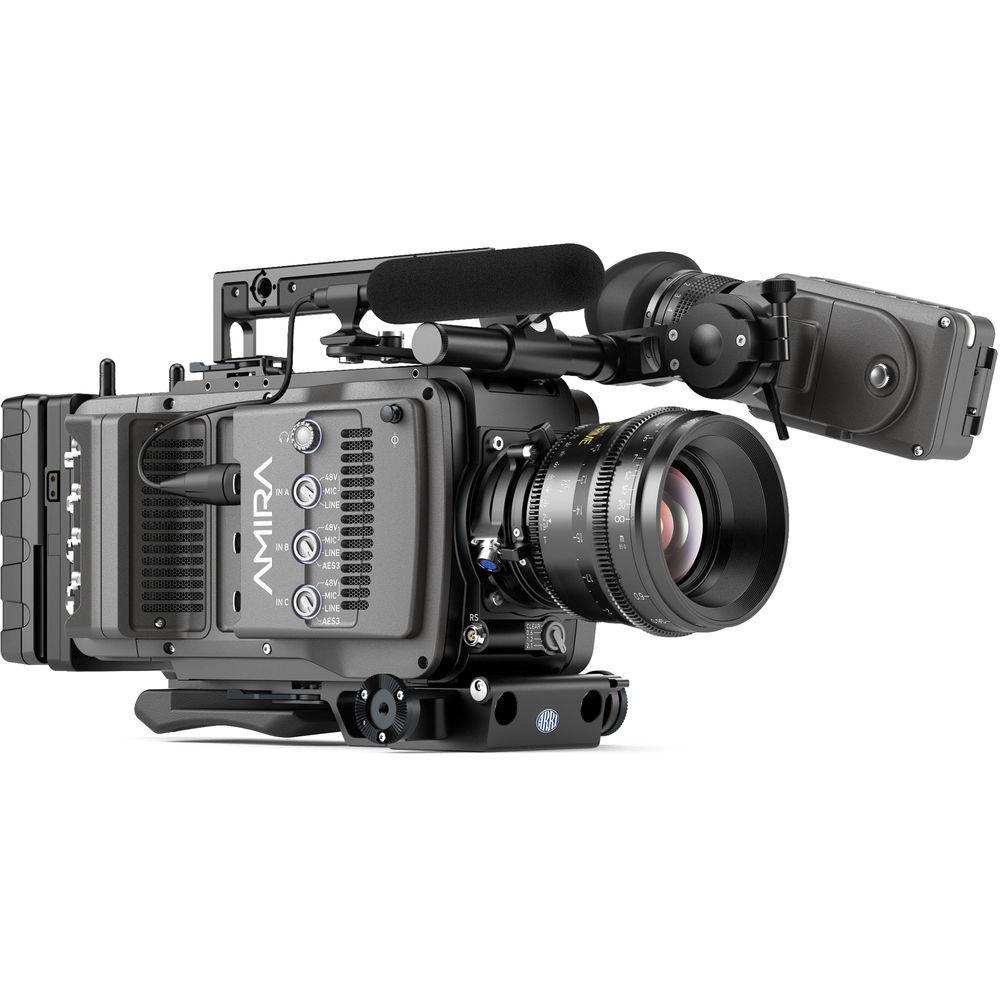

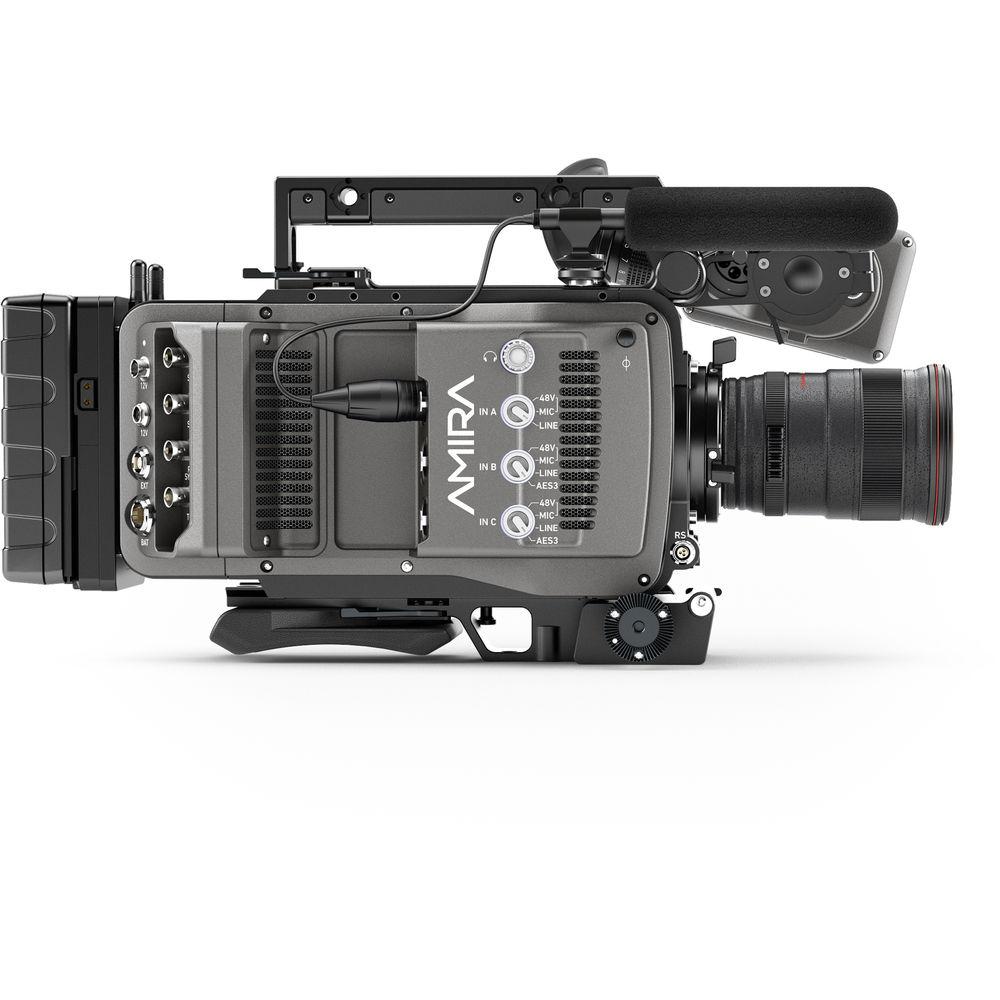

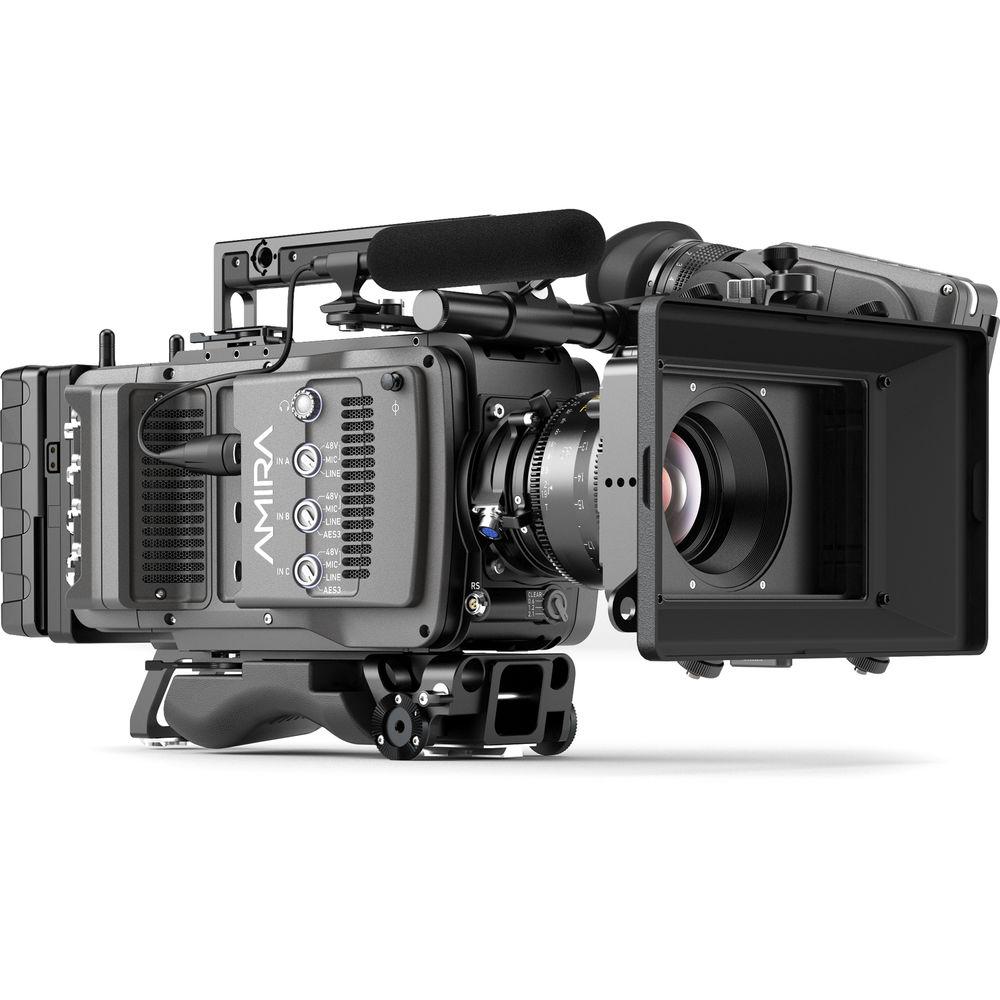

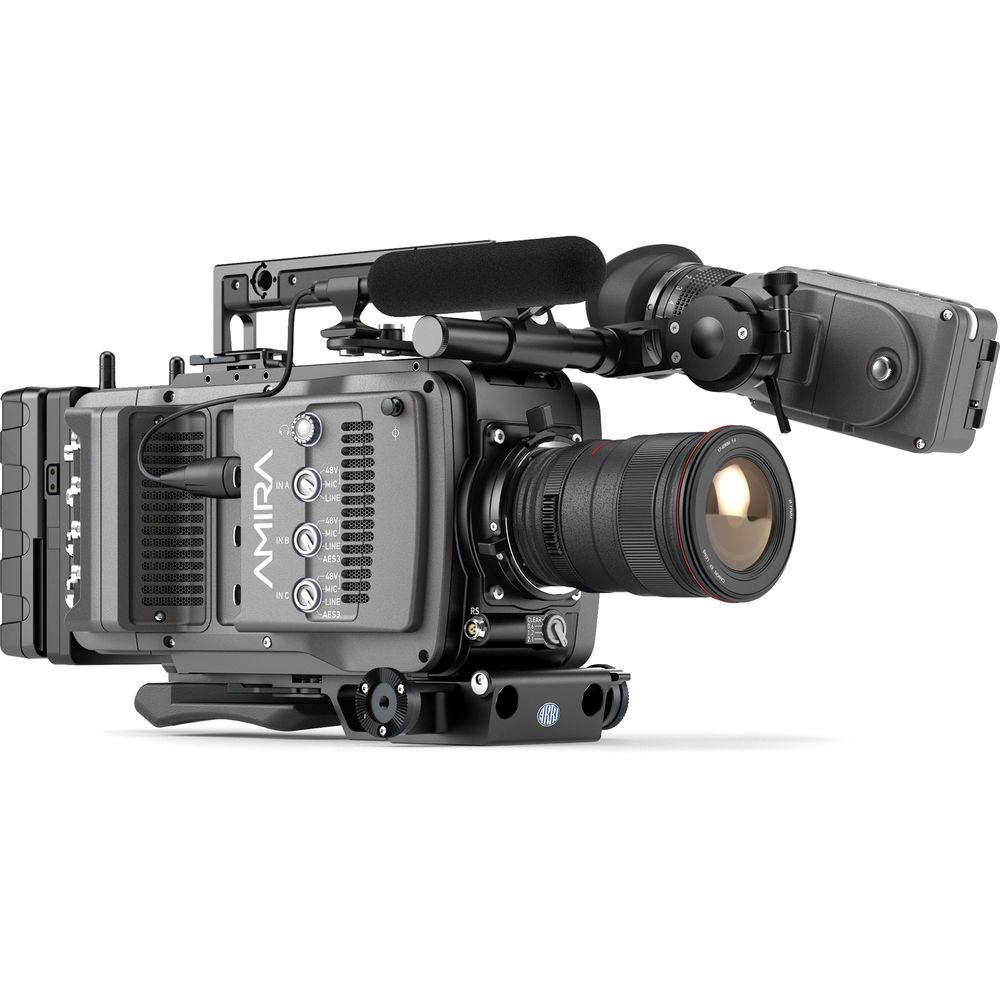

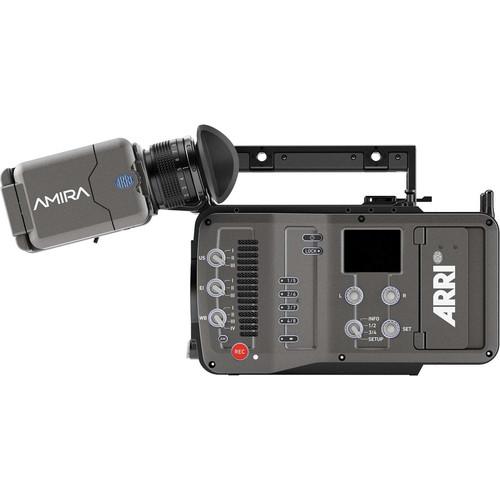

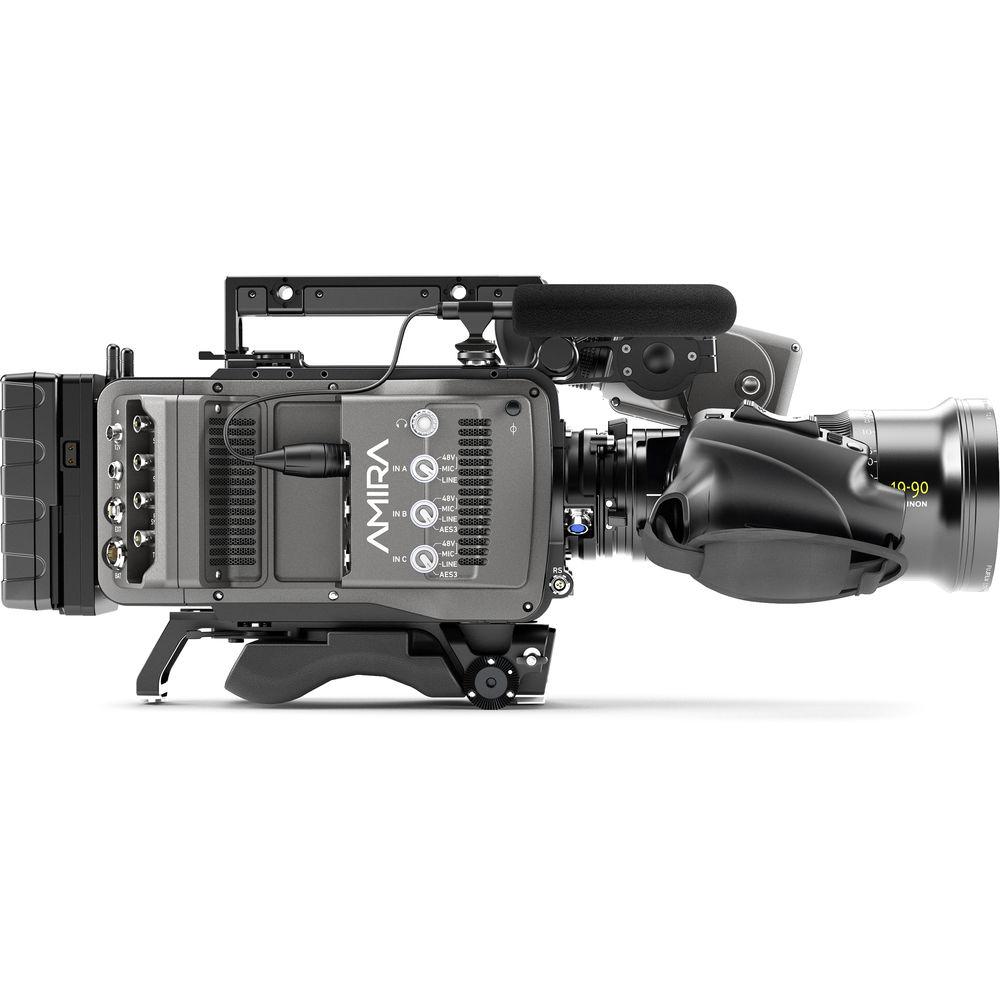

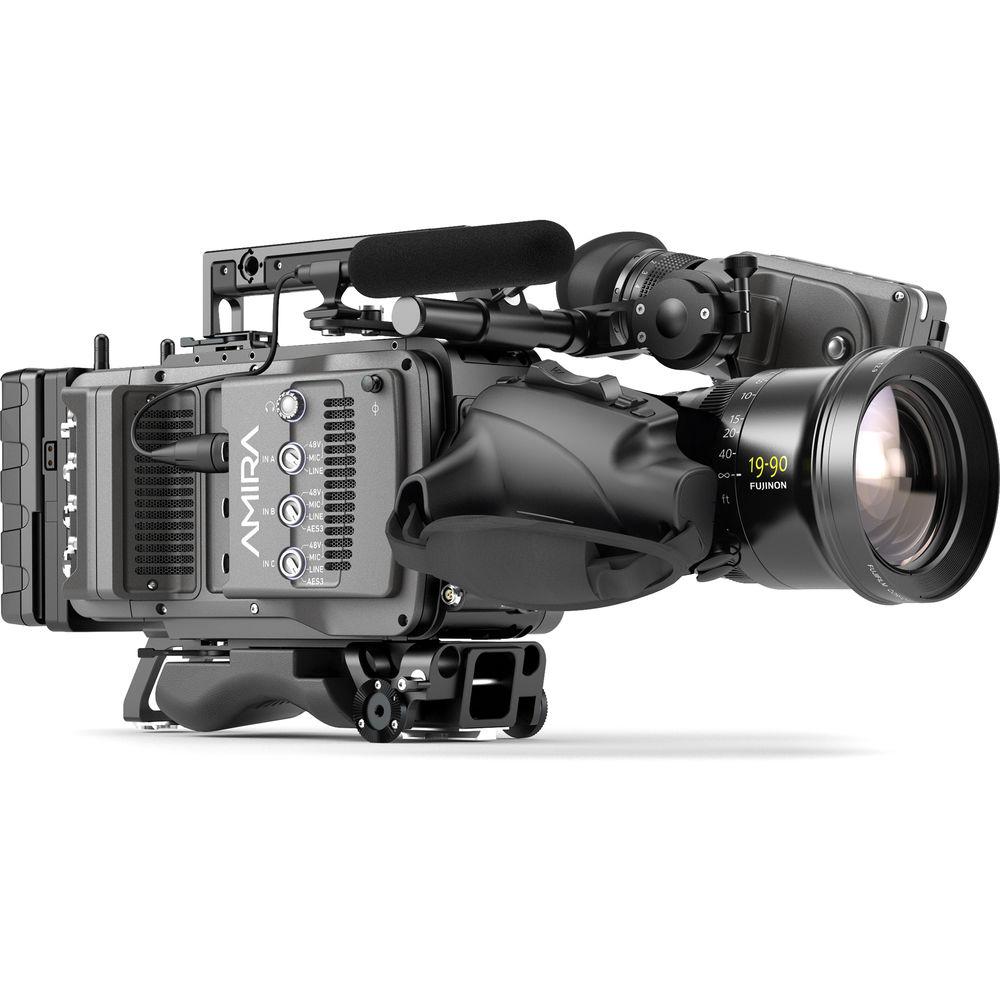

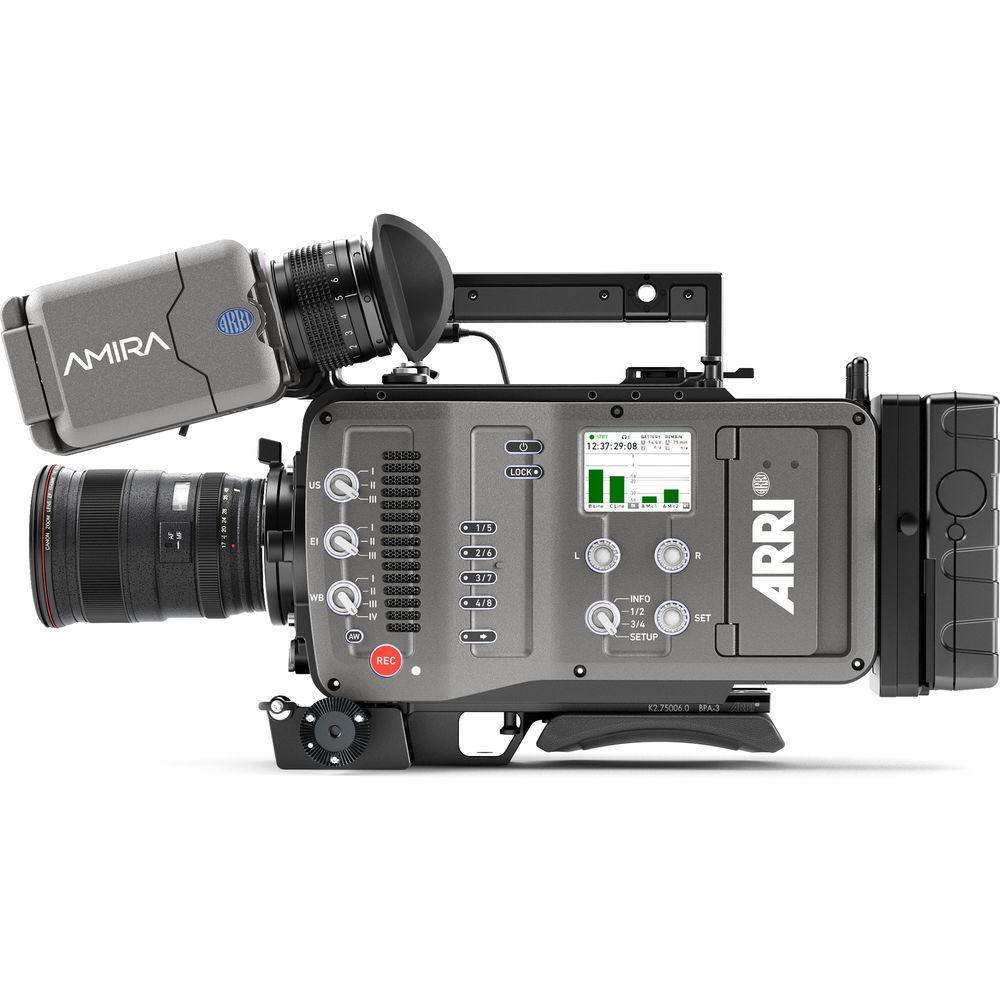

Product description The ARRI AMIRA Premium Camera Set is the most feature-packed version of this camera, including licenses for UHD 4K and 2K recording, and including the ARRI Look Library license. The AMIRA family provides optimal image quality in a ready-to-shoot form factor designed for extended handheld use. This Premium version offers frame rates up to 200 fps, ProRes 4444 and Log C capture, Wi-Fi and Ethernet remote control, and a pre-recording buffer function. It can import custom 3D LUTs, in-camera ASC CDL grading, dynamic, auto-tracking white balance, and Bluetooth audio monitoring. Additional AMIRA Premium features include a de-noising option for 4K UHD, 6G UHD-SDI output, and a 1.3x anamorphic de-squeeze function.Using the same 35mm CMOS sensor as in the ARRI ALEXA, the AMIRA Premium provides a 14-stop dynamic range, natural skin tones, and an EI range of 160 to 3200 with a native 800 ISO. It offers a selection of codecs to suit your project, from ProRes 4444 for feature productions, to the lower-bandwidth 422 (LT), suitable for digital broadcasting. This AMIRA set includes Premium and UHD Licenses, and the MVF-1 electronic viewfinder with mount and cables.The versatile AMIRA records in-camera to relatively affordable CFast 2.0 cards, with an option of simultaneously capturing to the CFast cards and an external recorder. All ProRes flavors are available up to 60 fps in ProRes 4K UHD or 3.2K, with Rec. 709 and Log C functions. The included Premium License bumps the basic AMIRA's 100 fps maximum frame rate to a top speed of 200 fps, providing even greater detail for your slow-motion shots. The buffer function captures a pre-recorded segment, enabling you to grab unpredictable wildlife, sports, and action shots. A lens mount is not included with this set; choose from separately available LDS PL, PL, EF, and B4 mounts.For greater creative control, the AMIRA Premium offers both pre-loaded LUTs and the ability to import custom-made 3D LUTs. Burn in your preferred looks, or use the LUTs for monitoring only, and choose your final look later. Peaking, zebra, false color, and dynamic auto-tracking white balance functions further enhance your image-control options.Audio features include XLR inputs, easily accessible operator-side controls, and Bluetooth compatibility. Use the AMIRA Premium's Bluetooth functions to monitor your audio via a wireless headset, or to record editing or other commentary to a fifth audio track separate from your main sound. Additional AMIRA Premium features include a quick 13-second boot-up time, efficient cooling, and easily accessible user buttons and controls. The AMIRA Premium's innovative viewfinder unit combines an OLED EVF with a fold-out LCD, providing full camera control. Note: SUP 5.0 is required for select AMIRA Premium functions. Features -
- Optimal 1080p HD image capture with UHD 4K available via an optional license
- Uses the same 35mm ALEV III CMOS sensor as the ARRI ALEXA
- Ergonomically designed for single-operator handheld use
- Adds ProRes 4444 & 422 HQ, Log C capture, Dynamic ATW, and CDL grading to the basic AMIRA's functions
- Reliable and affordable CFast 2.0 card recording
- Pre-record buffer captures unpredictable wildlife and action shots
- Built-in ND filters for quick exposure compensation
- Auto-tracking white balance feature
- Enhanced HD-SDI outputs for overlaying timecode, etc., on viewfinders and monitors
- Laptop, tablet, and smartphone control via Wi-Fi or Ethernet
- Separately available lens mounts include a PL mount with LDS compatibility, PL, B4, and EF options
- Fast boot-up time of around 13 seconds
- Bluetooth audio monitoring and commentary input
In the Box ARRI AMIRA Camera Set with Premium & UHD Licenses - All Included AMIRA Premium License ARRI Look Library AMIRA UHD 4K License Key AMIRA Viewfinder MVF-1 Camera Handle Viewfinder Mount Viewfinder Cables USB Stick Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI AMIRA Camera Set with Premium & UHD Licenses - All Included in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI AMIRA Specs | | | Type | 35 mm Format ARRI ALEV III CMOS | | Pixel Count | Normal:
UHD 4K, 3.2K: 3200 x 1800
2K: 2868 x 1612
HD: 2880 x 1620
Surround View:
UHD 4K, 3.2K: 3168 x 1772
2K: 3154 x 1764
HD: 3168 x 1772 | | Number of Recording Pixels | Pro Res 4K UHD and UHD: 3840 x 2160
ProRes 3.2K: 3200 x 1800
ProRes 2K: 2048 x 1152
ProRes HD, MPEG 2, and HD: 1920 x 1080 | | Image Aperture | UHD 4K: 1.039 x 0.585" / 26.4 x 14.85 mm
2K: 0.931 x 0.524" / 23.66 x 13.3 mm
HD: 0.935 x 0.526" / 23.76 x 13.37 mm | | Image Circle | UHD 4K: 1.181" / 29.99 mm
2K: 1.069" / 27.14 mm
HD: 1.073" / 27.26 mm | | | | Electronic Shutter | 5–356° | | Exposure Index | Adjustable from EI 160–3200 in 1/3 Stops
Base Sensitivity: EI 800 | | Exposure Latitude | 14 Stops from EI 160–3200 As measured with the ARRI Dynamic Range Test Chart (DRTC-1) | | Built-In Filters | Motorized NDs:

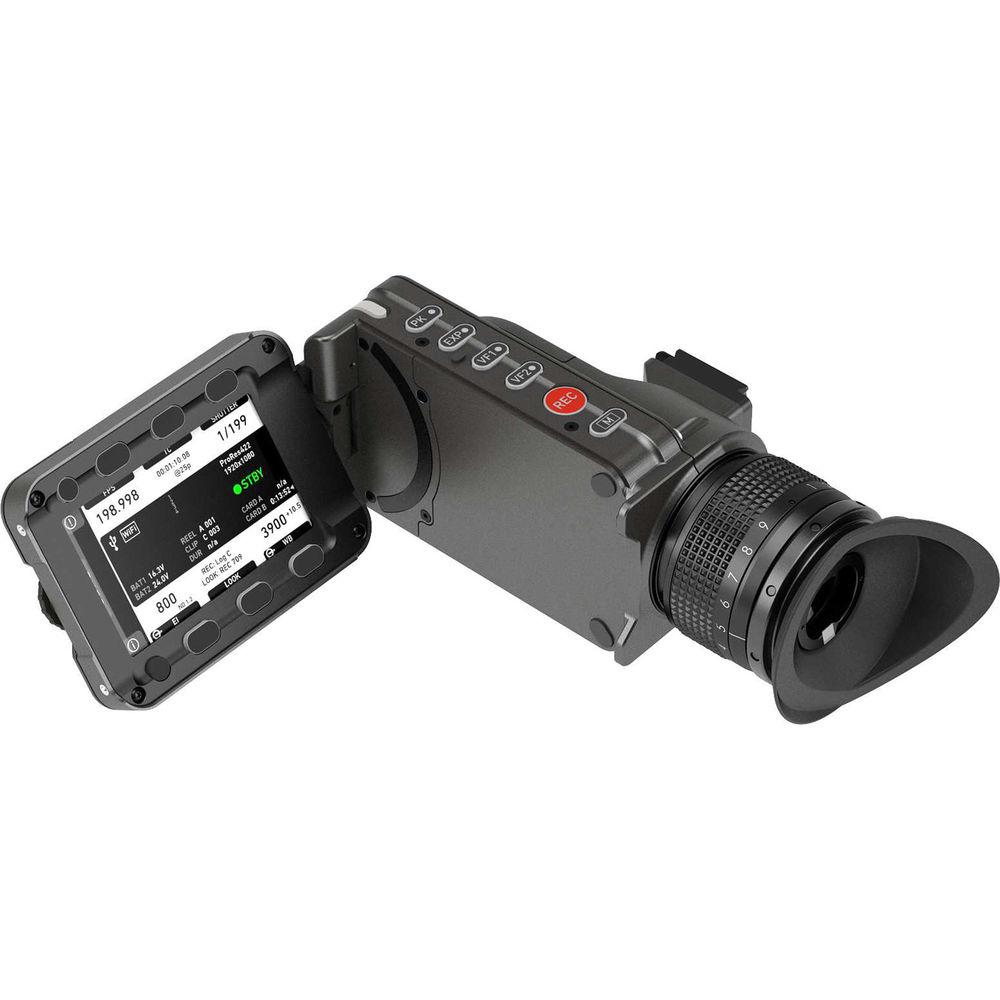

0.6, 1.2, 2.1 | | | | Viewfinder | MVF-1 (OLED and LCD) with Flip-Out Screen | | Control Panel | CCP-1 LCD Panel (Daisy-Chainable to MVF-1) | | Anamorphic | 1.3x Anamorphic De-Squeeze | | | | Recording Media | CFast 2.0 Cards | | Supported Media Card Types | ARRI 128 GB C-Fast 2.0 Memory Card B&H # ARK2.0003623 MFR # K2.0003623
ARRI 128 GB Extreme PRO C-Fast 2.0 Memory Card (3-Pack) B&H # ARCFAST3X128 MFR # K0.0019005
ARRI 256 GB Extreme PRO C-Fast 2.0 Memory Card B&H # ARCFAST256GB MFR # K2.0015640
ARRI 256 GB Extreme PRO C-Fast 2.0 Memory Card (3-Pack) B&H # ARCFAST3X256 MFR # K0.0019006
ARRI 256 GB AV Pro AR C-Fast 2.0 Memory Card (ARRI Edition) B&H # ARCFST256GB MFR # K2.0021432
ARRI 256 GB AV Pro AR C-Fast 2.0 Memory Card (ARRI Edition, 3-Pack) B&H # ARCFST3X256 MFR # K0.0021433
ARRI 512 GB Extreme PRO C-Fast 2.0 Memory Card B&H # ARCFAST512GB MFR # K2.0016648
ARRI 512 GB Extreme PRO C-Fast 2.0 Memory Card (3-Pack) B&H # ARC3X512GB MFR # K0.0019007 | | Recording Formats | UHD 4K: 3840 x 2160
3.2K ProRes: 3200 x 1800
HD: 1920 x 1080p/i | | Recording Frame Rates | UHD 4K: 0.75–60 fps
3.2K ProRes: 0.75–60 fps
2K: 0.75–200 fps (Progressive)
HD: 0.75–200 fps (Progressive)
MPEG-2: 29.97p / 25p / 23.98p
MPEG-2: 59.94i / 50i | | Recording Codecs | With Embedded Audio and Metadata:
ProRes:
4444
422 (HQ)
422
422 (LT)
MPEG-2 | | | | Gamma | Rec 2020
Rec. 709
Log C | | Look Control | Complete Look Functions, Import Looks | | Adjustable Parameters | Knee, Gamma, Saturation, Black Gamma, Saturation by Hue
ASC CDL Parameters (Slope, Offset, Power, Saturation) | | Focus and Exposure Control | Peaking, Zebra, False Color | | White Balance | Dynamic Auto Tracking White Balance
Auto White Balance | | | | Remote Control | Wi-Fi, Ethernet | | Lens Mode | S16 Lens Mode | | | | Video Outputs | 2 x HD-SDI: 6G (Dual), 3G (Dual), 1.5G
Uncompressed HD/UHD Video, Embedded Audio and Metadata | | Video Inputs | Genlock: BNC
HD-SDI: BNC
Timecode (input/output): BNC | | Audio Outputs | 3.5 mm Headphone Jack
Bluetooth Audio | | Power Outputs | ENG-Type Zoom Lenses: Hirose 12-Pin
12 V Power: D-Tap, 4-Pin Hirose, 2-Pin LEMO
24 V Power: RS 3-Pin | | Additional Inputs/Outputs | USB 2.0:
For Importing and Storing AMIRA Look Files, User Setup Files, Frame Line Files, and Feature License Keys
Stores Captured Still Image Formats in DPX (.dpx, 10-Bit) or JPEG (.jpg, 8-Bit) format
Stores Log Files
Used for Installing Software Update Packets (SUP)
Ethernet LAN RJ45:
For Camera Remote Control | | | | Audio Recording | 4 Channels, 24-Bit PCM, 48 kHz | | Sound Level | <20 dBA | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Dust and Humidity | 95% Maximum Humidity (Non-Condensing)
Splashproof and Dustproof through Sealed Electronics | | | | Dimensions (LxWxH) | 12.2 x 5.5 x 5.9" / 30.9 x 13.9 x 14.9 cm | | Weight | 9 lb / 4.1 kg | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 19.0 x 16.0 x 14.0" |
