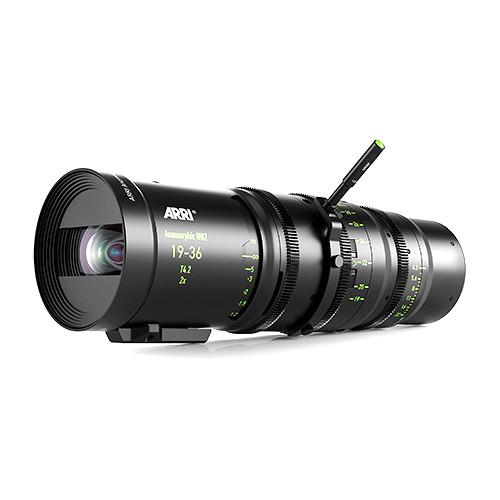

User Manual for ARRI Anamorphic 19-36mm T4.2 Ultra-Wide Zoom Lens Click to enlarge the picture
Contents of the user manual for the ARRI Anamorphic 19-36mm T4.2 Ultra-Wide Zoom
- Product category: Digital Cine Lenses ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Digital Cine Lenses
|
User manual for the ARRI Anamorphic 19-36mm T4.2 Ultra-Wide Zoom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More This ARRI Anamorphic 19-36mm T4.2 Ultra-Wide Zoom Lens is an extremely wide anamorphic zoom lens for use with Super 35mm sensors. The focus scales are marked in meters, and it features a PL mount which is sturdy and stable, and is the standard for cine lenses. The PL mount incorporates ARRI LDS (Lens Data System) contacts that enables the lens to pass metadata information to LDS compatible cameras.
The look of the image produced by the 19 to 36mm complements the Master Anamorphics, essentially extending the focal length range. Although the lens creates an anamorphic effect, straight lines are left relatively distortion free. The lens features a telecentric design, which provides extremely even illumination over the entire sensor. In addition to the telecentric design, the lens exhibits minimal breathing when pulling focus, and you can focus down to right in front of the front element. -
- Very low distortion, even at 19mm
- Exceptional corner-to-corner image performance
- Virtually no image breathing
- Uniform field illumination
- Extreme close focus up to the front lens element
- Fixed entrance pupil position over the entire zoom range
- LDS lens metadata for on-set tasks and VFX in post
- Complements the Master Anamorphic lenses
- Unique anamorphic flares
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Anamorphic 19-36mm T4.2 Ultra-Wide Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI Anamorphic UWZ 19-36mm T4.2 (m) Specs | Focal Length | 19 to 36mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Image Circle | 29.2 mm | | Maximum T-Stop | T4.2 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 2' / 0.61 m | | Front Diameter | 114 mm | | Focus Scales | Metric | | Zoom Ratio | 1.89x | | Electronic Communication | Yes | | Horizontal Squeeze (Anamorphic) | 2x | | Length | 15.364" / 39.02 cm | | Weight | 12.1 lb / 5.5 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
