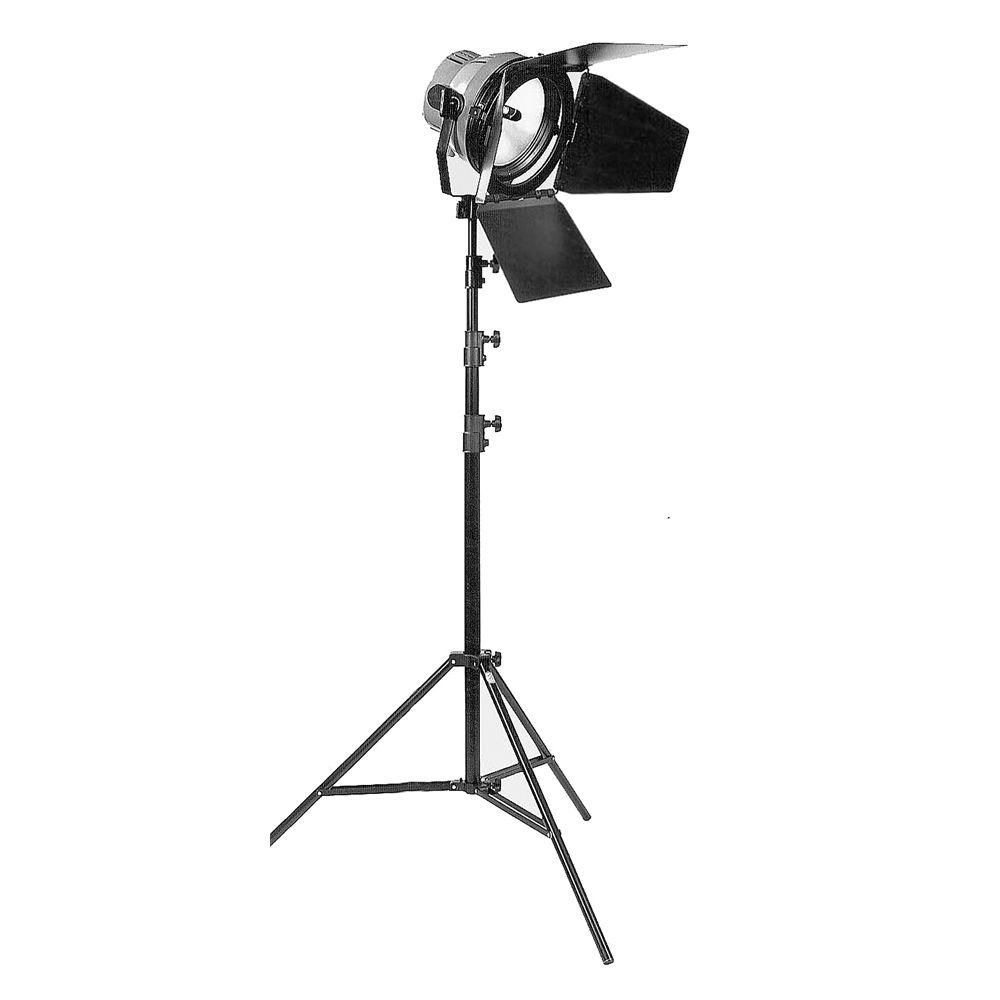

Product description This is a complete ARRI ARRILITE 2000 Plus 2 Light Kit (220V) with barndoors, light stands, scrims, 120V bulbs, and a hard case. The ARRILITE 2000 Plus from ARRI is an enhanced version of the tried-and-true ARRILITE open face line. ARRI started with the basic design of the ARRILITE 2000 and optimized the reflector's efficiency to increase output substantially and smooth out the light distribution. The aluminum housing, while just as durable as its predecessor, is almost a pound lighter. The accessory holder handles scrims and barndoors while disc brake technology, which was so successful in the True Blue line, is employed here for extra holding power and stability even with weighty front accessories. Lamp change is quickly accomplished via a swing away front door and you don't have to worry about hot surfaces thanks to the heat-proof rear handle. Whether your field is film, video or news gathering the ARRILITE 2000 Plus Kit is a great addition to your lighting setup. Although this kit is supplied for use with 22V AC voltage, it can function with 220-240 voltage, with the appropriate optional bulbs, adapter plugs or cables. - Large Open Face
- 10" (25.4 cm) aperture.
- Reflector
- ARRIMAX reflector enables higher light efficiency and better light distribution.
- No Tools Required to Change the Bulb
- Swing-away front door frame.
- Cooler Operation
- Aluminum housing enables heat dissipation. Heat-proof handle at rear of housing enables easy maneuvering.
- Lightweight
- Thermoplastic housing weighs only 6.61 (3.0 kg). It's 14 oz (400g) lighter and has a more compact housing than the previous ARRILITE 2000 model.
- Multi-Wattage, Multi-Voltage
- With appropriate bulb and plug adapter.
- True Blue Disc Brake Technology
- Holds the ARRILITE 2000 Plus steady even with heavy accessories attached.

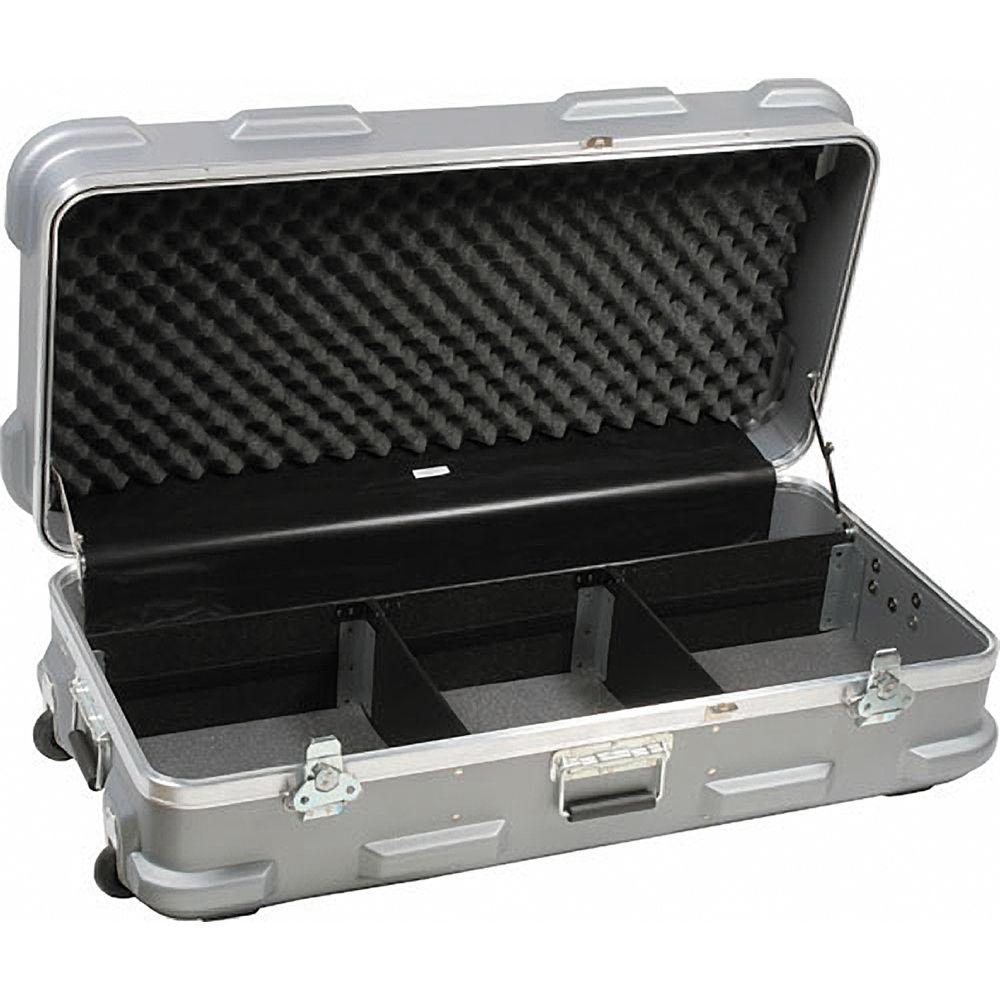

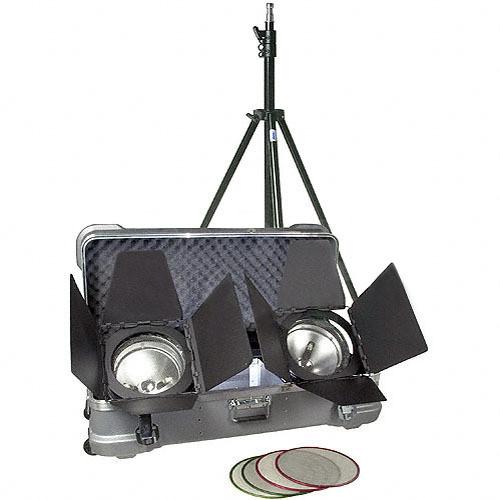

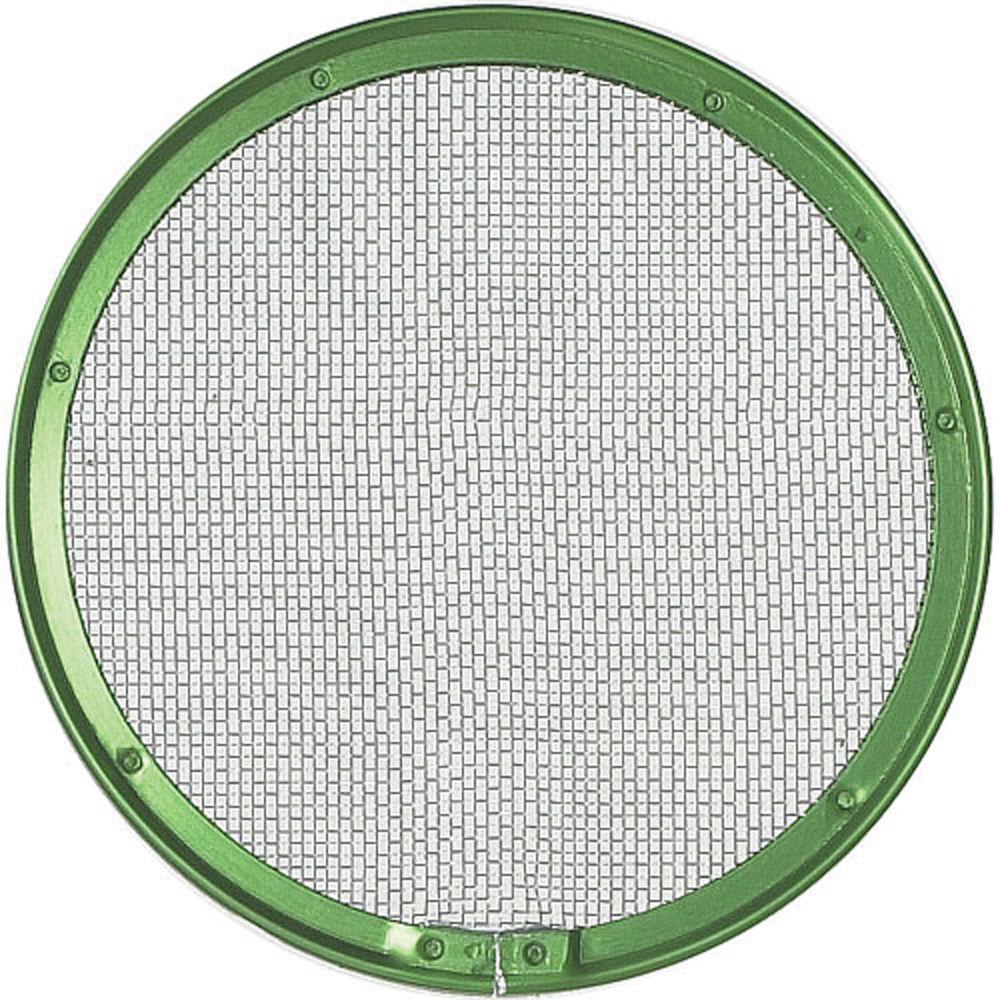

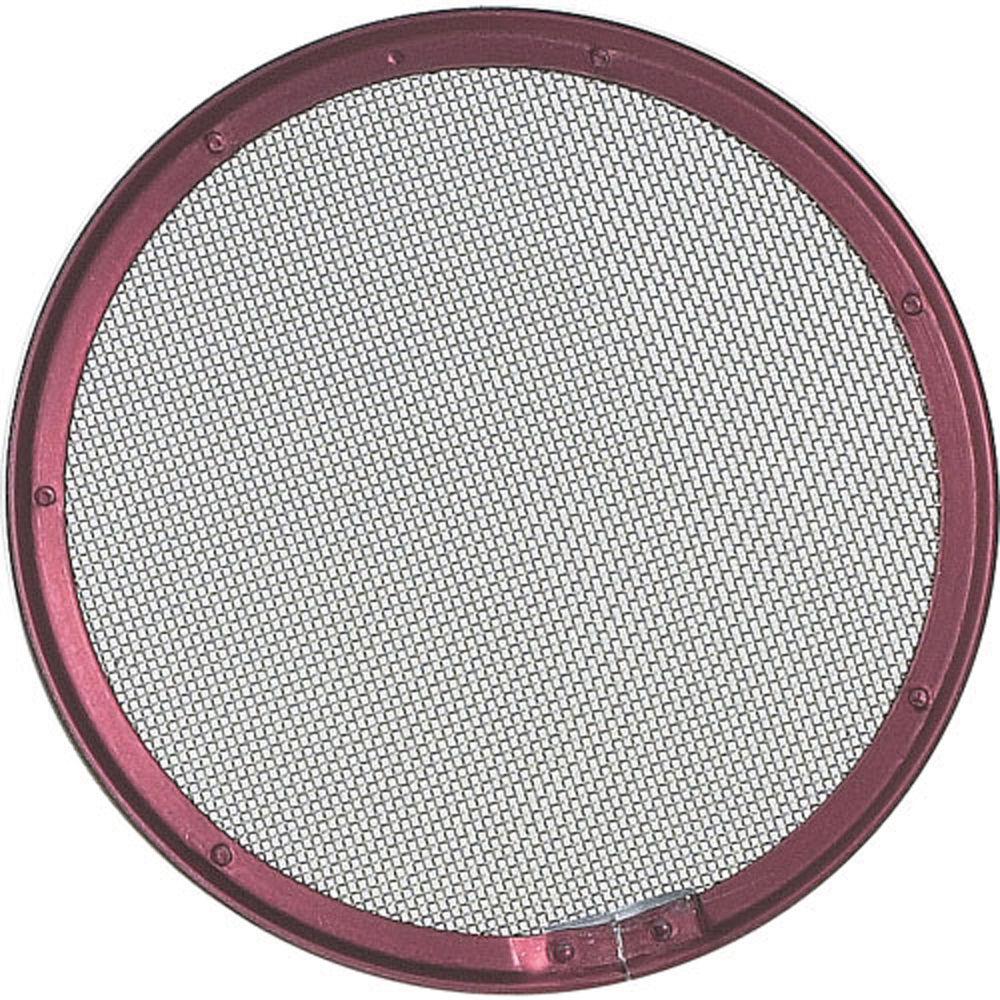

In the Box ARRI ARRILITE 2000 Plus 2 Light Kit (220V) 2 x Arrilite 2000 Plus 2 x 4-Leaf Barndoor Set for Arrilite 2000 2 x Full Single Scrim for Arrilite 2000 (10") 2 x Full Double Scrim for Arrilite 2000 (10") 2 x FEX Lamp - 2000 watts/220 volts 2 x AS-2 Lightweight Light Stand (8.5') Case for Arrilite 2K Kit One-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI ARRILITE 2000 Plus 2 Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI 2000 Plus Specs | Rating | 2,000W | | Type | Open face with parabolic faceted reflector | | Socket (Lampholder) | RX7x | | Lens (Condenser) | None | | Lamps | FEX 2,000W - 230V, FEY 2,000W - 120V (2x FEY included) | | Color Temperature | 3,200K | | IP Rating | IP 20 | | Reflector (Mirror) | ARRIMAX reflector | | Mounting | 5/8" (16 mm) | | Yoke | Oversized metal with True Blue disc brake | | Cable | 9.8' (3.0 m) with inline switch | | Accessory Size | 10" (254 mm) | | Focusing | Yes | | Voltage | 120 - 230V AC | | Certification | NRTL-US-C, CE, TÜV GS, CB | | Dimensions | Each light packed size: 14.75 x 13.58 x 12.6" (275 x 245 x 320 mm)
Kit in case: 40 x 19 x 15" (101.6 x 48.2 x 38.1 cm) | | Weight | Each light: 6.61 lb (3.0 kg)
Kit weight: approximately 61 lb (27.6 kg) | | | | Package Weight | 69.8 lb | | Box Dimensions (LxWxH) | 40.5 x 21.1 x 14.7" |
