User Manual for ARRI ARRILITE 575 Plus Fresnel Mini Kit Click to enlarge the picture
Contents of the user manual for the ARRI ARRILITE 575 Plus Fresnel Mini
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
 |
User manual for the ARRI ARRILITE 575 Plus Fresnel Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

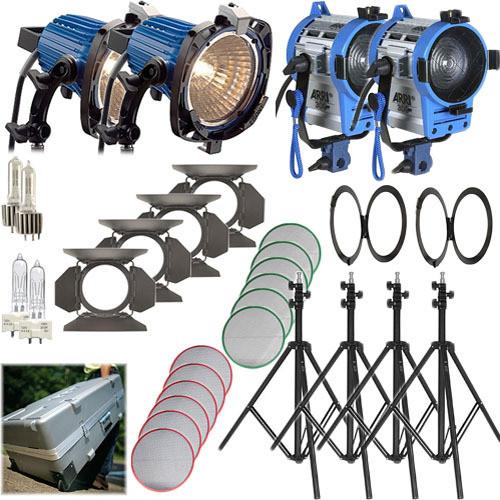

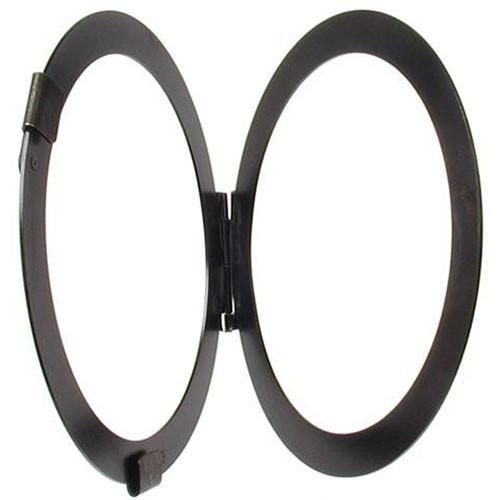

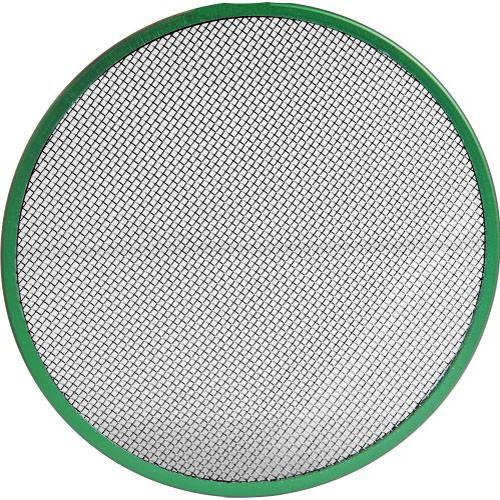

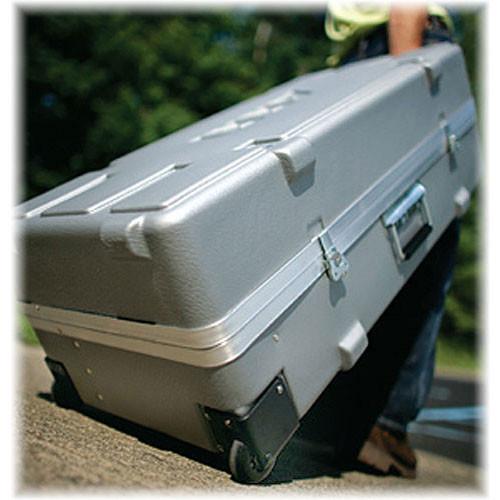

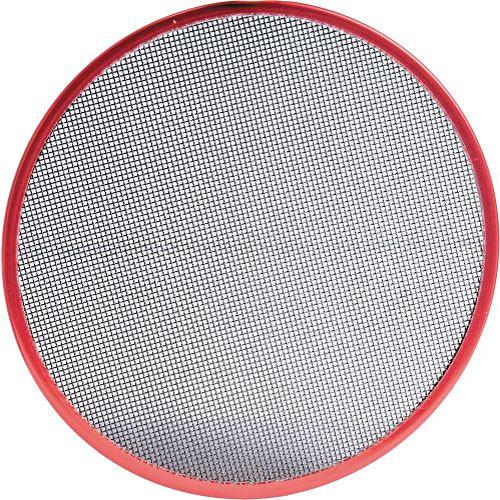

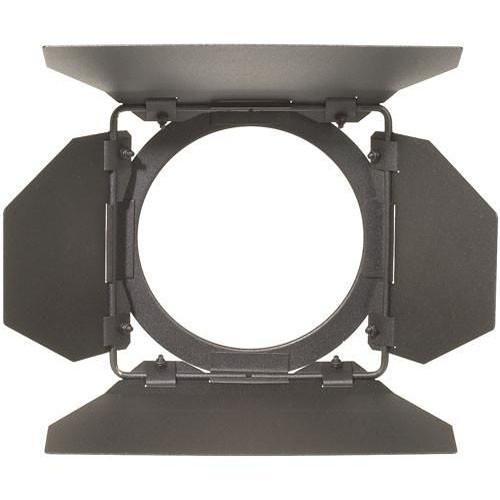

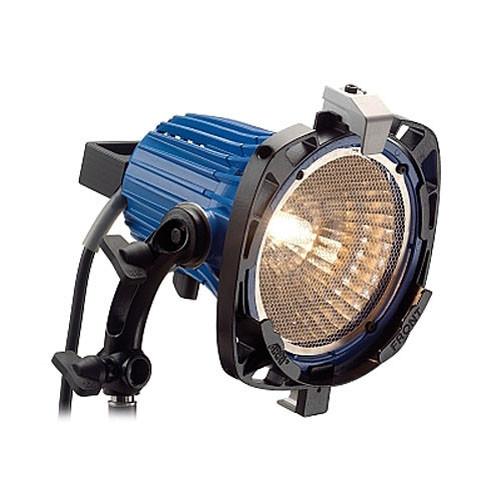

Product description This ARRI ARRILITE 575 Plus/Fresnel Mini Kit packs a lot of technology coupled with industry benchmark performance into one of the most versatile kits that ARRI offers. The kit includes two ARRILITE 750 Plus open face lights with a full complement of accessories, including scrims, barndoors, and filter frames. Two 300W ARRI Fresnels are included, each with its own set of accessories as well. Lamps and stands are provided for each light as well as a wheeled shipping case to transport and store it all. The ARRILITE 750 Plus from ARRI is an enhanced version of the tried-and-true ARRILITE open face line. ARRI started with the basic design of the ARRILITE 800 and optimized the reflector to increase output 21% using a 575W HPL lamp which employs a compact filament that concentrates and augments light while increasing efficiency. The result is almost double the output. A redesigned one-arm stirrup instead of a yoke facilitates greater movement while the dedicated accessory holder allows use of chimera softboxes without a speed ring. The ARRI 300 Plus Fresnel is designed to gather as much light as possible and direct it through the 3.2" (81.2mm) low expansion, borosilicate Fresnel lens producing a soft, even field of light. The beam spread is 15-55°. Note: The ARRILITE 750 Plus fixture uses 375, 575, and 750W HPL lamps (120-230V) In the Box ARRI ARRILITE 575 Plus/Fresnel Mini Kit (220V) 2 x 300 Plus Tungsten Fresnel (Silver/Blue) ecttvcwrywcefe 2 x 4-Leaf Barndoor Set for 300W Fresnel, 125W HMI, 200W Pocket PAR 2 x Full Single Scrim for Arrilite 600, 300W Fresnel, 125W HMI Fresnel (5") 2 x Full Double Scrim for Arrilite 600, Fresnel 300W, 125W (5") 2 x Filter Frame for Plus 300, HMI 125W Fresnels 2 x CP81 Lamp - 300 watts/220 volts 4 x AS-01 Lightweight Light Stand 8.5' 2 x ARRILITE 750 Plus 2 x 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR 2 x Full Single Scrim for 650 Fresnel, Arrisun 2, HMI Fresnel 200 (6 5/8") 2 x Full Double Scrim for 650W Fresnel and Arrisun 2 HMI 200W 6-5/8" 2 x 575W HPL LAMP 220V 571192W 4-Light Case with Wheels (Gray) Limited 1-Year Warranty (Not Including Lamps) Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI ARRILITE 575 Plus Fresnel Mini Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI LK.0005631 Specs | | | Package Weight | 63.15 lb | | Box Dimensions (LxWxH) | 34.0 x 19.0 x 12.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
