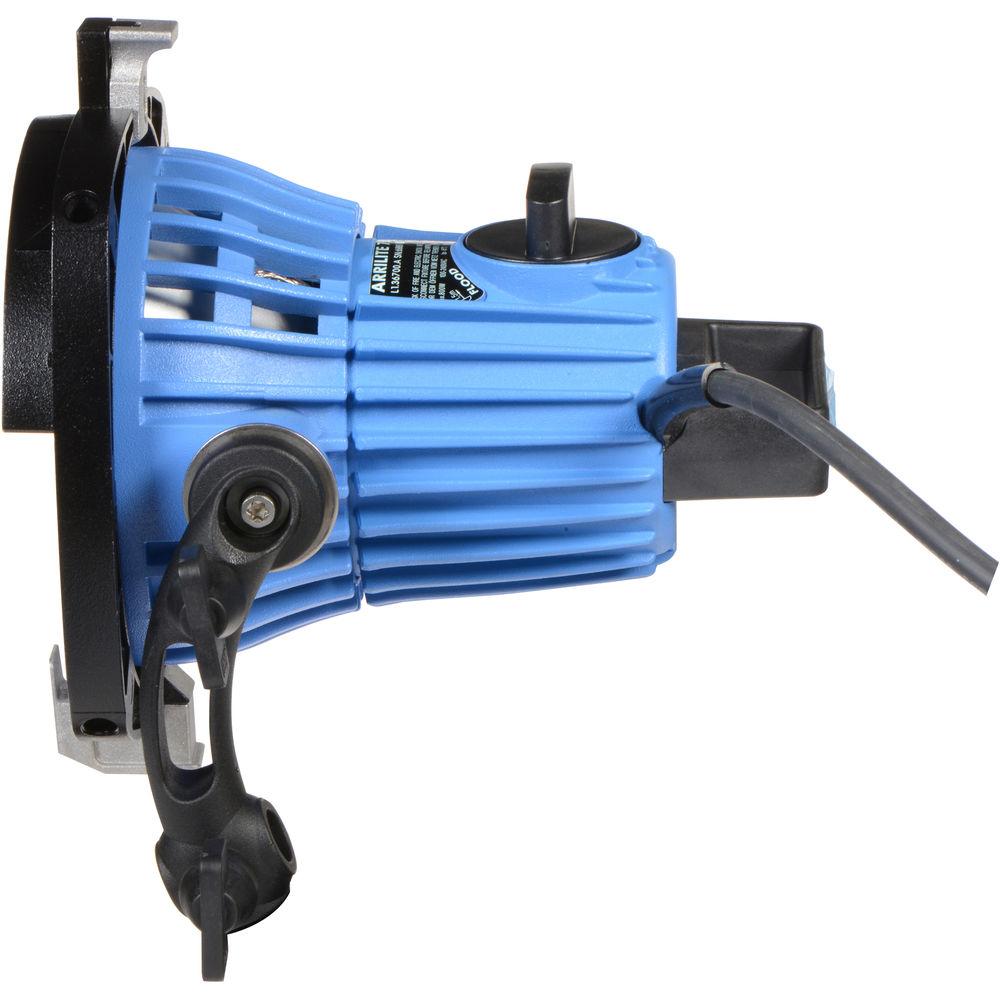

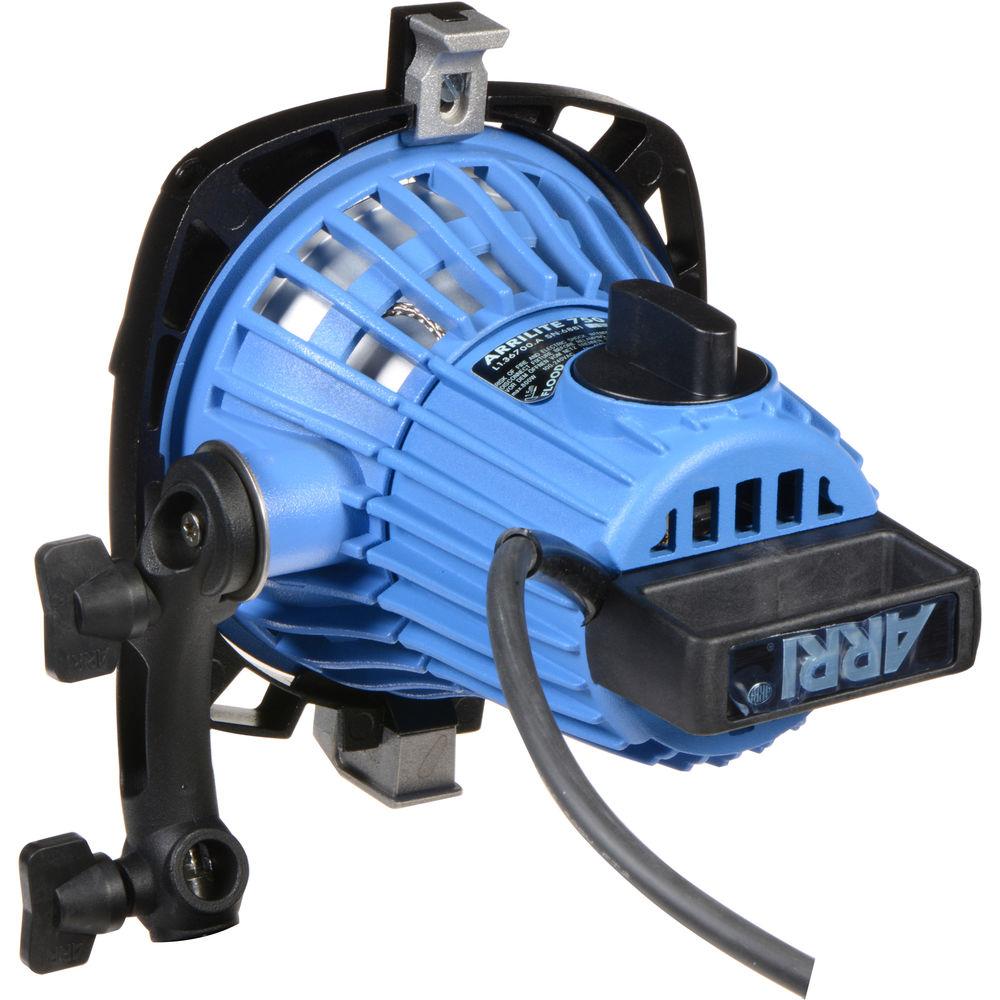

User Manual for ARRI ARRILITE 750 Plus Click to enlarge the picture
Contents of the user manual for the ARRI ARRILITE 750 Plus
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
 |
User manual for the ARRI ARRILITE 750 Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The ARRILITE 750 Plus from Arri is an enhanced version of the tried-and-true ARRILITE open face line. ARRI started with the basic design of the ARRI 800 and optimized the reflector to increase output 21% using a 750W HPL lamp which uses a compact filament that concentrates the most light where it is efficient. The result is almost double the output.The detachable accessory holder handles scrims and barndoors from the ARRILITE 650 Plus and accepts Chimera Video Pro Plus softboxes without having to purchase a dedicated speed ring. In place of the traditional yoke, ARRI provides a one-arm stirrup which allows more movement, as well as a heat-proof handle on the back of the head. Lamp change is quickly accomplished via bayonet cap locks.Whether your field is film, video, or news gathering, the ARRILITE 750 Plus is a great addition to your lighting setup. - The ARRIMAX reflector enables better light distribution.
- The fixture is compatible with 375W, 575W, and 750W lamps. The proprietary HPL (High Performance Lamp) lamp uses a compact filament which concentrates the most light where it is efficient. At 575 watts, the HPL lamp is capable of producing the equivalent of a 1000W lamp using previous technology.
- The reflector provides a 21% increase in light efficiency compared to the previous ARRI 800 model.
- An accessory holder permits the Chimera Video Pro Plus to be fitted directly, without an additional speedring.
- The one-arm stirrup allows a variety of pan-and-tilt possibilities.
- No tools are required to change the lamp.
- The compact design is smaller and lighter housing than the previous ARRI 800 model.
- The aluminum housing enables heat dissipation.
- The heat-proof handle at rear of housing enables easy maneuvering.
- It is compatible with ARRI 650 Plus accessories.
In the Box ARRI ARRILITE 750 Plus Limited 1-Year Warranty User Manual PDF 421.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI ARRILITE 750 Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI 750 Plus Specs | | | Beam Angle | 21 to 73° | | Color Temperature | 3200K | | Bulb Type | 1 x G9.5 | | Max Bulb Wattage | 750 W | | Lens Diameter | 5.9" / 150 mm | | Built-In Dimmer | Yes | | Focusable | Yes | | Front Accessory Mount | 6-5/8" (Scrim) | | Umbrella Mount | None | | | | AC Input Power | 120 to 230 VAC, 50 / 60 Hz | | Mounting | 5/8" Receiver (via Fixture) | | Cable Length | 9.8' / 3 m | | Inline Switch | Yes | | Certifications | CE, NRTL, TUV, as per Manufacturer | | IP Rating | IP20 | | Material | Aluminum (Housing) | | Dimensions | 9.1 x 8.9 x 8.8" / 230 x 226 x 224 mm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 11.6 x 10.2 x 8.7" |
