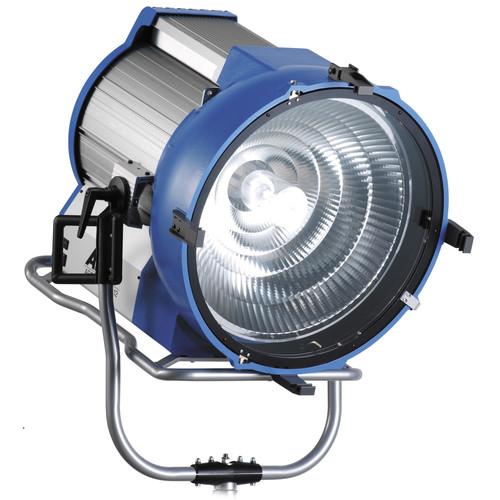

User Manual for ARRI Arrimax 18 12Kw HMI PAR Click to enlarge the picture
Contents of the user manual for the ARRI Arrimax 18 12Kw HMI PAR
- Product category: HMI & Plasma Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI HMI & Plasma Lights
|
User manual for the ARRI Arrimax 18 12Kw HMI PAR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The design of the Arrimax 18/12Kw HMI PAR fixture provides an optimum choice for productions requiring maximum light output. Combining the variable beam spread of a Fresnel and the light output of a PAR, the Arrimax uses a unique reflector concept for beam control which eliminates the need for spread lenses. The optical system with its 580mm (22.8") diameter specular, flatted reflector is adjustable and provides continuous focus from 15 - 50°. Because the Arrimax does not require a set of spread lenses, the shadow quality is sharper and easily cut. Although exact specifications are not available, this fixture will provide well over 3,000 footcandles from a distance of 100', when fitted with a 12,000 watt HMI lamp. - Efficient
- 50% brighter than a 12kW PAR.
- Optional Light Shapers
- Optional accessories are barndoors, 29" diameter scrims and a motorized stirrup.
- Hanging or Stand Mount
- Aluminum yoke mounts to a Junior (1-1/8") socket.
- Sturdy, Sure Lamp Mount
- A sturdy, locking GX51 lamp base alleviates mechanical stress from the lamp pins. GX38 lamp bases may also be used.
- Optional Electronic Ballast
- A flicker-free 12-18kW electronic, dimming ballast is available separately.
- Extra Touches
- Illuminated On/Off Switch, hour use counter.
- Safety
- Interlock micro-switch on front door for safely disconnecting all power-load connections.
Protective class I, protective rate IP 23.
Arri eXtreme cooling system In the Box ARRI Arrimax 18/12Kw HMI PAR (220 VAC) Safety Cable Limited 1-Year Manufacturer's Warranty Note: HMI Bulb, cable and ballast are not included Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Arrimax 18 12Kw HMI PAR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI Arrimax 18/12 Specs | Rating | 12,000 - 18,000W, 220 VAC | | Socket (Lampholder) | GX51, GX38, locking | | Lens (Condenser) | Not applicable | | Mounting | Junior (1-1/8") spigot | | Weight | Not specified by manufacturer | | Dimensions | 33.5 x 30.7 x 31.8" (85.2 x 78 x 81 cm) | | | | Package Weight | 225.7 lb | | Box Dimensions (LxWxH) | 45.0 x 41.0 x 39.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
