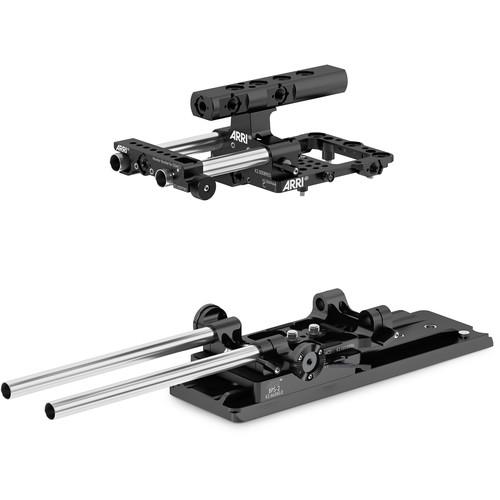

Product description The ARRI Basic Cine Set for RED DSMC2 Base Expander helps to make the boxy RED DSMC2 camera brains easier to grip and mount onto traditional cine support systems. It consists of a top plate, top handle, pair of 5.5" rods, and monitor bracket for DSMC2 brains, enabling you to hold and add a monitor to your RED camera system. The cine plate, bridge plate sled, and bottom dove-tail plate provide a platform for mounting and balancing your RED camera system on a camera support, and the pair of 9" rods provide a platform for standard cine accessories. - Cine Plate for RED DSMC2 Base Expander The ARRI Cine Plate for RED DSMC2 Base Expander is compatible with studio bridge plates like the ARRI BP-8 or BP-9. This plate's features include extended right and left rosettes for attaching handgrips or other rosette-based accessories, front and rear 15mm LWS rod support, and a lightweight, solid build.
Features - Compatible with studio-style bridge plates like the ARRI BP-8 and BP-9
- Supports the addition of 15mm rod-mounted accessories in front of, or behind your RED DSMC2 rig
- Extended-width rosettes on both right and left sides for attaching a handgrip or other rosette-based accessory
- Lightweight, solid ARRI build
- 15mm Lightweight Support Rods (Pair, 9") This pair of 9" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate
- 15mm Lightweight Support Rods (Pair, 5.5") This pair of 5.5" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate
- BPS-2 Bridge Plate Sled The BPS-2 Bridge Plate Sled from ARRI works with a bottom plate to balance your camera as the weight of the rig is changed (plate not included). The BPS-2 offers a lightweight alternative to a studio bridge plate when support rods are not needed.This sled is compatible with ARRI MBP-3, MBP-1 Pro BP, Canon C100/300/500, Canon 1DX-1DC, Sony FS5/F55, and RED Epic/Scarlet adapter plates. The BPS-2 plate includes 3/8"-16 threaded studs for mounting to a camera.
- Use as a lighter weight alternative to a studio bridge plate when rod support is not needed
- Lever-locking plate is compatible with ARRI MBP-3, MBP-1 Pro BP, Canon C100/300/500, Canon 1DX-1DC, Sony FS5/F55, and RED Epic/Scarlet adapter plates
- Includes 3/8"-16 camera-mounting screws
- Bottom Dovetail Plate (12") This 12" Bottom Dovetail Plate from ARRI is used with a sliding bridge plate or sled to balance your camera rig. To prevent the bridge plate or sled from sliding off, the Dovetail Plate features a spring-loaded post on one end and a stationary stop on the other. The bottom of the plate incorporates 3/8"-16 threaded holes for mounting the dovetail to a tripod quick release plate or other support.
- Use with a sliding bridge plate or sled to balance your camera rig (plate or sled not included)
- Includes a spring-loaded post on one end, and a stationary stop on the other to prevent the bridge plate or sled from sliding off
- Bottom of dovetail includes 3/8"-16 threaded holes for mounting to a tripod quick release plate or other support
- Top Plate for RED DSMC2 Base Expander ARRI's Top Plate for RED DSMC2 Base Expander is designed for use in low-mode setups. This plate shifts accessory mounts and interfaces to the top of your camera, leaving the bottom of the camera unencumbered, suiting it for low-mode Steadicam and tabletop setups. The Top Plate provides a connection with the camera's electronic interface, and a connector for a RED LEMO Adapter B. Additional plate features include multiple 3/8"-16 and 1/4"-20 accessory mounts and a tape hook for measuring focus distances.
Features - Suitable for low-mode setups; shifts accessory mounts and connectors to top of camera
- Connects to RED camera's electronic interface, and to RED LEMO Adapter B
- Provides multiple 3/8"-16 and 1/4"-20 threaded accessory-mounting points
- Tape hook for focus measuring
- Top Handle for RED DSMC2 Base Expander Use the ARRI Top Handle for RED DSMC2 Base Expander to carry, and mount accessories to, any RED camera equipped with the DSMC2 expander module. Components such as monitors, EVFs, wireless transmitters, mic holders, French flags, etc., can be attached to the handle two ways. Mount them to rods (not included) using the integrated 15mm LWS rod console, or to any of the multiple 3/8"-16 accessory mounts on this handle.
Features - Sturdy carrying handle attaches to the RED DSMC2 base expander module
- Integrated support for a pair of 15mm LWS support rods
- Multiple 3/8"-16 threaded accessory-mounting points
- Use to mount components like an EVF, wireless video transmitter, mic holder, on-board monitor, or flag
- Monitor Bracket for RED DSMC2 Base Expander Increase your camera's viewing-position options with the ARRI Monitor Bracket for RED DSMC2 Base Expander. This lightweight bracket is used to reposition your on-board monitor to top-mounted 15mm LWS rods. Features include 3/8"-16 and 1/4"-20 accessory mounts and a clamp-on design fastened via a single thumbscrew.
- Attaches monitor to top-mount 15mm rods
- Lightweight bracket clamps onto a pair of rods
- Single thumbscrew tightens bracket on a pair of rods
- Integrated 3/8"-16 and 1/4"-20 accessory-mounting holes
In the Box Bundle Items Cine Plate for RED DSMC2 Base Expander ryfuxwsxdwyexy 15mm Lightweight Support Rods (Pair, 9") 15mm Lightweight Support Rods (Pair, 5.5") BPS-2 Bridge Plate Sled - 3/8"-16 Camera-Mounting Screws
Bottom Dovetail Plate (12") Top Plate for RED DSMC2 Base Expander ryfuxwsxdwyexy Top Handle for RED DSMC2 Base Expander Monitor Bracket for RED DSMC2 Base Expander Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Basic Cine Set for RED DSMC2 Base Expander in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Cine Plate for RED DSMC2 Base Expander
| Dimensions (WxLxD) | 5.5 x 5.9 x 1.6" (140 x 150 x 40 mm) | | Weight | 12.4 oz (353 g) | | | | Box Dimensions (LxWxH) | 7.35 x 6.95 x 2.85" | - 15mm Lightweight Support Rods (Pair, 9")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 9.4" / 23.9 cm | | Weight | 5.2 oz / 148 g | | | | Box Dimensions (LxWxH) | 9.5 x 1.2 x 0.5" | - 15mm Lightweight Support Rods (Pair, 5.5")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 5.5" / 14.0 cm | | Weight | 2.8 oz / 80 g | | | | Box Dimensions (LxWxH) | 7.15 x 1.45 x 0.75" | - BPS-2 Bridge Plate Sled
| Dimensions | Not specified by manufacturer | | Weight | 8.7 oz (246 g) | | | | Box Dimensions (LxWxH) | 5.2 x 4.2 x 1.1" | - Bottom Dovetail Plate (12")
| Dimensions (WxLxD) | 3.9 x 11.8 x 1" (100 x 300 x 25 mm) | | Weight | 1.3 lb (578 g) | | | | Box Dimensions (LxWxH) | 11.9 x 4.2 x 1.6" | - Top Plate for RED DSMC2 Base Expander
| Dimensions | 4.3 x 5.5 x 1.2" (110 x 140 x 30 mm) | | Weight | 7.1 oz (201 g) | | | | Box Dimensions (LxWxH) | 6.2 x 5.65 x 1.15" | - Top Handle for RED DSMC2 Base Expander
| Rod Compatibility | 15 mm | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 3.0" | - Monitor Bracket for RED DSMC2 Base Expander
| Dimensions | 1.2 x 4.3 x 0.8" (30 x 110 x 20 mm) | | Weight | 2.3 oz (64 g) | | | | Box Dimensions (LxWxH) | 4.4 x 3.6 x 0.6" |
