User Manual for ARRI BP-12 Bridge Plate Set with Dovetail and 19mm Rods Click to enlarge the picture
Contents of the user manual for the ARRI BP-12 Bridge Plate Set with
- Product category: Camcorder Supports & Rigs ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Camcorder Supports & Rigs
|
User manual for the ARRI BP-12 Bridge Plate Set with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

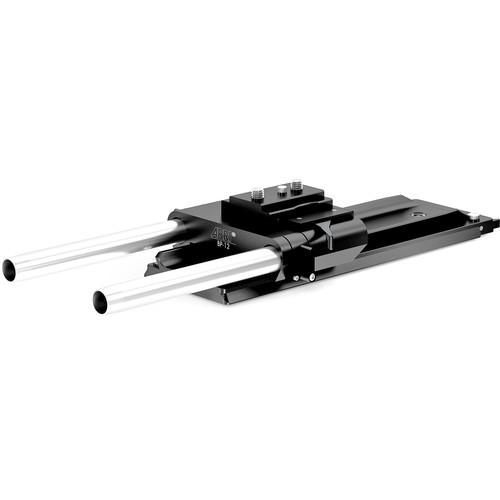

Product description The ARRI BP-12 Bridge Plate Set includes the BP-12 bridge plate, a 12" dovetail bottom plate, and a 9" pair of 19mm rods. Use this sliding base plate ensemble to adjust your camera rig's center of gravity on a tripod or other support. The BP-12 bridge plate attaches to the camera's front foot and has a thumb lever lock. Any 19mm rod-based accessory or lens support bracket can be mounted to the included pair of 19mm rods.The BP-12 Bridge Plate Set is compatible with most pro HD and film cameras. It works with all generations of the ALEXA except the Studio, XT, SXT Studio models. It is also compatible with the ARRI Adapter Plate C300 for the Canon EOS C500/300/100. This set offers a lighter-weight alternative to the BP-8/BPA-1/-2 baseplate combo. - 19mm Lightweight Rods (Pair, 9") This pair of 9" ARRI Lightweight Support Rods feature a lightweight steel construction, designed to reduce your rig's weight. Use them with any 19mm-based accessory or bridgeplate.
- Hollow, lightweight steel construction with non-threaded ends
- Compatible with any 19mm-based accessory or bridgeplate
- Bottom Dovetail Plate (12") This 12" Bottom Dovetail Plate from ARRI is used with a sliding bridge plate or sled to balance your camera rig. To prevent the bridge plate or sled from sliding off, the Dovetail Plate features a spring-loaded post on one end and a stationary stop on the other. The bottom of the plate incorporates 3/8"-16 threaded holes for mounting the dovetail to a tripod quick release plate or other support.
- Use with a sliding bridge plate or sled to balance your camera rig (plate or sled not included)
- Includes a spring-loaded post on one end, and a stationary stop on the other to prevent the bridge plate or sled from sliding off
- Bottom of dovetail includes 3/8"-16 threaded holes for mounting to a tripod quick release plate or other support
In the Box Bundle Items 19mm Lightweight Rods (Pair, 9") tfuecyvzsubefdcyuccfstq Bottom Dovetail Plate (12")
Also Includes - BP-12 Bridge Plate
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI BP-12 Bridge Plate Set with Dovetail and 19mm Rods in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 19mm Lightweight Rods (Pair, 9")
| Material of Construction | Steel | | Rod Diameter | 0.7" (19 mm) | | Rod Length | 9.4" (23.9 cm) | | Weight | 7.8 oz (222 g) | | | | Box Dimensions (LxWxH) | 9.5 x 1.6 x 0.8" | - Bottom Dovetail Plate (12")
| Dimensions (WxLxD) | 3.9 x 11.8 x 1" (100 x 300 x 25 mm) | | Weight | 1.3 lb (578 g) | | | | Box Dimensions (LxWxH) | 11.9 x 4.2 x 1.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
