User Manual for ARRI BPS-2 Bridge Plate Sled Set Click to enlarge the picture
Contents of the user manual for the ARRI BPS-2 Bridge Plate Sled Set
- Product category: Baseplate Components ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Baseplate Components
 |
User manual for the ARRI BPS-2 Bridge Plate Sled Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

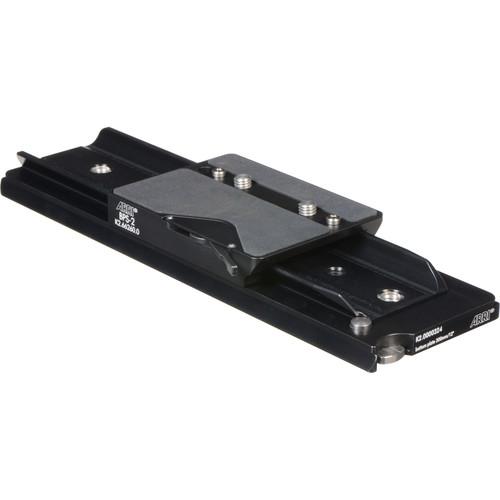

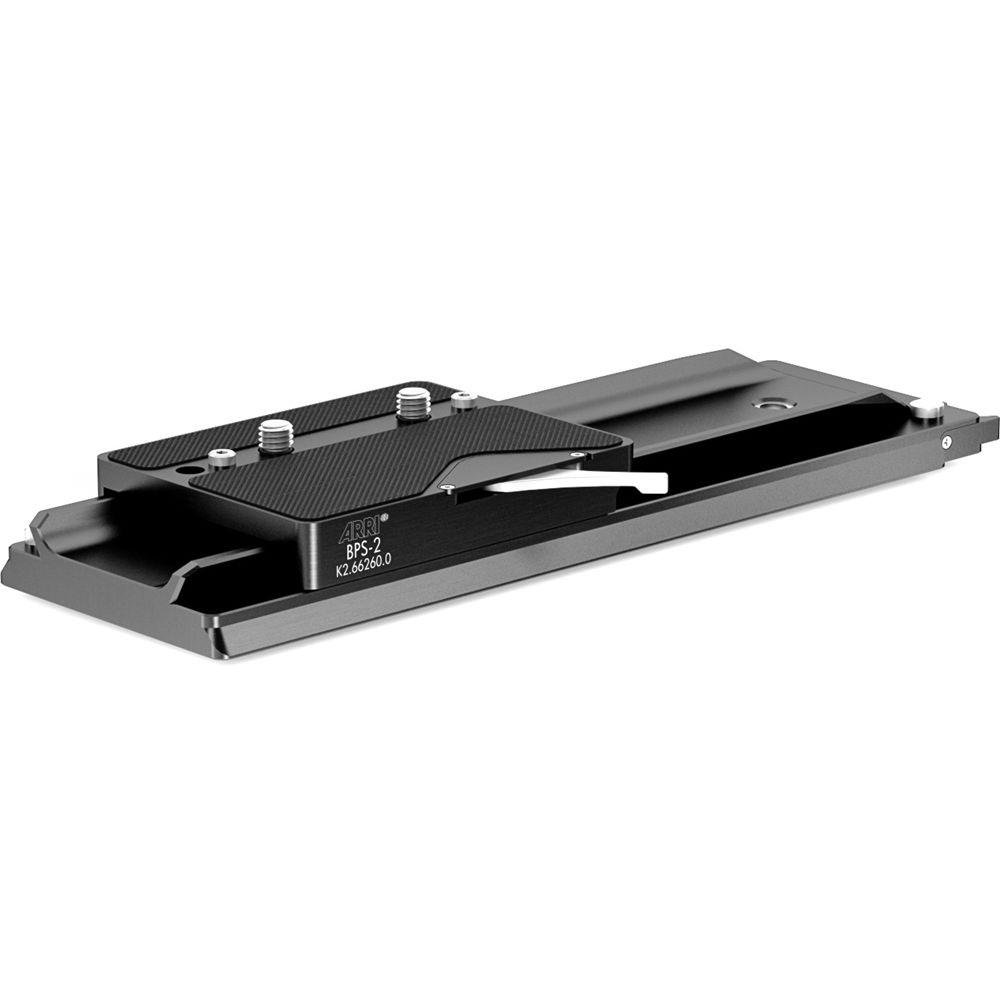

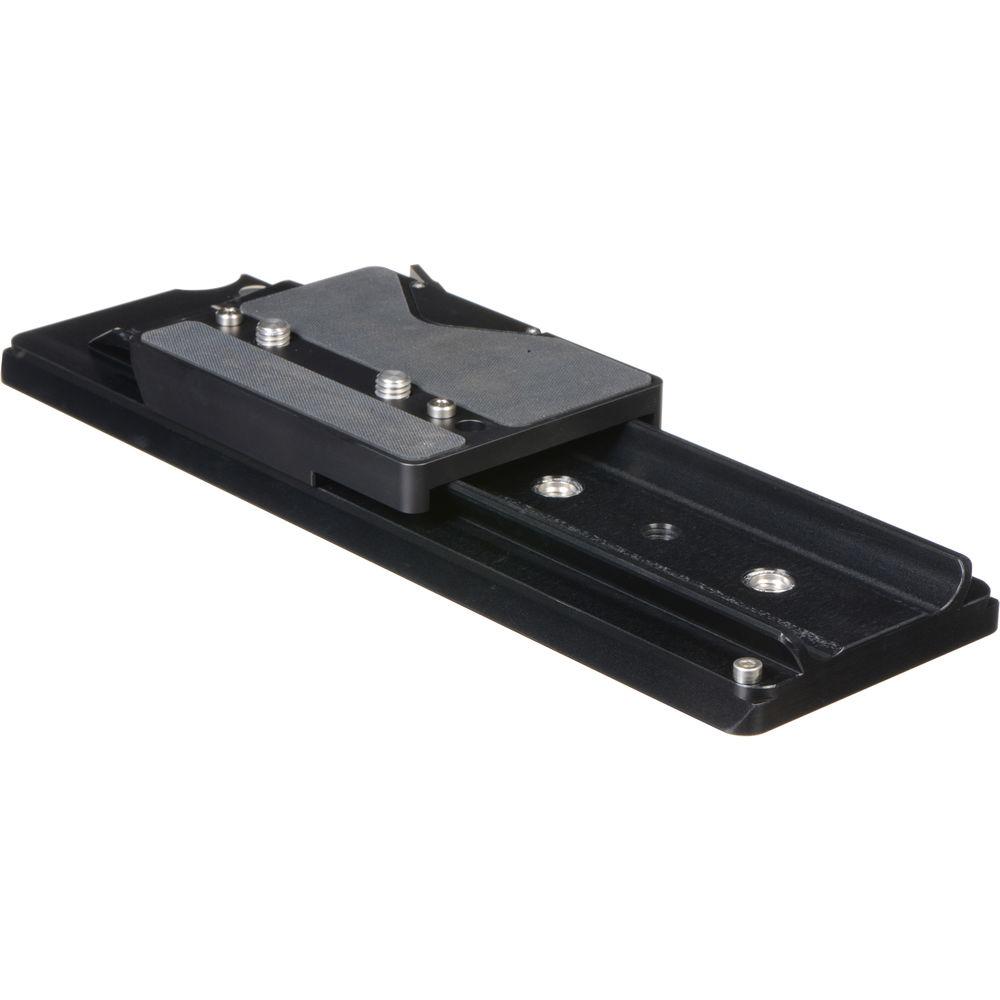

Product description This ARRI BPS-2 Bridge Plate Sled Set is a versatile combination of a bridge plate sled and a dovetail plate. It is compatible with the MBP-3 and MBP-1 Pro BP adapter plates for the Canon C100/300/500, Sony F5/F55, Canon 1DX/1DC, and select RED EPIC/SCARLET cameras. The included BPS-2 is an alternative to using a larger and heavier 19mm studio bridge plate, when you are using 15mm LWS rods, top-mounted rods, or other lens accessory support system.
The bridge plate features two sets of 3/8"-16 threaded mounting studs and a locking lever to hold it secure on the dovetail plate. The included dovetail plate is 12" long and features four 3/8"-16 threaded mounting holes, so you can choose where to position it on your tripod. At the front of the plate is a fixed pin to prevent your camera from moving or falling. A spring-loaded safety stop at the rear enables you to slide the BPS-2 on and off the dovetail plate. - BPS-2 Bridge Plate Sled The BPS-2 Bridge Plate Sled from ARRI works with a bottom plate to balance your camera as the weight of the rig is changed (plate not included). The BPS-2 offers a lightweight alternative to a studio bridge plate when support rods are not needed.This sled is compatible with ARRI MBP-3, MBP-1 Pro BP, Canon C100/300/500, Canon 1DX-1DC, Sony FS5/F55, and RED Epic/Scarlet adapter plates. The BPS-2 plate includes 3/8"-16 threaded studs for mounting to a camera.
- Use as a lighter weight alternative to a studio bridge plate when rod support is not needed
- Lever-locking plate is compatible with ARRI MBP-3, MBP-1 Pro BP, Canon C100/300/500, Canon 1DX-1DC, Sony FS5/F55, and RED Epic/Scarlet adapter plates
- Includes 3/8"-16 camera-mounting screws

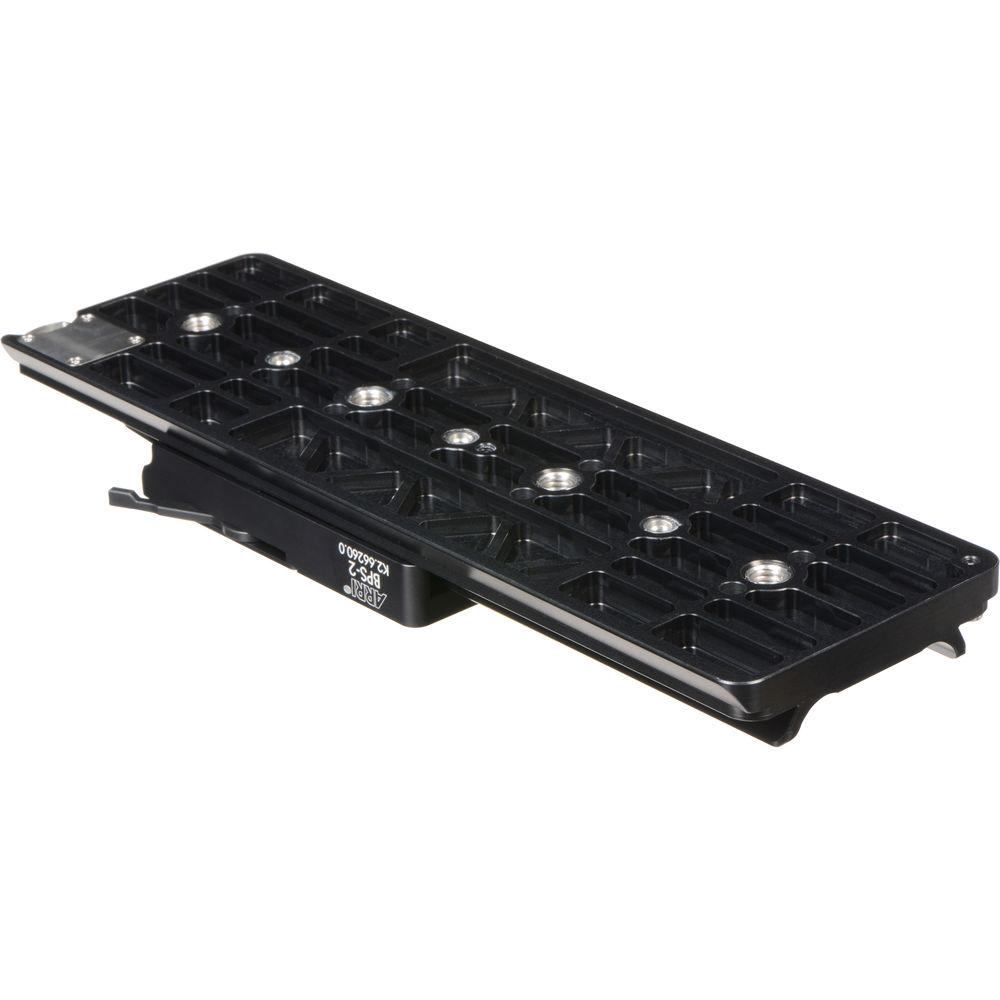

- Bottom Dovetail Plate (12") This 12" Bottom Dovetail Plate from ARRI is used with a sliding bridge plate or sled to balance your camera rig. To prevent the bridge plate or sled from sliding off, the Dovetail Plate features a spring-loaded post on one end and a stationary stop on the other. The bottom of the plate incorporates 3/8"-16 threaded holes for mounting the dovetail to a tripod quick release plate or other support.
- Use with a sliding bridge plate or sled to balance your camera rig (plate or sled not included)
- Includes a spring-loaded post on one end, and a stationary stop on the other to prevent the bridge plate or sled from sliding off
- Bottom of dovetail includes 3/8"-16 threaded holes for mounting to a tripod quick release plate or other support
In the Box Bundle Items BPS-2 Bridge Plate Sled - 3/8"-16 Camera-Mounting Screws
Bottom Dovetail Plate (12") Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI BPS-2 Bridge Plate Sled Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BPS-2 Bridge Plate Sled
| Dimensions | Not specified by manufacturer | | Weight | 8.7 oz (246 g) | | | | Box Dimensions (LxWxH) | 5.2 x 4.2 x 1.1" | - Bottom Dovetail Plate (12")
| Dimensions (WxLxD) | 3.9 x 11.8 x 1" (100 x 300 x 25 mm) | | Weight | 1.3 lb (578 g) | | | | Box Dimensions (LxWxH) | 11.9 x 4.2 x 1.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
