User Manual for ARRI Broadcast Basic Set for ALEXA Mini Click to enlarge the picture
Contents of the user manual for the ARRI Broadcast Basic Set for ALEXA
- Product category: Camcorder Supports & Rigs ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Camcorder Supports & Rigs
|
User manual for the ARRI Broadcast Basic Set for ALEXA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

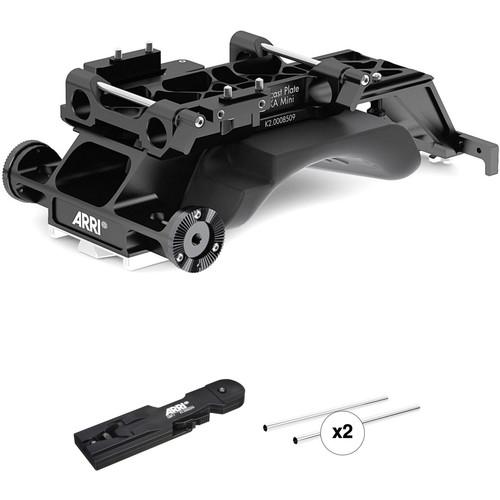

Product description The ARRI Broadcast Basic Set for ALEXA Mini provides both a VCT-style tripod plate and a shoulder mount for quickly switching between shooting styles with your ALEXA Mini camera. The Broadcast Plate provides front and back 15mm LWS rod support and two rosettes for attaching accessories. This lightweight support set also includes a 13" pair of lightweight steel 15mm rods. - ARRI Broadcast Plate ALEXA Mini Designed for documentary-style capture, the ARRI Broadcast Plate ALEXA Mini enables you to quickly switch between shoulder-mounted, and tripod-based shots with your ARRI ALEXA Mini camera. This versatile plate is compatible with VCT-style plates like the ARRI QRP-1 for quick and easy mounting to a head, while also incorporating a shoulder mount for handheld use.The Broadcast Plate ALEXA Mini has front and rear holders for lightweight 15mm rods (not included), enabling you to flesh out your camera rig with rod-mounted accessories. Balance adjustments can easily be made to the plate without disrupting the placement of any rod-mounted accessory.Rosettes on both the right and left sides of the Broadcast Plate ALEXA Mini provide points for attaching handgrips, and the contoured shoulder pad makes for more comfortable handheld operating.
Features - Dual VCT-style plate/handheld mounting options
- Easily adjust your rig's balance without affecting the placement of any rod-mounted accessory
- Enables the addition of 15mm rod-mounted accessories to your ALEXA Mini
- Rosettes on both right and left sides for attaching a handgrip or other rosette-based accessory
- Contoured shoulder pad increases comfort when in handheld mode
- ARRI QRP-1 Quick Release Plate The ARRI QRP-1 Quick-Release Plate is compatible with the ARRI AMIRA camera, select ARRI support systems, and many industry-standard broadcast cameras. The VCT wedge design enables you to quickly attach and remove your camera from the plate using the lever release.
Features - Quick release plate with lever release
- VCT-style plate enables quick mounting and removal of camera
- For ARRI AMIRA, select ARRI support systems, and many industry-standard broadcast cameras
- ARRI 15mm Lightweight Support Rods (Pair, 13") This pair of 13" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate
In the Box - Broadcast Plate ALEXA Mini
- Limited 1-Year Warranty
- QRP-1 Quick Release Plate
- 15mm Lightweight Support Rods (Pair, 13")
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Broadcast Basic Set for ALEXA Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ARRI Broadcast Plate ALEXA Mini
| Dimensions | 5.5 x 9.8 x 3.5" / 140 x 250 x 90 mm | | Weight | 2.4 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 9.9 x 6.4 x 3.1" | - ARRI QRP-1 Quick Release Plate
| Dimensions (WxLxD) | 3.1 x 11.4 x 1.2" / 80 x 290 x 30 mm | | Weight | 21 oz / 600 g | | | | Box Dimensions (LxWxH) | 13.4 x 4.0 x 2.2" | - ARRI 15mm Lightweight Support Rods (Pair, 13")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 13.4" / 34.0 cm | | Weight | 7.3 oz / 207 g | | | | Box Dimensions (LxWxH) | 13.5 x 1.2 x 0.4" |
