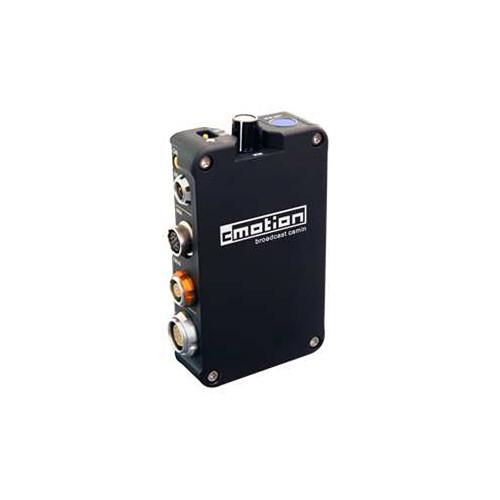

User Manual for ARRI Broadcast camin F Motor Controller Click to enlarge the picture
Contents of the user manual for the ARRI Broadcast camin F Motor Controller
- Product category: Wireless Lens Control Accessories ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Wireless Lens Control Accessories
|
User manual for the ARRI Broadcast camin F Motor Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The versatile Broadcast camin/ F (cmotion) from ARRI is a camera interface used to control focus, iris, and/or zoom in a broadcast workflow. Use this controller with ARRI CLM motors or cforce mini motors. It may also be employed with both Canon and Fujinon broadcast controllers when used with a splitter cable (cables not included). The Broadcast camin / F can govern up to three lens motors, and is suited for controlling the iris function from a remote control panel in an ARRI AMIRA multicam setup. Note: The broadcast camin / F does not include a radio module, and is therefore not suitable for wireless remote control. - Features
-
- Controls up to three focus/iris/zoom motors
- Use with cine or broadcast-style lenses
- Suited for controlling the iris function from a control panel in an AMIRA multicam
- Compatible with ARRI CLM or cforce mini motors
In the Box ARRI Broadcast camin / F (cmotion) Motor Controller Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Broadcast camin F Motor Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI Broadcast Camin Specs | Connectors | 1 x RS: 3-pin Fischer
1 x Analog: 12-pin Hirose
1 x CBUS: 8-pin LEMO
1 x EXT: 16-pin Fischer
1 x LBUS: 4-pin LEMO
3 x Motor Ports: 7-pin LEMO (positioned at 45° for optimized use with RA connectors) | | Buttons | On/off switch
Potentiometer for iris control
Lens button to set iris limit
Calibration button | | Mounting Options | 1/4"-20 thread
cmotion rosette | | Dimensions (HxWxD) | 4.1 x 2.5 x 0.9" (105 x 64 x 24 mm) | | Weight | 8.6 oz (245 g) |
