User Manual for ARRI Broadcast Pro Set for Canon EOS C700 Click to enlarge the picture
Contents of the user manual for the ARRI Broadcast Pro Set for Canon
- Product category: Camcorder Supports & Rigs ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Camcorder Supports & Rigs
 |
User manual for the ARRI Broadcast Pro Set for Canon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

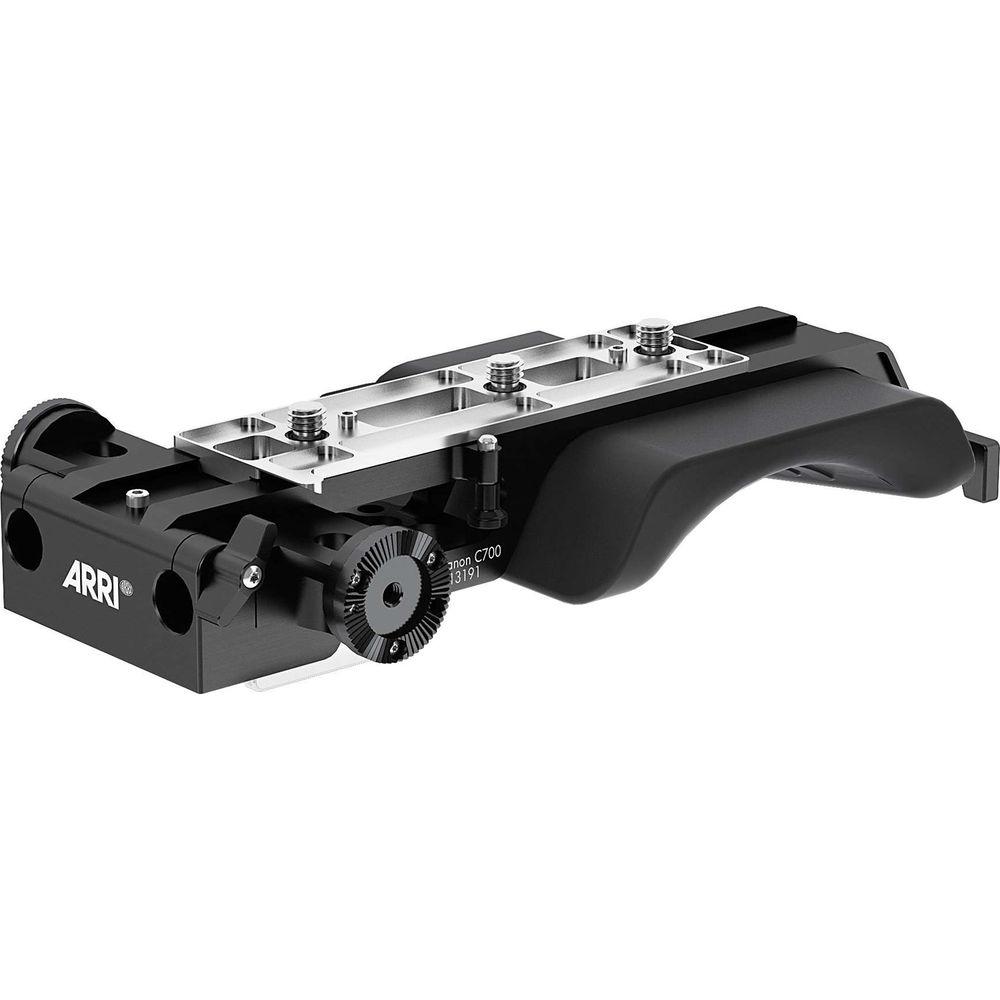

Product description The ARRI Broadcast Pro Support Set for Canon C700 bundles together a wide range of support components to use with your Canon EOS C700 Cine Camera. This set includes an adapter plate with integrated shoulder pad, a QRP-1 quick release plate, a pair of 15mm rods (9"), a top cheese plate, and a CCH2 carrying handle. The flexible adapter plate is compatible with both VCT-style, and studio bridge plates. The Top Plate is designed for low-mode use, adding accessory mounts and 15mm rod support above the camera.This set also includes a quick release adapter for mounting the original Canon EVF, and an MVB-1 Mini Viewfinder Bracket for greater flexibility when positioning the EVF. - Support Plate for Canon C700 The Support Plate for Canon C700 from Arri is compatible with VCT-style base plates like the ARRI QRP-1, and with bridge plates such as the BP-8 or BP-9. This double-duty plate's features include extended right and left handgrip rosettes, 15mm LWS rod support, and an integrated, curved shoulder pad.
Features - Compatible with both studio-style bridge plates and VCT-style plates for quickly mounting to a head or other support
- Supports the addition of 15mm rod-mounted accessories to your Canon C700 rig
- Extended-width rosettes on both right and left sides for attaching a handgrip or other rosette-based accessory
- Curved, padded shoulder rest for increased comfort while operating handheld

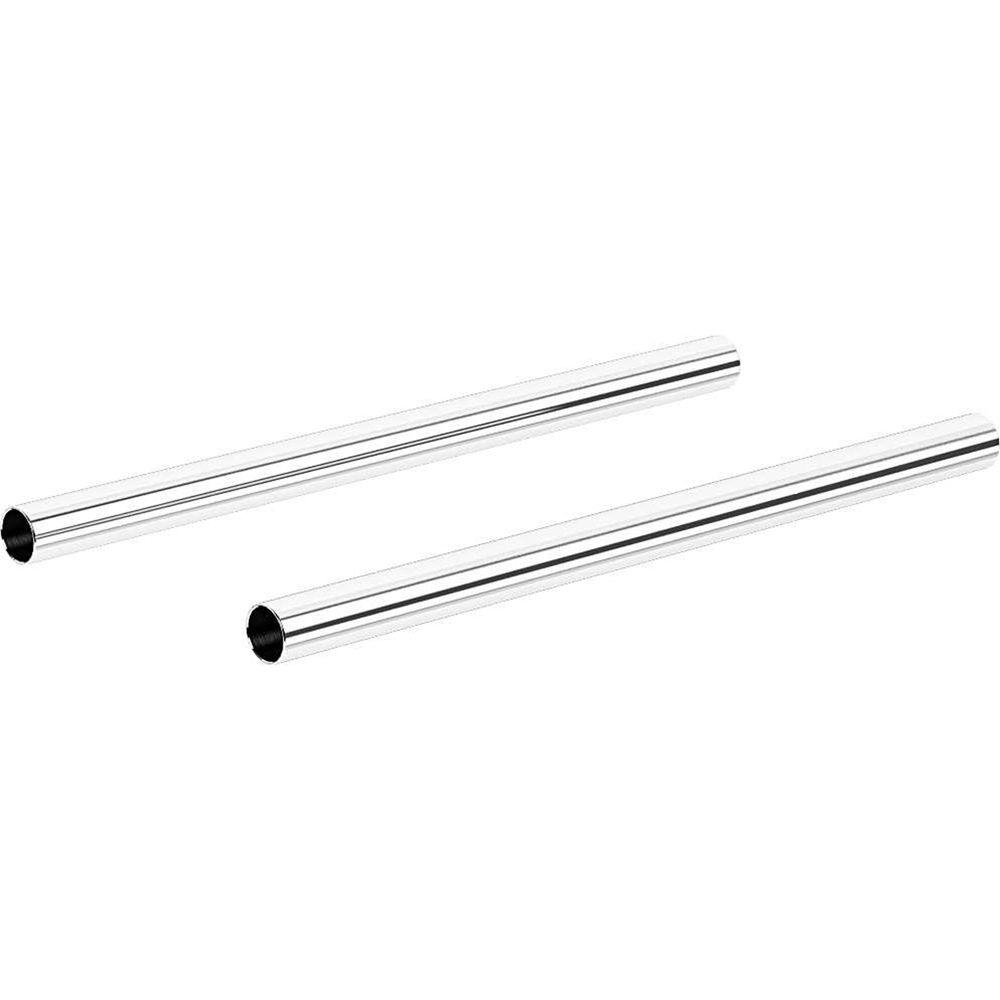

- 15mm Lightweight Support Rods (Pair, 9") This pair of 9" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate

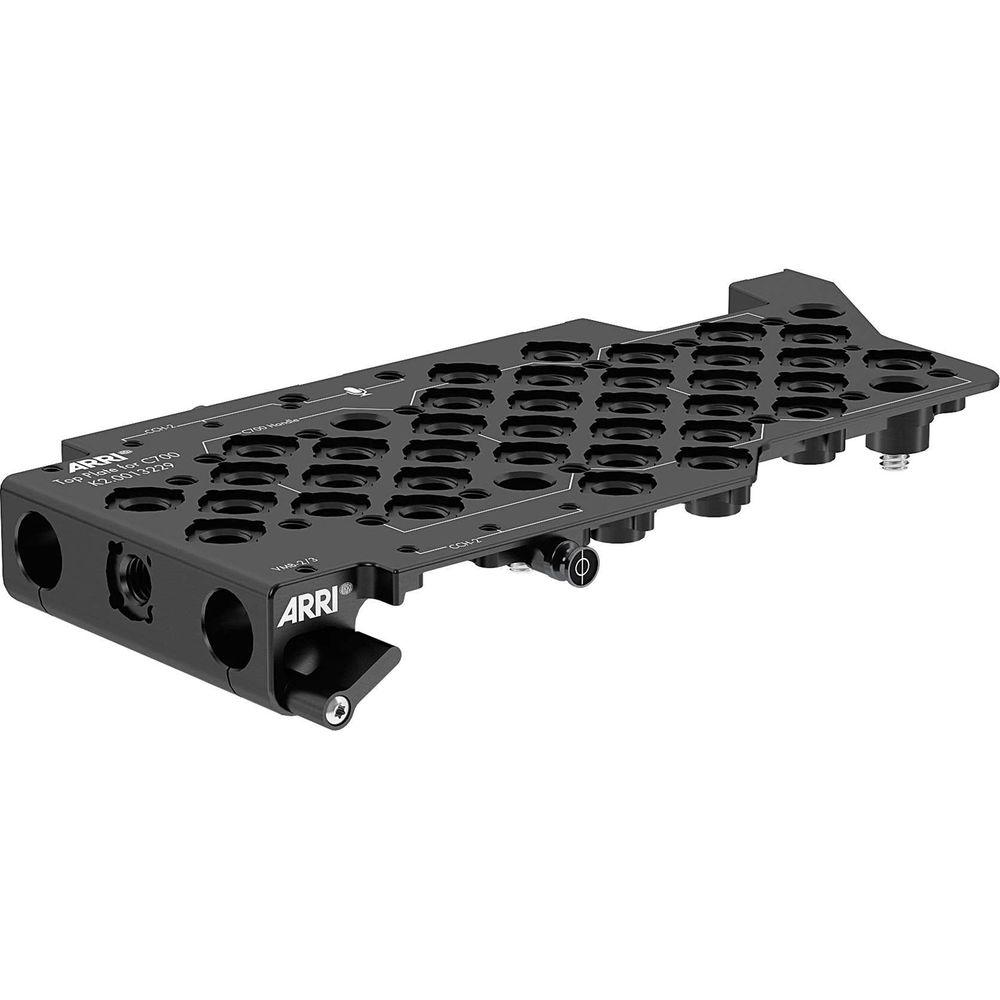

- Top Plate with Rod Support for Canon EOS C700 ARRI's Top Plate with Rod Support for Canon EOS C700 is designed for use in low-mode setups. This plate adds 15mm LWS rod support to the top of your camera, leaving the bottom of the camera unencumbered and suited for low-mode Steadicam and tabletop setups. The screw-on Top Plate also features multiple 3/8"-16 and 1/4"-20 accessory mounts and a tape hook for measuring focus distances.
Features - Suitable for low-mode setups; provides 15mm LWS rod support and accessory mounts on top of camera
- Provides multiple 3/8"-16 and 1/4"-20 threaded accessory-mounting points
- Integrated tape hook for focus measuring

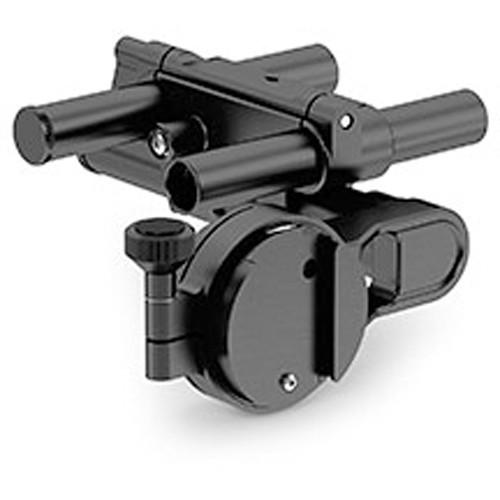

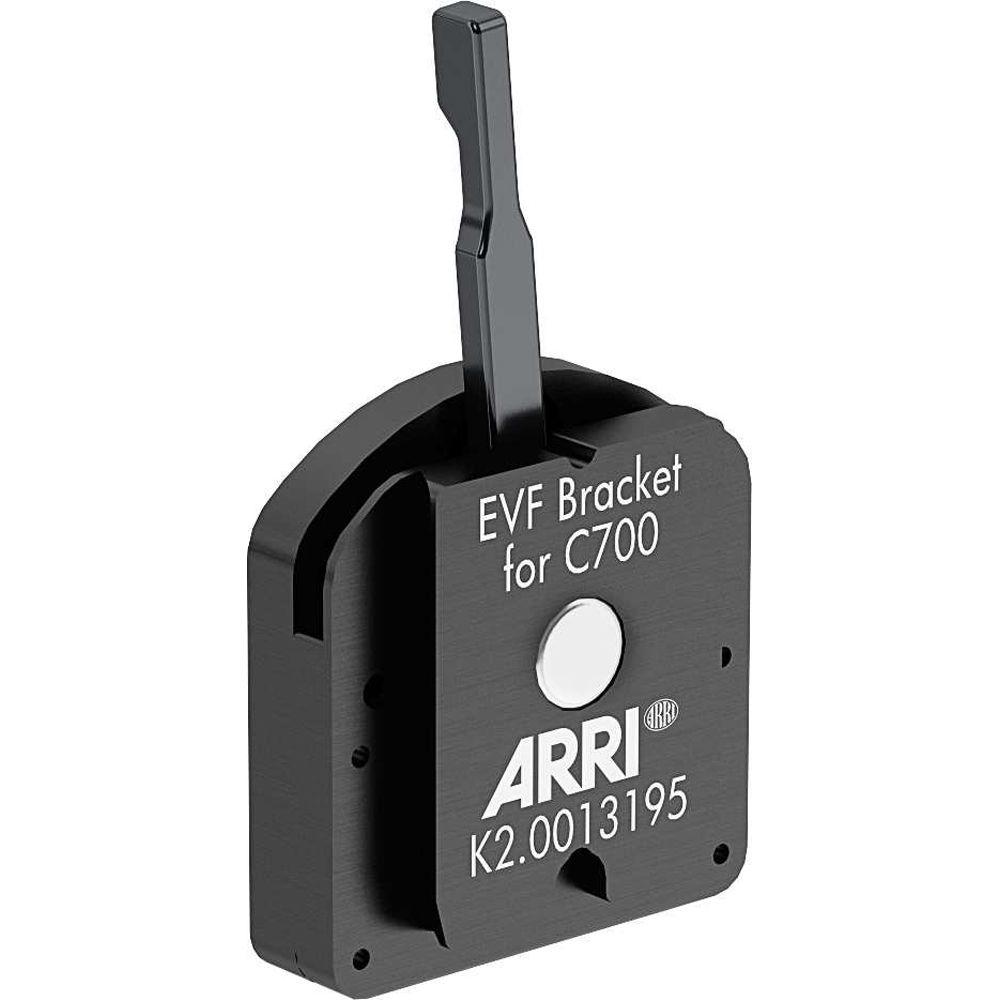

- Viewfinder Bracket for Canon C700 EVF The ARRI Viewfinder Bracket for Canon EVF provides a quick-release mounting option for your Canon C700 viewfinder. When used in conjunction with the required ARRI MVB-1 Bracket (not included), the combination enables you to configure the EVF in a more ergonomic position.
- For original Canon EOS C700 electronic viewfinder
- Provides a quick-release option for the Canon C700 EVF when used with the required MVB-1 bracket (not included)
- Enables more ergonomic positioning of the EVF
- CCH-2 Center Camera Handle Expand your options for mounting HD camera accessories like monitors, transmitters, mic holders, French flags, etc., on your ARRI camera rig by using the ARRI CCH-2 Center Camera Handle. This sturdy carrying handle screws onto a UAP-2 adapter plate (available separately), and features multiple 3/8"-16 and 1/4"-20 threaded holes for attaching accessories. Designed for use with ALEXA M, ALEXA Mini, and AMIRA cameras, it will also work with many ARRI accessory-equipped third-party cameras.
Features - Sturdy carrying handle attaches to a UAP-2 adapter plate (available separately) to provide accessory mounts
- Adds multiple 3/8"-16 threaded mounting points to an AMIRA and ALEXA M/Mini Camera, or third-party cameras using ARRI support systems

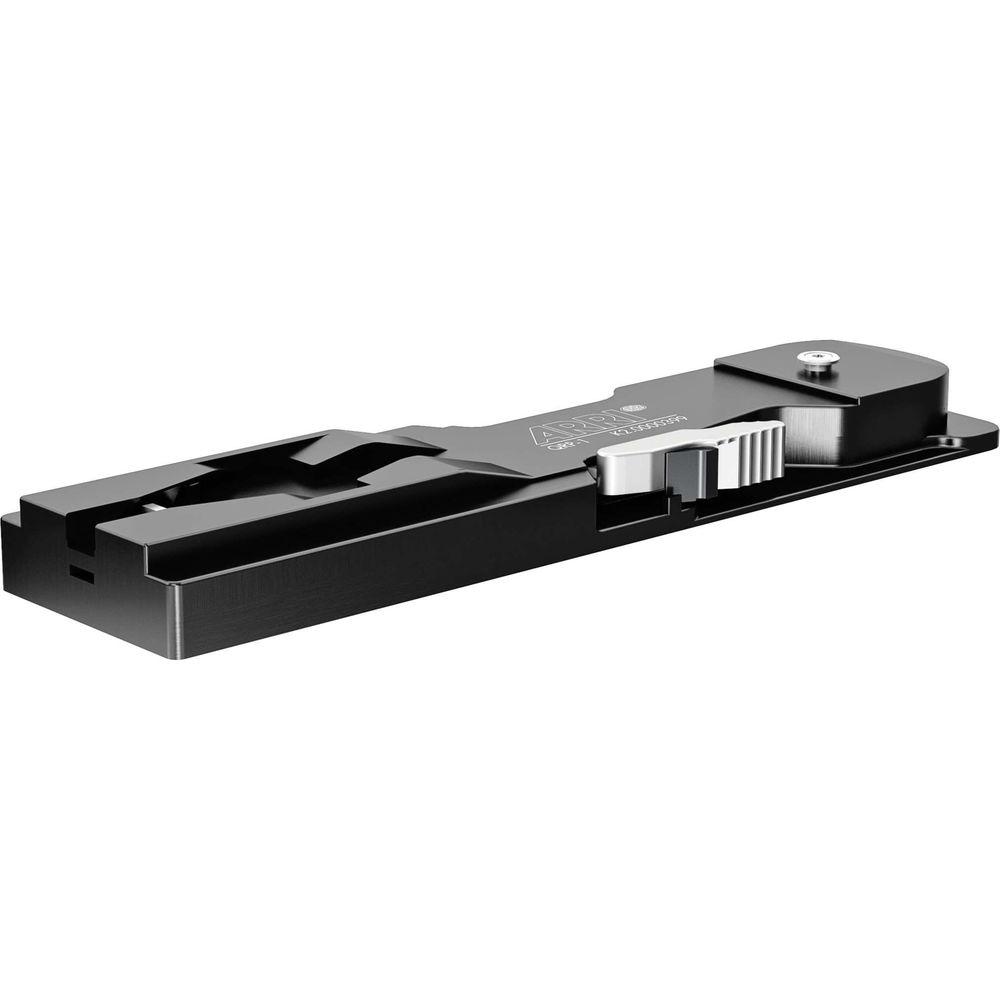

- QRP-1 Quick Release Plate The ARRI QRP-1 Quick-Release Plate is compatible with the ARRI AMIRA camera, select ARRI support systems, and many industry-standard broadcast cameras. The VCT wedge design enables you to quickly attach and remove your camera from the plate using the lever release.
Features - Quick release plate with lever release
- VCT-style plate enables quick mounting and removal of camera
- For ARRI AMIRA, select ARRI support systems, and many industry-standard broadcast cameras

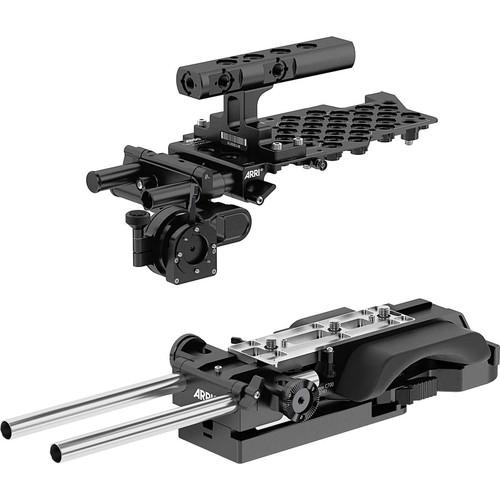

In the Box Bundle Items Support Plate for Canon C700 yfrrqausbcdfwzquvcsuesyvybwaveufysc 15mm Lightweight Support Rods (Pair, 9") Top Plate with Rod Support for Canon EOS C700 Viewfinder Bracket for Canon C700 EVF CCH-2 Center Camera Handle QRP-1 Quick Release Plate
Also Includes - MVB-1 EVF Mounting Bracket
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Broadcast Pro Set for Canon EOS C700 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Support Plate for Canon C700
| Dimensions (WxLxD) | 5.5 x 10.6 x 2.4" (140 x 270 x 60 mm) | | Weight | 2.4 lb (1.1 kg) | - 15mm Lightweight Support Rods (Pair, 9")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 9.4" / 23.9 cm | | Weight | 5.2 oz / 148 g | | | | Box Dimensions (LxWxH) | 9.5 x 1.2 x 0.5" | - Top Plate with Rod Support for Canon EOS C700
| Dimensions | 4.7 x 9.1 x 1.2" (120 x 230 x 30 mm) | | Weight | 11.6 oz (330 g) | - Viewfinder Bracket for Canon C700 EVF
| Dimensions (WxLxD) | 1.6 x 2.8 x 0.8" (40 x 70 x 20 mm) | | Weight | 1.7 oz (49 g) | - CCH-2 Center Camera Handle
| Dimensions | 3.9 x 5.9 x 2.6" (10.0 x 15.0 x 6.5 cm) | | Weight | 8.7 oz (248 g) | | | | Box Dimensions (LxWxH) | 5.4 x 3.9 x 3.2" | - QRP-1 Quick Release Plate
| Dimensions (WxLxD) | 3.1 x 11.4 x 1.2" / 80 x 290 x 30 mm | | Weight | 21 oz / 600 g | | | | Box Dimensions (LxWxH) | 13.4 x 4.0 x 2.2" |
