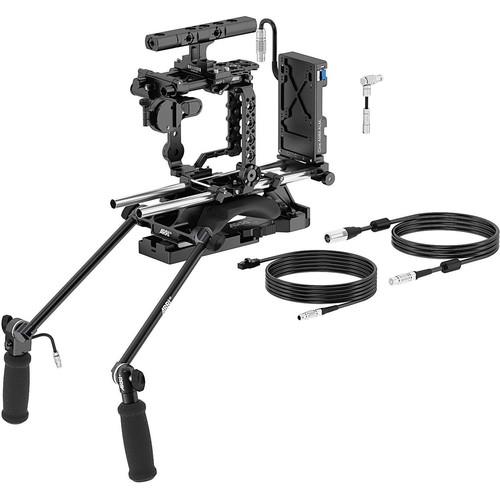

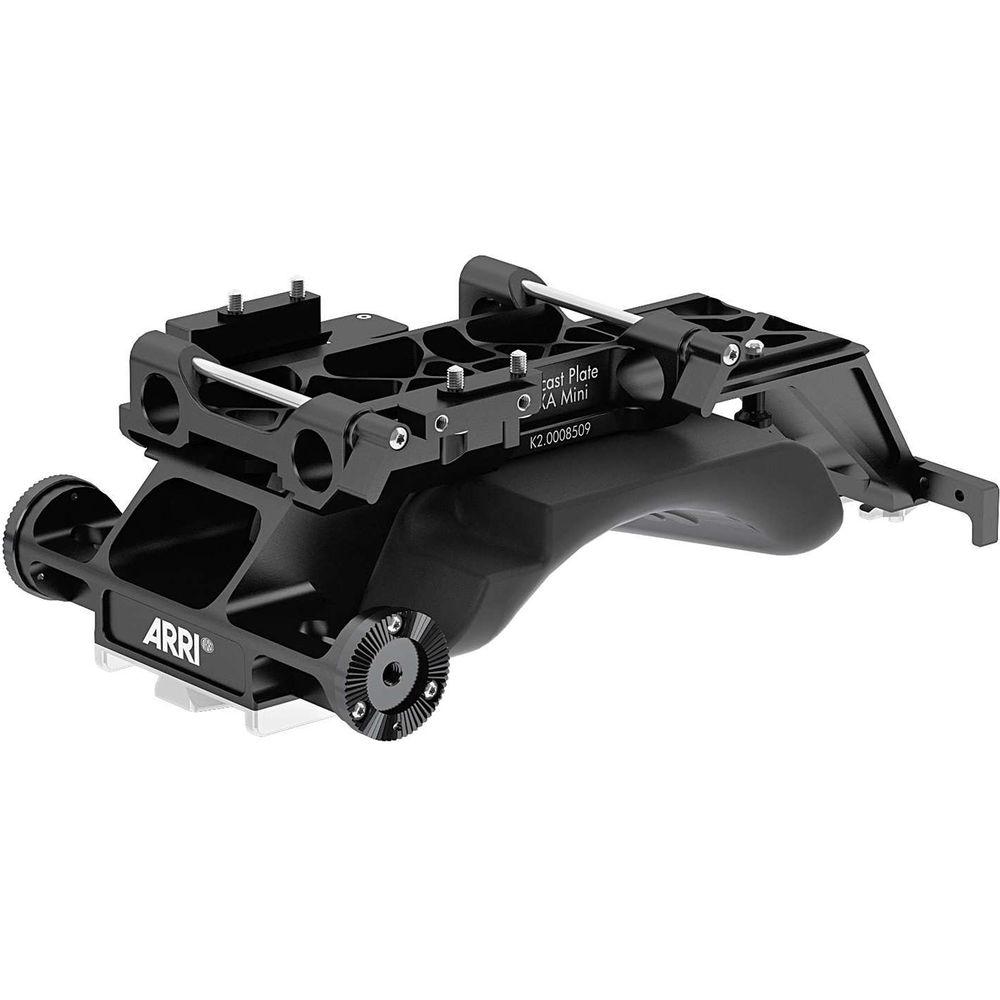

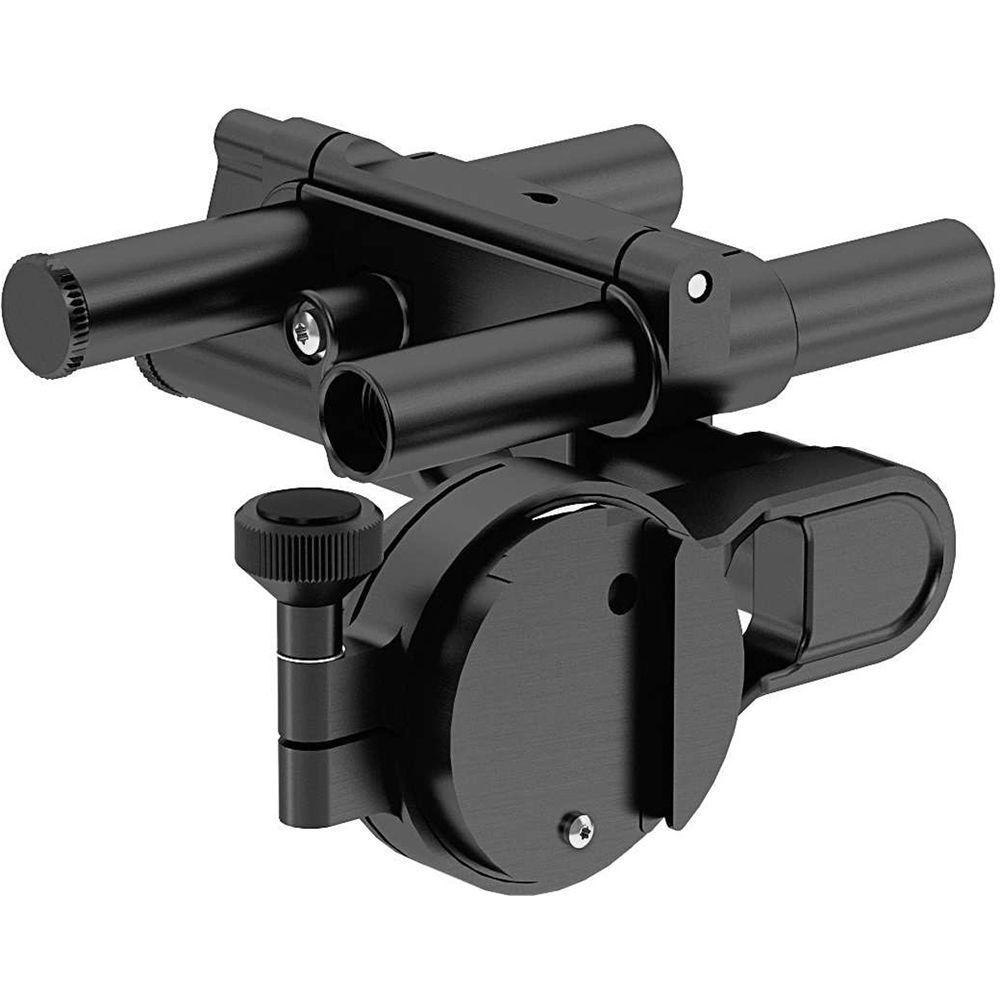

Product description The Gold mount ARRI Broadcast Set for ALEXA Mini is based around the Broadcast Plate—an adjustable baseplate with an integrated shoulder pad, 15mm LWS rod support, and VCT-style plate compatibility. The components in this bundle enable you to quickly transition between handheld and tripod-based shots. Items include two handgrips with extensions, an MVB-1 viewfinder bracket, various accessory mounting brackets, a center handle with an extension block, a stabilizer plate, and both power and Ethernet cables. A right-angle adapter converts the EXT port to a 3-pin LEMO RS connector.An adapter plate provides two 2-pin LEMO output ports, enabling you to switch between Gold mount and block battery input to power the ALEXA Mini. A rear battery adapter plate, MAP-2 adapter plate, and a pair of 13.4" 15mm rods round out the Broadcast Set. - Broadcast Plate ALEXA Mini Designed for documentary-style capture, the ARRI Broadcast Plate ALEXA Mini enables you to quickly switch between shoulder-mounted, and tripod-based shots with your ARRI ALEXA Mini camera. This versatile plate is compatible with VCT-style plates like the ARRI QRP-1 for quick and easy mounting to a head, while also incorporating a shoulder mount for handheld use.The Broadcast Plate ALEXA Mini has front and rear holders for lightweight 15mm rods (not included), enabling you to flesh out your camera rig with rod-mounted accessories. Balance adjustments can easily be made to the plate without disrupting the placement of any rod-mounted accessory.Rosettes on both the right and left sides of the Broadcast Plate ALEXA Mini provide points for attaching handgrips, and the contoured shoulder pad makes for more comfortable handheld operating.
Features - Dual VCT-style plate/handheld mounting options
- Easily adjust your rig's balance without affecting the placement of any rod-mounted accessory
- Enables the addition of 15mm rod-mounted accessories to your ALEXA Mini
- Rosettes on both right and left sides for attaching a handgrip or other rosette-based accessory
- Contoured shoulder pad increases comfort when in handheld mode

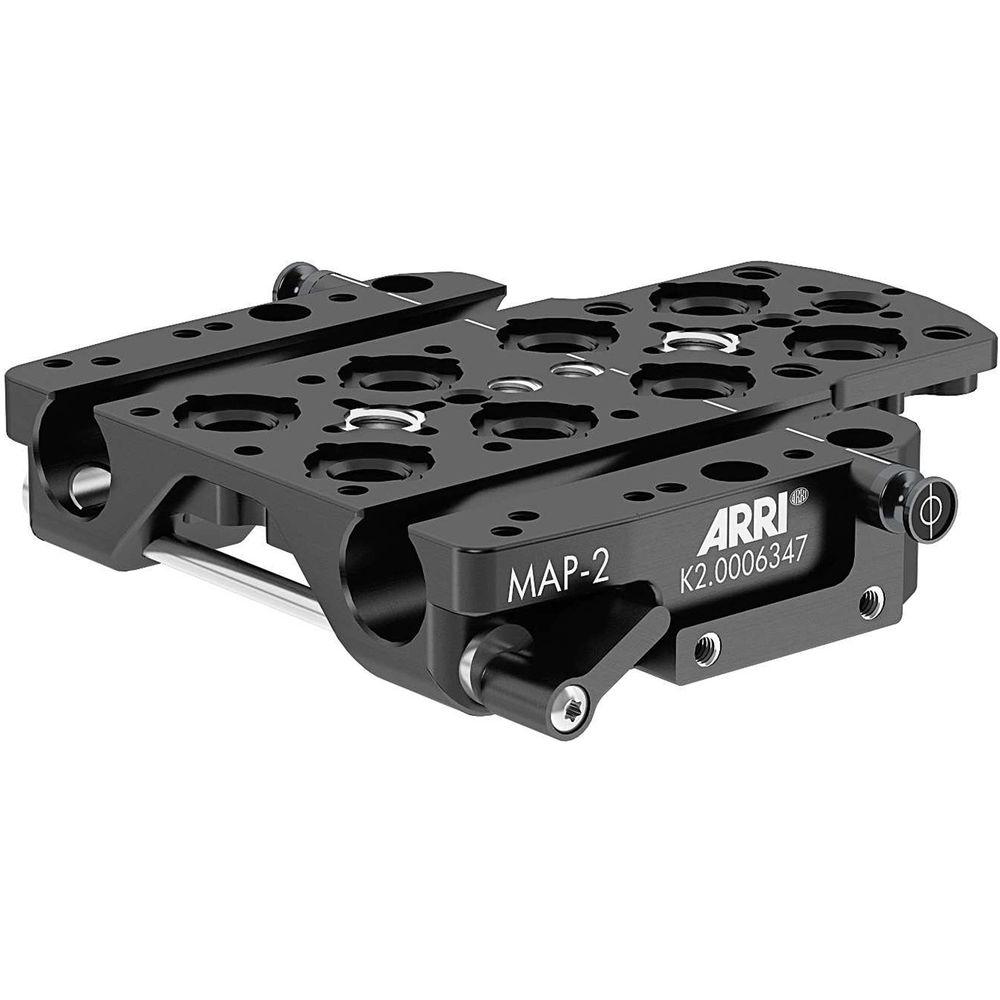

- MAP-2 Adapter Plate for ALEXA Mini (15mm) The MAP-2 Adapter Plate for ALEXA Mini from ARRI supports a pair of 15mm LWS rods, and mounts to the bottom or top of the camera. Use this adapter to flesh out your ALEXA Mini rig with rod-mounted accessories. The MAP-2 adapter plate is compatible with studio bridgeplates when used with the separately available BPA-4 adapter. Tape measure studs on both sides of the plate aid in measuring precise focus distances.

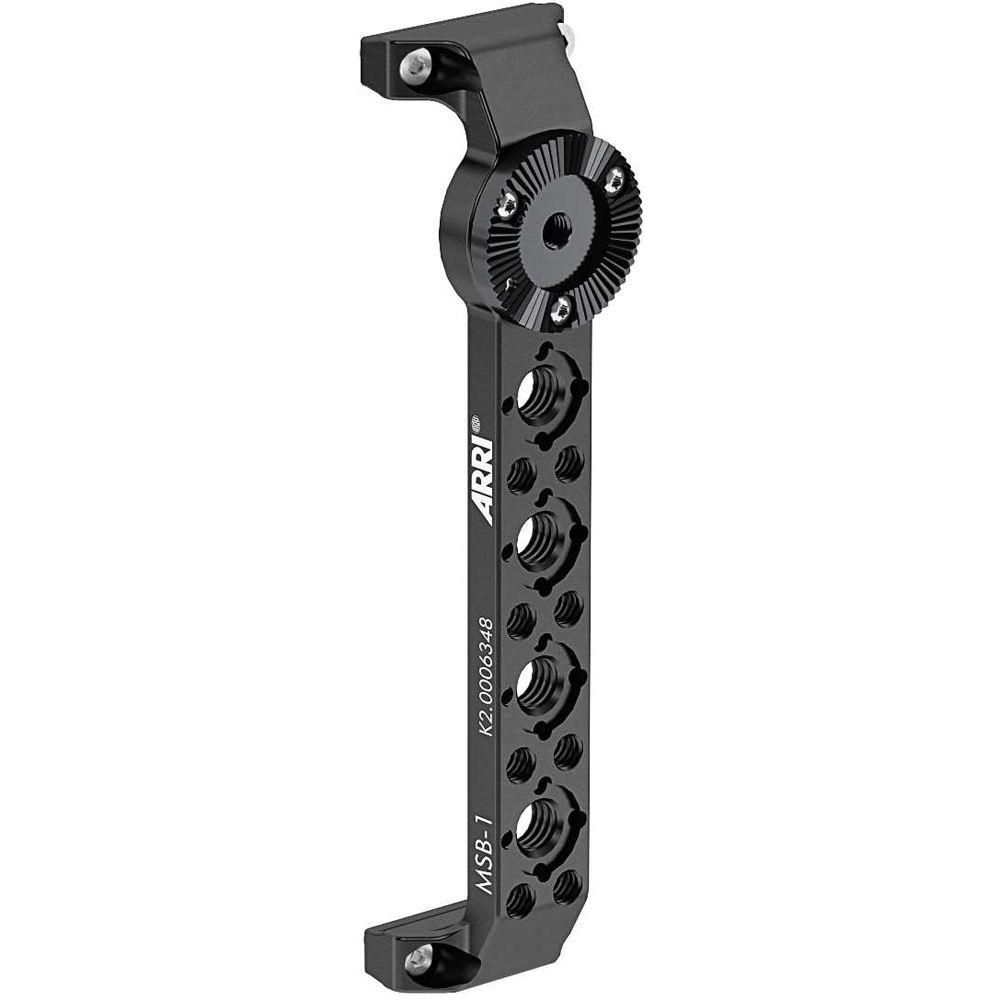

- MSB-1 Side Bracket for ALEXA Mini The ARRI MSB-1 Side Bracket helps to cradle and protect the ALEXA Mini camera body, providing 3/8"-16 and 1/4"-20 threads for mounting accessories. An integrated rosette enables the mounting of a separately available handgrip or handle. Use this bracket alone, or as a modular part of the ARRI ALEXA Mini cage.
Features - Adds 3/8"-16 and 1/4"-20 accessory mounting points
- Integrated rosette for mounting a handgrip or handle
- Use alone, or as an ARRI ALEXA Mini cage component

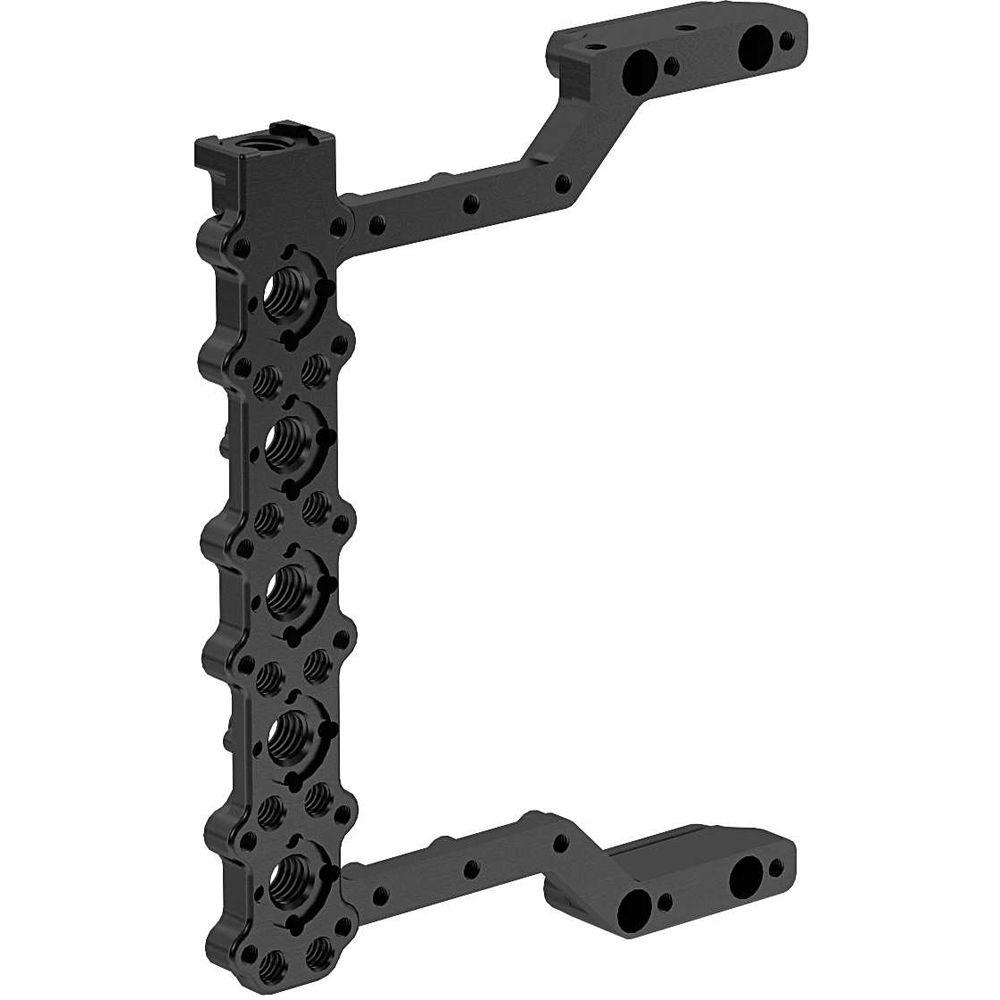

- SAB-1 Side Accessory Bracket for ALEXA Mini The ARRI SAB-1 Side Accessory Bracket fits onto an ALEXA Mini adapter plate, providing multiple points for attaching accessories to the camera (adapter plate available separately). In addition to 3/8"-16 and 1/4"-20 threaded holes, the SAB-1 provides interfaces for attaching the RMB-3 Rod Mounting bracket and MSB-1 Mini Side Brackets. The SAB-1 Bracket can be mounted to an MAP-1 or MAP-2 ALEXA Mini Adapter Plate, the Mini Broadcast Plate, or the CBP-1 Compact Bridgeplate.
Features - Attaches to the ARRI ALEXA Mini via an adapter plate (available separately)
- Provides multiple 3/8"-16 and 1/4"-20 accessory mounting points
- Can be used to mount the RMB-3 Rod Mounting Bracket and MSB-1 ALEXA Mini Side Brackets
- Attaches to an MAP-1 or MAP-2 ALEXA Mini Adapter Plate, the Mini Broadcast Plate, or the CBP-1 Compact Bridgeplate (all available separately)
- MVB-1 Viewfinder Mounting Bracket for ALEXA Mini Use the ARRI MVB-1 Viewfinder Mounting Bracket to mount the MVF-1 electronic viewfinder to an ALEXA Mini camera. This bracket provides adjustable positioning of the EVF via 15mm LWS rods and the viewfinder mount. The separately available MAP-2 adapter plate is required for 15mm rod support on the ALEXA Mini.
- Compatible Cameras
- ALEXA Mini

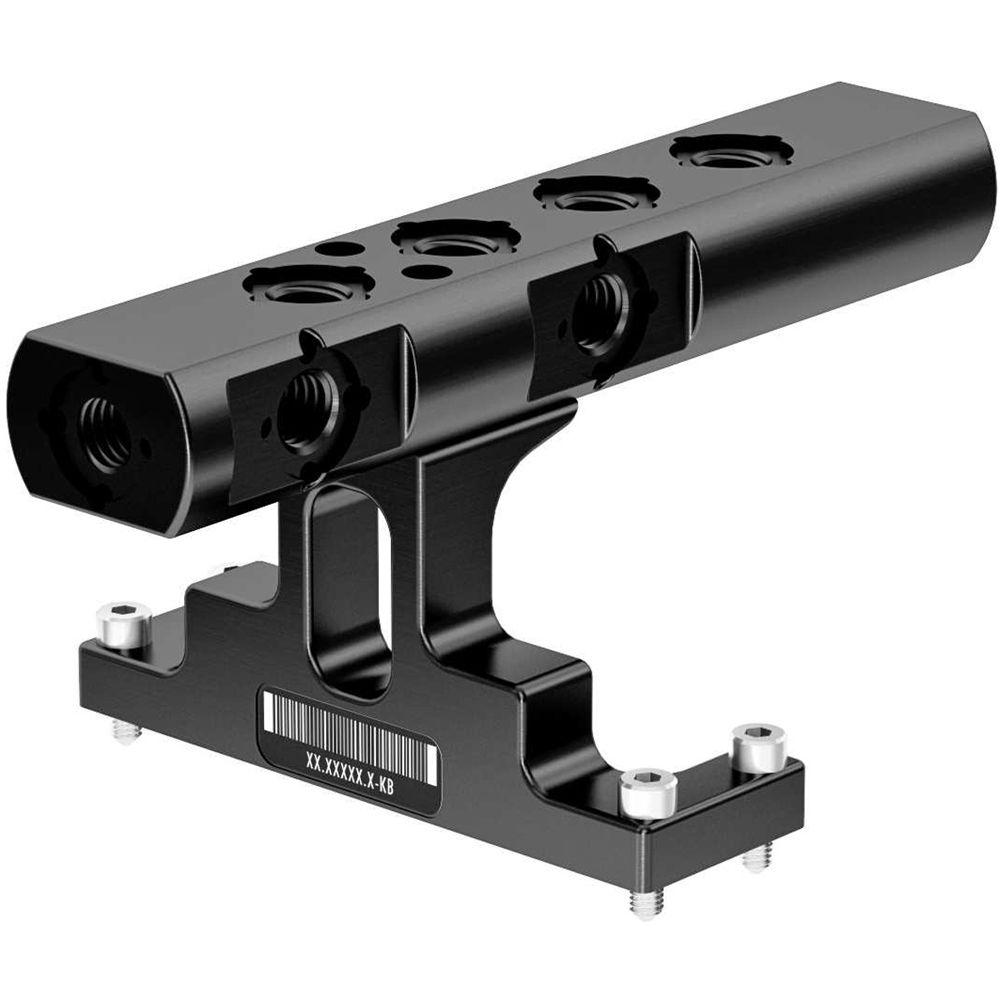

- CCH-2 Center Camera Handle Expand your options for mounting HD camera accessories like monitors, transmitters, mic holders, French flags, etc., on your ARRI camera rig by using the ARRI CCH-2 Center Camera Handle. This sturdy carrying handle screws onto a UAP-2 adapter plate (available separately), and features multiple 3/8"-16 and 1/4"-20 threaded holes for attaching accessories. Designed for use with ALEXA M, ALEXA Mini, and AMIRA cameras, it will also work with many ARRI accessory-equipped third-party cameras.
Features - Sturdy carrying handle attaches to a UAP-2 adapter plate (available separately) to provide accessory mounts
- Adds multiple 3/8"-16 threaded mounting points to an AMIRA and ALEXA M/Mini Camera, or third-party cameras using ARRI support systems

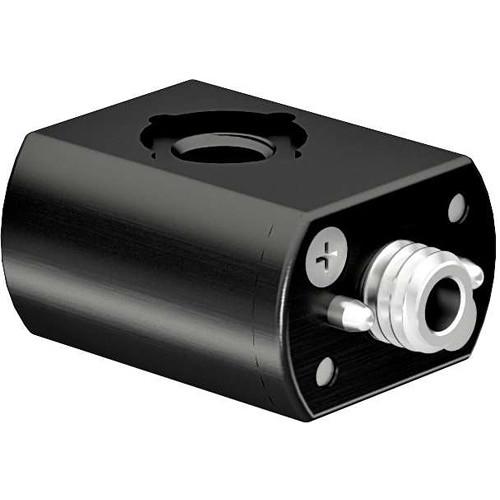

- Handle Extension Block (HEB-1) Attach the ARRI Handle Extension Block (HEB-1) to the CCH-1 Center Camera Handle to add length, and three 3/8"-16 threaded mounts to the carrying handle. This extension may also be screwed to any standard UNC 3/8"-16 threaded mount, and can be used with both ARRI and third-party cage rigs.

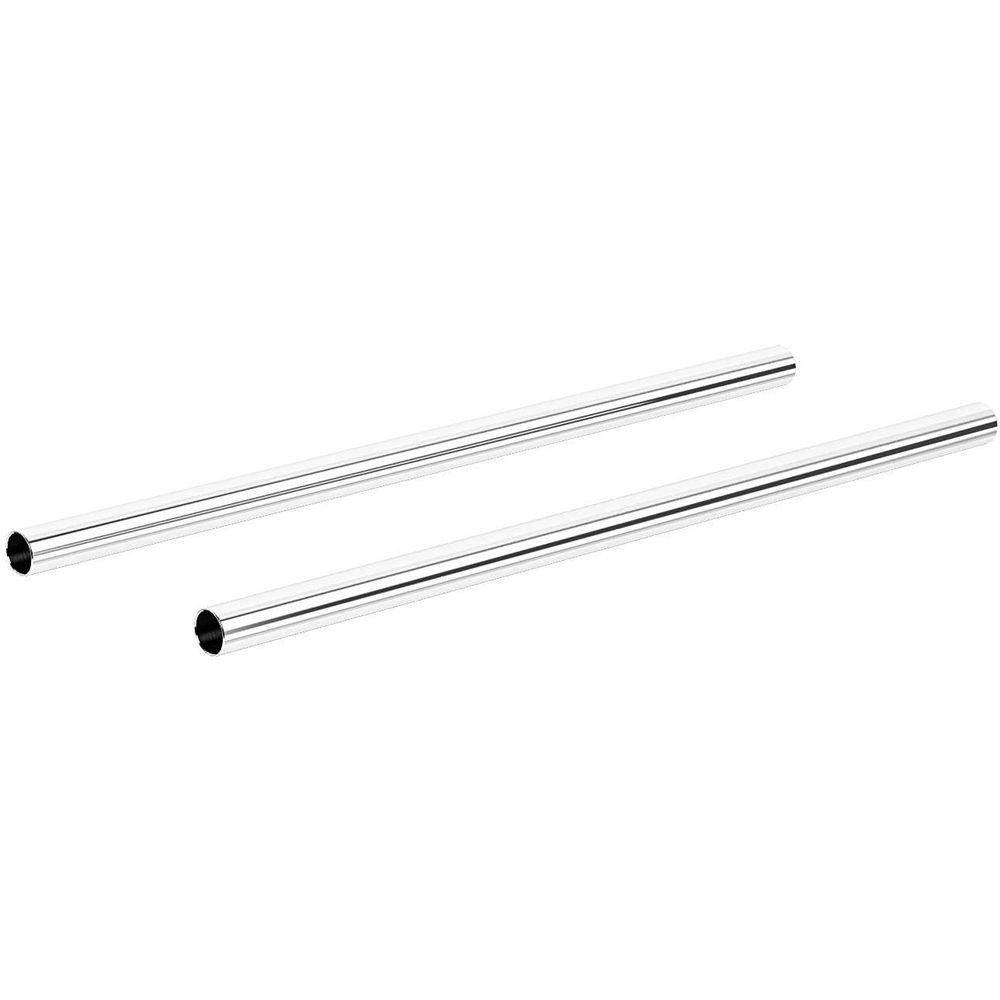

- 15mm Lightweight Support Rods (Pair, 13") This pair of 13" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate

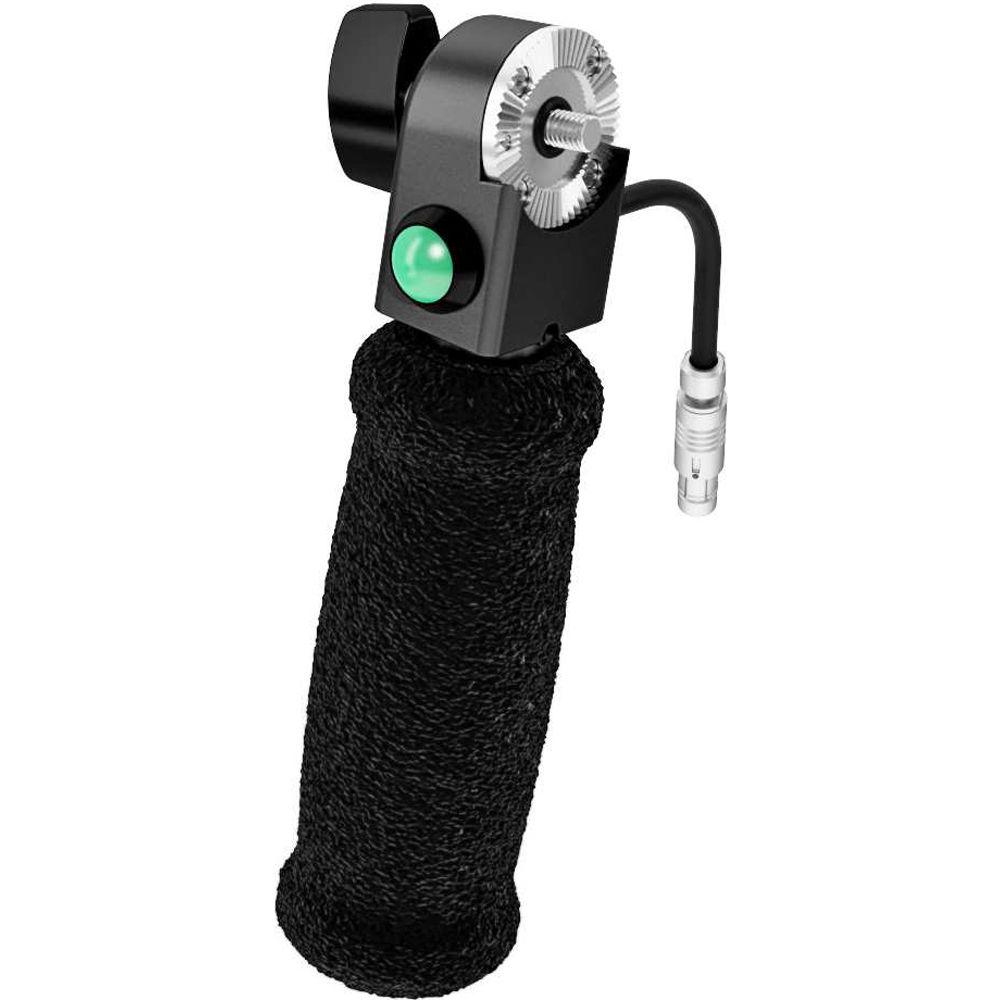

- Handgrip with On/Off Switch RS 3-Pin The ARRI Handgrip with On/Off Switch RS 3-Pin features a run/stop button function for triggering your ARRI ALEXA or AMIRA camera. Use this grip to easily start/stop your camera with one hand; no need to hunt for a button with your left hand while balancing the camera on your right shoulder. The handgrip is also compatible with select third-party cameras with 3-pin run/stop connectors. Designed with a contoured rubber grip and a standard ARRI rosette connection, this ARRI handgrip can be rotated 360° and fastens via its integrated thumb-lever.
- Run/stop trigger for ARRI ALEXA, AMIRA, and select 3rd-part cameras
- Standard 360° ARRI rosette connector
- Contoured rubber handle for a comfortable grip
- Handgrip without On/Off Switch The ARRI Handgrip features a contoured rubber grip and a standard ARRI rosette connection. Designed for physical camera support only, this handgrip does not include an electronic on/off switch. The handgrip can be rotated 360°, and fastens via its integrated thumb-lever.
- Standard 360° ARRI rosette connector
- Contoured rubber handle for a comfortable grip
- Handgrip Extension (9.4") The black, 9.4" tubular ARRI Handgrip Extension fits between an ARRI Master Grip or handgrip, and your camera or rig base. Use the extension to position the grip comfortably based on your rig configuration. This rosette-based extension is constructed from stainless steel, and is the longest length of three available versions.The Handgrip Extension's notched rosette design ensures a stable fit, fastening with an integrated, winged screw.
Features - Compatible with ARRI standard rosettes
- Constructed of stainless steel
- ALEXA Mini/AMIRA Straight Power Cable KC-50 (6.6') Use the ALEXA Mini/AMIRA Straight Power Cable from ARRI to connect the camera to a battery with a 3-pin XLR connector.
- ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') The ARRI ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') is designed with a 10-pin LEMO connector on one end, and an RJ45 connector on the other. Use this cable to link your ALEXA to the Ethernet for updates, camera remote control, or service functions.
- EXT-RS Adapter Use the ARRI EXT-RS Adapter to convert the ALEXA Mini's external sync port into a 3-pin RS connection. This right-angle to straight adapter can be used with a compatible accessory to provide RUN/STOP capability.
- BAP-1 Battery Adapter Plate The BAP-1 Battery Adapter Plate from ARRI is designed to use a V-Lock, Gold Mount, or other standard battery mount on a pair of 15mm rods. This ALEXA Mini accessory has pre-drilled holes for attaching the battery mount (not included) to the plate. The battery plate may be offset from the rod clamp to accommodate a camera's rear card slot or to help balance the camera rig. The BAP-1 has a semicircular clamp design that enables you to snap the plate onto the rods without necessitating the removal of other rod-mounted accessories.
- Compatible Battery Mounts
- Including, but not limited to, V-Lock, Gold Mount, etc.
- Rod Clamp
- Open design enables you to clamp the plate onto a pair of rods without having to remove other rod-mounted accessories
- Stabilizer Plate for CBP The ARRI Stabilizer Plate for CBP enables the Compact Bridge Plate to convert into a Stabilizer Adapter Mount for the ALEXA Mini (SAM-2). Compatible with third-party, standard 60mm dovetails, this plate serves as the bottom half of a camera-balancing bridge plate system.
- Gold Mount Adapter Plate Mk II for ALEXA Mini The versatile Gold Mount Adapter Plate Mk II for ALEXA Mini from ARRI offers two means of powering the ALEXA Mini camera. Connect a Gold mount battery, or plug a cable from a block battery into the plate's 8-pin LEMO port. This ALEXA Mini accessory has pre-drilled holes for attaching the adapter to a battery plate (available separately). Two 2-pin LEMO ports on the adapter output 13V regulated power for accessories. The Gold Mount Adapter Plate Mk II features a sturdy aluminum build.
In the Box Bundle Items Broadcast Plate ALEXA Mini crwrbryqzsdaxxrs MAP-2 Adapter Plate for ALEXA Mini (15mm) 2 x MSB-1 Side Bracket for ALEXA Mini SAB-1 Side Accessory Bracket for ALEXA Mini MVB-1 Viewfinder Mounting Bracket for ALEXA Mini CCH-2 Center Camera Handle Handle Extension Block (HEB-1) 15mm Lightweight Support Rods (Pair, 13") Handgrip with On/Off Switch RS 3-Pin Handgrip without On/Off Switch 2 x Handgrip Extension (9.4") ALEXA Mini/AMIRA Straight Power Cable KC-50 (6.6') ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') EXT-RS Adapter BAP-1 Battery Adapter Plate Stabilizer Plate for CBP Gold Mount Adapter Plate Mk II for ALEXA Mini Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Broadcast Set for ALEXA Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Broadcast Plate ALEXA Mini
| Dimensions | 5.5 x 9.8 x 3.5" / 140 x 250 x 90 mm | | Weight | 2.4 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 9.9 x 6.4 x 3.1" | - MAP-2 Adapter Plate for ALEXA Mini (15mm)
| Dimensions | 4.7 x 4.7 x 1.2" (120 x 120 x 30 mm) | | Weight | 8.4 oz (238 g) | | | | Box Dimensions (LxWxH) | 5.5 x 5.2 x 0.8" | - MSB-1 Side Bracket for ALEXA Mini
| Accessory Mounting | 3/8"-16 and 1/4"-20 threads
1 x ARRI rosette | | Dimensions | 1.6 x 6.3 x 1.2" / 40 x 160 x 30 mm | | Weight | 3.6 oz / 101 g | | | | Box Dimensions (LxWxH) | 6.0 x 5.5 x 1.1" | - SAB-1 Side Accessory Bracket for ALEXA Mini
| Accessory Mount Threads | 3/8"-16, 1/4"-20 | | Dimensions | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 7.2 x 5.8 x 0.7" | - MVB-1 Viewfinder Mounting Bracket for ALEXA Mini
| Rod Standard | 15 mm LWS | | Dimensions | 5.9 x 6.3 x 2.4" / 15.0 x 16.0 x 6.0 cm | | Weight | 12.1 oz / 342 g | | | | Box Dimensions (LxWxH) | 8.8 x 5.5 x 2.3" | - CCH-2 Center Camera Handle
| Dimensions | 3.9 x 5.9 x 2.6" (10.0 x 15.0 x 6.5 cm) | | Weight | 8.7 oz (248 g) | | | | Box Dimensions (LxWxH) | 5.4 x 3.9 x 3.2" | - Handle Extension Block (HEB-1)
| Dimensions and Weight | Not specified by manufacturer | | Accessory Mounting Threads | 3 x 3/8"-16 | | | | Box Dimensions (LxWxH) | 4.3 x 4.3 x 1.0" | - 15mm Lightweight Support Rods (Pair, 13")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 13.4" / 34.0 cm | | Weight | 7.3 oz / 207 g | | | | Box Dimensions (LxWxH) | 13.5 x 1.2 x 0.4" | - Handgrip with On/Off Switch RS 3-Pin
| Dimensions and Weight | Not specified by manufacturer | | Connector | 3-pin LEMO | | | | Box Dimensions (LxWxH) | 8.2 x 3.9 x 2.5" | - Handgrip without On/Off Switch
| Dimensions | 1.6 x 6.3 x 1.6" (4.0 x 16.0 x 4.0 cm) | | Weight | 4.2 oz (118 g) | | | | Box Dimensions (LxWxH) | 8.6 x 2.4 x 1.8" | - Handgrip Extension (9.4")
| Material of Construction | Stainless steel | | Dimensions | Overall: 2 x 1.6 x 11" / 50 x 40 x 280 mm
Length Between Rosettes: 9.4" / 240 mm | | Weight | 8.1 oz / 230 g | | | | Box Dimensions (LxWxH) | 11.0 x 1.3 x 0.6" | - ALEXA Mini/AMIRA Straight Power Cable KC-50 (6.6')
| Connector 1 | 3-pin XLR | | Connector 2 | 8-pin LEMO | | Length | 6.6' / 2 m | | | | Box Dimensions (LxWxH) | 8.55 x 8.4 x 2.15" | - ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8')
| Connectors | 10-pin LEMO
RJ45 | | Cable Length | 9.8' / 3 m | | | | Box Dimensions (LxWxH) | 8.2 x 5.0 x 1.4" | - EXT-RS Adapter
| Cable Connectors | 1 x 7-pin LEMO
1 x 3-pin Fischer | | Length | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 1.0" | - BAP-1 Battery Adapter Plate
| Dimensions (WxHxD) | 4.7 x 7.1 x 1.2" (12.0 x 18.0 x 3.0 cm) | | Weight | 8.1 oz (230 g) | | | | Box Dimensions (LxWxH) | 7.087 x 5.5 x 0.866" | - Stabilizer Plate for CBP
| Dimensions and Weight | Not specified by manufacturer | - Gold Mount Adapter Plate Mk II for ALEXA Mini
| Battery Mount | Gold mount | | Power Input | 1 x 8-pin LEMO, 12-30 VDC | | Accessory Power Ports | 2 x 2-pin LEMO, 13 V, regulated 2 A | | Material of Construction | Aluminum | | Dimensions and Weight | Not specified by manufacturer |
