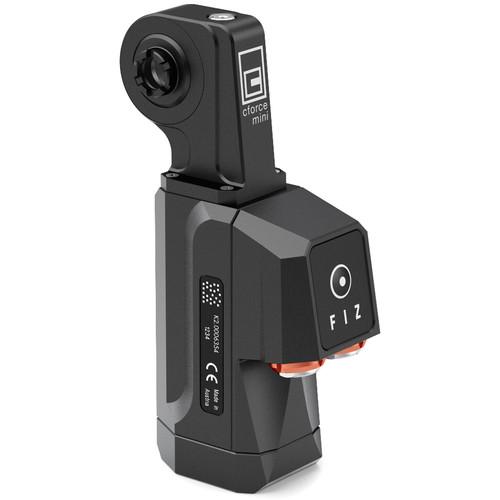

User Manual for ARRI cforce Mini Motor Unit Click to enlarge the picture
Contents of the user manual for the ARRI cforce Mini Motor Unit
- Product category: Wireless Lens Control Accessories ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Wireless Lens Control Accessories
|
User manual for the ARRI cforce Mini Motor Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description ARRI's cforce Mini Motor is an ultra-compact, lightweight motor used to remotely control your lens' focus, iris, or zoom function. The cforce Mini Motor weighs just over six ounces with a gear and bracket (available separately). Directly compatible with ARRI ALEXA Mini cameras and cmotion units, the cforce Mini Motor can be paired with an AMC-1 controller when working with other ARRI or third-party cameras. Up to three cforce Mini Motors may be daisy-chained together, saving space and weight in your camera rig. The cforce Mini Motor's ultra-light, compact form makes it suitable for gimbal, drone, and other lightweight camera rigs. This basic motor unit requires a separately-available gear, cable, and bracket. Features - Ultra-compact lens-control motor works directly with ARRI ALEXA Mini cameras and cmotion units
- Compatible with other ARRI and third-party cameras when used with the ARRI AMC-1 motor controller
- Up to three motors may be daisy-chained together via their LBUS connectors
In the Box ARRI cforce Mini Motor Unit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI cforce Mini Motor Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI K2.0006354 Specs | Connector | 2 x 4-pin LBUS | | Torque | 0.5 Nm (peak) | | Speed | 150 teeth per second | | Supply Voltage | 12 to 34 VDC | | Maximum Power Consumption | 15 W (peak) | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Dimensions (WxH) | Without Gear & Bracket:
1.13 x 3.85" (28.80 x 97.90 mm) Depth without gear not specified by manufacturer | | Weight | With Gear & Bracket:
6 oz (173 g) Weight without gear & bracket not specified by manufacturer | | | | Package Weight | 0.805 lb | | Box Dimensions (LxWxH) | 9.95 x 6.8 x 2.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
