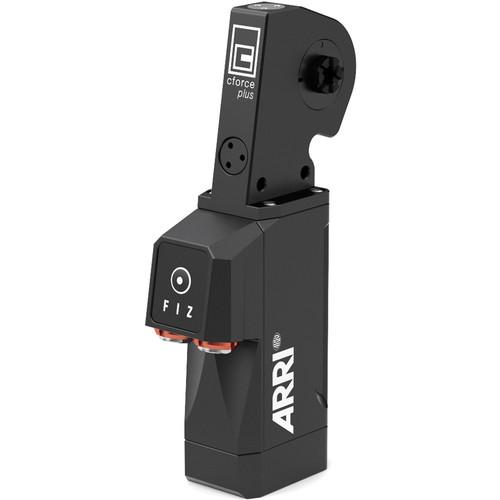

User Manual for ARRI cforce Plus Motor Unit Click to enlarge the picture
Contents of the user manual for the ARRI cforce Plus Motor Unit
- Product category: Wireless Lens Control Accessories ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Wireless Lens Control Accessories
|
User manual for the ARRI cforce Plus Motor Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description ARRI's cforce Plus Motor is a strong, LBUS-connected motor used to remotely control your lens's focus, iris, or zoom function. With more torque than its cforce Mini cousin, the cforce Plus has the power to control any standard lens quickly and smoothly. Directly compatible with ARRI ALEXA Mini cameras and cmotion units, the cforce Plus Motor can be paired with an AMC-1 or UMC-4 controller when working with other ARRI or third-party cameras. Up to three cforce Plus Motors may be daisy-chained together, saving the space and weight of individual controllers in your camera rig.The cforce Plus Motor offers compatibility with the same mounting options as the ARRI CLM-4 motor, including a Hill Bracket and standard rod mounts. The cforce Plus weighs about 11 ounces with a gear and bracket (available separately). This basic motor unit requires a separately available gear, cable, and bracket. Note: In certain situations (low battery power or stiff lenses) cforce motors require an additional power supply connected directly to the motors when controlled by the UMC-4 or ALEXA Mini Features - Strong lens-control motor works directly with ARRI ALEXA Mini cameras and cmotion units via its LBUS interface
- Compatible with other ARRI and third-party cameras when used with the ARRI AMC-1 or WCU-4 controller
- Provides sufficient torque for smooth, quick control of standard lenses
- Up to three motors may be daisy-chained together via their LBUS connectors
- Works with CLM-4 mounting options including a Hill bracket, and standard rod mounts (available separately)
In the Box ARRI cforce Plus Motor Unit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI cforce Plus Motor Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI K2.0008819 Specs | Connector | 2 x 4-pin LBUS | | Torque | 0.7 Nm constant
1 Nm maximum peak (at motor axis) | | Speed | 210 teeth per second (60-tooth gear, 3.5 R/s) | | Supply Voltage | 12 to 34 VDC | | Maximum Power Consumption | 32 W (peak) | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Dimensions (WxDxH) | Without Gear & Bracket:
5.1 x 3.5 x 1.1" (130 x 89.1 x 28.8 mm) | | Weight | With Gear & Bracket:
11.5 oz (325 g) |
