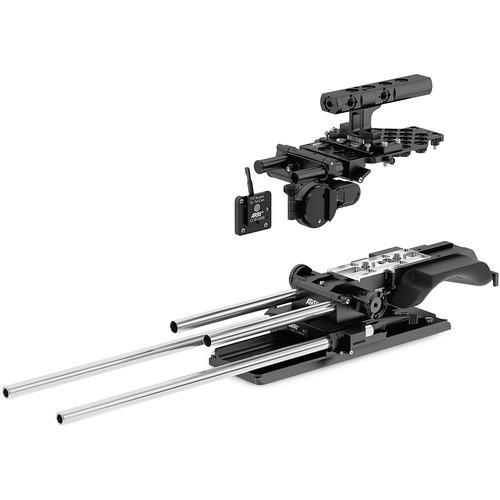

Product description The ARRI Cine 15mm Pro Set for Panasonic VariCam provides accessory mounting and more ergonomic handling for your VariCam LT or VariCam 35/HS/Pure camera. Pro Set components include a dedicated VariCam baseplate, cheese plate-style Top Plate, CCH-2 Top Handle, BP-9 Bridge Plate Set Short, MVB-1 Mini Viewfinder Bracket, VariCam Viewfinder Bracket, and two pairs of 15mm rods. - Support Plate for VariCam LT The versatile Support Plate for VariCam LT from ARRI offers quick mounting to both VCT-style plates like the QRP-1, and studio bridge plates like the ARRI BP-8 or BP-9. Features include extended right and left rosettes, front 15mm LWS rod support, and a built-in, contoured shoulder pad. Use this Support Plate to mount camera accessories to a pair of 15mm rods, or to the standard rosettes.
Features - Compatible with VCT-style plates like the ARRI QRP-1, and studio bridge plates such as ARRI's BP-8 and BP-9
- Add 15mm rod-mounted accessories in front of your VariCam LT rig
- Extended-width rosettes on both right and left sides for attaching a handgrip or other rosette-based accessory
- Integrated, contoured shoulder pad increases comfort while operating handheld
- Top Plate for Panasonic VariCam LT ARRI's Top Plate for Panasonic VariCam LT is designed for use in low-mode setups. This plate shifts accessory and rod mounts to the top of your camera, leaving the bottom of the camera unencumbered, suiting it for low-mode Steadicam and tabletop setups.Additional plate features include multiple 3/8"-16 and 1/4"-20 accessory mounts, and a tape hook for measuring focus distances. This plate is also compatible with VariCam 35/HS model cameras.
Features - Suitable for low-mode setups; shifts accessory mounts and connectors to top of camera
- Provides multiple 3/8"-16 and 1/4"-20 threaded accessory-mounting points
- Tape hook for focus measuring
- 15mm Lightweight Support Rods (Pair, 9") This pair of 9" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate
- BP-9 Bridge Plate Kit with 12" Dovetail Plate & 15mm Rods (17") The BP-9 Bridge Plate Kit from ARRI is used to balance your camera and to support 15mm rod-based accessories. The kit consists of the BP-9 sled, a 12" bottom dovetail plate, and a 17" pair of 15mm support rods. Directly compatible with the ARRI ALEXA Studio, the Sony F65, and the Phantom Flex4K, the BP-9 Kit can be adapted for use with the ARRI ALEXA, AMIRA, ALEXA Mini, and many third-party cameras (adapters available separately). Unlock the bridge plate lever to easily adjust the camera balance after increasing or decreasing the rig's weight. The Dovetail Plate features end posts for security and incorporates 3/8"-16 threaded holes for mounting the dovetail to a tripod quick-release plate or other support. The hollow pair of 17" rods provides lightweight, standard 15mm rod support for matte boxes, follow focus units, lens supports, etc.
- EVF Bracket for VariCam OLED EVF The ARRI EVF Bracket for VariCam is a quick release plate designed to attach to the Panasonic VariCam OLED electronic viewfinder (EVF). The EVF can then be positioned for maximum viewing comfort using the adjustable MVB-1, or other ARRI mount (not included). A lever quickly locks or releases the bracket when the EVF is not needed. This bracket is compatible with VariCam LT/35/HS electronic viewfinders.
- Compatibility
- VariCam LT/35/HS OLED electronic viewfinders
- MVB-1 Viewfinder Mounting Bracket for ALEXA Mini Use the ARRI MVB-1 Viewfinder Mounting Bracket to mount the MVF-1 electronic viewfinder to an ALEXA Mini camera. This bracket provides adjustable positioning of the EVF via 15mm LWS rods and the viewfinder mount. The separately available MAP-2 adapter plate is required for 15mm rod support on the ALEXA Mini.
- Compatible Cameras
- ALEXA Mini
In the Box Bundle Items Support Plate for VariCam LT ubwedadawyvwrbusfcuayq Top Plate for Panasonic VariCam LT
Also Includes - C-Clamp
15mm Lightweight Support Rods (Pair, 9") BP-9 Bridge Plate Kit with 12" Dovetail Plate & 15mm Rods (17") - Bottom Dovetail Plate (12")
- 15mm Support Rods (Pair, 17")
EVF Bracket for VariCam OLED EVF MVB-1 Viewfinder Mounting Bracket for ALEXA Mini Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Cine 15mm Pro Set for Panasonic VariCam in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Support Plate for VariCam LT
| Dimensions | 5.5 x 10.2 x 2.4" (14.0 x 26.0 x 6.0 cm) | | Weight | 2.4 lb (1.1 kg) | | | | Box Dimensions (LxWxH) | 9.5 x 4.0 x 1.0" | - Top Plate for Panasonic VariCam LT
| Dimensions | 4.7 x 6.7 x 1.2" (120 x 170 x 30 mm) | | Weight | 9.5 oz (268 g) | | | | Box Dimensions (LxWxH) | 6.6 x 4.4 x 0.9" | - 15mm Lightweight Support Rods (Pair, 9")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 9.4" / 23.9 cm | | Weight | 5.2 oz / 148 g | | | | Box Dimensions (LxWxH) | 9.5 x 1.2 x 0.5" | - BP-9 Bridge Plate Kit with 12" Dovetail Plate & 15mm Rods (17")
| | | Box Dimensions (LxWxH) | 18.4 x 6.7 x 3.2" | - EVF Bracket for VariCam OLED EVF
| Dimensions | 3.1 x 2 x 8.7" (80 x 50 x 220 mm) | | Weight | 1.4 oz (41 g) | - MVB-1 Viewfinder Mounting Bracket for ALEXA Mini
| Rod Standard | 15 mm LWS | | Dimensions | 5.9 x 6.3 x 2.4" / 15.0 x 16.0 x 6.0 cm | | Weight | 12.1 oz / 342 g | | | | Box Dimensions (LxWxH) | 8.8 x 5.5 x 2.3" |
