Product description

• MVB-1 Viewfinder Mounting Bracket for ALEXA Mini Use the ARRI MVB-1 Viewfinder Mounting Bracket to mount the MVF-1 electronic viewfinder to an ALEXA Mini camera. This bracket provides adjustable positioning of the EVF via 15mm LWS rods and the viewfinder mount. The separately available MAP-2 adapter plate is required for 15mm rod support on the ALEXA Mini.
  Compatible Cameras
  • ALEXA Mini

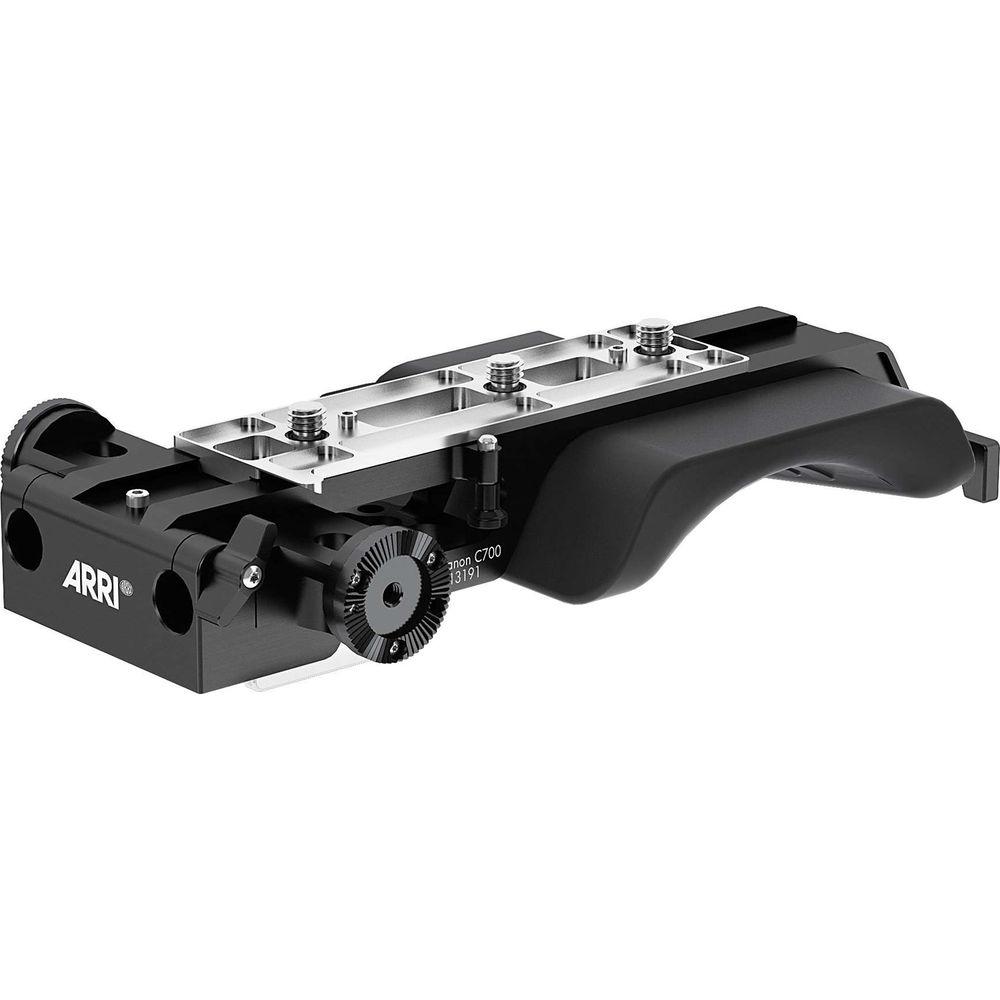

• Support Plate for Canon C700 The Support Plate for Canon C700 from Arri is compatible with VCT-style base plates like the ARRI QRP-1, and with bridge plates such as the BP-8 or BP-9. This double-duty plate's features include extended right and left handgrip rosettes, 15mm LWS rod support, and an integrated, curved shoulder pad.

  Features

  • Compatible with both studio-style bridge plates and VCT-style plates for quickly mounting to a head or other support
  • Supports the addition of 15mm rod-mounted accessories to your Canon C700 rig
  • Extended-width rosettes on both right and left sides for attaching a handgrip or other rosette-based accessory
  • Curved, padded shoulder rest for increased comfort while operating handheld

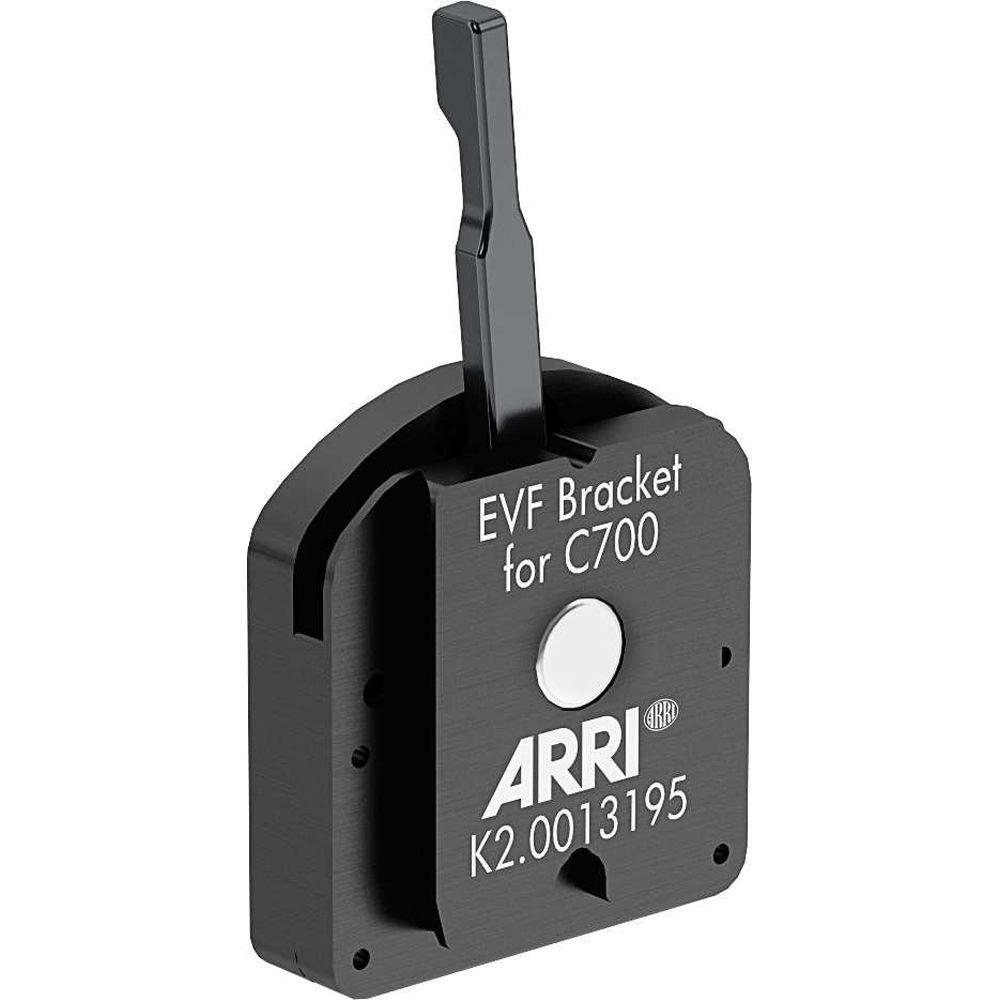

• Viewfinder Bracket for Canon C700 EVF The ARRI Viewfinder Bracket for Canon EVF provides a quick-release mounting option for your Canon C700 viewfinder. When used in conjunction with the required ARRI MVB-1 Bracket (not included), the combination enables you to configure the EVF in a more ergonomic position.
  • For original Canon EOS C700 electronic viewfinder
  • Provides a quick-release option for the Canon C700 EVF when used with the required MVB-1 bracket (not included)
  • Enables more ergonomic positioning of the EVF

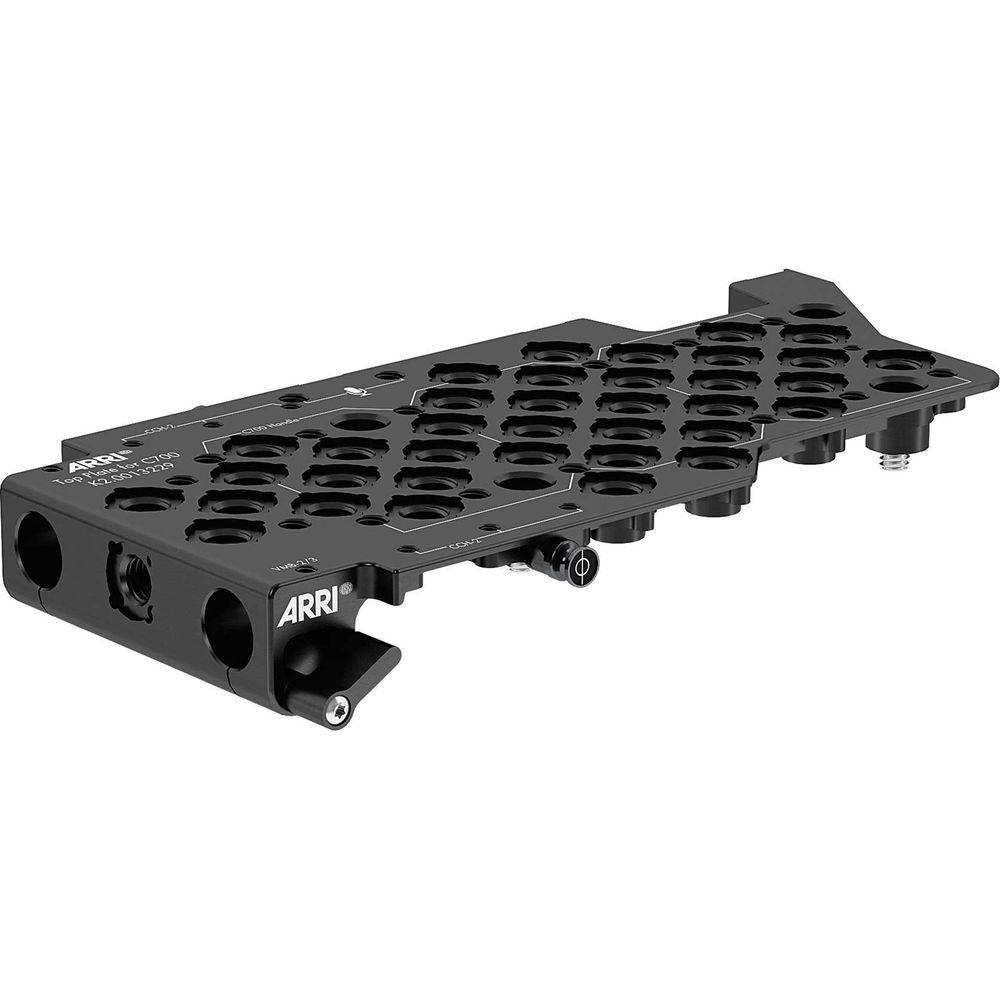

• Top Plate with Rod Support for Canon EOS C700 ARRI's Top Plate with Rod Support for Canon EOS C700 is designed for use in low-mode setups. This plate adds 15mm LWS rod support to the top of your camera, leaving the bottom of the camera unencumbered and suited for low-mode Steadicam and tabletop setups. The screw-on Top Plate also features multiple 3/8"-16 and 1/4"-20 accessory mounts and a tape hook for measuring focus distances.

  Features

  • Suitable for low-mode setups; provides 15mm LWS rod support and accessory mounts on top of camera
  • Provides multiple 3/8"-16 and 1/4"-20 threaded accessory-mounting points
  • Integrated tape hook for focus measuring

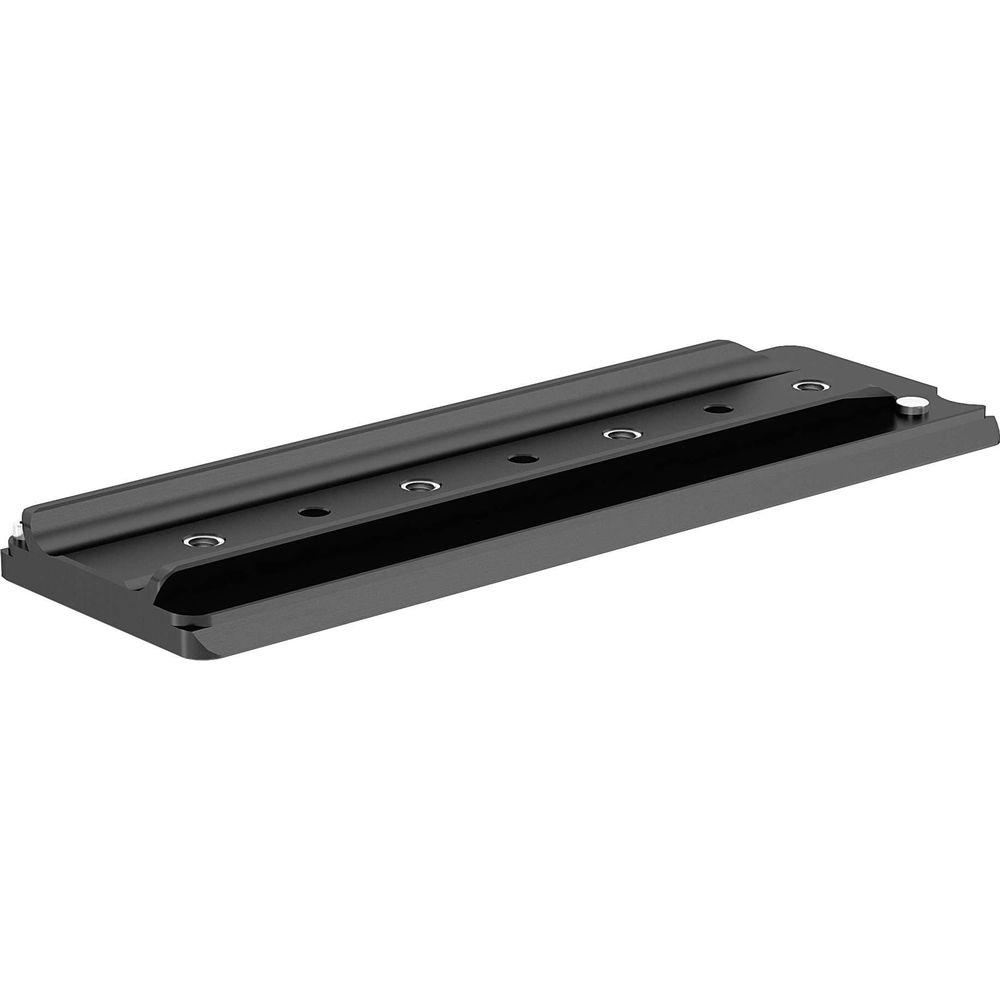

• BP-9 Bridge Plate Kit with 12" Dovetail Plate & 15mm Rods (17") The BP-9 Bridge Plate Kit from ARRI is used to balance your camera and to support 15mm rod-based accessories. The kit consists of the BP-9 sled, a 12" bottom dovetail plate, and a 17" pair of 15mm support rods. Directly compatible with the ARRI ALEXA Studio, the Sony F65, and the Phantom Flex4K, the BP-9 Kit can be adapted for use with the ARRI ALEXA, AMIRA, ALEXA Mini, and many third-party cameras (adapters available separately). Unlock the bridge plate lever to easily adjust the camera balance after increasing or decreasing the rig's weight. The Dovetail Plate features end posts for security and incorporates 3/8"-16 threaded holes for mounting the dovetail to a tripod quick-release plate or other support. The hollow pair of 17" rods provides lightweight, standard 15mm rod support for matte boxes, follow focus units, lens supports, etc.

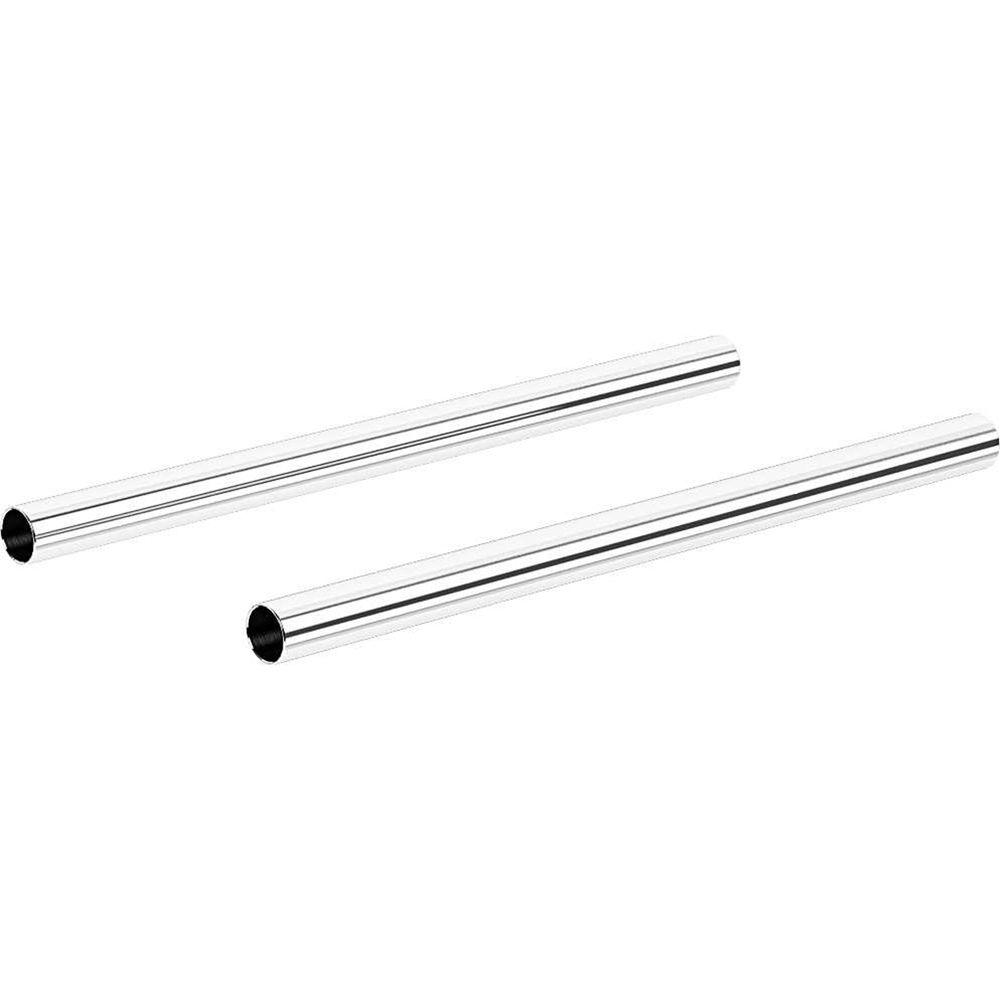

• 15mm Lightweight Support Rods (Pair, 9") This pair of 9" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
  • Hollow, lightweight stainless steel construction with non-threaded ends
  • Compatible with any 15mm-based accessory or bridgeplate

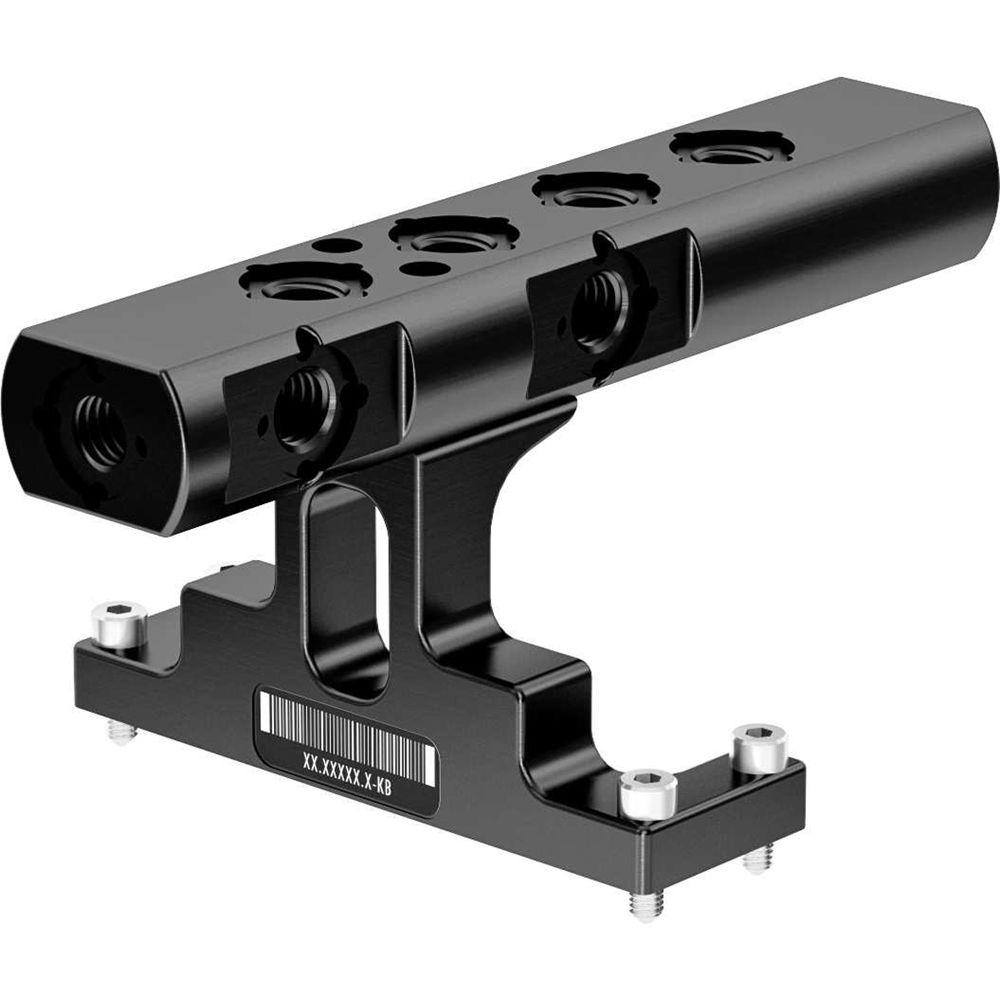

• CCH-2 Center Camera Handle Expand your options for mounting HD camera accessories like monitors, transmitters, mic holders, French flags, etc., on your ARRI camera rig by using the ARRI CCH-2 Center Camera Handle. This sturdy carrying handle screws onto a UAP-2 adapter plate (available separately), and features multiple 3/8"-16 and 1/4"-20 threaded holes for attaching accessories. Designed for use with ALEXA M, ALEXA Mini, and AMIRA cameras, it will also work with many ARRI accessory-equipped third-party cameras.

  Features

  • Sturdy carrying handle attaches to a UAP-2 adapter plate (available separately) to provide accessory mounts
  • Adds multiple 3/8"-16 threaded mounting points to an AMIRA and ALEXA M/Mini Camera, or third-party cameras using ARRI support systems

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Bottom Dovetail Plate (12")

• 15mm Support Rods (Pair, 17")

• BP-9 Bridge Plate

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Mounting Screws

• Limited 1-Year Warranty
