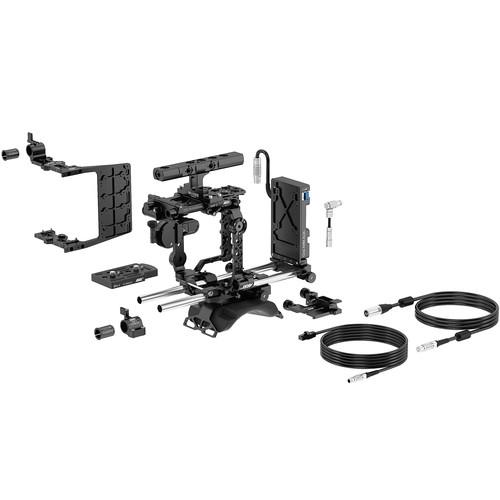

Product description The ARRI Cine Set for ALEXA Mini, with V-mount adapter, offers a selection of classic 19mm rod-based accessory components. Items in the bundle include a shoulder pad and low bracket, a BPA-4 bridge plate adapter, an MVF-1 viewfinder bracket, various accessory mounting brackets, a center handle with an extension block, and both power and Ethernet cables. An adapter plate provides two 2-pin LEMO output ports, and enables you to switch between V-mount and block batteries to power the ALEXA Mini. A right-angle adapter converts the EXT port to a 3-pin LEMO RS connector.Rear and side battery adapter plates, two MAP-2 adapter plates, two RMB-3 rod-mounting brackets, two 15mm bushings, and a pair of 13.4" 15mm rods round out the Cine Set. - Lightweight Adapter Plate for ALEXA Mini MAP-1 Use the Lightweight Adapter Plate for ALEXA Mini MAP-1 from ARRI to attach accessories, and/or brackets to the camera body. In addition to 3/8"-16 and 1/4"-20 threaded holes, the MAP-1 Plate provides interfaces for attaching the MSB-1 Mini Side Bracket, and the RMB-3 Rod Mounting Bracket.
- MAP-2 Adapter Plate for ALEXA Mini (15mm) The MAP-2 Adapter Plate for ALEXA Mini from ARRI supports a pair of 15mm LWS rods, and mounts to the bottom or top of the camera. Use this adapter to flesh out your ALEXA Mini rig with rod-mounted accessories. The MAP-2 adapter plate is compatible with studio bridgeplates when used with the separately available BPA-4 adapter. Tape measure studs on both sides of the plate aid in measuring precise focus distances.

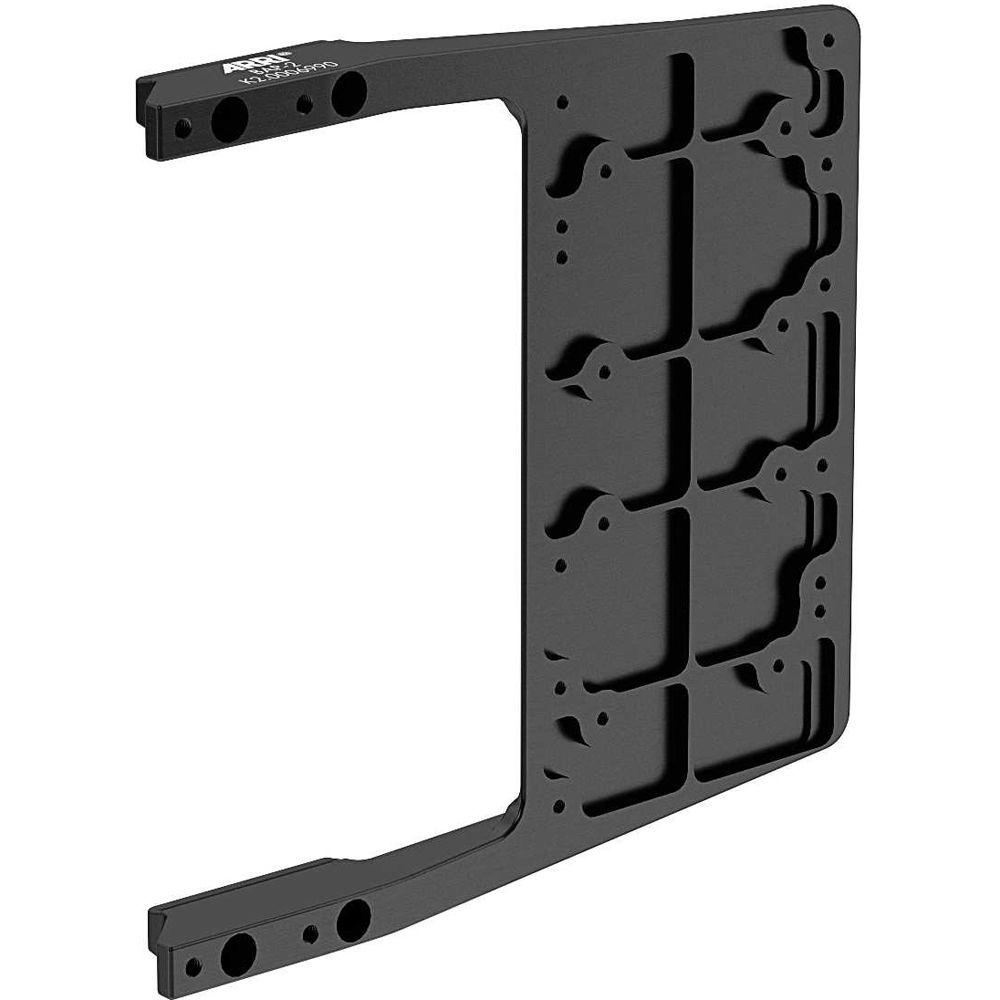

- MSB-1 Side Bracket for ALEXA Mini The ARRI MSB-1 Side Bracket helps to cradle and protect the ALEXA Mini camera body, providing 3/8"-16 and 1/4"-20 threads for mounting accessories. An integrated rosette enables the mounting of a separately available handgrip or handle. Use this bracket alone, or as a modular part of the ARRI ALEXA Mini cage.
Features - Adds 3/8"-16 and 1/4"-20 accessory mounting points
- Integrated rosette for mounting a handgrip or handle
- Use alone, or as an ARRI ALEXA Mini cage component
- SAB-1 Side Accessory Bracket for ALEXA Mini The ARRI SAB-1 Side Accessory Bracket fits onto an ALEXA Mini adapter plate, providing multiple points for attaching accessories to the camera (adapter plate available separately). In addition to 3/8"-16 and 1/4"-20 threaded holes, the SAB-1 provides interfaces for attaching the RMB-3 Rod Mounting bracket and MSB-1 Mini Side Brackets. The SAB-1 Bracket can be mounted to an MAP-1 or MAP-2 ALEXA Mini Adapter Plate, the Mini Broadcast Plate, or the CBP-1 Compact Bridgeplate.
Features - Attaches to the ARRI ALEXA Mini via an adapter plate (available separately)
- Provides multiple 3/8"-16 and 1/4"-20 accessory mounting points
- Can be used to mount the RMB-3 Rod Mounting Bracket and MSB-1 ALEXA Mini Side Brackets
- Attaches to an MAP-1 or MAP-2 ALEXA Mini Adapter Plate, the Mini Broadcast Plate, or the CBP-1 Compact Bridgeplate (all available separately)
- BPA-4 Bridge Plate Adapter for ALEXA Mini Use this ARRI BPA-4 Bridge Plate Adapter for ALEXA Mini as a spacer to make the MAP-2 15mm rod support plate compatible with an ARRI studio bridgeplate. This compact plate also incorporates centered 3/8-16" and 1/4-20" threads for mounting the ALEXA Mini to a standard tripod plate.
- Rod Mounting Bracket (RMB-3) Use the Rod Mounting Bracket (RMB-3) from ARRI to support a single, standard 19mm rod for mounting a lens motor, lightweight EVF bracket, etc. to your camera or cage rig. When used with a separately available insert, the RMB-3 can be used to support a 15mm rod. A mounted rod is easily secured using the thumb lever on this screw-in bracket.
- Rod Compatibility
- 19mm
15mm (with separately available insert K2.66255.0) - 15mm Reduction Insert for 19mm Rod The ARRI 15mm Reduction Insert is used to adapt a 19mm rod bracket to accept standard 15mm rods. This insert works with any 19mm rod mount.
- MVB-1 Viewfinder Mounting Bracket for ALEXA Mini Use the ARRI MVB-1 Viewfinder Mounting Bracket to mount the MVF-1 electronic viewfinder to an ALEXA Mini camera. This bracket provides adjustable positioning of the EVF via 15mm LWS rods and the viewfinder mount. The separately available MAP-2 adapter plate is required for 15mm rod support on the ALEXA Mini.
- Compatible Cameras
- ALEXA Mini
- CCH-2 Center Camera Handle Expand your options for mounting HD camera accessories like monitors, transmitters, mic holders, French flags, etc., on your ARRI camera rig by using the ARRI CCH-2 Center Camera Handle. This sturdy carrying handle screws onto a UAP-2 adapter plate (available separately), and features multiple 3/8"-16 and 1/4"-20 threaded holes for attaching accessories. Designed for use with ALEXA M, ALEXA Mini, and AMIRA cameras, it will also work with many ARRI accessory-equipped third-party cameras.
Features - Sturdy carrying handle attaches to a UAP-2 adapter plate (available separately) to provide accessory mounts
- Adds multiple 3/8"-16 threaded mounting points to an AMIRA and ALEXA M/Mini Camera, or third-party cameras using ARRI support systems
- Handle Extension Block (HEB-1) Attach the ARRI Handle Extension Block (HEB-1) to the CCH-1 Center Camera Handle to add length, and three 3/8"-16 threaded mounts to the carrying handle. This extension may also be screwed to any standard UNC 3/8"-16 threaded mount, and can be used with both ARRI and third-party cage rigs.
- 15mm Lightweight Support Rods (Pair, 13") This pair of 13" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.
- Hollow, lightweight stainless steel construction with non-threaded ends
- Compatible with any 15mm-based accessory or bridgeplate

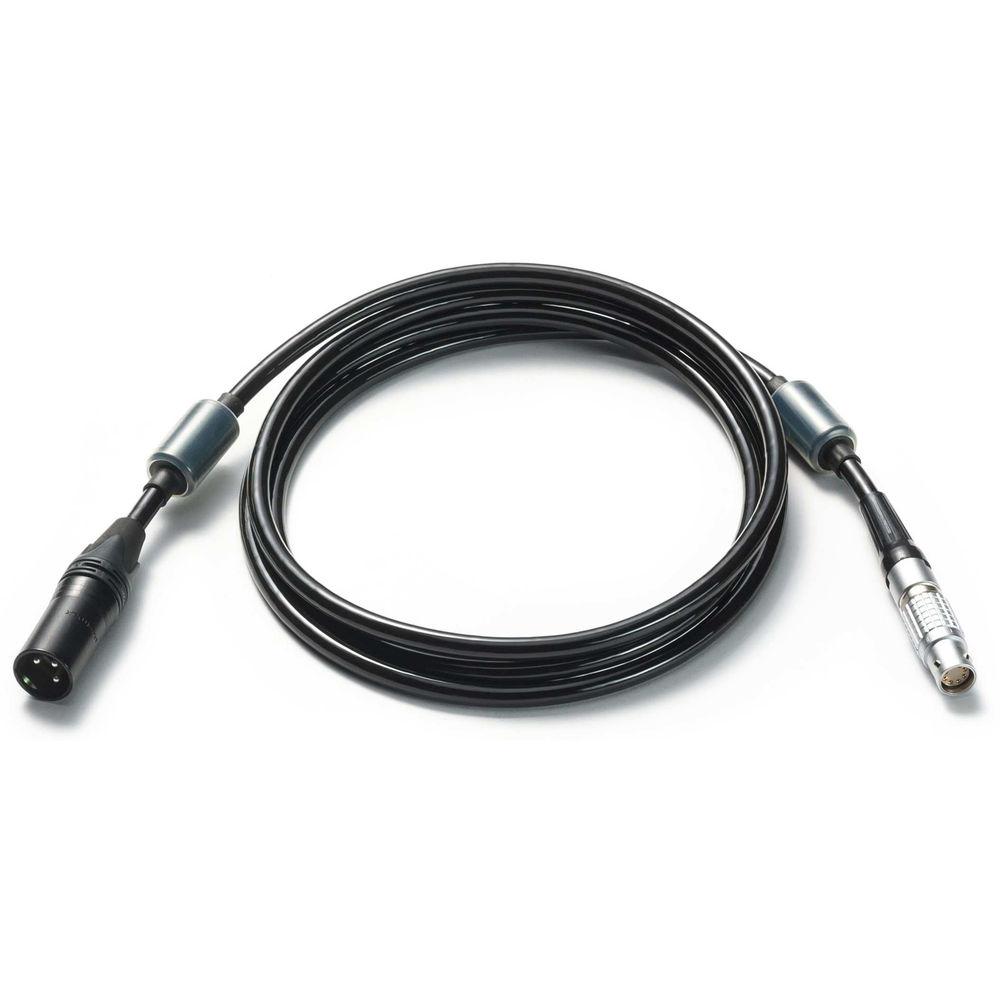

- ALEXA Mini/AMIRA Straight Power Cable KC-50 (6.6') Use the ALEXA Mini/AMIRA Straight Power Cable from ARRI to connect the camera to a battery with a 3-pin XLR connector.

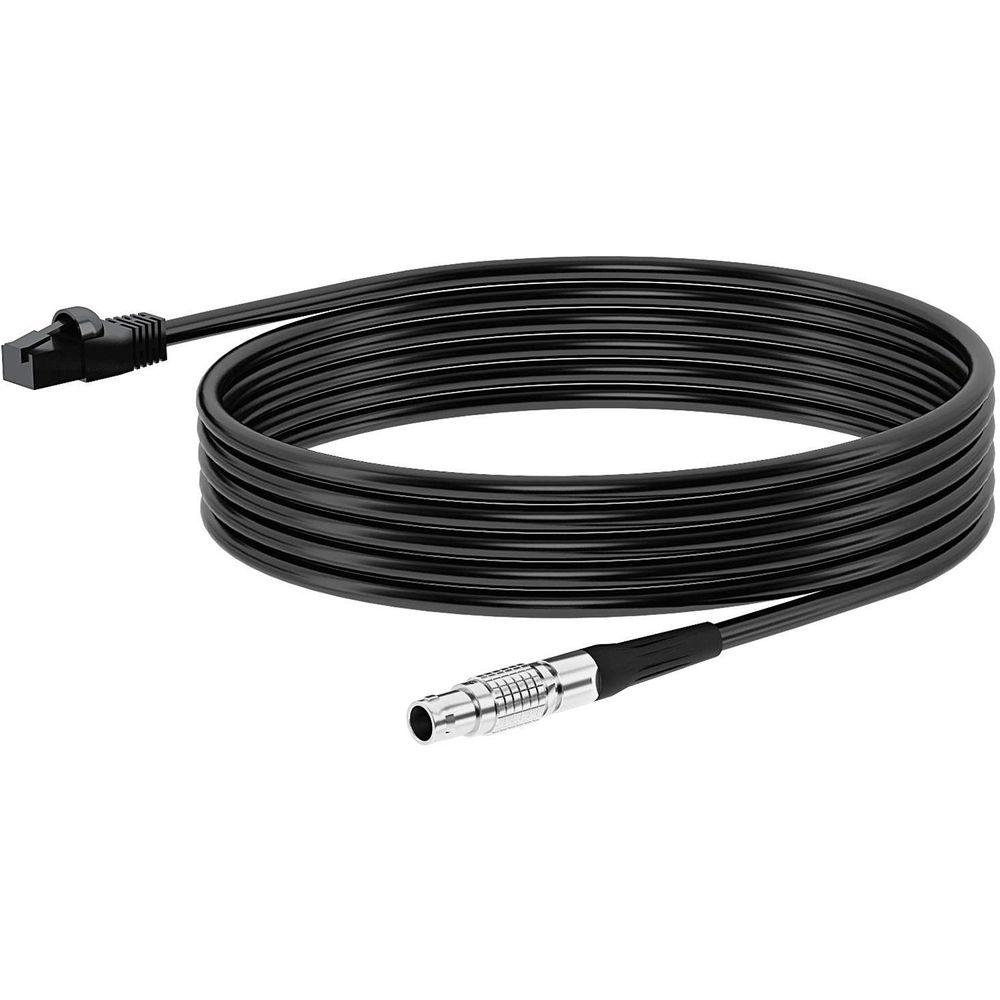

- ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') The ARRI ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') is designed with a 10-pin LEMO connector on one end, and an RJ45 connector on the other. Use this cable to link your ALEXA to the Ethernet for updates, camera remote control, or service functions.

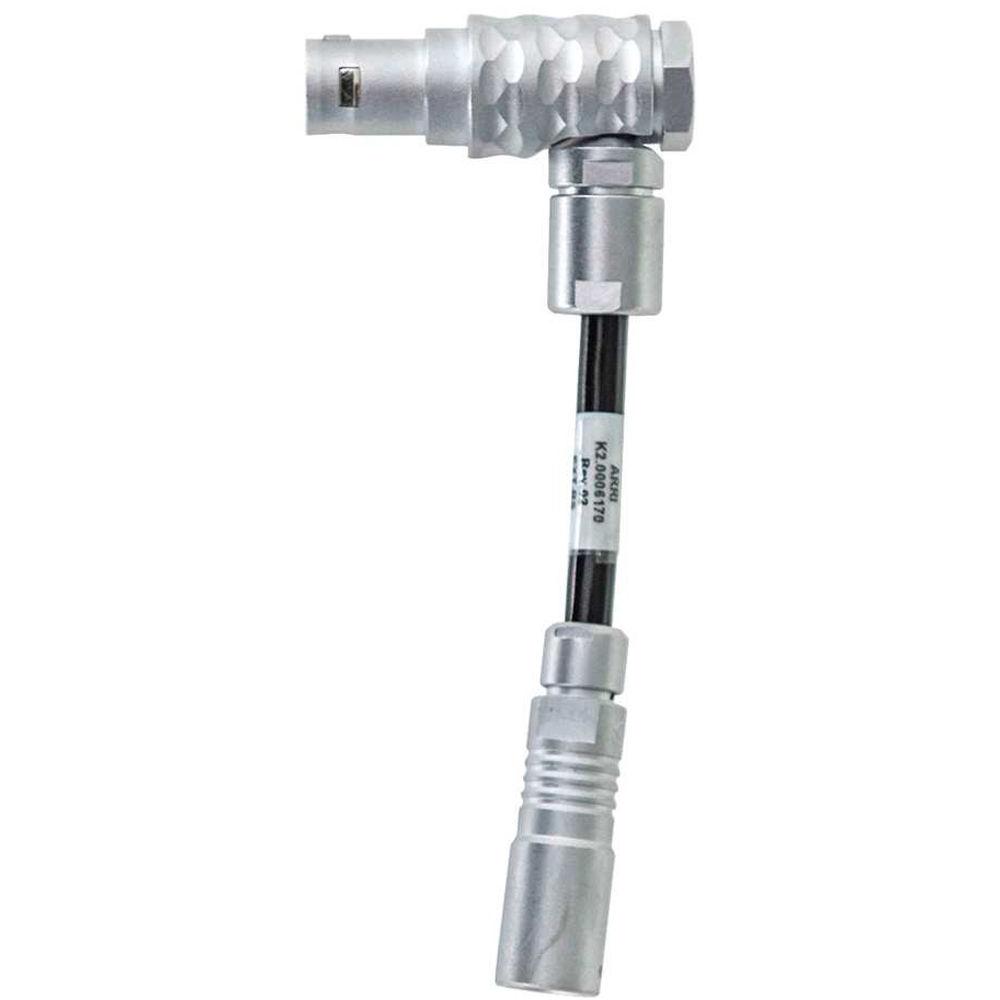

- EXT-RS Adapter Use the ARRI EXT-RS Adapter to convert the ALEXA Mini's external sync port into a 3-pin RS connection. This right-angle to straight adapter can be used with a compatible accessory to provide RUN/STOP capability.

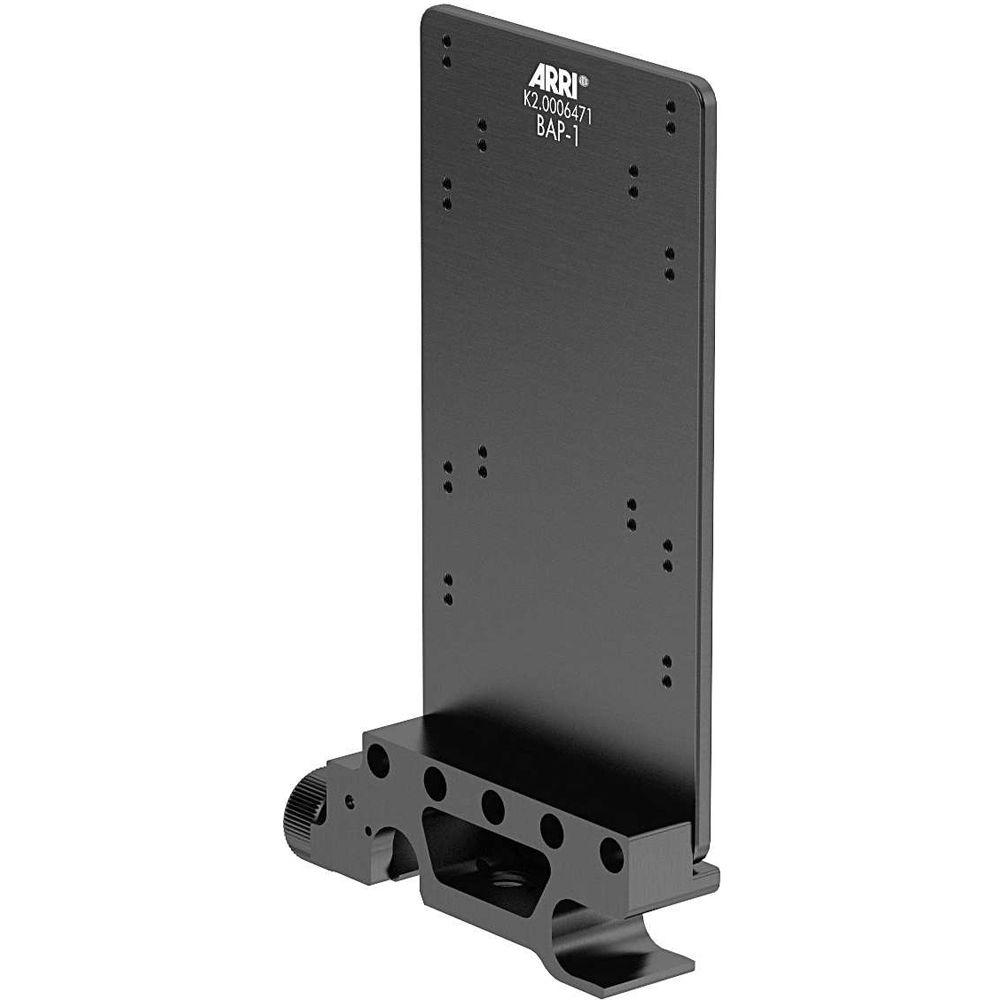

- BAP-1 Battery Adapter Plate The BAP-1 Battery Adapter Plate from ARRI is designed to use a V-Lock, Gold Mount, or other standard battery mount on a pair of 15mm rods. This ALEXA Mini accessory has pre-drilled holes for attaching the battery mount (not included) to the plate. The battery plate may be offset from the rod clamp to accommodate a camera's rear card slot or to help balance the camera rig. The BAP-1 has a semicircular clamp design that enables you to snap the plate onto the rods without necessitating the removal of other rod-mounted accessories.
- Compatible Battery Mounts
- Including, but not limited to, V-Lock, Gold Mount, etc.
- Rod Clamp
- Open design enables you to clamp the plate onto a pair of rods without having to remove other rod-mounted accessories
- Battery Adapter Plate BAP-2 The ARRI Battery Adapter Plate BAP-2 is designed for use with an IDX or Gold mount battery adapter plate on an ALEXA Mini. This accessory places the battery to the side of the camera body, minimizing the length of the camera to suit stabilizer, drone, and other compact rig setups.
- Side-Mount Design
- Minimizes the overall length of the camera rig for use with drones, stabilizers, or other compact setups

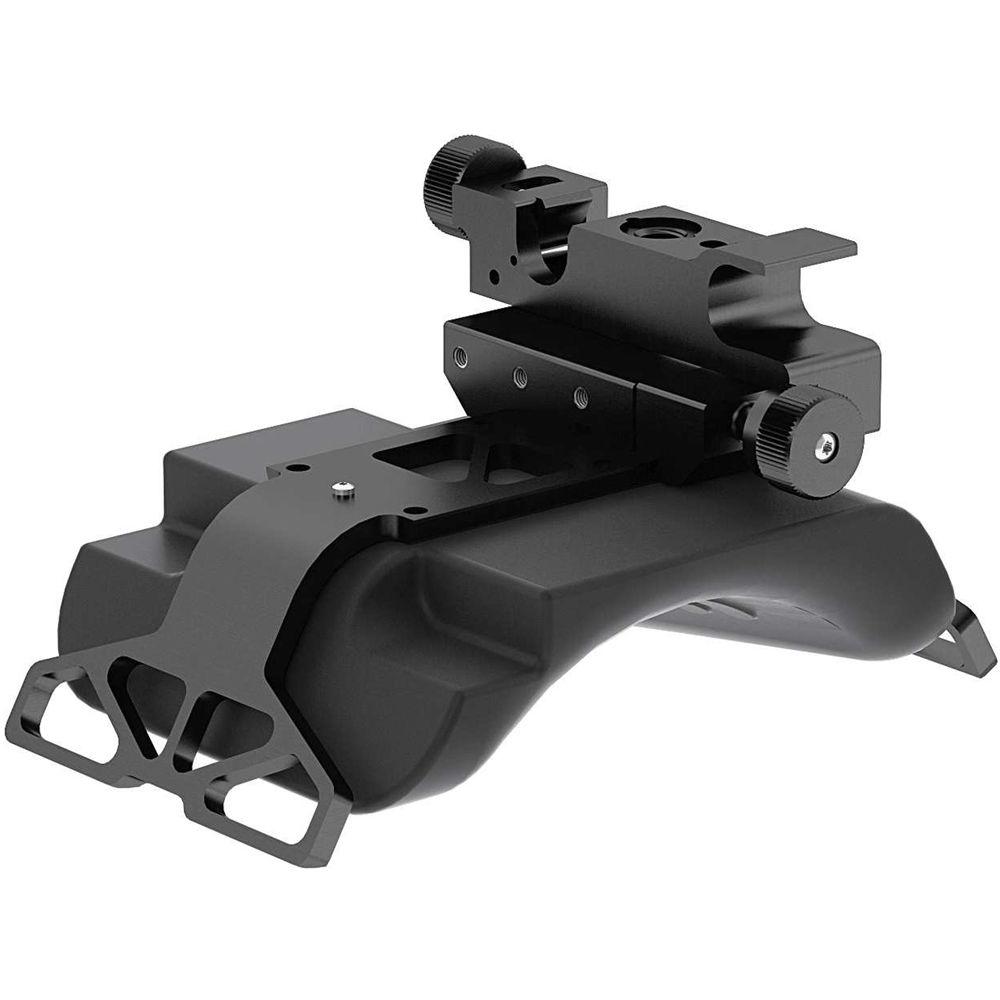

- CSP-1 Shoulder Pad for 15mm LWS Rods The ARRI CSP-1 Shoulder Pad attaches to a pair of 15mm lightweight support rods to provide a comfortable rest for your camera (rods not included). The increase in comfort gained when using a shoulder pad can translate into extended shooting time. This pad is designed such that the camera rig can rest on a flat surface without the pad itself touching the ground, diminishing wear and tear on the pad.
- Attaches to pair of 15mm rods (available separately)
- Enables the camera to rest on a flat surface without the pad itself touching the ground
- Adds comfort when operating the camera in handheld mode

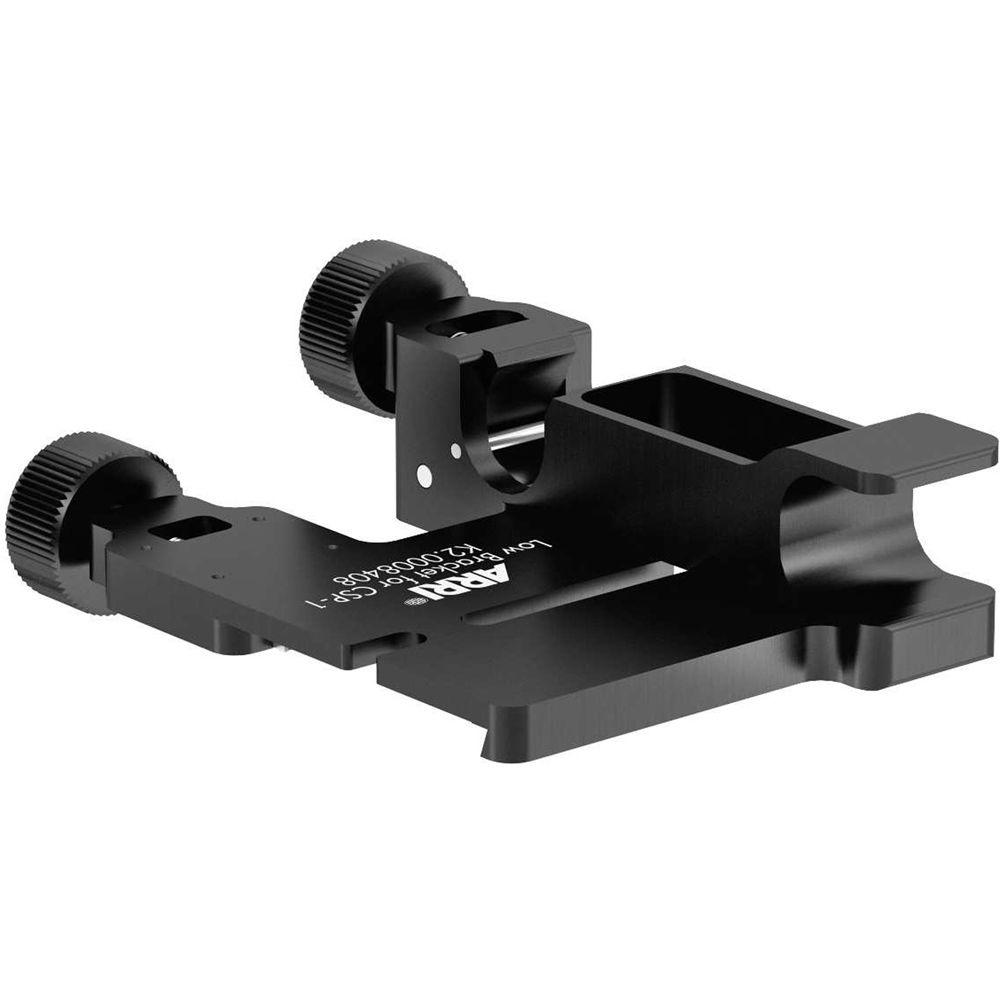

- Low Bracket for CSP-1 Use the ARRI Low Bracket for CSP-1 with the CSP-1 Shoulder Pad and the MAP-2 Adapter Plate for easier hand-held operating with the ALEXA MINI. This bracket lowers the camera on your shoulder by 0.6", providing the close-fitting support that is key for a comfortable shoulder mount. Designed specifically for the Mini Adapter Plate MAP-2, the Low Bracket for CSP-1 supports 15mm LWS rods.

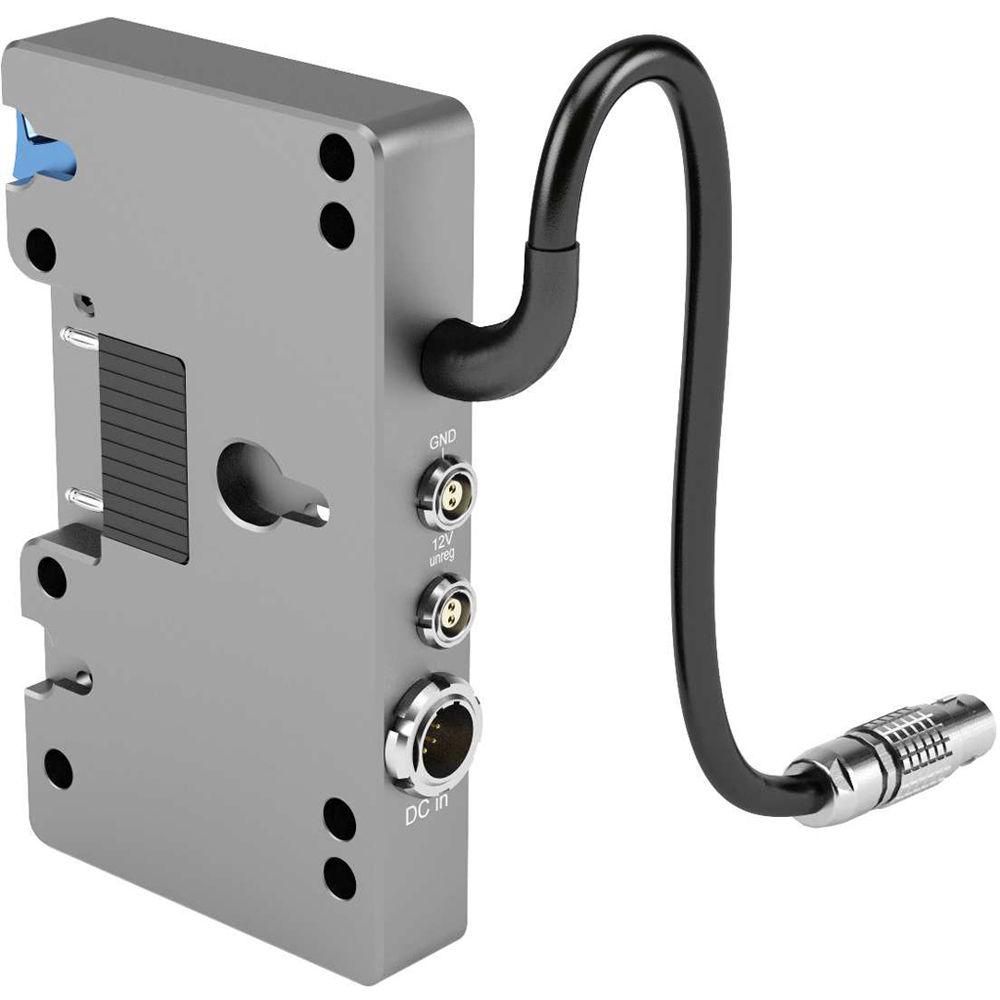

- V-Mount Adapter Plate Mk II for ALEXA Mini The versatile V-Mount Adapter Plate Mk II for ALEXA Mini from ARRI offers two means of powering the ALEXA Mini camera. Connect a V-mount battery, or plug a cable from a block battery into the plate's 8-pin LEMO port. This ALEXA Mini accessory has pre-drilled holes for attaching the adapter to a battery plate (available separately). Two 2-pin LEMO ports on the adapter output 13V regulated power for accessories. The V-Mount Adapter Plate Mk II features a sturdy aluminum build.
In the Box Bundle Items 2 x Lightweight Adapter Plate for ALEXA Mini MAP-1 vcvwtsfsvuat 2 x MAP-2 Adapter Plate for ALEXA Mini (15mm) MSB-1 Side Bracket for ALEXA Mini SAB-1 Side Accessory Bracket for ALEXA Mini BPA-4 Bridge Plate Adapter for ALEXA Mini 2 x Rod Mounting Bracket (RMB-3) 2 x 15mm Reduction Insert for 19mm Rod MVB-1 Viewfinder Mounting Bracket for ALEXA Mini CCH-2 Center Camera Handle Handle Extension Block (HEB-1) 15mm Lightweight Support Rods (Pair, 13") ALEXA Mini/AMIRA Straight Power Cable KC-50 (6.6') ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') EXT-RS Adapter BAP-1 Battery Adapter Plate Battery Adapter Plate BAP-2 vcvwtsfsvuat CSP-1 Shoulder Pad for 15mm LWS Rods vcvwtsfsvuat Low Bracket for CSP-1 V-Mount Adapter Plate Mk II for ALEXA Mini vcvwtsfsvuat
Also Includes - Mini Side Bracket MSB-2
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Cine Set for ALEXA Mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lightweight Adapter Plate for ALEXA Mini MAP-1
| Accessory Mount Threads | 3/8"-16, 1/4"-20 | | Dimensions | 2 x 4.3 x 0.8" / 50 x 110 x 20 mm | | Weight | 3 oz / 84 g | | | | Box Dimensions (LxWxH) | 4.095 x 3.858 x 0.945" | - MAP-2 Adapter Plate for ALEXA Mini (15mm)
| Dimensions | 4.7 x 4.7 x 1.2" (120 x 120 x 30 mm) | | Weight | 8.4 oz (238 g) | | | | Box Dimensions (LxWxH) | 5.5 x 5.2 x 0.8" | - MSB-1 Side Bracket for ALEXA Mini
| Accessory Mounting | 3/8"-16 and 1/4"-20 threads
1 x ARRI rosette | | Dimensions | 1.6 x 6.3 x 1.2" / 40 x 160 x 30 mm | | Weight | 3.6 oz / 101 g | | | | Box Dimensions (LxWxH) | 6.0 x 5.5 x 1.1" | - SAB-1 Side Accessory Bracket for ALEXA Mini
| Accessory Mount Threads | 3/8"-16, 1/4"-20 | | Dimensions | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 7.2 x 5.8 x 0.7" | - BPA-4 Bridge Plate Adapter for ALEXA Mini
| Dimensions (WxDxH) | 2.8 x 4.7 x 0.8" (70 x 120 x 20 mm) | | Weight | 4.6 oz (131 g) | | | | Box Dimensions (LxWxH) | 5.7 x 2.9 x 1.3" | - Rod Mounting Bracket (RMB-3)
| Dimensions | 1.2 x 1.6 x 1.6" / 30 x 40 x 40 mm | | Weight | 1.3 oz / 38 g | | | | Box Dimensions (LxWxH) | 4.3 x 3.6 x 0.6" | - 15mm Reduction Insert for 19mm Rod
| Adapter Type | 19 to 15mm | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 5.2 x 4.25 x 0.85" | - MVB-1 Viewfinder Mounting Bracket for ALEXA Mini
| Rod Standard | 15 mm LWS | | Dimensions | 5.9 x 6.3 x 2.4" / 15.0 x 16.0 x 6.0 cm | | Weight | 12.1 oz / 342 g | | | | Box Dimensions (LxWxH) | 8.8 x 5.5 x 2.3" | - CCH-2 Center Camera Handle
| Dimensions | 3.9 x 5.9 x 2.6" (10.0 x 15.0 x 6.5 cm) | | Weight | 8.7 oz (248 g) | | | | Box Dimensions (LxWxH) | 5.4 x 3.9 x 3.2" | - Handle Extension Block (HEB-1)
| Dimensions and Weight | Not specified by manufacturer | | Accessory Mounting Threads | 3 x 3/8"-16 | | | | Box Dimensions (LxWxH) | 4.3 x 4.3 x 1.0" | - 15mm Lightweight Support Rods (Pair, 13")
| Material of Construction | Stainless Steel | | Rod Diameter | 15 mm | | Rod Length | 13.4" / 34.0 cm | | Weight | 7.3 oz / 207 g | | | | Box Dimensions (LxWxH) | 13.5 x 1.2 x 0.4" | - ALEXA Mini/AMIRA Straight Power Cable KC-50 (6.6')
| Connector 1 | 3-pin XLR | | Connector 2 | 8-pin LEMO | | Length | 6.6' / 2 m | | | | Box Dimensions (LxWxH) | 8.55 x 8.4 x 2.15" | - ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8')
| Connectors | 10-pin LEMO
RJ45 | | Cable Length | 9.8' / 3 m | | | | Box Dimensions (LxWxH) | 8.2 x 5.0 x 1.4" | - EXT-RS Adapter
| Cable Connectors | 1 x 7-pin LEMO
1 x 3-pin Fischer | | Length | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 1.0" | - BAP-1 Battery Adapter Plate
| Dimensions (WxHxD) | 4.7 x 7.1 x 1.2" (12.0 x 18.0 x 3.0 cm) | | Weight | 8.1 oz (230 g) | | | | Box Dimensions (LxWxH) | 7.087 x 5.5 x 0.866" | - Battery Adapter Plate BAP-2
| Dimensions (WxHxD) | 6.3 x 6.7 x 1.2" / 160 x 170 x 30 mm | | Weight | 4.7 oz / 134 g | | | | Box Dimensions (LxWxH) | 7.2 x 5.7 x 1.2" | - CSP-1 Shoulder Pad for 15mm LWS Rods
| Dimensions | 5.5 x 6.7 x 3.5" (140 x 170 x 90 mm) | | Weight | 1.4 lb (656 g) | | | | Box Dimensions (LxWxH) | 9.0 x 7.5 x 3.55" | - Low Bracket for CSP-1
| Rod Compatibility | 15mm LWS | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 4.3 x 3.3 x 0.8" | - V-Mount Adapter Plate Mk II for ALEXA Mini
| Battery Mount | V-mount | | Power Input | 1 x 8-pin LEMO, 12-30 VDC | | Accessory Power Ports | 2 x 2-pin LEMO, 13 V, regulated 2 A | | Material of Construction | Aluminum | | Dimensions and Weight | Not specified by manufacturer |
