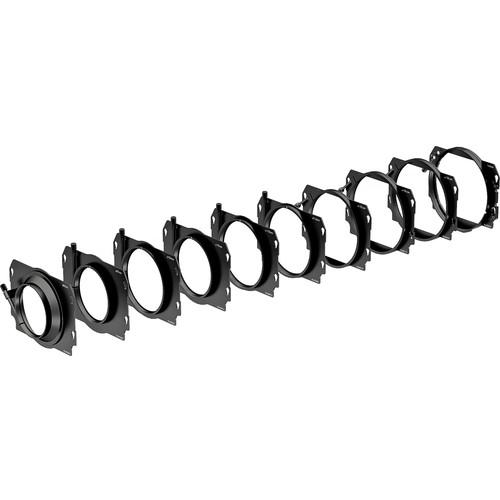

Product description This Clamp Adapter Set for LMB-25 Matte Box from ARRI provides a range of ten adapters for use with different-sized outer lens barrels. Used to attach the matte box to the lens, the adapter fastens to the lens via its screw-on clamp center and attaches to the matte box using its keyhole-type slots. These adapters are compatible with LMB-25, LMB-15, and LMB-5 4x5" lightweight matte boxesDesigned to coordinate with many cine-style lenses, the set includes 143, 136, 134, 125, 114, 110, 104, 95, 87, and 80mm clamps. Each adapter has a rectangular outer shape and a circular inner design. - Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box (143mm) The 143mm Clamp Adapter for LMB-5/15/25 Matte Box from ARRI is used to attach the matte box to a lens with a 143mm front diameter. The adapter attaches to the lightweight 4x5.65" matte box using its keyhole-type slots and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- Compatible Lenses:
Lenses with 143mm front barrels
Works with R11 clamp-on reduction rings - For ARRI 4x5.65" LMB-5/15/25 matte boxes
- Attaches to 143mm front-diameter lens barrels
- Thumbscrew clamp-on design
- 136mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box The 136mm Clamp Adapter for LMB-5/15/25 Matte Box from ARRI is used to attach the matte box to a lens with a 136mm front diameter. The adapter attaches to the lightweight 4 x 5" matte box using its keyhole-type slots and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- Compatible Lenses:
Lenses with 136mm barrel fronts - For Arriflex 4 x 5" LMB-5/15/25 matte boxes
- Attaches to 136mm front-diameter lens barrels
- Thumbscrew clamp-on design
- 134mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box The 134mm Clamp Adapter for LMB-5/15/25 Matte Box from ARRI is used to attach the matte box to a lens with a 134mm front diameter. The adapter attaches to the lightweight 4 x 5" matte box using its keyhole-type slots and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- Compatible Lenses:
ARRI ALURA Studio Zooms - For Arriflex 4 x 5" LMB-5/15/25 matte boxes
- Attaches to 134mm front-diameter lens barrels
- Thumbscrew clamp-on design
- Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box (125mm) The 125mm Clamp Adapter for LMB-5/15/25 Matte Box from ARRI is used to attach the matte box to a lens with a 125mm front diameter. The adapter attaches to the lightweight 4x5.65" matte box using its keyhole-type slots and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- Compatible Lenses:
Hawk 60-135mm
Cooke S4/i 150mm - For ARRI 4x5.65" LMB-5/15/25 matte boxes
- Attaches to 125mm front-diameter lens barrels
- Thumbscrew clamp-on design
- 114mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box The 114mm Clamp Adapter for LMB-5/15/25 Matte Box from ARRI is used to attach the matte box to a lens with a 114mm front diameter. The adapter attaches to the lightweight 4 x 5" matte box using its keyhole-type slots and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- Compatible Lenses:
ARRI/Zeiss
Master Primes Ultra Prime 14mm, 180mm
LDS-Ultra Prime 14mm, 180mm
ARRI ALURA Lightweight Zooms - For Arriflex 4 x 5" LMB-5/15/25 matte boxes
- Attaches to 114mm front-diameter lens barrels
- Thumbscrew clamp-on design
- 110mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box The 110mm Clamp Adapter for LMB-5/15/25 Matte Box from ARRI is used to attach the matte box to a lens with a 110mm front diameter. The adapter attaches to the lightweight 4 x 5" matte box using its keyhole-type slots and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- Compatible Lenses:
Cook S4
LDS Cooke S4 - For Arriflex 4 x 5" LMB-5/15/25 matte boxes
- Attaches to 110mm front-diameter lens barrels
- Thumbscrew clamp-on design
- Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box (104mm) The 104mm Clamp Adapter for LMB-5/15/25 Matte Box from ARRI is used to attach the matte box to a lens with a 104mm front diameter. The adapter attaches to the lightweight 4x5.65" matte box using its keyhole-type slots and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- Compatible Lenses:
ARRI/Zeiss LDS Ultra Primes 16mm through 135mm - For ARRI 4x5.65" LMB-5/15/25 matte boxes
- Attaches to 104mm front-diameter lens barrels
- Thumbscrew clamp-on design
- 95mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box The 95mm Clamp Adapter for LMB-5/15/25 Matte Box from ARRI is used to attach the matte box to a lens with a 95mm front diameter. The adapter attaches to the lightweight 4 x 5" matte box using its keyhole-type slots and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- Compatible Lenses:
ARRI/Zeiss Ultra Primes 16mm through 135mm - For Arriflex 4 x 5" LMB-5/15/25 matte boxes
- Attaches to 95mm front-diameter lens barrels
- Thumbscrew clamp-on design
- 87mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box The 87mm Clamp Adapter for LMB-5/15/25 Matte Box from ARRI is used to attach the matte box to a lens with an 87mm front diameter. The adapter attaches to the lightweight 4 x 5" matte box using its keyhole-type slots and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- Compatible Lenses:
Zeiss Vario Sonnar
Cooke miniS4/i - For Arriflex 4 x 5" LMB-5/15/25 matte boxes
- Attaches to 87mm front-diameter lens barrels
- Thumbscrew clamp-on design
- 80mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box The 80mm Clamp Adapter for LMB-5/15/25 Matte Box from ARRI is used to attach the matte box to a lens with an 80mm front diameter. The adapter attaches to the lightweight 4 x 5" matte box using its keyhole-type slots and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- Compatible Lenses:
Zeiss standard and high speed lenses - For Arriflex 4 x 5" LMB-5/15/25 matte boxes
- Attaches to 80mm front-diameter lens barrels
- Thumbscrew clamp-on design
In the Box Bundle Items Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box (143mm) yfxrsdfvwqcbts 136mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box 134mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box (125mm) 114mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box 110mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box (104mm) 95mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box 87mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box 80mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Clamp Adapter Set for LMB-25 Matte Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box (143mm)
| Compatible Lens Barrel Diameter | 5.6" (143mm), front barrel | | Dimensions (HxWxD) | 6.7 x 9.8 x 0.8" (170 x 250 x 20 mm) | | Weight | 4 oz (114 g) | | | | Box Dimensions (LxWxH) | 7.9 x 5.6 x 0.7" | - 136mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box
| Compatible Lenses | Front Barrel Diameter:
5.4" (136 mm) | | Dimensions (HxWxD) | Not Specified by Manufacturer | | Weight | 3.2 oz (90 g) | | | | Box Dimensions (LxWxH) | 7.1 x 5.7 x 0.6" | - 134mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box
| Compatible Lenses | Front Barrel Diameter:
5.3" (134 mm) | | Dimensions (HxWxD) | Not Specified by Manufacturer | | Weight | 3.2 oz (90 g) | | | | Box Dimensions (LxWxH) | 7.1 x 5.2 x 0.6" | - Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box (125mm)
| Compatible Lens Barrel Diameter | 4.9" (125mm), front barrel | | Dimensions (HxWxD) | Not specified by manufacturer | | Weight | 3.3 oz (94 g) | - 114mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box
| Compatible Lenses | Front Barrel Diameter:
4.5" (114 mm) | | Dimensions (HxWxD) | 7.1 x 9.1 x 2" (180 x 230 x 50 mm) | | Weight | 7.4 oz (210 g) | | | | Box Dimensions (LxWxH) | 6.9 x 5.5 x 0.6" | - 110mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box
| Compatible Lenses | Front Barrel Diameter:
4.3" (110 mm) | | Dimensions (HxWxD) | 7.1 x 9.3 x 2.2" (180 x 235 x 55 mm) | | Weight | 7.5 oz (213 g) | | | | Box Dimensions (LxWxH) | 6.7 x 5.8 x 0.5" | - Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box (104mm)
| Compatible Lens Barrel Diameter | 4.1" (104mm), front barrel | | Dimensions (HxWxD) | 7.1 x 9.3 x 2.2" (180 x 235 x 55 mm) | | Weight | 7.6 oz (216 g) | | | | Box Dimensions (LxWxH) | 6.9 x 5.9 x 0.4" | - 95mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box
| Compatible Lenses | Front Barrel Diameter:
3.7" (95 mm) | | Dimensions (HxWxD) | 7.1 x 9.1 x 2" (180 x 230 x 50 mm) | | Weight | 7.8 oz (220 g) | | | | Box Dimensions (LxWxH) | 7.1 x 5.9 x 0.3" | - 87mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box
| Compatible Lenses | Front Barrel Diameter:
3.4" (87 mm) | | Dimensions (HxWxD) | 7.1 x 9.3 x 2.2" (180 x 235 x 55 mm) | | Weight | 7.8 oz (221 g) | | | | Box Dimensions (LxWxH) | 6.8 x 5.9 x 0.4" | - 80mm Clamp Adapter for LMB-5/LMB-15/LMB-25 Matte Box
| Compatible Lenses | Front Barrel Diameter:
3.1" (80 mm) | | Dimensions (HxWxD) | 7.1 x 9.3 x 2.2" (180 x 235 x 55 mm) | | Weight | 8.3 oz (236 g) | | | | Box Dimensions (LxWxH) | 6.9 x 4.6 x 1.1" |
