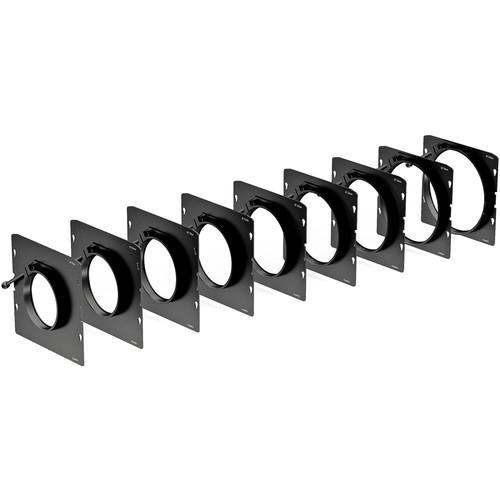

User Manual for ARRI Clamp Adapter Set for LMB-6 Matte Box Click to enlarge the picture
Contents of the user manual for the ARRI Clamp Adapter Set for LMB-6
- Product category: Matte Box Adapter Rings ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Matte Box Adapter Rings
|
User manual for the ARRI Clamp Adapter Set for LMB-6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description This Clamp Adapter Set for LMB-6 Matte Box from ARRI provides a range of nine adapters for use with different-sized outer lens barrels. Used to attach the matte box to the lens, the adapter fastens to the lens via its screw-on clamp center and attaches to the matte box using its keyhole-type slots. These adapters are compatible with LMB-6 6.6 x 6.6" lightweight matte boxes. Designed to coordinate with many larger cine-style lenses, this set includes 162, 156, 136, 134, 125, 114, 110, 104, and 95mm clamps. Each adapter has a rectangular outer shape and a circular inner design. - 162mm Clamp Adapter for LMB-6 Matte Box The 162mm Clamp Adapter for LMB-6 Matte Box from ARRI is used to attach the LMB-6 to a lens with a 162mm front diameter. The adapter attaches to the matte box using its keyhole-type slots, and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- For the Arriflex 6.6 x 6.6" LMB-6 matte box
- Attaches to a lens barrel with a 162mm front diameter
- Thumbscrew clamp-on design
- 156mm Clamp Adapter for LMB-6 Matte Box The 156mm Clamp Adapter for LMB-6 Matte Box from ARRI is used to attach the LMB-6 to a lens with a 156mm front diameter. The adapter attaches to the matte box using its keyhole-type slots, and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- For the Arriflex 6.6 x 6.6" LMB-6 matte box
- Attaches to a lens barrel with a 156mm front diameter
- Thumbscrew clamp-on design
- 136mm Clamp Adapter for LMB-6 Matte Box The 136mm Clamp Adapter for LMB-6 Matte Box from ARRI is used to attach the LMB-6 to a lens with a 136mm front diameter. The adapter attaches to the matte box using its keyhole-type slots, and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- For the Arriflex 6.6 x 6.6" LMB-6 matte box
- Attaches to a lens barrel with a 136mm front diameter
- Thumbscrew clamp-on design
- 134mm Clamp Adapter for LMB-6 Matte Box The 134mm Clamp Adapter for LMB-6 Matte Box from ARRI is used to attach the LMB-6 to a lens with a 134mm front diameter. The adapter attaches to the matte box using its keyhole-type slots, and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- For the Arriflex 6.6 x 6.6" LMB-6 matte box
- Attaches to a lens barrel with a 134mm front diameter
- Thumbscrew clamp-on design
- 125mm Clamp Adapter for LMB-6 Matte Box The 125mm Clamp Adapter for LMB-6 Matte Box from ARRI is used to attach the LMB-6 to a lens with a 125mm front diameter. The adapter attaches to the matte box using its keyhole-type slots and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- For the Arriflex 6.6 x 6.6" LMB-6 matte box
- Attaches to a lens barrel with a 125mm front diameter
- Thumbscrew clamp-on design
- 114mm Clamp Adapter for LMB-6 Matte Box The 114mm Clamp Adapter for LMB-6 Matte Box from ARRI is used to attach the LMB-6 to a lens with a 114mm front diameter. The adapter attaches to the matte box using its keyhole-type slots, and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- For the Arriflex 6.6 x 6.6" LMB-6 matte box
- Attaches to a lens barrel with a 114mm front diameter
- Thumbscrew clamp-on design
- 110mm Clamp Adapter for LMB-6 Matte Box The 110mm Clamp Adapter for LMB-6 Matte Box from ARRI is used to attach the LMB-6 to a lens with a 110mm front diameter. The adapter attaches to the matte box using its keyhole-type slots, and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- For the Arriflex 6.6 x 6.6" LMB-6 matte box
- Attaches to a lens barrel with a 110mm front diameter
- Thumbscrew clamp-on design
- 104mm Clamp Adapter for LMB-6 Matte Box The 104mm Clamp Adapter for LMB-6 Matte Box from ARRI is used to attach the LMB-6 to a lens with a 104mm front diameter. The adapter attaches to the matte box using its keyhole-type slots and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- For the Arriflex 6.6 x 6.6" LMB-6 matte box
- Attaches to a lens barrel with a 104mm front diameter
- Thumbscrew clamp-on design
- 95mm Clamp Adapter for LMB-6 Matte Box The 95mm Clamp Adapter for LMB-6 Matte Box from ARRI is used to attach the LMB-6 to a lens with a 95mm front diameter. The adapter attaches to the matte box using its keyhole-type slots and it fastens to the lens via its screw-on clamp center. This adapter has a rectangular outer shape and a circular inner design.
- For the Arriflex 6.6 x 6.6" LMB-6 matte box
- Attaches to a lens barrel with a 95mm front diameter
- Thumbscrew clamp-on design
In the Box Bundle Items 162mm Clamp Adapter for LMB-6 Matte Box ybcusrtwy 156mm Clamp Adapter for LMB-6 Matte Box 136mm Clamp Adapter for LMB-6 Matte Box 134mm Clamp Adapter for LMB-6 Matte Box 125mm Clamp Adapter for LMB-6 Matte Box 114mm Clamp Adapter for LMB-6 Matte Box ybcusrtwy 110mm Clamp Adapter for LMB-6 Matte Box 104mm Clamp Adapter for LMB-6 Matte Box 95mm Clamp Adapter for LMB-6 Matte Box Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Clamp Adapter Set for LMB-6 Matte Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 162mm Clamp Adapter for LMB-6 Matte Box
| Compatible Lenses | Front Barrel Diameter:
6.4" (162 mm) | | Dimensions (HxWxD) | 7.1 x 9.3 x 0.6" (180 x 235 x 16 mm) | | Weight | 7.2 oz (203 g) | | | | Box Dimensions (LxWxH) | 9.5 x 7.1 x 1.0" | - 156mm Clamp Adapter for LMB-6 Matte Box
| Compatible Lenses | Front Barrel Diameter:
6.1" (156 mm) | | Dimensions (HxWxD) | 7.1 x 9.3 x 0.6" (180 x 235 x 16 mm) | | Weight | 7.4 oz (209 g) | | | | Box Dimensions (LxWxH) | 7.6 x 7.2 x 0.8" | - 136mm Clamp Adapter for LMB-6 Matte Box
| Compatible Lenses | Front Barrel Diameter:
5.4" (136 mm) | | Dimensions (HxWxD) | 7.1 x 9.1 x 0.6" (180 x 230 x 16 mm) | | Weight | 7.9 oz (224 g) | | | | Box Dimensions (LxWxH) | 10.05 x 7.45 x 1.45" | - 134mm Clamp Adapter for LMB-6 Matte Box
| Compatible Lenses | Front Barrel Diameter:
5.3" (134 mm) | | Dimensions (HxWxD) | 7.1 x 9.1 x 0.6" (180 x 230 x 16 mm) | | Weight | 8 oz (227 g) | | | | Box Dimensions (LxWxH) | 10.15 x 7.4 x 1.2" | - 125mm Clamp Adapter for LMB-6 Matte Box
| Compatible Lenses | Front Barrel Diameter:
4.9" (125 mm) | | Dimensions (HxWxD) | 7.1 x 8.9 x 0.6" (180 x 225 x 16 mm) | | Weight | 8.1 oz (230 g) | - 114mm Clamp Adapter for LMB-6 Matte Box
| Compatible Lenses | Front Barrel Diameter:
4.5" (114 mm) | | Dimensions (HxWxD) | 7.1 x 8.9 x 0.6" (180 x 225 x 16 mm) | | Weight | 8.3 oz (234 g) | | | | Box Dimensions (LxWxH) | 9.7 x 5.6 x 0.9" | - 110mm Clamp Adapter for LMB-6 Matte Box
| Compatible Lenses | Front Barrel Diameter:
4.3" (110 mm) | | Dimensions (HxWxD) | 7.1 x 8.9 x 0.6" (180 x 225 x 16 mm) | | Weight | 8.4 oz (238 g) | | | | Box Dimensions (LxWxH) | 10.35 x 7.7 x 1.4" | - 104mm Clamp Adapter for LMB-6 Matte Box
| Compatible Lenses | Front Barrel Diameter:
4.1" (104 mm) | | Dimensions (HxWxD) | 7.1 x 8.7 x 0.6" (180 x 220 x 16 mm) | | Weight | 8.5 oz (240 g) | - 95mm Clamp Adapter for LMB-6 Matte Box
| Compatible Lenses | Front Barrel Diameter:
3.7" (95 mm) | | Dimensions (HxWxD) | 7.1 x 8.7 x 0.6" (180 x 220 x 16 mm) | | Weight | 8.5 oz (242 g) |
