Product description The components in this ARRI CLM-3 Motor Basic Kit are used with an ARRI motor controller (available separately) to remotely control your lens's focus, iris, or zoom function. The robust CLM-3 motor features strong yet fast control, working well even with heavy lenses in low temperatures. This CLM-3 Motor Basic Kit can be used with ARRI's UMC-4 Universal Motor Controller or SMC-1 Single Motor Controller. The included drive gear works with select cine-style lenses, and can be attached to either side of the CLM-3 Motor. This kit includes a motor-to-controller cable, and a bracket with insert for mounting to a standard 19mm or 15mm rod. - CLM-3 Motor Unit ARRI's CLM-3 Motor is designed to remotely control your lens's focus, iris, or zoom function. The workhorse CLM-3 motor features fast, strong control, even for heavy lenses operating in very low temperatures. This basic motor component requires a separately available gear, cable, and bracket to suit the ARRI or third-party camera of your choice. The CLM-3 motor can be used with ARRI's UMC-4 Universal Motor Controller and SMC-1 Single Motor Controller. For optimal flexibility, a gear can be attached to either side of the CLM-3 Motor, expanding position choice to either side of the lens, and either over or under the lens barrel depending on your camera configuration.
Features - Solidly-built motor provides fast, strong control, even for stiff lenses in very low temperatures
- For all ARRI and third-party cameras
- For flexible positioning, a gear attaches to either side of motor (gear not included)
- Compatible with ARRI UMC-4 and SMC-1 motor controllers
- Multiple mounting options available separately
- CLM-3 Motor to Controller Cable Use this CLM-3 Motor Cable from ARRI to connect the CLM-3 lens motor to an ARRI UCM-4 or SMC-1 motor controller.
- 19/15mm Single Rod Bracket for CLM-3 Motor The ARRI 19/15mm Single Rod Bracket for CLM-3 Motor mounts the lens control motor to a single 19mm or 15mm rod. This bracket has an integrated dovetail slide for flexible positioning, and includes a 15mm rod insert.
- Gear for CLM-3 Motor (0.8-Mod, 32-Pitch, 60-Tooth) This Gear for CLM-3 from ARRI is designed for use with a CLM-3 lens control motor. This 0.8-mod, 32-pitch, 60-tooth gear is compatible with ARRI/Zeiss and Fujifilm focus, iris, and zoom gears. It will also drive the focus gear on Panavision lenses.
- Compatible Lenses
- Including but not limited to:
ARRI/Zeiss focus, iris, and zoom gears
Fujifilm focus, iris, and zoom gears

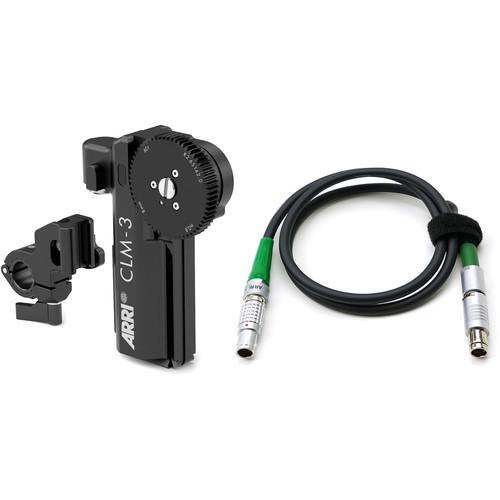

Panavision focus gears In the Box Bundle Items CLM-3 Motor Unit CLM-3 Motor to Controller Cable 19/15mm Single Rod Bracket for CLM-3 Motor - 19mm to 15mm Insert for CLM-3 (Pair)
Gear for CLM-3 Motor (0.8-Mod, 32-Pitch, 60-Tooth) Table of Contents
|
