User Manual for ARRI CLM-5 Motor Basic Set with Gear, Bracket & Cable Click to enlarge the picture
Contents of the user manual for the ARRI CLM-5 Motor Basic Set with
- Product category: Wireless Lens Control Accessories ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Wireless Lens Control Accessories
|
User manual for the ARRI CLM-5 Motor Basic Set with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

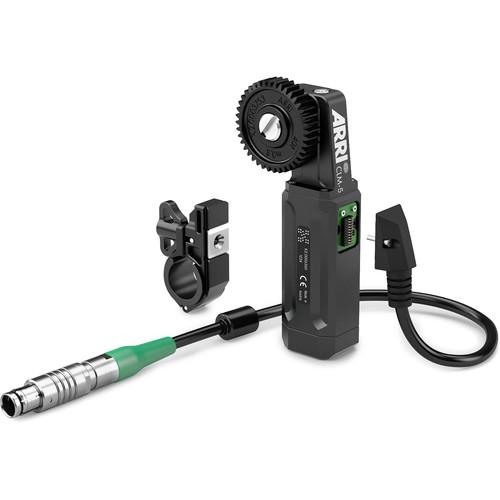

Product description The components in this ARRI CLM-5 Motor Basic Kit are used with an ARRI motor controller (available separately) to remotely control your lens's focus, iris, or zoom function. The lightweight, compact CLM-5 motor features smooth, responsive control for smaller lenses. This CLM-5 Motor Basic Kit can be used with ARRI's UMC-4 Universal Motor Controller or SMC-1 Single Motor Controller. The included drive gear works with select cine-style lenses, and can be attached to either side of the CLM-5 Motor. This kit includes a motor-to-controller cable, and a bracket with insert for mounting to a standard 19mm or 15mm rod. - CLM-5 Motor Unit ARRI's CLM-5 Motor is a lightweight motor used to remotely control your lens's focus, iris, or zoom function. The CLM-5 Motor weighs just over seven ounces including a gear, bracket and cable (available separately). This ultra-compact, high-end CLM-5 motor is suitable for gimbal, drone, and other lightweight camera rigs. The motor features fast, smooth, and responsive control for smaller lenses. Directly compatible with ARRI ALEXA Plus type cameras, the CLM-5 can be used with any other ARRI or third-party camera with the UMC-4 or SMC-1 motor controller.For optimal flexibility, a gear can be attached to either side of the CLM-5 Motor, expanding your lens configuration choices. This basic motor unit includes one cable, and requires a separately available gear and bracket.
Features - Ultra-compact lens-control motor provides smooth, quick operation for smaller lenses
- Directly compatible with ARRI ALEXA Plus cameras, and with all ARRI and third-party cameras when used with the ARRI UMC-4 or SMC-1 motor controller
- Quick, smooth response for smaller lenses
- For flexibility in positioning, a gear attaches to either side of motor (gear not included)
- Gear for CLM-5 or cforce mini Motor (0.8-Mod, 32-Pitch, 40-Tooth) This Gear for CLM-5 or cforce mini from ARRI is designed for use with a CLM-5 or cforce mini lens control motor. This 0.8-mod, 32-pitch, 40-tooth gear is compatible with ARRI/Zeiss and Fujifilm focus, iris, and zoom gears. It will also drive the focus gear on Panavision lenses.
- Compatible Lenses
- Including but not limited to:
ARRI/Zeiss focus, iris, and zoom gears
Fujifilm focus, iris, and zoom gears
Panavision focus gears - 19/15mm Single Rod Bracket for CLM-5 or cforce mini Motor The ARRI 19/15mm Single Rod Bracket for CLM-5 or cforce mini Motor mounts the lens control motor to a single 19mm or 15mm rod. This bracket includes a 15mm rod adapter, and tightens onto the rod via its winged screw and post mechanism.
- CLM-5 Motor to Controller Cable Use this CLM-5 Motor Cable from ARRI to connect the motor to an ARRI UCM-4 or SMC-1 motor controller.
In the Box Bundle Items CLM-5 Motor Unit rdcbywxqaxfwrdab - CLM-5 Motor to Controller Cable
Gear for CLM-5 or cforce mini Motor (0.8-Mod, 32-Pitch, 40-Tooth) 19/15mm Single Rod Bracket for CLM-5 or cforce mini Motor - CLM-5/cforce Mini 19/15mm Clamp Insert for 15mm Rod
CLM-5 Motor to Controller Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI CLM-5 Motor Basic Set with Gear, Bracket & Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CLM-5 Motor Unit
| Weight | With Gear, Bracket & Cable:
7.2 oz (205 g)
(gear & bracket available separately) | - Gear for CLM-5 or cforce mini Motor (0.8-Mod, 32-Pitch, 40-Tooth)
| Gear Standard | 0.8 mod, 32 pitch, 40 teeth | | | | Box Dimensions (LxWxH) | 1.5 x 1.1 x 0.4" | - 19/15mm Single Rod Bracket for CLM-5 or cforce mini Motor
| Dimensions | Not specified by manufacturer | | Rod Compatibility | 15mm, 19mm | | | | Box Dimensions (LxWxH) | 3.9 x 2.8 x 0.6" | - CLM-5 Motor to Controller Cable
| Connectors | Not specified by manufacturer | | Length | Not specified by manufacturer |
