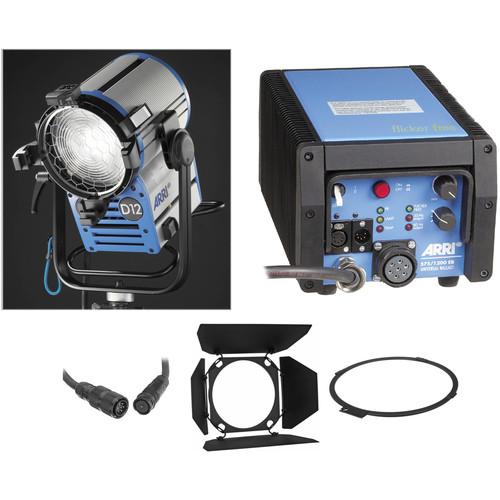

Product description This is a exclusive ARRI Compact 1200-Watt HMI Kit. It is based on the lightweight, aluminum ARRI 1200-watt HMI Fresnel. The fixture sports a 6.9" lens that provides a smooth, even field of light. Powering the HMI fixture is the ARRI multi-voltage ballast. It has on-board dimming, offers flicker-free power, and can be connected to your control board for remote dimming. Rounding out this kit are a 50' head-to-ballast cable, a four-leaf barndoor set, and filter frame. An HMI bulb must be purchased separately. - ARRI True Blue D12 HMI 1200W Fresnel Head Part of Arri's True Blue series, the D12 HMI 1200W Fresnel Head stays true to its Arri roots with its compact size, while reducing weight and maximizing light output. True Blue heads also feature a new cross-cooling system--lamp housing temp is reduced 25%; lens temp, 17%. A redesigned stirrup and improved tilt lock make using Chimera or similar light modifiers a breeze.
- New cross-cooling system reduces lamp housing and lens temperature
- Redesigned stirrup and improved tilt lock for ease of using light modifiers
- ARRI Head to Ballast Cable 575/1200/1800W - 50' This is an ARRI Head to Ballast Cable. The 50' (15.2 m) long cable is compatible with 575, 1200 and 1800W heads such as the ARRISUN 5, 12 Plus, 18, and 40/25 heads. It's also compatible with the ARRIMAX M18, the ARRI X X5 and X12, D5 and D12 Fresnels and the Compact 575 and 1200 heads.
- ARRI 575/1200W Electronic Ballast for HMI Lights The 575/1200W Electronic Ballast from Arri is a multi-voltage, dual-power electronic ballast for Arri HMI lights. It features ALF (Automatic Line Filtering), which reduces noise, and lessens color shift, when dimming the fixture. It has an integral DMX-50 protocol, for use with appropriate control boards and dimmer packs.
- ARRI 4-Leaf Barndoor Set for ST-1, 1.2Kw HMI Fixtures This is an ARRI 4-Leaf Barndoor Set for the ST-1 Fresnel and 1.2Kw HMI fixtures. Barndoors attach to the front of a light and are used to restrict light from areas of a set. ARRI barndoors are heat resistant and rotatable.
- ARRI Filter Frame for Fresnels Arri Filter Frames are circular and heat resistant. Filters can be cut and sandwiched into them, and they slide into lamphead accessory holders. Sizes are a little bit larger than the fresnels.
In the Box - True Blue D12 HMI 1200W Fresnel Head fxxssauwvcefzbfswcerdx
- Head to Ballast Cable 575/1200/1800W - 50'
- 575/1200W Electronic Ballast for HMI Lights
- 4-Leaf Barndoor Set for ST-1, 1.2Kw HMI Fixtures
- Filter Frame for Fresnels
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Compact 1200-Watt HMI Fresnel Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ARRI True Blue D12 HMI 1200W Fresnel Head
| Rating | 1200 W | | Socket (Lampholder) | G38 High Voltage | | Lens (Condenser) | 6.9" (175 mm) low expansion borosilicate Fresnel lens | | Mounting | 1 1/8" (28 mm) Spigot | | Weight | 22 lb (10 kg) | | Dimensions | 25.37 x 14.75 x 12.75" (64.4 x 37.4 x 32.5 cm) | | | | Box Dimensions (LxWxH) | 18.25 x 16.0 x 16.0" | - ARRI Head to Ballast Cable 575/1200/1800W - 50'
| | | Box Dimensions (LxWxH) | 20.0 x 20.0 x 5.0" | - ARRI 575/1200W Electronic Ballast for HMI Lights
| Lamp Power | 575/1200 W | | Input Voltage | 90 to 250 VAC | | Dimensions | 5.9 x 7.9 x 11.8" (15 x 20 x 30 cm) | | Weight | 15.4 lb (7 kg) | | | | Box Dimensions (LxWxH) | 18.1 x 13.6 x 11.1" | - ARRI 4-Leaf Barndoor Set for ST-1, 1.2Kw HMI Fixtures
| | | Box Dimensions (LxWxH) | 15.0 x 12.55 x 2.45" | - ARRI Filter Frame for Fresnels
| | | Box Dimensions (LxWxH) | 9.6 x 9.1 x 0.2" |
