User Manual for ARRI Compact Fresnel Three-Light Kit Click to enlarge the picture
Contents of the user manual for the ARRI Compact Fresnel Three-Light Kit
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
 |
User manual for the ARRI Compact Fresnel Three-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The Arri Compact Fresnel Three-Light Kit packs plenty of punch in a compact location kit--two 300W Fresnel lights and one 650W Fresnel light. The very efficient 300W Fresnel has a 3.2" (80mm) low expansion, borosilicate Fresnel lens producing a soft, even field of light. The 650W Fresnel features a 4.3" lens. The beam angle in the flood position is 52°, and a narrow 14.5° in the spot position. Barndoor and scrim sets will alter the shape and intensity of the lights. Store everything, including the 8' light stands, in the heavy-duty wheeled carrying case. Although this kit is equipped for use with 120 AC voltage, it may be adapted for use with 220-240 voltage, by ordering the appropriate optional bulbs and plug adapters. - Light Shapers
- Barndoors, filter frames and scrims to alter the shape, color and intensity of the light
- Light Spread

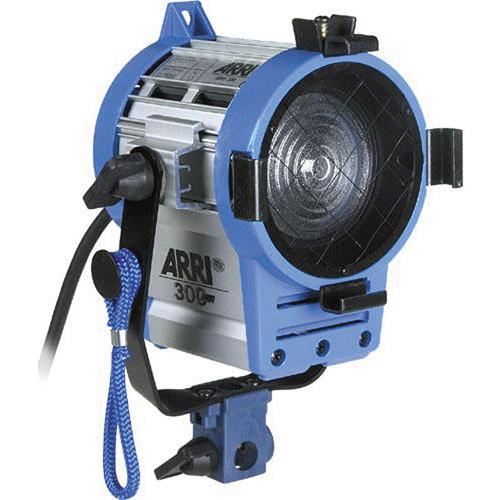

- The Fresnel 300 produces a soft, even field of light
- Large Lens

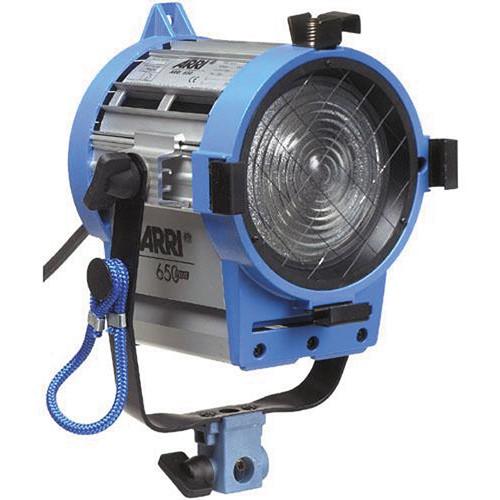

- The Fresnel 650 has a 4.3" (110mm) low expansion, borosilicate Fresnel lens
- Heavy-Duty Wheeled Case
- The wheeled kit case has a hard plastic shell, aluminum trim, latches and piano hinge; fixed interior dividers provides easy storage and transport

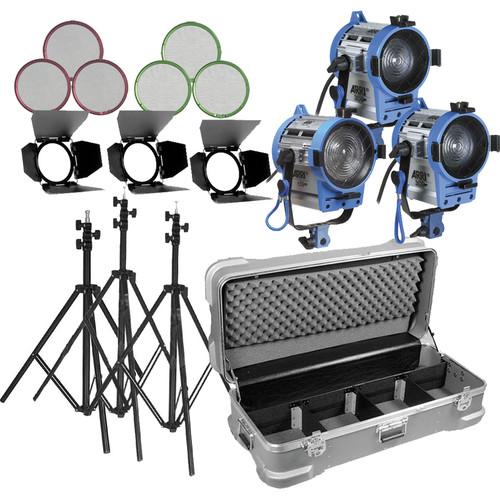

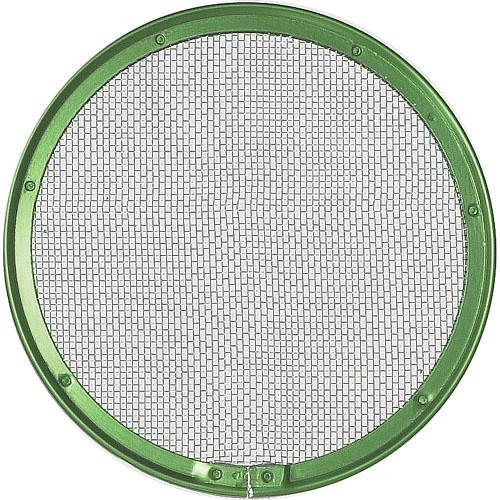

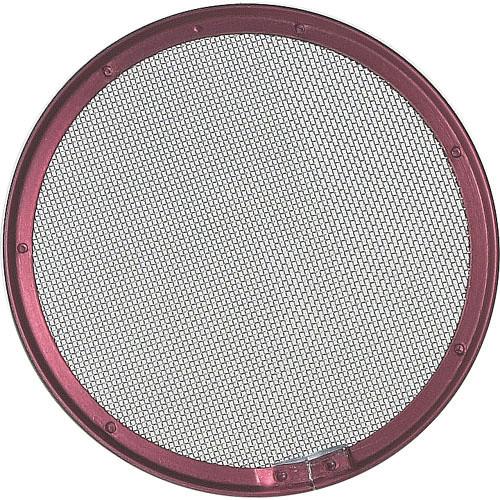

In the Box ARRI Compact Fresnel Three-Light Kit 2 x 300 Plus Tungsten Fresnel (Silver/Blue) eyssefdbrdttcs 2 x 4-Leaf Barndoor Set for 300W Fresnel, 125W HMI, 200W Pocket PAR 2 x Filter Frame for Plus 300, HMI 125W Fresnels 2 x Full Single Scrim for Arrilite 600, 300W Fresnel, 125W HMI Fresnel (5") 2 x Full Double Scrim for Arrilite 600, Fresnel 300W, 125W (5") 2 x FKW Lamp - 300 Watts/120 Volts 650W Plus Tungsten Fresnel (120-240 VAC) 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR Filter Frame for 650W Fresnel, 200W HMI Fresnel Full Single Scrim for 650 Fresnel, Arrisun 2, HMI Fresnel 200 (6 5/8") ARSFDF650 GBFRK 3 x AS-2 Lightweight Light Stand (8.5') 571194W 3-Light Case with Wheels Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Compact Fresnel Three-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI LK.0005654 Specs | Rating | Arri 300: 300 Watts
Arri 650: 650 Watts | | Socket (Lampholder) | Each Fixture: GY9.5 | | Lens (Condenser) | Arri 300: 3.2" (80 mm), borosilicate Fresnel
Arri 650: 4.3" borosilicate Fresnel | | Reflector (Mirror) | Spherical, specular, high purity aluminum | | Mounting | 5/8" (16 mm) stand mount | | Yoke | Attaches to any 5/8" (16 mm) stud | | Cable | 25' (7.6 m) cable with inline switch | | Focusing | Worm-gear driven | | Weight | Arri 300: 6.5 lbs (2.9 kg)
Arri 650: 7.2 lbs (3.3 kg) | | Dimensions | Arri 300: 7.1 x 10 x 6.3" (18 x 25.4 x 16 cm)
Arri 650: 10.5 x 14 x 9.5" (26.7 x 35.6 x 24.1 cm)
Kit in Case: 32.5 x 17 x 10.75" (82.5 x 43 x 27.3 cm) | | Kit Weight | 55 lbs (25 kg) | | | | Package Weight | 55.0 lb | | Box Dimensions (LxWxH) | 34.0 x 18.0 x 12.5" |
