User Manual for ARRI Complete WVT-1 Transmitter & WVR-1 Receiver Wireless Video Set Click to enlarge the picture
Contents of the user manual for the ARRI Complete WVT-1 Transmitter & WVR-1
- Product category: Wireless Transmission Systems ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Wireless Transmission Systems
 |
User manual for the ARRI Complete WVT-1 Transmitter & WVR-1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

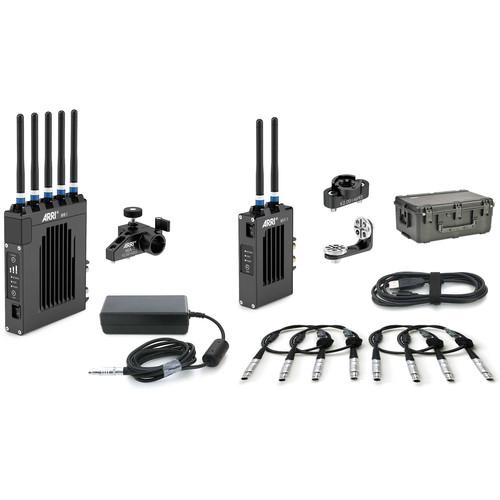

Product description The ARRI Complete Wireless Video Set includes one WVT-1 receiver, and one WVR-1 Receiver, providing wireless video and audio transmission from your camera to the paired receiver. The ARRI wireless video system provides real-time, uncompressed wireless transmission for ARRI or third-party cameras up to approximately 2000' with under 1 ms of delay. Up to four WVR-1 Receivers may be paired with each stand-alone WVT-1 transmitter. The included WVR-1 Receiver may also be paired with an ARRI ALEXA SXT W camera's internal transmitter (available separately). Dual-channel audio, timecode, and a REC flag function are included in the 128-bit AES-encrypted signal. The WVR-1 and WVT-1's 10-bit output is compatible with HDR monitoring. Designed for daily use on professional sets, each WVR-1 and WVT-1 features a rugged, water-resistant and dust-proof design with protective connector collars. The receiver accepts power voltages ranging from 10.5 to 34V, suiting them for use with a wide range of batteries. With an inclusive operating temperature of -4 to 113°F, the ARRI wireless video system is suitable for a variety of locations. Seven antennas, three camera-to-transmitter power cables (including D-tap), one RPS-1 power supply, a short BNC cable, and one USB cable (for system updates) are included with this ARRI Complete Wireless Video Set. One MIA-1 interface adapter, a 3/8"-16 threaded stud, and an L-bracket are mounting options included with the set. Compatible battery options include Gold Mount, V-Mount, and Sony L-series (battery plates available separately). The included hard-shell case features custom-cut foam, and holds up to one transmitter, four receivers, and their accompanying accessories and cables. Note: Separately available battery-mounting plates are not included - WVT-1 Wireless Video Transmitter The stand-alone ARRI WVT-1 Transmitter provides uncompressed wireless transmission for ARRI or third-party cameras. The WVT-1 pairs with up to four ARRI WVR-1 receivers, or with the Transvideo Starlite ARRI-WFS monitor. With a range of up to approximately 2000', the WVT-1 offers real-time, uncompressed transmission with less than 1 ms of delay. Dual-channel audio, timecode, and a REC flag function are included in the 128-bit AES–encrypted signal. The WVT-1's 10-bit output is compatible with HDR monitoring.

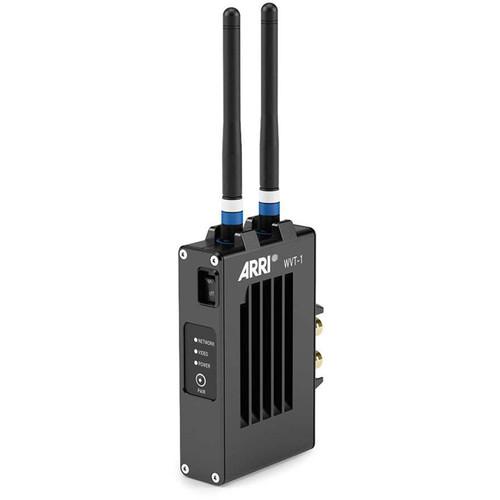

Designed for daily use on professional sets, the robust WVT-1 Transmitter's input voltage is compatible with a wide range of batteries. The ARRI wireless video system is suitable for a variety of locations with an inclusive operating temperature of -4 to 113°F.The WVT-1 Transmitter features a water-resistant and dustproof aluminum housing with collared antenna and cable ports for increased durability. This transmitter includes an adapter for mounting to a standard 3/8"-16 stud, and is compatible with additional mounting options (not included). Features - Up to 2000' uncompressed, real-time transmission with under 1 ms delay
- Capable of multicasting to four WVR-1 receivers or the Transvideo Starlite ARRI-WFS monitor
- 128-bit AES-encrypted signal with embedded 2-channel audio, timecode, and a REC flag function
- 10-bit output is compatible with HDR monitoring
- Rugged water-resistant, dustproof housing with 3/8"-16 threaded adapter
- Input voltage of 10.5 to 34V is compatible with a wide range of batteries
- Collared antenna and cable ports for added durability

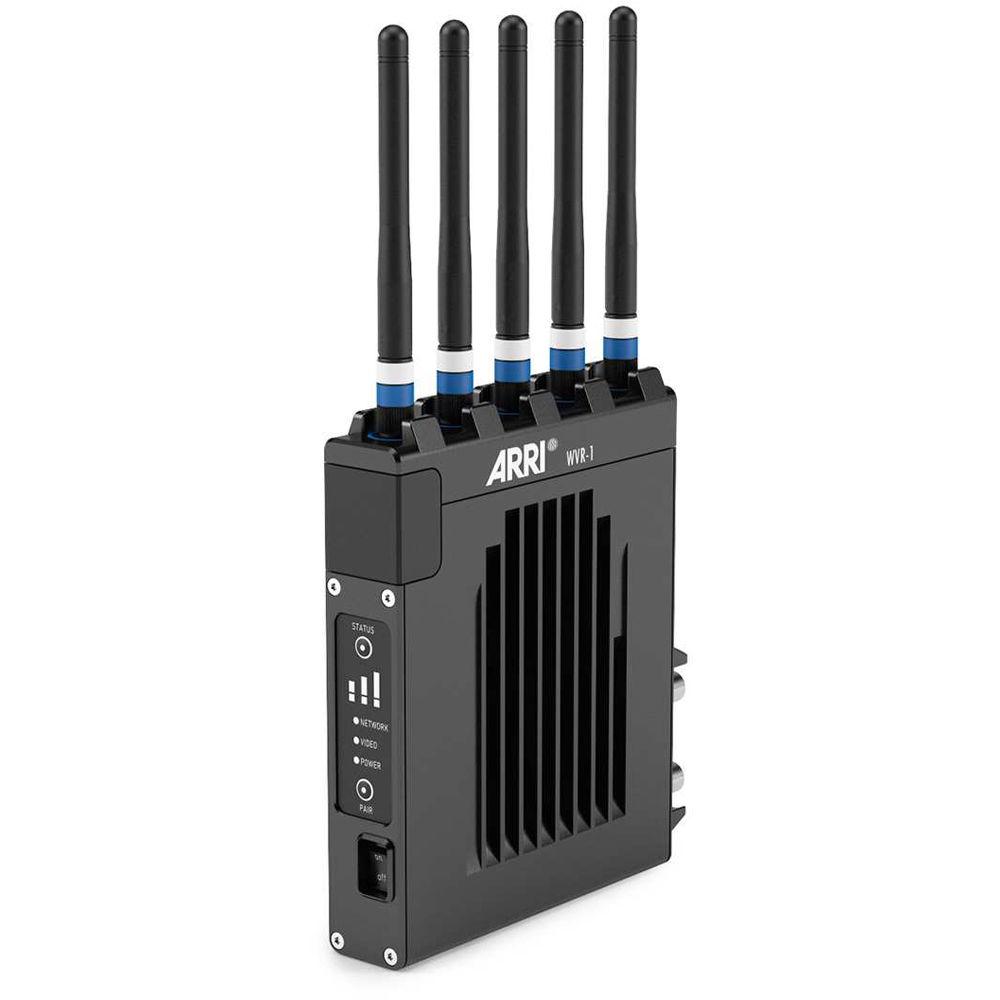

- WVR-1 Wireless Video Receiver The ARRI WVR-1 Wireless Video Receiver accepts video transmission from the ALEXA SXT W internal transmitter, or from the stand-alone ARRI WVT-1 transmitter. The ARRI wireless video system provides real-time, uncompressed wireless transmission for ARRI or third-party cameras up to approximately 2000' with under 1 ms of delay. Up to four WVR-1 Receivers may be paired with each ALEXA SXT W internal transmitter, or stand-alone WVT-1 transmitter (available separately). Dual-channel audio, timecode, and a REC flag function are included in the 128-bit AES-encrypted signal. The WVR-1's 10-bit output is compatible with HDR monitoring. Designed for daily use on professional sets, the WVR-1 features a rugged, water-resistant and dust-proof design with protective connector collars. This receiver accepts power voltages ranging from 10.5 to 34V, suiting it for use with a wide range of batteries. With an inclusive operating temperature of -4 to 113°F, the ARRI wireless video system is suitable for a variety of locations. Five antennas, an RPS-1 power supply, and a USB cable are included with this receiver. The included MIA-1 interface adapter mounts the WVR-1 to a 19mm rod or to a 5/8" light stud. Compatible battery options include Gold Mount, V-Mount, and Sony L-series (battery plates available separately). Note: Separately available battery-mounting plates are not included

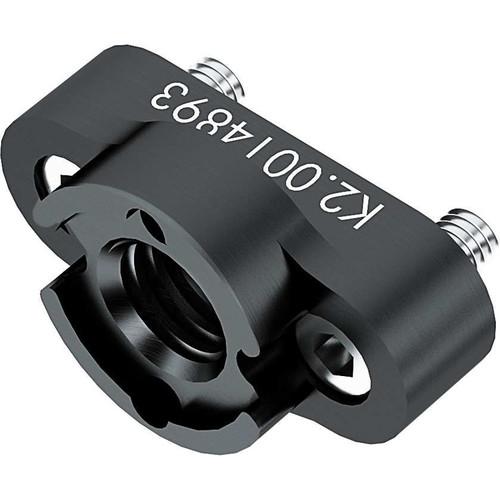

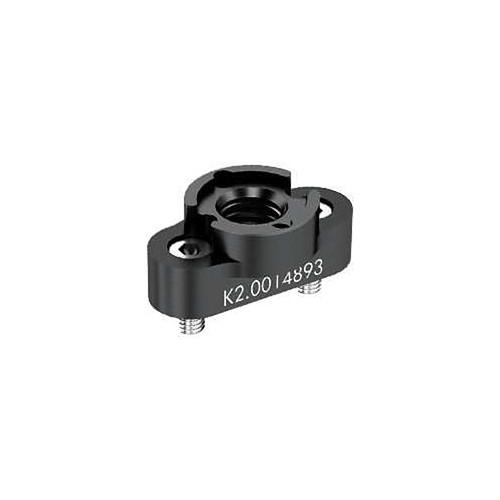

- 3/8" Thread Adapter for ARRI Wireless Tx or Rx This 3/8" Thread Adapter from ARRI provides a mounting option for an ARRI wireless system WVR-1 Receiver or WVT-1 Transmitter. Use this threaded adapter to mount the wireless component to an industry-standard 3/8"-16 stud.

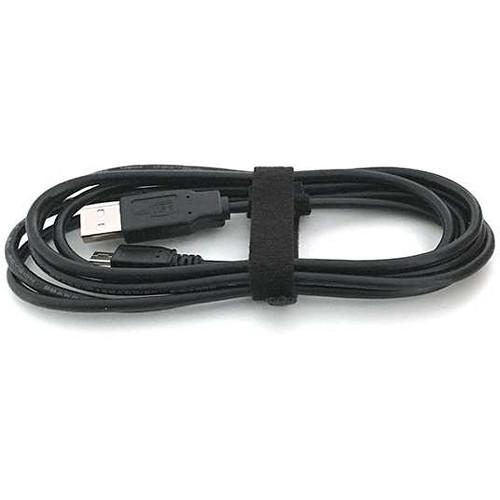

- WVS USB Cable for Software Updates The ARRI WVS USB Cable is a standard USB cable used for updating system software in select ARRI camera items. It can be used with the ARRI ALEXA SXTW camera's video transmitter, and with the Wireless Video System (WVS) transmitter (WVT-1) and receiver (WVR-1).

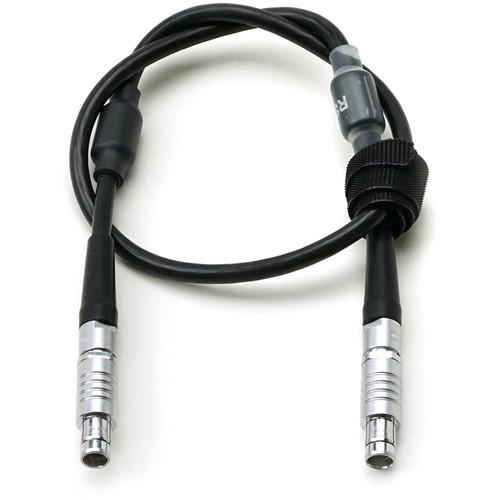

- 2-Pin LEMO-Type to 3-Pin Fischer Cable (19") The ARRI 2-Pin LEMO-Type to 3-Pin Fischer Cable (19") is designed to power an ARRI Wireless Video System WVT-1 transmitter, WVR-1 receiver, or UMC-4 controller. This cable provides power but does not support a run/stop function.
- HDTV BNC Cable (12") This HDTV BNC Cable (12") from ARRI features HDTV BNC connectors for outputting HD video from a wireless video receiver like the ARRI WVR-1 to a monitor. This compact cable's 12" length is suitable for use with an on-board camera monitor.

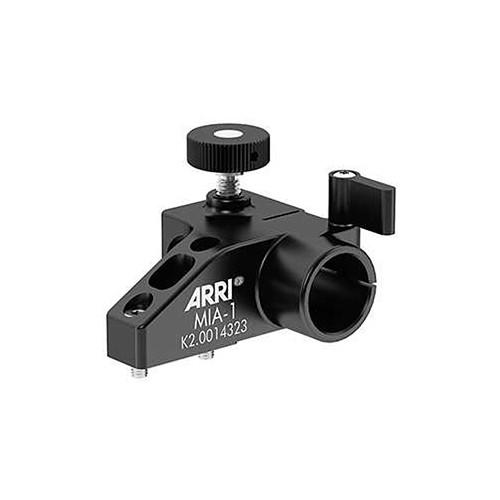

- MIA-1 Multi-Interface Adapter for ARRI Wireless Tx or Rx This MIA-1 Multi Interface Adapter from ARRI provides two mounting options for an ARRI wireless system WVR-1 Receiver or WVT-1 Transmitter. Use this adapter to mount the wireless component to a 5/8" light stud or to a single, standard 19mm support rod.
- RPS-1 Receiver Power Supply Use the ARRI RPS-1 Receiver Power Supply in lieu of batteries to provide continuous power to the Wireless Video Receiver WVR-1. It may also be used to power the WVT-1 Wireless Video Transmitter, or the UMC-4 Universal Motor Controller. This power supply includes international wall socket adapters.
- Wireless Video System Case The ARRI Case for the Wireless Video System is designed to hold a complete set of components. Store and transport one WVT-1 Transmitter, up to four WVR-1 Receivers, corresponding cables, and accessories.
- UMC-4 RS IN to RS Cable (1.6')

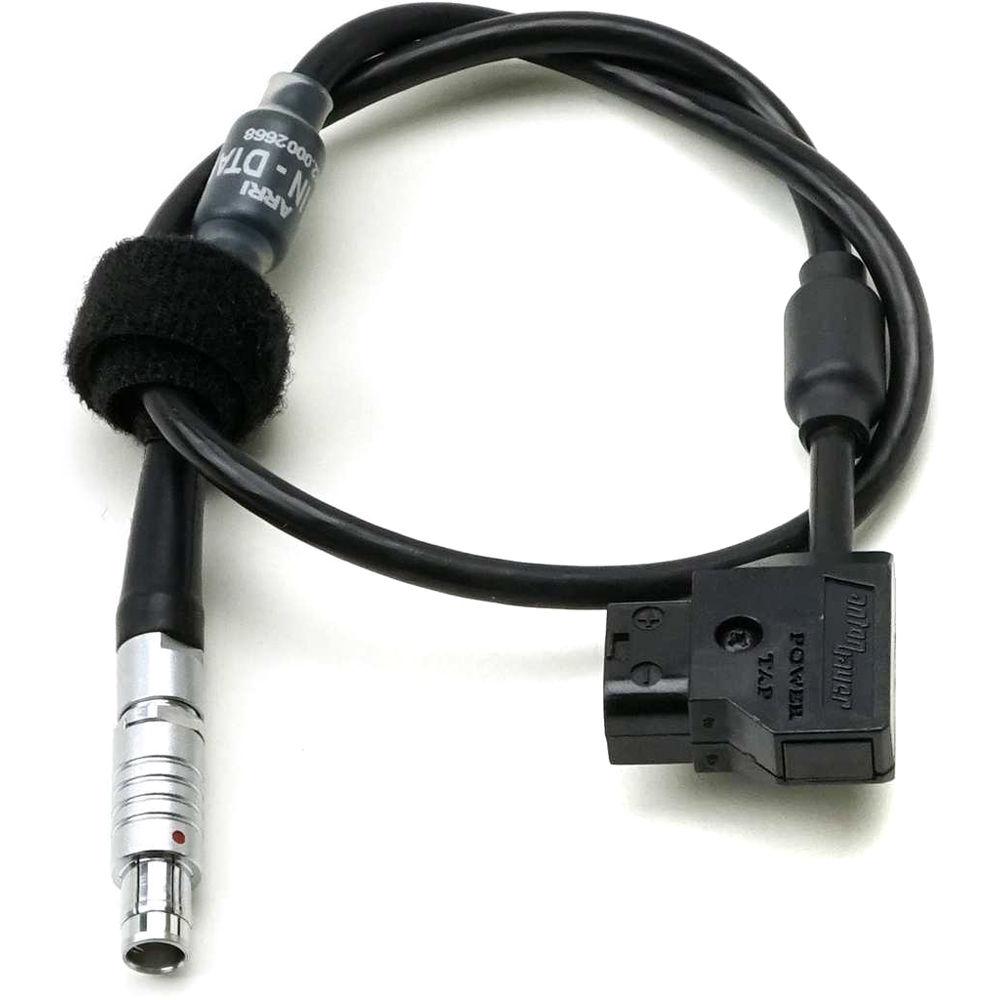

- UMC-4 RS IN to D-Tap Power Source Cable (1.6')

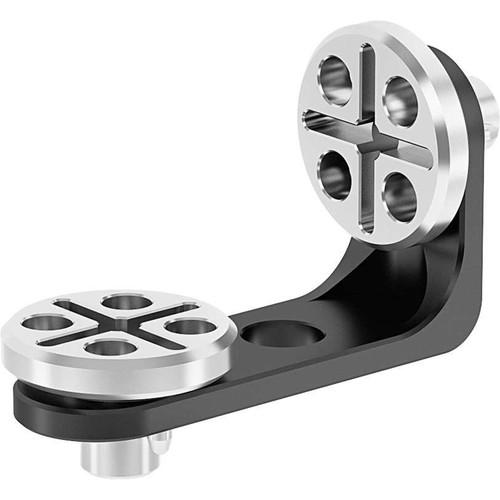

- L-Bracket for Select Electronic Control Systems
In the Box Bundle Items WVT-1 Wireless Video Transmitter cwfqaabqvzwaevxbbf 2 x - Wireless Video / WiFi / ECS Antenna
- 3/8" Thread Adapter for ARRI Wireless Tx or Rx
- WVS USB Cable for Software Updates
WVR-1 Wireless Video Receiver 5 x - Wireless Video / WiFi / ECS Antenna
- MIA-1 Multi-Interface Adapter for ARRI Wireless Tx or Rx
- RPS-1 Receiver Power Supply
- WVS USB Cable for Software Updates
3/8" Thread Adapter for ARRI Wireless Tx or Rx cwfqaabqvzwaevxbbf WVS USB Cable for Software Updates 2-Pin LEMO-Type to 3-Pin Fischer Cable (19") UMC-4 RS IN to RS Cable (1.6') UMC-4 RS IN to D-Tap Power Source Cable (1.6') L-Bracket for Select Electronic Control Systems HDTV BNC Cable (12") MIA-1 Multi-Interface Adapter for ARRI Wireless Tx or Rx RPS-1 Receiver Power Supply Wireless Video System Case Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Complete WVT-1 Transmitter & WVR-1 Receiver Wireless Video Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - WVT-1 Wireless Video Transmitter
| Material of Construction | Aluminum | | Frequency Band | 5 GHz | | Transmission Range | 1970' (600 m) | | Video Output | 10-bit | | Input Voltage Range | 10.5 to 34 V | | Operating Temperature Range | -4 to 113°F (-20 to 45°C) | | Dimensions and Weight | Not specified by manufacturer | - WVR-1 Wireless Video Receiver
| Material of Construction | Aluminum | | Frequency Band | 5 GHz | | Transmission Range | 1,970' (600 m) | | Video Output | 10-bit | | Input Voltage Range | 10.5 to 34 V | | Operating Temperature Range | -4 to 113°F (-20 to 45°C) | | Dimensions and Weight | Not specified by manufacturer | - 3/8" Thread Adapter for ARRI Wireless Tx or Rx
| Mount Type | 3/8"-16 thread | | Dimensions | 0.7 x 1.3 x 0.7" (19 x 32 x 19 mm) | | Weight | 0.4 oz (11 g) | - WVS USB Cable for Software Updates
| Cable Type | Standard USB | | Length | Not specified by manufacturer | - 2-Pin LEMO-Type to 3-Pin Fischer Cable (19")
| Length | 19" (0.5 m) | | Cable Connectors | 2-pin LEMO-type (male) to 3-pin Fischer (female) | - UMC-4 RS IN to RS Cable (1.6')
| | | Box Dimensions (LxWxH) | 6.7 x 6.0 x 0.5" | - UMC-4 RS IN to D-Tap Power Source Cable (1.6')
| | | Box Dimensions (LxWxH) | 7.0 x 6.0 x 0.4" | - L-Bracket for Select Electronic Control Systems
| | | Box Dimensions (LxWxH) | 2.6 x 1.5 x 0.1" | - HDTV BNC Cable (12")
| Cable Connectors | HDTV BNC | | Length | 11.8" (0.3 m) | | Weight | Not specified by manufacturer | - MIA-1 Multi-Interface Adapter for ARRI Wireless Tx or Rx
| Mount Types | 19mm-diameter rod
5/8" light stud | | Dimensions | 2 x 2.4 x 1.7" (50 x 60 x 43 mm) | | Weight | 2.7 oz (77 g) | - RPS-1 Receiver Power Supply
| Power Supply Voltage | Not specified by manufacturer | | Dimensions and Weight | Not specified by manufacturer | - Wireless Video System Case
| Dimensions and Weight | Not specified by manufacturer |
