User Manual for ARRI Director's Monitor Support DMS-1 with Dual Transvideo Monitor Mount Click to enlarge the picture
Contents of the user manual for the ARRI Director's Monitor Support DMS-1 with
- Product category: Director's Monitor Brackets ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Director's Monitor Brackets
 |
User manual for the ARRI Director's Monitor Support DMS-1 with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

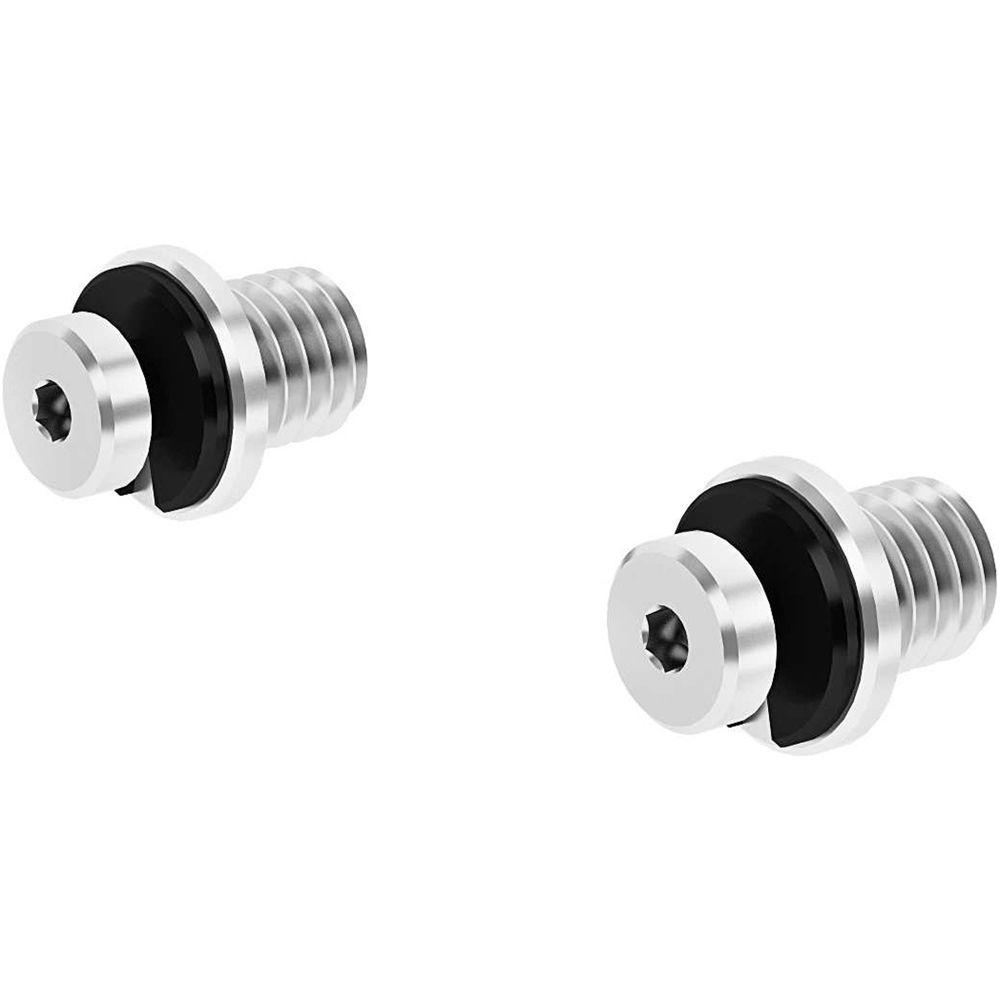

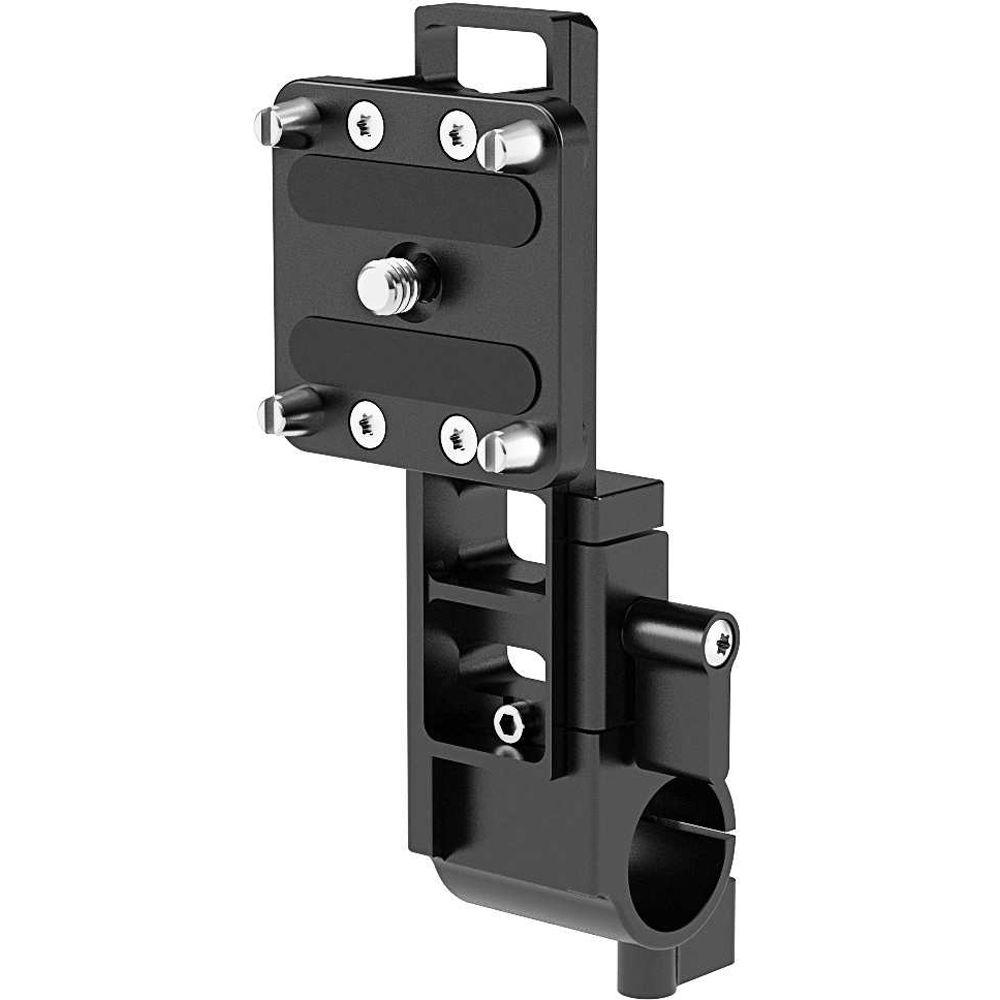

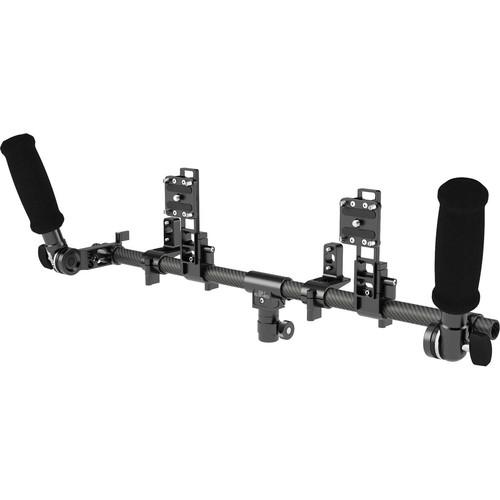

Product description The Director's Monitor Support DMS-1 from ARRI is a lightweight handheld monitor support that can accommodate two Transvideo monitors and two WVR-1 wireless video receivers. This modular set includes two rod mount adapters for mounting the monitors, two RMB-5 19mm rod-mounting brackets for the wireless receivers, two RA-4 rosette to 19mm rod adapters, one LSA-1 19mm rod to lighting spigot adapter, two handgrips, a pair of SBA-1 ENG shoulder belt adapters, and one 21.3" 19mm carbon fiber support rod. In the Box ARRI Director's Monitor Support DMS-1 with Dual Transvideo Monitor Mount 2 x RA-4 Rosette to 19mm Rod Adapter LSA-1 19mm Rod to Lighting Spigot Adapter 2 x RMB-5 19mm Rod-Mounting Bracket for WVR-1 Wireless Video Receiver 2 x 19mm Rod Mount Adapter for Transvideo Monitors 2 x Handgrip without On/Off Switch SBA-1 ENG Shoulder Belt Adapter (Pair) 19mm Aluminum Support Rod (21.3") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Director's Monitor Support DMS-1 with Dual Transvideo Monitor Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI DMS-1 Specs | Dimensions | Monitor Mount: 4.3 x 2 x 2.1" (110 x 50 x 54 mm)

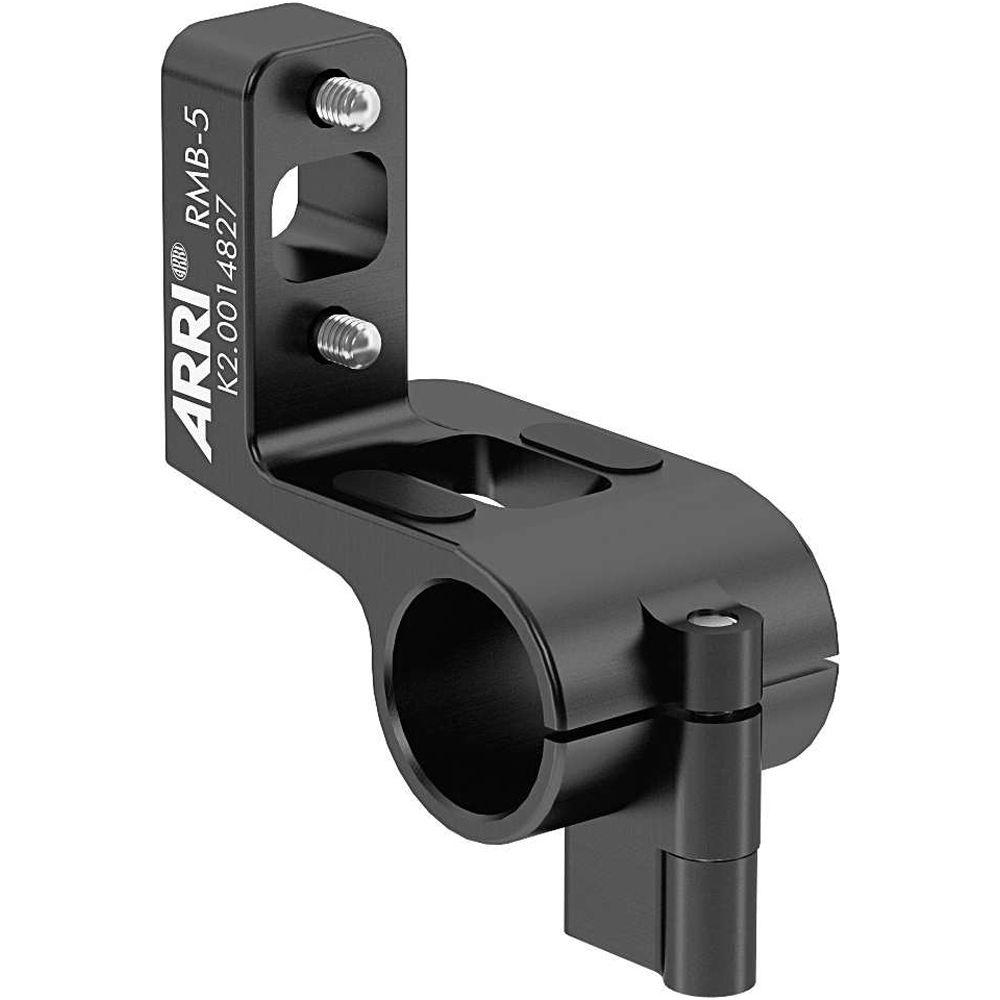

Rod Mounting Bracket: 2.9 x 2.3 x 1.2" (73 x 59 x 30 mm)

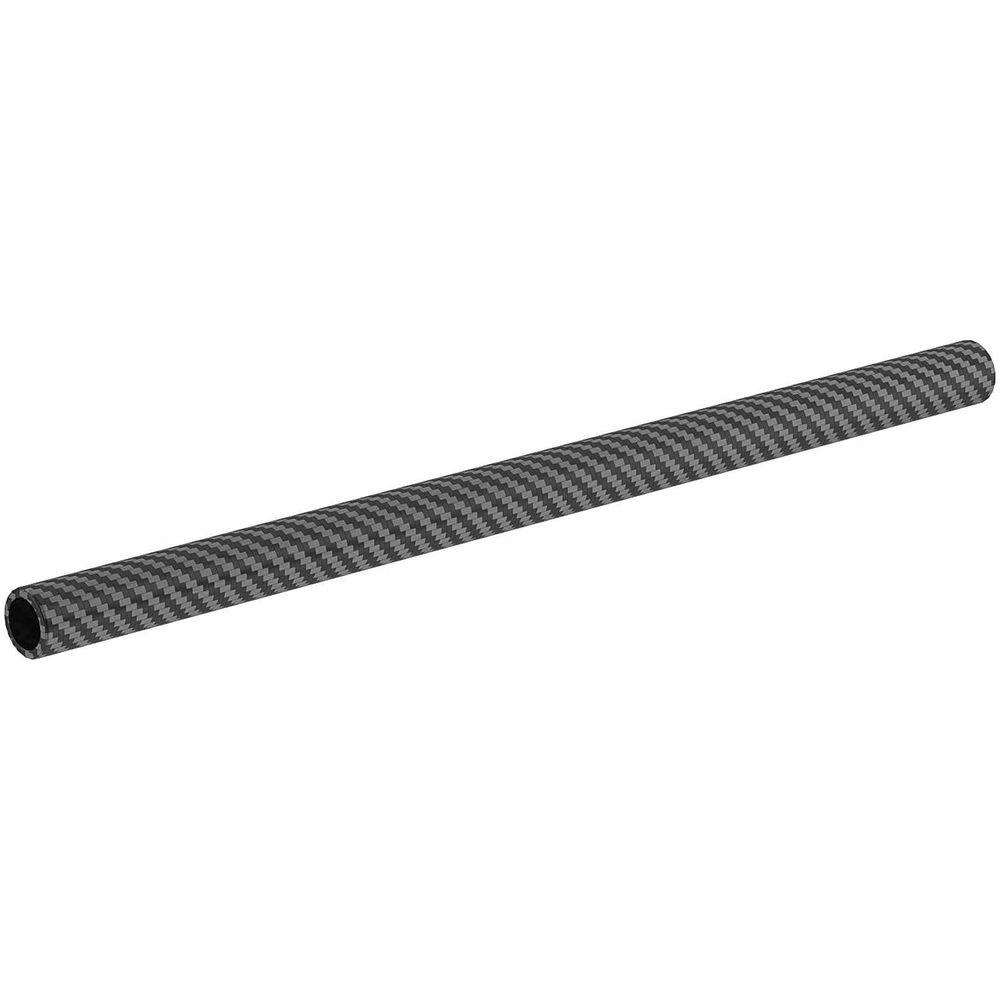

19 mm Support Rod: 21.3" (540 mm)

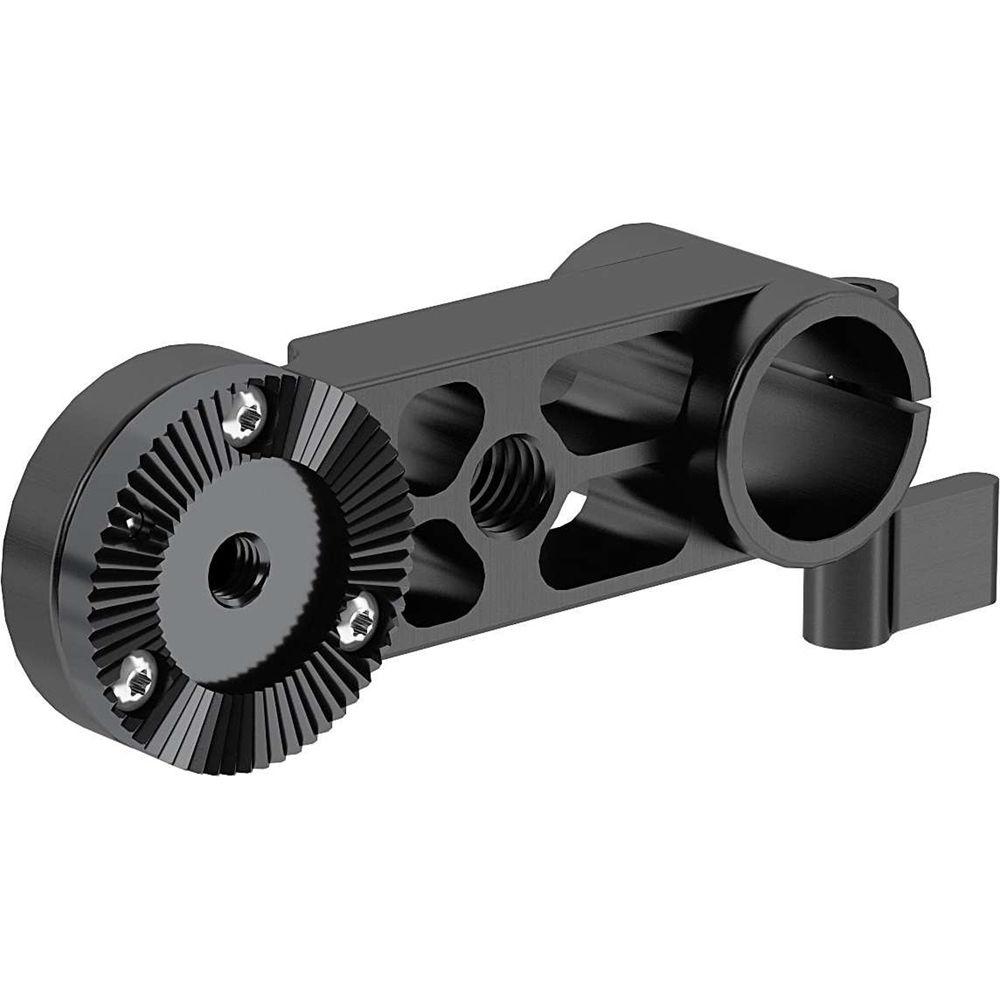

Rosette Adapter: 3.5 x 1.6 x 1.3" (90 x 40 x 32 mm)

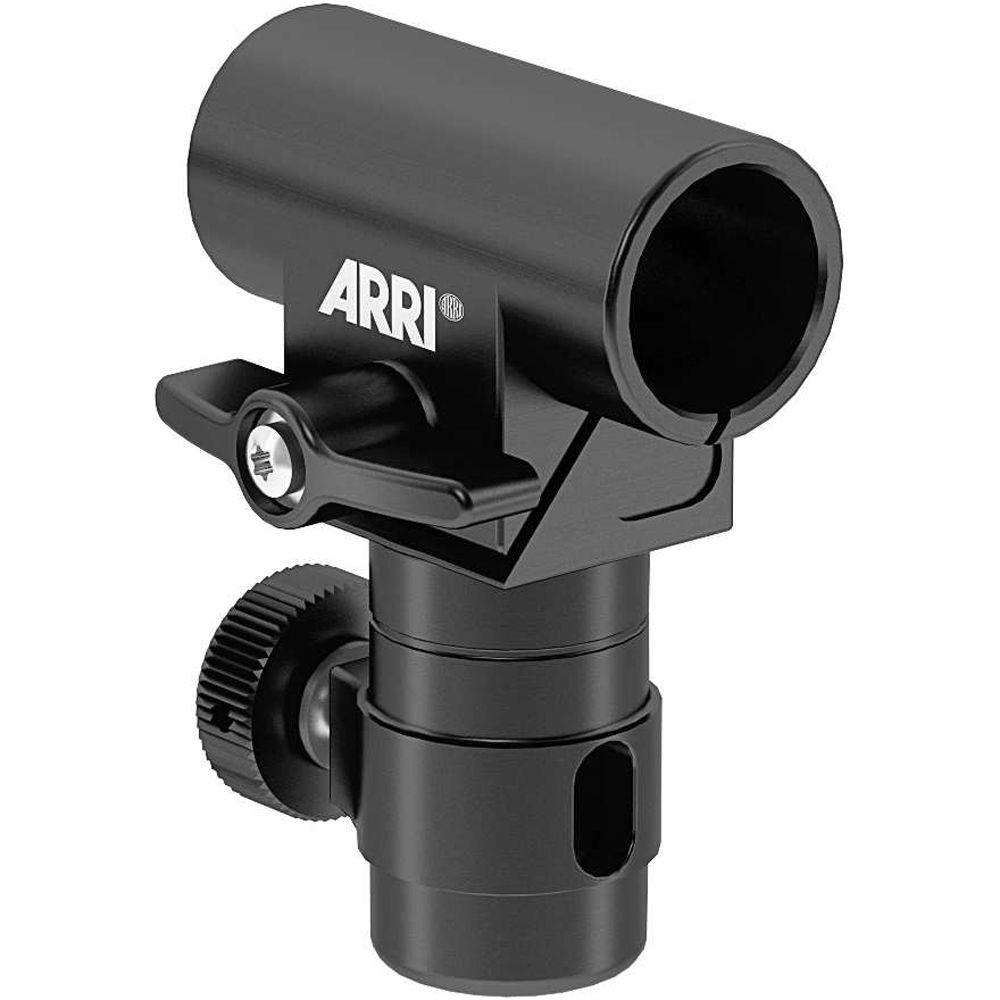

Spigot Adapter: 3.1 x 2.1 x 1.5" (80 x 53 x 37 mm)

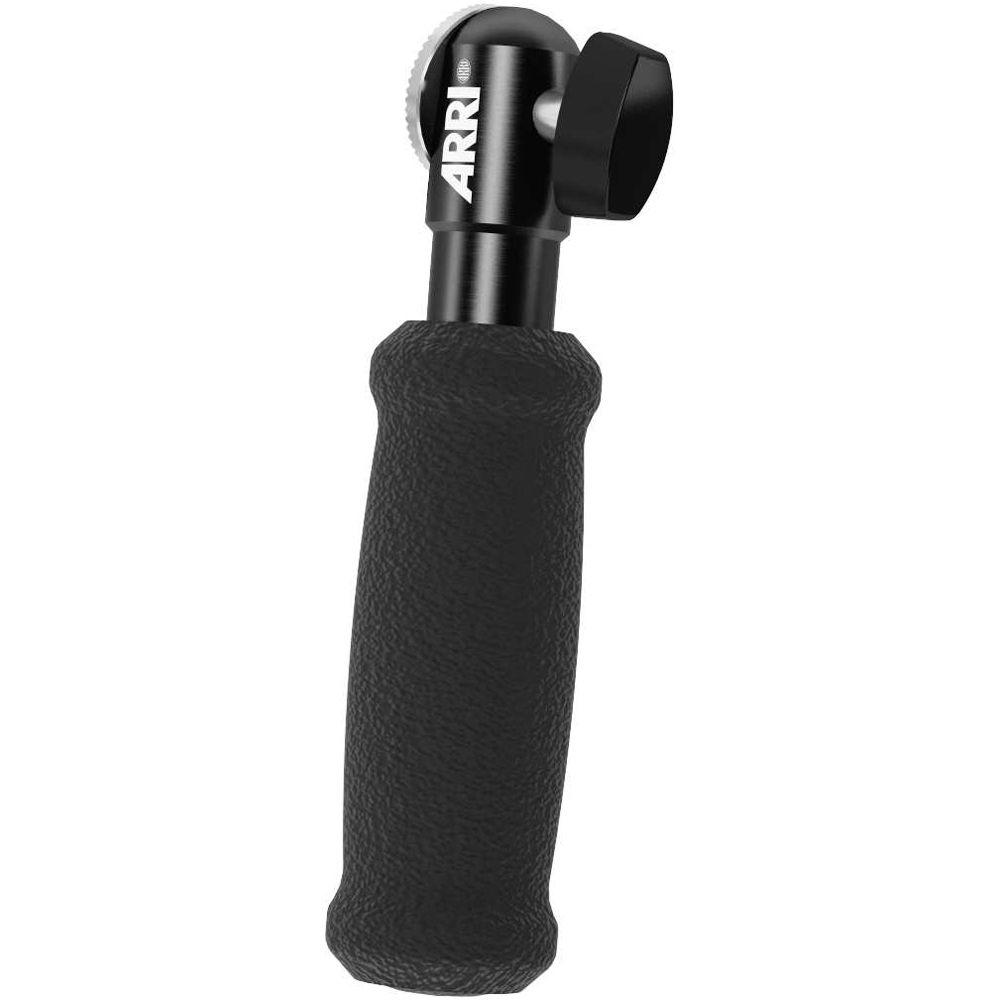

Handgrip: 1.6 x 6.3 x 1.6" (40 x 160 x 40 mm) | | Weight | Monitor Mount: 3.8 oz (107 g)
Rod Mounting Bracket: 1.7 oz (49 g)
Rosette Adapter: 2.6 oz (74 g)
Spigot Adapter: 3.5 oz (99 g)
Handgrip: 4.2 oz (118 g)
Shoulder Belt Adapter: 0.6 oz (17 g) |
