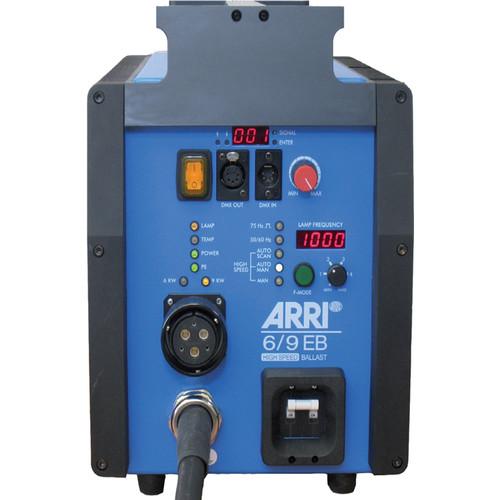

User Manual for ARRI Electronic High-Speed Ballast with AutoScan for 6,000 and 9,000W Discharge Lamps Click to enlarge the picture
Contents of the user manual for the ARRI Electronic High-Speed Ballast with AutoScan
- Product category: Ballasts ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Ballasts
|
User manual for the ARRI Electronic High-Speed Ballast with AutoScan contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The Electronic High Speed Ballast from Arri provides reliable and powerful daylight systems for modern location filming. Its compact size and features such as automatic compensation for cable losses, makes it the first choice for many box office productions. It allows 6,000 and 9,000 W discharge lamps to be used for high-speed recording up to 1,000 fps and beyond. This high-speed ballast offers AutoScan feature that ensures optimum light and image quality.
Users can select between fully automatic operations (AutoScan) and manual frequency control (Man), or combine manual frequency setting with automatic monitoring and adjustment (AutoMan). In addition, features such as ALF (Active Line Filter), CCL (Compensation of Cable Losses), and DMX control are included. For maximum ease of use, the indicators on the ballast’s front panel display the lamp wattage, DMX channel, operation mode, and the selected lamp frequency. - High Speed operation of 9,000W daylight lamps
- Automatic or manual control of lamp frequency
- Supports 50 or 60Hz (low noise)
- Compensation of Cable Losses (CCL)
- DMX control for dimming and On/Off
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Electronic High-Speed Ballast with AutoScan for 6,000 and 9,000W Discharge Lamps in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI EB 6/9 Specs | Type | Electronic ballast | | Lamp | Head Type: ARRI M-Series M90 | | Lamp Power | 9,000 W or 6,000 W discharge lamps only | | Line Voltage | 180 to 250 V, 50/60 Hz, 1,N, PE (single phase) | | Line Current | 56 to 44 A (eff) | | Power | 11,200 VA maximum | | Power Factor | cos φ 0.98 due to Active Line Filter | | Efficiency | Approximately 0.91 | | Protection Class | I | | IP Rating | IP22 | | Ambient Temperature | Maximum 122°F (50°C) | | DMX | 512, Input and Output, dimming 100 to 50% output power | | DMX Connectors | DMX Input / Output (XLR 5-pol) connector | | Ignition | Cold start and hot restrike | | Automatic Lamp Detection | Indication of detected lamp type with LED (6 kW green, 9 kW yellow) | | Frequency | Lamp: 50/60 Hz (Low Noise), 75 Hz (Flicker Free), 900 to 1200 Hz (High Speed) | | Dimensions (H x W x L) | 14.1 x 10.4 x 17.7" (358 x 264 x 450 mm) | | Weight | 62 lb (28 kg) |
