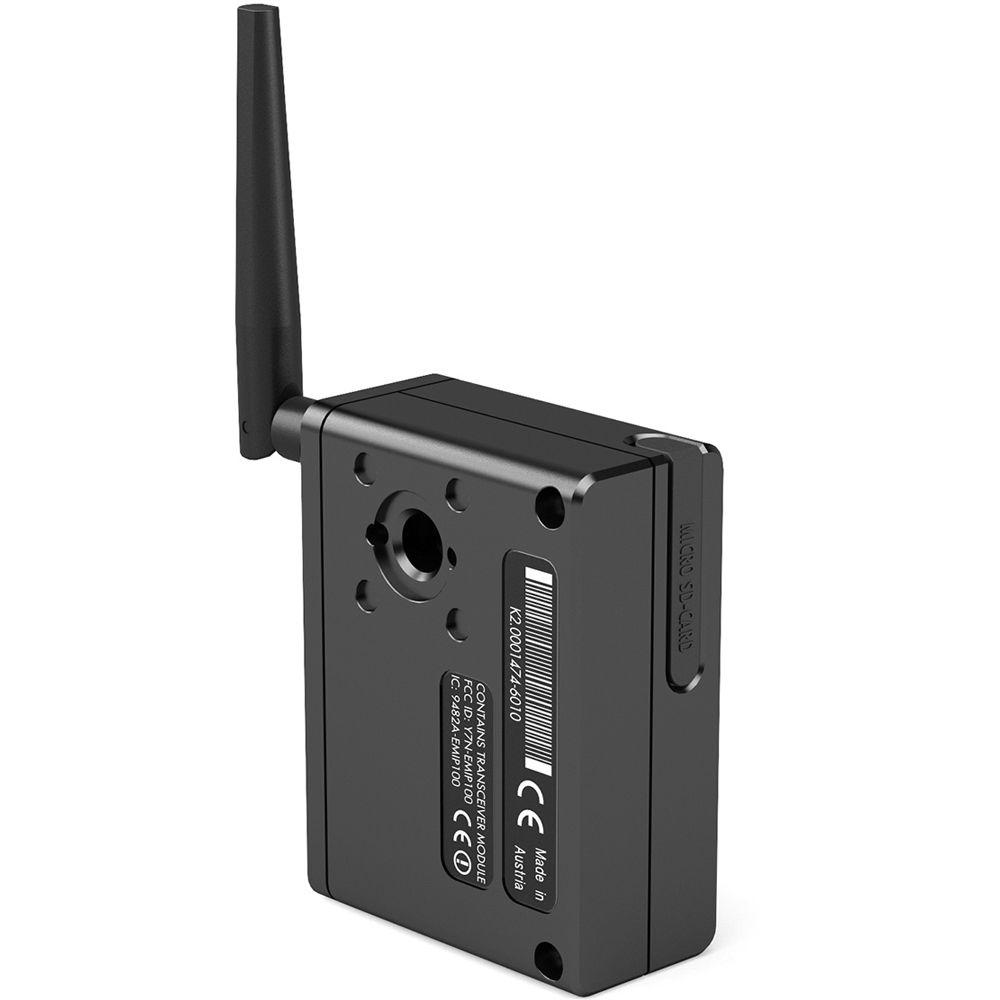

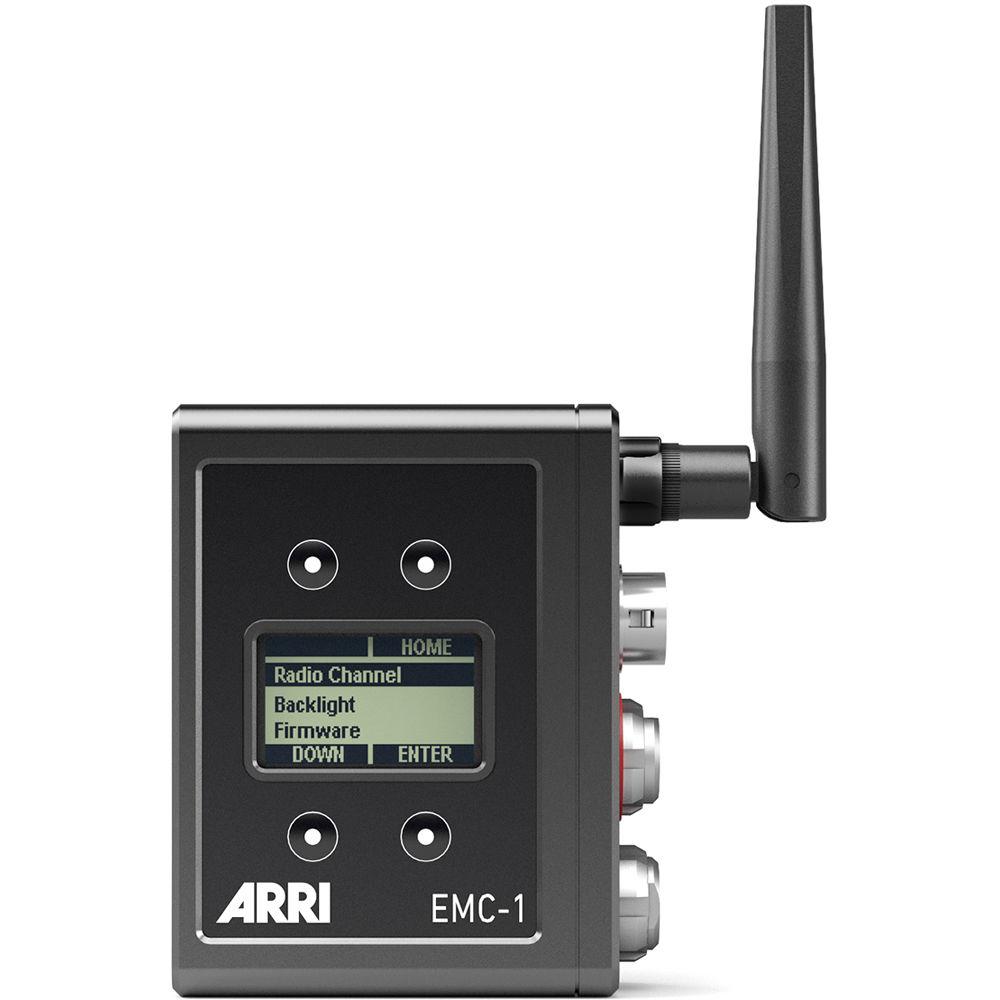

User Manual for ARRI EMC-1 Motor Controller for ENG-Type Lenses Click to enlarge the picture
Contents of the user manual for the ARRI EMC-1 Motor Controller for ENG-Type
- Product category: Wireless Lens Control Accessories ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Wireless Lens Control Accessories
 |
User manual for the ARRI EMC-1 Motor Controller for ENG-Type contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description Use the ARRI EMC-1 Motor Controller to remotely control focus, iris, and/or zoom functions on your ENG-type lens. The EMC-1 unit is compatible with Fujinon Cabrio, Canon, other ENG-type zooms, and the Angenieux ASU servo unit. This controller works with the WCU-4, SXU-1, Master Grips, and the cmotion pan-bar zoom control. Compatible cameras include the ARRI ALEXA, AMIRA, and a wide variety of third-party cameras.The EMC-1 mini motor-controller features a compact design, suitable for use by an assistant for handheld and other lightweight camera configurations. Lens data is transmitted from the EMC-1 for display on an ARRI WCU-4 hand unit (not included). Features - Controls focus, iris, and/or zoom functions on your ENG-type lens
- Compatible with Fujinon Cabrio, Canon, other ENG-type zooms, and the Angenieux ASU servo unit
- Works with ARRI ALEXAs, AMIRA, and a wide variety of third-party cameras
- Compatible with WCU-4, SXU-1, Master Grips, and the cmotion pan-bar zoom control
- Transmits lens data for display on the WCU-4 hand unit
- Compact design is suitable for use in handheld and other lightweight configurations

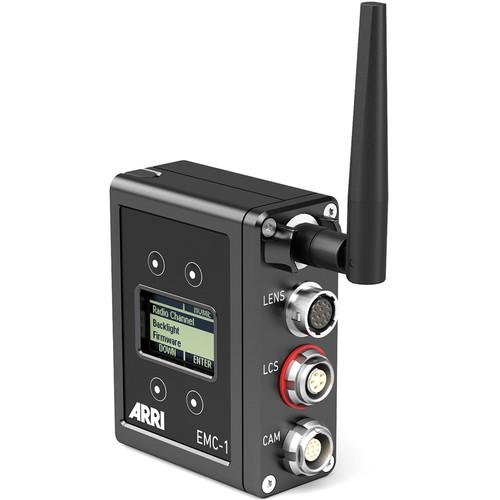

Interface - Antenna
ARRI LCS connector - 5-pin connector for wired hand unit operation
CAM connector - 10-pin connector offering REC and tally control for most cameras
LENS connector - 10-pin connector to ENG-type zoom lens
Micro SD card slot
3/8"-16 thread for mounting an L-bracket or V-plate In the Box ARRI EMC-1 Motor Controller for ENG-Type Lenses 3.3" Swivel Antenna for SMC-1/EMC-1/AMC-1 Motor Controller Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI EMC-1 Motor Controller for ENG-Type Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI K2.0001474 Specs | Receiver Channel | Eight Channels: 2.410 to 2.475 GHz | | Supply Voltage | 9.5 to 34 VDC | | Current Consumption | Radio On/Ready:
100 mAh at 12 V
50 mAh at 24 V | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Dimensions (WxDxH) | Without Antenna: 2.4 x 1.1 x 2.9" (61 x 29 x 75 mm)
With Antenna: 3.2 x 1.1 x 5" (82 x 29 x 126 mm) | | Weight | With Antenna: 6 oz (173 g) |
