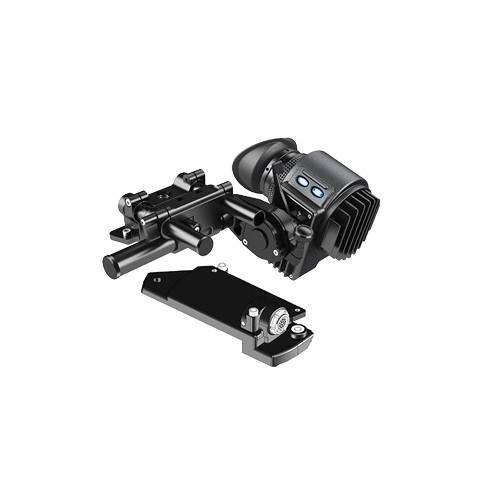

Product description The ARRI EVF-1 Set for ALEXA Studio Camera is comprised of the EVF-1 electronic viewfinder, a short EVF cable, and the coordinating mounting accessories. Use the EVF-1 as a more compact, video-style alternative to the optical viewfinder that is the hallmark of the ALEXA Studio models. - EVF-1 Electronic Viewfinder for Most ALEXA Cameras The ARRI EVF-1 Electronic Viewfinder for ALEXA provides a low-latency, film-style image display. An on-screen menu provides both EVF and basic camera control. This FLCOS micro-display panel has a resolution of 1280 x 784, and includes a surround view that enables you to spot objects just outside your recorded image frame. Glass optics give the EVF-1 a high-contrast, evenly-illuminated viewing area. Controls include a jog wheel, a Zoom button with 2.25x pixel-to-pixel magnification for checking focus, and an Exposure button for engaging a false-color exposure check. Features include customizable framelines, camera and lens info displays, and an image flip function. Note: The EVF-1 is not compatible with ALEXA Mini, nor ALEXA AMIRA cameras.
- Features
-
- Film-style image display with latency of <1 frame
- Provides EVF and basic camera controls
- Glass optics provide a high-contrast, low-distortion display
- Surround view enables you to spot objects just outside your recorded frame
- 2.25x zoom function for checking focus
- False-color exposure check, and an image-flip function
- Compatible Cameras
-
- ALEXA Classic, ALEXA Classic with XR Module
- ALEXA XT, ALEXA SXT (requires EVA-1 adapter)
- ALEXA Classic Studio, ALEXA Classic Studio with XR Module
- ALEXA XT Studio (requires EVA-1 adapter)
- VMB-3 Viewfinder Mounting Bracket The ARRI VMB-3 Viewfinder Mounting Bracket provides a sturdy mounting option for your ALEXA's electronic viewfinder. This bracket provides left/right, and up/down movement of the EVF, as well as 360° of rotation, and left- or right-side positioning on the camera. Features include an integrated bubble level, and one 3/8"-16 accessory-mounting thread.
- Features
-
- For ARRI ALEXA cameras
- Compatible with ARRI EVF-1, and select 15mm LWS-mount viewfinders
- Enables left/right, and up/down movement of the EVF, 360° of rotation, and left- or right-side positioning on the camera
- 15mm LWS rod standard
- Built-in bubble level, and one 3/8"-16 accessory thread
- Compatible Cameras
-
- ALEXA XT, ALEXA SXT
- ALEXA Mini
- ALEXA Classic, ALEXA Classic with XR Module
Requires EVA-1 adapter:
- ALEXA Classic Studio, ALEXA Classic Studio with XR Module
- ALEXA XT Studio, ALEXA SXT Studio
- EVA-1 Electronic Viewfinder Adapter Provided by third party: A mechanical cover for the ALEXA Classic Studio, Classic Studio with XR Module upgrade, XT Studio or SXT Studio viewfinder interface that includes mounting points for the ALEXA Viewfinder Mounting Bracket VMB-1, VMB-2 or VMB-3 and an EVF connector for an ALEXA viewfinder cable.
- KC 150-S Short EVF-1 Viewfinder Cable (1.2') The 1.2' KC 150-S Short EVF-1 Viewfinder Cable from ARRI connects the EVF-1 viewfinder to select ALEXA cameras. This shorter cable eliminates the need to wrap any excess length of cable.
In the Box Bundle Items EVF-1 Electronic Viewfinder for Most ALEXA Cameras adufwyasxstbefeexasbxbzqsayus VMB-3 Viewfinder Mounting Bracket EVA-1 Electronic Viewfinder Adapter KC 150-S Short EVF-1 Viewfinder Cable (1.2') Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI EVF-1 Set for ALEXA Studio Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - EVF-1 Electronic Viewfinder for Most ALEXA Cameras
| Resolution | 1280 x 784 | | Latency | <1 frame | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 8.2 x 8.0 x 6.1" | - VMB-3 Viewfinder Mounting Bracket
| Rod Standard | 15 mm LWS | | Accessory Mount Thread | 1 x 3/8"-16 | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.3 x 4.3 x 2.2" | - EVA-1 Electronic Viewfinder Adapter
| | | Accessory Type | Viewfinder adapter | - KC 150-S Short EVF-1 Viewfinder Cable (1.2')
| | | Box Dimensions (LxWxH) | 7.4 x 4.85 x 1.25" |
