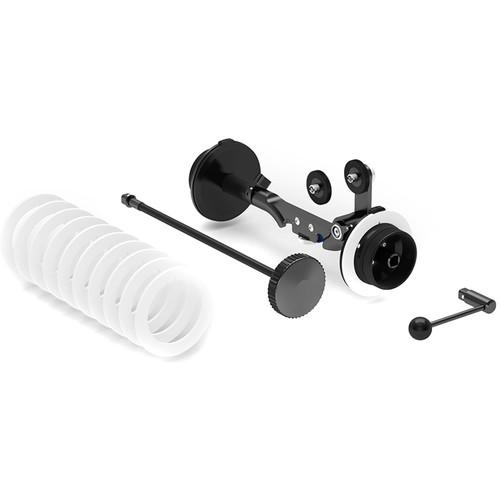

User Manual for ARRI FF-5 HD Follow Focus Pro Set Click to enlarge the picture
Contents of the user manual for the ARRI FF-5 HD Follow Focus Pro
- Product category: Follow Focus Systems ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Follow Focus Systems
|
User manual for the ARRI FF-5 HD Follow Focus Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The ARRI FF-5 HD Pro Set is a complete follow focus kit including an HD follow focus base, left- and right-sided standard focus knobs, two drive gears, one speed crank, one short whip, and 10 marking disks. The FF-5 HD snaps onto 15mm lightweight support rods (not included), or use a bridge-plate adapter (not included) to mount to 15mm or 19mm studio rod systems. With a gear ratio of 1:1, the FF-5 HD is designed for smaller video lenses, with one turn of the focus knob resulting in one turn of the focus gear. Note: Requires adapter for 15 or 19mm studio rods - FF-5 HD Follow Focus Base ARRI's FF-5 HD Follow Focus Base is designed to snap onto a pair of 15 or 19mm lightweight rods. An adapter is required to use the FF-5 Cine with 15 or 19mm studio rod systems (not included). This base unit of the FF-5 does not come with any knobs or lens gears (available separately).The FF-5 HD Base is designed for HD lenses. With a gear ratio of 1:1, one turn of the focus knob results in one turn of the focus gear. This gear ratio suits the more closely-spaced focus marks found on many ENG and still lenses.
- Designed for HD lenses and offering a gear ratio of 1:1, one turn of the focus knob results in one turn of the focus gear
- Base unit of the FF-5 follow focus system; requires knobs and gear (available separately)
- Snaps onto 15 or 19mm lightweight rods; separate adapter required for use with 15 or 19mm studio systems (not included)
- Standard Focus Knob (Left Side) The left-sided ARRI Standard Focus Knob fits ARRI FF-5 and MFF-2 Cine/HD, and FF-4 follow focus units. This standard, single-speed knob is designed to work with cine-style lenses having hard infinity and close focus limits. One reusable flat marking disk is included with the knob. Compatible ARRI focus accessories such as whips, speed cranks, and extensions are available separately.
- Single-speed focus knob for FF-5/FF-4/MFF-2 systems
- Standard left-sided focus knob
- For cine-style lenses with hard focus stops
- Compatible with all ARRI follow focus accessories like extensions, cranks, and whips
- Follow Focus Gear for Canon & Angenieux ENG Lenses (0.5 Mod, 78 Teeth) This ARRI Follow Focus Gear can be used with all ARRI follow focus systems. The 0.5 mod, 78-tooth gear is designed for use with Canon and Angenieux ENG-style lenses. Its slim-width gear face measures 6mm.
- Meshes with a lens ring to enable focus adjustments
- 0.5-mod, 78-tooth gear with a slim 6mm face width
- For Canon and Angenieux ENG-style lenses
- Follow Focus Gear for Fujinon ENG Lenses (0.6 Mod, 64 Teeth) This ARRI Follow Focus Gear can be used with all ARRI follow focus systems. The 0.6 mod, 64-tooth gear is designed for use with Fujinon ENG-style lenses. Its slim-width gear face measures 6mm.
- Meshes with a lens ring to enable focus adjustments
- 0.6-mod, 64-tooth gear with a slim 6mm face width
- For Fujinon ENG-style lenses
- Standard Focus Knob (Right Side) The right-sided ARRI Standard Focus Knob fits ARRI FF-5 and MFF-2 Cine/HD, and FF-4 follow focus units. This standard, single-speed knob is designed to work with cine-style lenses having hard infinity and close focus limits. One reusable flat marking disk is included with the knob. Compatible ARRI focus accessories such as whips, speed cranks, and extensions are available separately.
- Single-speed focus knob for FF-5/FF-4/MFF-2 systems
- Provides right-sided focus-pulling option
- For cine-style lenses with hard focus stops
- Compatible with all ARRI follow focus accessories like extensions, cranks, and whips
- Follow Focus Speed Crank The ARRI Speed Crank fits into the socket of any ARRI follow focus knob. Designed for quick or extended focus pulls, this L-shaped handle enables a camera assistant to rotate the lens focus barrel further than possible when grasping the focus knob itself. The crank's round knob and right-angle configuration enable rotating the focus knob 360° or more, for those shots requiring extreme shifts in focus.
- Attaches to the socket on any ARRI follow focus knob
- Enables speedy or extended focus pulls with 360° or more of focus knob rotation
- L-shaped handle with knob head for comfortable handling
- Short Flexible Shaft for Follow Focus (12") The 12" ARRI Short Flexible Shaft is a whip that fits into the socket of any ARRI follow focus knob. With this whip, a camera assistant can pull focus from a distance, diminishing the chance of jostling the camera when doing handheld work or moving shots.
- Flat Marking Disk for WCU-3 & Standard/2-Speed FF Knob This ARRI Flat Marking Disk is compatible with standard and two-speed follow focus knobs, and the WCU-3 hand unit knob. Use a non-permanent marker to apply temporary focus marks to its surface. This round plastic unit may be used as a replacement or additional marking disk.
In the Box Bundle Items FF-5 HD Follow Focus Base xzttecvywufqyceevsszavftvevfudrsf Standard Focus Knob (Left Side) - Flat Marking Disk for WCU-3 & Standard/2-Speed FF Knob
Follow Focus Gear for Canon & Angenieux ENG Lenses (0.5 Mod, 78 Teeth) Follow Focus Gear for Fujinon ENG Lenses (0.6 Mod, 64 Teeth) Standard Focus Knob (Right Side) - Flat Marking Disk for WCU-3 & Standard/2-Speed FF Knob
Follow Focus Speed Crank Short Flexible Shaft for Follow Focus (12") 10 x Flat Marking Disk for WCU-3 & Standard/2-Speed FF Knob Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI FF-5 HD Follow Focus Pro Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FF-5 HD Follow Focus Base
| Dimensions (HxWxD) | 5.9 x 9.4 x 1.6" (15.0 x 24.0 x 4.0 cm) | | Weight | 14.5 oz (410 g) | - Standard Focus Knob (Left Side)
| Dimensions | 5.9 x 5.9 x 3.1" (150 x 150 x 80 mm) | | Weight | 6.4 oz (182 g) | | | | Box Dimensions (LxWxH) | 4.6 x 3.8 x 2.4" | - Follow Focus Gear for Canon & Angenieux ENG Lenses (0.5 Mod, 78 Teeth)
| Number of Gear Teeth | 78 | | Face Width | 0.2" (6 mm) | | Dimensions | 1.6 x 1.6 x 0.8" (40 x 40 x 20 mm) | | Weight | 0.6 oz (18 g) | | | | Box Dimensions (LxWxH) | 2.0 x 1.9 x 0.5" | - Follow Focus Gear for Fujinon ENG Lenses (0.6 Mod, 64 Teeth)
| Number of Gear Teeth | 64 | | Face Width | 0.2" (6 mm) | | Dimensions | 1.6 x 1.6 x 0.8" (40 x 40 x 20 mm) | | Weight | 0.6 oz (18 g) | | | | Box Dimensions (LxWxH) | 3.0 x 1.6 x 0.7" | - Standard Focus Knob (Right Side)
| Dimensions | 3.9 x 5.1 x 3.9" (100 x 130 x 100 mm) | | Weight | 7.8 oz (220 g) | | | | Box Dimensions (LxWxH) | 5.8 x 5.05 x 4.45" | - Follow Focus Speed Crank
| Dimensions (WxHxD) | 2.2 x 4.3 x 0.8" (5.5 x 11.0 x 2.0 cm) | | Weight | 1.6 oz (44 g) | | | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 1.0" | - Short Flexible Shaft for Follow Focus (12")
| Length | 13.8" (35.0 cm) | | Weight | 6.6 oz (186 g) | | | | Box Dimensions (LxWxH) | 14.0 x 7.0 x 0.6" | - Flat Marking Disk for WCU-3 & Standard/2-Speed FF Knob
| Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 4.0 x 4.0 x 0.4" |
