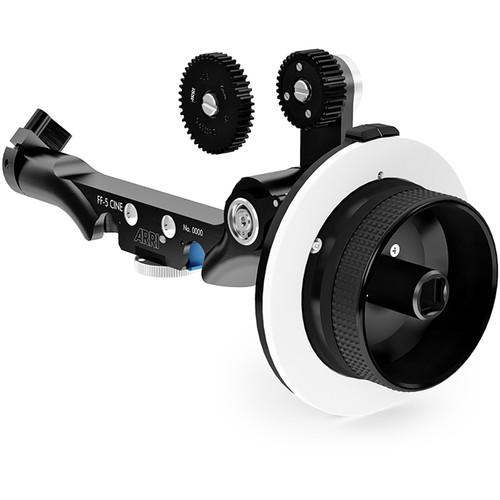

Product description The modular ARRI FF-5 Cine Basic Follow Focus Set consists of a single-sided follow focus with one standard knob. This unit snaps onto a pair of 19 or 15mm lightweight support rods (not included). The FF-5 Cine combo is designed with a 2:1 knob-to-gear ratio for smooth, accurate focus pulls on cine-style lenses. Two focus gears are included with this unit, one for primes and smaller zooms, and one for larger primes and 35mm zoom lenses. The FF-5 Cine Set features a modular design that is compatible with an array ARRI follow focus accessories such as whips, speed cranks, and knob accessories (available separately). One flat marking disk is included with the FF-5 Cine Basic Set. The FF-5 Cine unit may be used with an adapter on 19/15mm studio rods. Note: An adapter is required for use with a 19 and 15mm studio rods - FF-5 Cine Follow Focus Base ARRI's FF-5 Cine Follow Focus Base is designed to snap onto a pair of 15 or 19mm lightweight rods. An adapter is required to use the FF-5 Cine with 15 or 19mm studio rod systems (not included). This base unit of the FF-5 does not come with any knobs or lens gears (available separately).The FF-5 Cine Base is designed for cine-style lenses. With a gear ratio of 2:1, one turn of the focus knob results in two turns of the focus gear. This gear ratio suits the generously-spaced focus marks found on most cine lenses.
- Designed for cine-style lenses and offering a gear ratio of 2:1, one turn of the focus knob results in two turns of the focus gear
- Base unit of the FF-5 follow focus system; requires knobs and gear (available separately)
- Snaps onto 15 or 19mm lightweight rods; separate adapter required for use with 15 or 19mm studio systems (not included)
- Standard Focus Knob (Left Side) The left-sided ARRI Standard Focus Knob fits ARRI FF-5 and MFF-2 Cine/HD, and FF-4 follow focus units. This standard, single-speed knob is designed to work with cine-style lenses having hard infinity and close focus limits. One reusable flat marking disk is included with the knob. Compatible ARRI focus accessories such as whips, speed cranks, and extensions are available separately.
- Single-speed focus knob for FF-5/FF-4/MFF-2 systems
- Standard left-sided focus knob
- For cine-style lenses with hard focus stops
- Compatible with all ARRI follow focus accessories like extensions, cranks, and whips
- Follow Focus Gear (0.8 Mod, 35 Teeth) This ARRI Follow Focus Gear can be used with all ARRI follow focus systems. The 35-tooth, 0.8 mod gear is designed for use with prime lenses and smaller zoom lenses that have 32 pitch gear rings. Its medium-width gear face measures 10mm.
- Follow focus gear meshes with a lens ring to enable focus adjustments
- 0.8 mod, 35-tooth, 32 pitch gear with a face width of 10mm
- For prime lenses and smaller zoom lenses with standard 32-pitch gear rings
- Follow Focus Gear (0.8 Mod, 43 Teeth) This ARRI Follow Focus Gear can be used with all ARRI follow focus systems. The 43-tooth, 0.8 mod gear is designed for use with larger prime lenses and 35mm format zoom lenses that have 32 pitch gear rings. Its gear face width measures a relatively slim 6mm.
- Follow focus gear meshes with a lens ring to enable focus adjustments
- 0.8 mod, 43-tooth, 32 pitch gear with a face width of 6mm
- For larger prime lenses and 35mm format zoom lenses with standard 32-pitch gear rings
In the Box Bundle Items FF-5 Cine Follow Focus Base dvbfcxxwefvyezduzqyecaebyzrrybsf Standard Focus Knob (Left Side) - Flat Marking Disk for WCU-3 & Standard/2-Speed FF Knob
Follow Focus Gear (0.8 Mod, 35 Teeth) dvbfcxxwefvyezduzqyecaebyzrrybsf Follow Focus Gear (0.8 Mod, 43 Teeth) Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Follow Focus FF-5 Cine Basic Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FF-5 Cine Follow Focus Base
| Dimensions (HxWxD) | 5.1 x 9.4 x 2.4" (13.0 x 24.0 x 6.0 cm) | | Weight | 14.3 oz (406 g) | - Standard Focus Knob (Left Side)
| Dimensions | 5.9 x 5.9 x 3.1" (150 x 150 x 80 mm) | | Weight | 6.4 oz (182 g) | | | | Box Dimensions (LxWxH) | 4.6 x 3.8 x 2.4" | - Follow Focus Gear (0.8 Mod, 35 Teeth)
| Number of Gear Teeth | 35 | | Face Width | 0.4" (10 mm) | | Dimensions | 1.2 x 1.2 x 0.6" (30 x 30 x 15 mm) | | Weight | 0.5 oz (13 g) | | | | Box Dimensions (LxWxH) | 4.0 x 2.5 x 0.7" | - Follow Focus Gear (0.8 Mod, 43 Teeth)
| Number of Gear Teeth | 43 | | Face Width | 0.2" (6 mm) | | Dimensions | Not specified by manufacturer | | Weight | 0.3 oz (8 g) | | | | Box Dimensions (LxWxH) | 2.8 x 1.2 x 0.7" |
