Product description

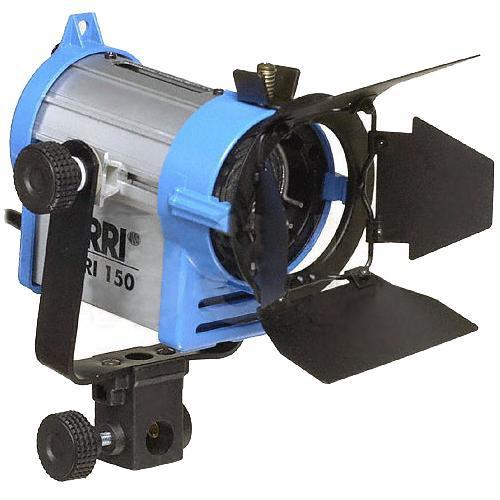

• 150 Watt Fresnel Tungsten Light (220V) The Arri 150 Watt Fresnel is a small fresnel with great performance and location-tough construction. With a 2" (5.1cm) Fresnel lens and 50mm lens. Superior optical performance and Arri's cast and extruded aluminum housing make this the perfect small fresnel. This is a 220 Volt version of the Arri 150 light and it uses 220V lamps. All bulbs must be purchased separately.
  Lamp Specifications
  • This unit uses an A1248 lamp for 230 Volt AC current. Do not attempt to adapt this fixture for use with 110-120 voltage. The wiring is not designed for the higher amperage of lower voltage. For 110-120 AC Voltage, order: 530100teerfzzzfayxuedbuquburssczq
  Mounting
  • Along with the other Arri Fresnels, the 150W will mount to all stands and mounting accessories with a 5/8" stud. All lamps must be purchased separately
  Optional Accessories
  • The use of a barndoor, scrim, snoot and filter frame add to the superb lighting quality produced by this light

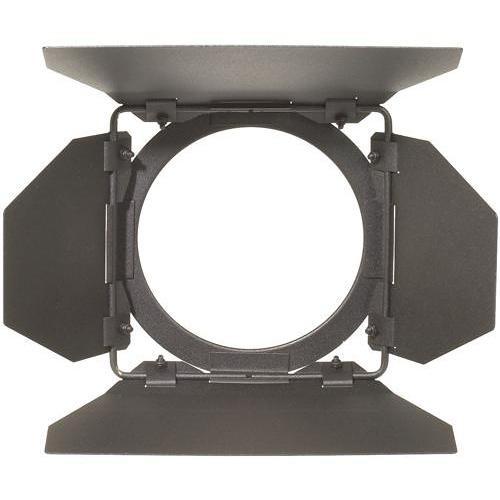

• 4-Leaf Barndoor Set for ARRI 150W Fresnel The ARRI 4-Leaf Barndoor Set for the 150W Fresnel is used to control the shape of the light emitted from the fixture. It can be used to screen backgrounds, control reflections, or narrow the lighting angle of a particular reflector. ARRI barndoors are heat resistant.
• Filter Frame for 150 Watt Fresnel Arri Filter Frames are circular and heat resistant. Filters can be cut and sandwiched into them, and they slide into lamphead accessory holders. Sizes are a little bit larger than the fresnels.

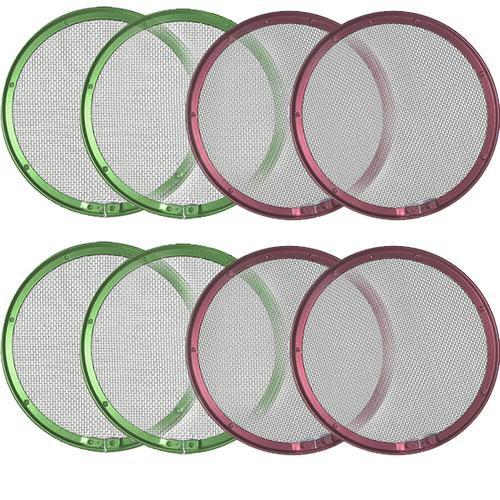

• Full Single Scrim for 150W Fresnel (3") This is an ARRI Full Single Scrim that fits the 150W Fresnel or any fixture that accepts a 3" accessory. Scrims are metal screens mounted in a metal frame. They are placed in front of a light to reduce light intensity.

  ARRI makes four different types of scrims:
  • Full Single: This scrim covers the entire lightface and reduces the intensity of the entire light beam.
  • Full Double: This scrim covers the whole face of the light. It has two metal screens in it, reducing light intensity by two times the amount of the full single.
  • Half Single: This scrim only covers half of the lightface reducing half of the light intensity.
  • Half Double: This scrim is the same as the half single but reduces light intensity twice as much.
• Full Double Scrim for 150W Fresnel (3") This is an ARRI Full Double Scrim that fits the 150W Fresnel or any fixture that accepts a 3" accessory. Scrims are metal screens mounted in a metal frame. They are placed in front of a light to reduce light intensity.

  ARRI makes four different types of scrims:
  • Full Single: This scrim covers the entire lightface and reduces the intensity of the entire light beam.
  • Full Double: This scrim covers the whole face of the light. It has two metal screens in it, reducing light intensity by two times the amount of the full single.
  • Half Single: This scrim only covers half of the lightface reducing half of the light intensity.
  • Half Double: This scrim is the same as the half single but reduces light intensity twice as much.
  • Half scrims may be rotated in position for more precise control.
• A1248 Lamp for Arri 150W Fresnel (220V) This is a 150 watt, 230 volt bulb for the Arri 150 watt, 220 volt Fresnel fixture. If you are adapting a U.S.A., 120 volt Arri 150 for 220-240 volt use, this is not the bulb.
  Instead, order: GBJCV230200. UPC: 043168884921

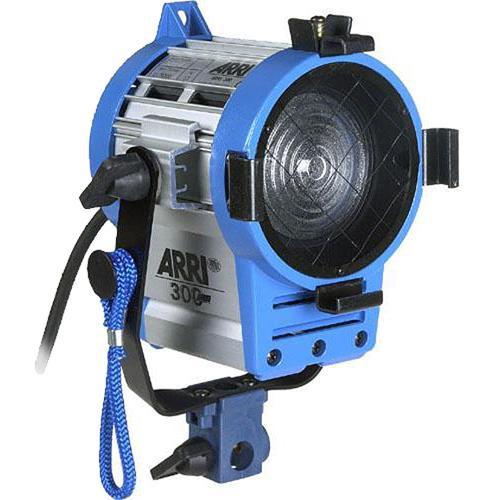

• 300 Plus Tungsten Fresnel (Silver/Blue) The Silver/Blue 300 Plus Fresnel from ARRI is a 4 lb, 9.17 x 8.7 x 6.3", 300 W fixture with a versatile 3" Fresnel lens. With a spot-to-flood range of 15° to 49°, it allows you to pinpoint hard light on your subject or wash it in a soft, wide field of light with a simple twist of a knob. Separate purchase of a 4-way barndoor permits further control of the beam, allowing you to direct the light where you want it and keep it from areas that you don't. The 300 Plus Fresnel accepts optional 120-240 VAC lamps such as the FSL or FKW that are 0-100% adjustable with an external dimmer and ready for worldwide use. The 300 Plus Fresnel's yoke has an integrated 5/8" receiver for mounting on stands or accessories with a 5/8" stud or spigot.
  Benefits
  • High quality lenses and reflectors for excellent optical performance
  • Compact size and lightweight
  • Robust construction of rust-resistant, extruded, die cast aluminum
  • Easy and convenient operation
  • Quick and easy service access
  • Extensive range of accessories
• Ceiling Scissor Clamp with 5/8" Stud This scissor clamp is for mounting small light fixtures from a drop ceiling frame. It features a standard 5/8" (baby) mounting stud.
• 4-Leaf Barndoor Set for 300W Fresnel, 125W HMI, 200W Pocket PAR The ARRI 4-Leaf Barndoor Set for the 300W Fresnel, 125W HMI Fresnel, and 200W Pocket-Lite and Pocket PAR is used to control the shape of the light emitted from the fixture. It can be used to screen backgrounds, control reflections, or narrow the lighting angle of a particular reflector. ARRI barndoors are heat resistant.
• Filter Frame for Plus 300, HMI 125W Fresnels Arri Filter Frames are circular and heat resistant. Filters can be cut and sandwiched into them, and they slide into lamphead accessory holders. Sizes are a little bit larger than the fresnels.
• Full Single Scrim for Arrilite 600, 300W Fresnel, 125W HMI Fresnel (5") This is an ARRI Full Single Scrim that fits the Arrilite 600, 300W, 125W Fresnel, or any fixture that accepts a 5" accessory. Scrims are metal screens mounted in a metal frame. They are placed in front of a light to reduce light intensity.

  ARRI makes four different types of scrims:
  • Full Single: This scrim covers the entire lightface and reduces the intensity of the entire light beam.
  • Full Double: This scrim covers the whole face of the light. It has two metal screens in it, reducing light intensity by two times the amount of the full single.
  • Half Single: This scrim only covers half of the lightface reducing half of the light intensity.
  • Half Double: This scrim is the same as the half single but reduces light intensity twice as much.
• Full Double Scrim for Arrilite 600, Fresnel 300W, 125W (5") This is an ARRI Full Double Scrim that fits the Arrilite 600, 300W, and 125W Fresnels or any fixture that accepts a 5" accessory. Scrims are metal screens mounted in a metal frame. They are placed in front of a light to reduce light intensity.

  ARRI makes four different types of scrims:
  • Full Single: This scrim covers the entire lightface and reduces the intensity of the entire light beam.
  • Full Double: This scrim covers the whole face of the light. It has two metal screens in it, reducing light intensity by two times the amount of the full single.
  • Half Single: This scrim only covers half of the lightface reducing half of the light intensity.
  • Half Double: This scrim is the same as the half single but reduces light intensity twice as much.
  • Half scrims may be rotated in position for more precise control.
• AS-01 Lightweight Light Stand 8.5' The 8.5' ARRI Lightweight Light Stand is designed to hold small light fixtures like the ARRI Fresnel 150. It packs easily for location work.
  • Three riser sections.

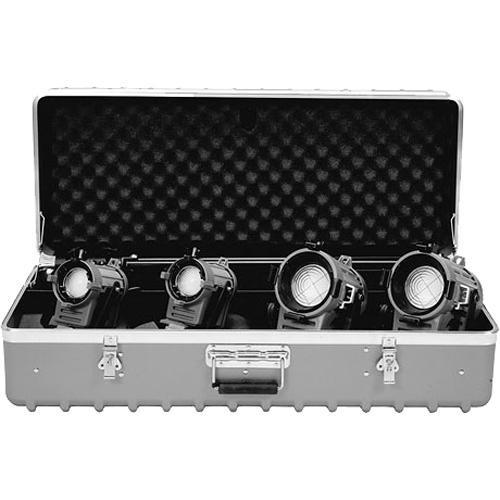

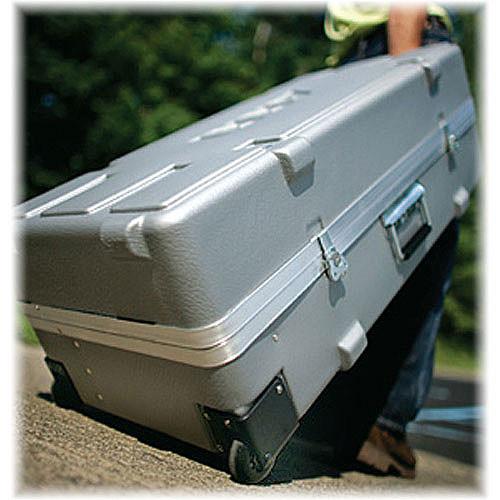

• 571194W 3-Light Case with Wheels The Arri 571194W 3-Light Case with Wheels is a vacuum molded hard shell ABS plastic case embossed with the ARRI logo. It is designed to hold up to three Arri 150W, 300W or 650W fresnel lights or up to three 650W or 1000W tungsten flood lights plus soft box, light stands and accessories. The case has fixed dividers that customize the interior. It can be transported by surface mounted, spring-loaded side and top carry handles plus built-in wheels.
  • Vacuum molded ABS plastic shell case with aluminum trim and convoluted foam inside the lid
  • Fixed interior dividers
  • Surface mounted butterfly latches
  Carrying options
  • • Surface mounted, spring-loaded side carry handle
    • Surface mounted, spring-loaded top carry handle
    • Built-in skate wheels
  Compatible with
  • • Three Arri 150, 300 or 650 Fresnel
    • Three Arrilite 650 or 1000 tungsten flood lights

• 1 Year Manufacturer's Warranty

• Limited 1-Year Warranty

• One Year Manufacturer's Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• One Year Manufacturer's Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 1-Year Warranty

Also Includes

• 2 x Lamp 300W/220V
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 150 Watt Fresnel Tungsten Light (220V)

  Rating	150W
  Socket (Lampholder)	GY9.5
  Lens (Condenser)	2" (50mm) low expansion borosillicate fresnel lens
  Reflector (Mirror)	Spherical specular high purity aluminum
  Mounting	5/8" (16mm) stand mount
  Yoke	Fits on standard 5/8" stand or mounting stud
  Cable	15' (4.6 m)
  Focusing	Worm gear driven
  Weight	2.3 lbs (1kg)
  Dimensions	5.25 x 7.75 x 6.1" (13.3 x 19.7 x 15.6cm)

  Box Dimensions (LxWxH)	11.0 x 6.9 x 5.9"

• 4-Leaf Barndoor Set for ARRI 150W Fresnel

  Box Dimensions (LxWxH)	15.25 x 12.35 x 2.5"

• Filter Frame for 150 Watt Fresnel

  Box Dimensions (LxWxH)	4.0 x 3.25 x 0.2"

• Full Single Scrim for 150W Fresnel (3")

  Box Dimensions (LxWxH)	4.35 x 4.05 x 0.15"

• Full Double Scrim for 150W Fresnel (3")

  Box Dimensions (LxWxH)	4.5 x 4.0 x 0.3"

• A1248 Lamp for Arri 150W Fresnel (220V)

  Base Type	GX6.35
  Wattage	150 W
  Voltage	230 V
  Color Temperature	3200K
  Average Life	50 Hours

  Box Dimensions (LxWxH)	4.9 x 1.8 x 1.6"

• 300 Plus Tungsten Fresnel (Silver/Blue)

  Rating	300 W, 120-240 VAC, 50/60 Hz
  Power Consumption	300 W
  Lamp	Separately Purchased: CP81 FSL 300 W / 230 V ; CP81 FKW 300 W / 120 V
  Color Temperature	Approximately 3200K
  Socket	GY9.5
  Lens	3.15" / 80 mm (Fresnel lens)
  Reflector	Spherical, specular, high purity aluminum
  Beam Angle	14-53°
  Dimming	Yes, 0-100 % via external dimmer
  Mounting	5/8" / 16 mm (stand mount)
  Yoke	Flat blade attaches to any 5/8" (16 mm) stud
  Cable	11.5' / 3.5 m cable, grounded Edison plug, inline switch
  Focusing	Worm gear driven
  Barndoor	4-Way: 5.12" / 130 mm
  Accessory Size	Diameter: 5.12 / 130 mm (scrim)
  Dimensions	9.17 x 8.7 x 6.3" / 233 x 187 x 160 mm
  Weight	4.0 lb / 1.8 kg
  Certifications	CE, CB, GS, cNRTLus

  Box Dimensions (LxWxH)	10.6 x 9.5 x 8.0"

• Ceiling Scissor Clamp with 5/8" Stud

  Mounting

  5/8" / 16 mm Stud

  Box Dimensions (LxWxH)	4.15 x 4.0 x 1.2"

• 4-Leaf Barndoor Set for 300W Fresnel, 125W HMI, 200W Pocket PAR

  Box Dimensions (LxWxH)	7.95 x 6.3 x 1.9"

• Filter Frame for Plus 300, HMI 125W Fresnels

  Box Dimensions (LxWxH)	5.7 x 5.45 x 0.25"

• Full Single Scrim for Arrilite 600, 300W Fresnel, 125W HMI Fresnel (5")

  Box Dimensions (LxWxH)	5.0 x 5.0 x 0.2"

• Full Double Scrim for Arrilite 600, Fresnel 300W, 125W (5")

  Box Dimensions (LxWxH)	5.2 x 5.1 x 0.2"

• AS-01 Lightweight Light Stand 8.5'

  Load Capacity	9 lb / 4.1 kg
  Mounting Options	5/8" Stud
  Maximum Working Height	8.5' / 2.6 m
  Minimum Working Height	2.2' / 0.1 m
  Collapsed Height	2.5' / 0.8 m
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Weight	3.0 lb / 1.4 kg

  Box Dimensions (LxWxH)	30.709 x 3.937 x 3.858"

• 571194W 3-Light Case with Wheels

  Padding	Foam

  Closure Type	Latch
  Carry and Transport Options	2 x Handle
  Material of Construction	ABS Plastic, Aluminum
  Exterior Dimensions (W x H x D)	32.5 x 10.8 x 17" / 82.5 x 27.3 x 43.2 cm
  Weight	22.8 lb / 10.3 kg

  Box Dimensions (LxWxH)	34.0 x 18.5 x 12.0"
