User Manual for ARRI Fresnel 4-Light Kit Click to enlarge the picture
Contents of the user manual for the ARRI Fresnel 4-Light Kit
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
 |
User manual for the ARRI Fresnel 4-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

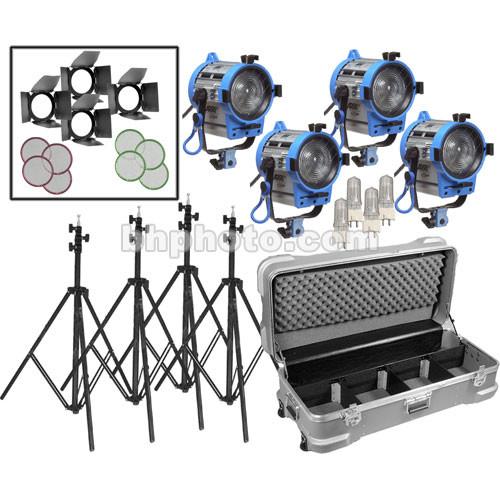

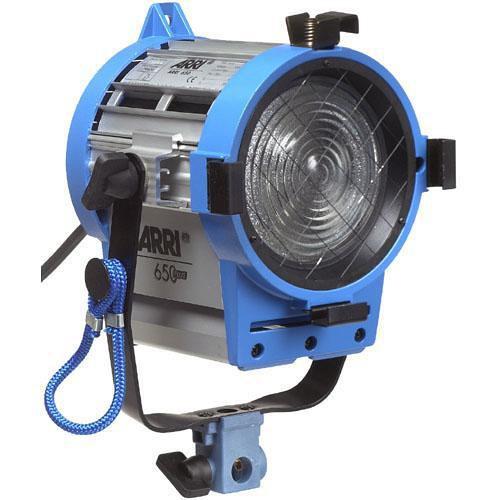

Product description A quartet offers more variations than a trio or a duo, so if you're looking for maximum flexibility in a portable lighting outfit, the ARRI Fresnel 4-Light Kit may be what you're searching for. In addition to the four 650W Fresnel lights (beam angle of 52° in the flood position, 14.5° in the spot position), this complete kit provides 4-leaf barndoor sets and scrims to control the shape and intensity of each fixture, filter frames, light stands, bulbs, an accessory pack (ditty bag, clothes pins, 25' extension cable with triple tap, leather gloves, and a lamp storage pack), and a heavy duty hard-shell case which holds all of the above for storage and transport. This kit is equipped for use with 220 AC voltage. - Large Lens
- Each fixture has a 4.3" (110 mm) low expansion, borosilicate Fresnel lens
- Aluminum Housing
- Ribbed vents for cooler operation
- Reflector
- Spherical, specular, high purity reflector

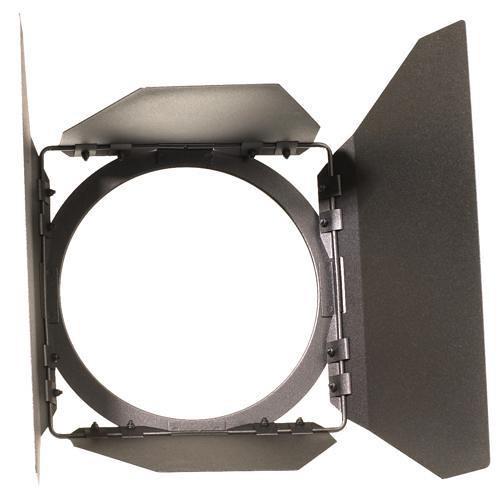

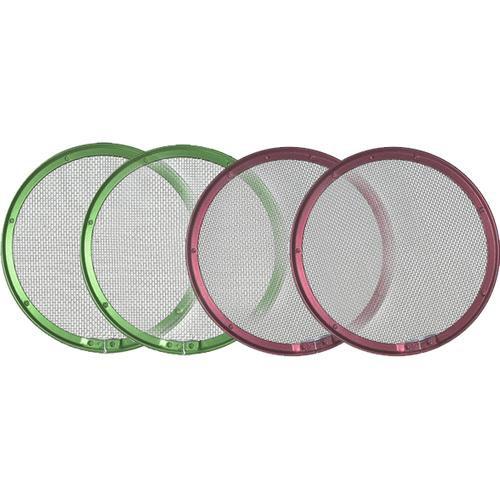

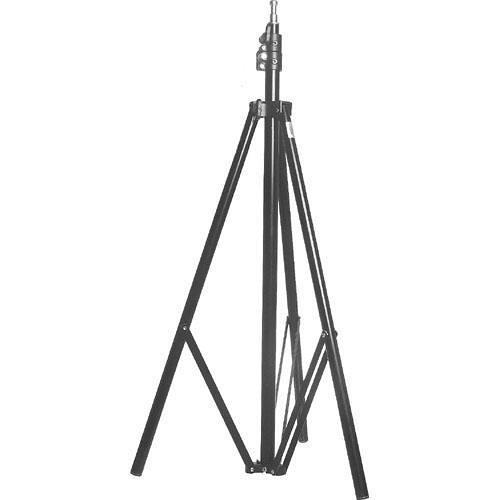

In the Box ARRI Fresnel 4-Light Kit (220V) 4 x 650W Plus Tungsten Fresnel (120-240 VAC) 4 x 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR 4 x Filter Frame for 650W Fresnel, 200W HMI Fresnel 4 x Full Single Scrim for 650 Fresnel, Arrisun 2, HMI Fresnel 200 (6 5/8") 4 x Full Double Scrim for 650W Fresnel and Arrisun 2 HMI 200W 6-5/8" 4 x FRK Lamp - 650 Watts/120 Volts Accessory Pack for Fresnel Lights 4 x AS-2 Lightweight Light Stand (8.5') 571197 Heavy-duty Location Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Fresnel 4-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI 650 Plus Specs | Rating | Each Fixture: 650 W max | | Socket (Lampholder) | GY9.5 | | Lens (Condenser) | 4.3" / 110 mm low expansion, borosilicate Fresnel lens | | Reflector (Mirror) | Spherical, specular, high purity reflector | | Mounting | 5/8" / 16 mm stand mount | | Yoke | Twin fork, accepts 5/8" (16 mm) stud | | Cable | 25' / 7.6 m cable with in-line switch | | Focusing | Worm-gear driven | | Weight | Each Fixture: 7.2 lb / 3.3 kg | | Dimensions | Each Fixture: 9 x 12 x 7.5" / 23 x 30 x 19 cm
Case: 40 x 19 x 13.5" / 101 x 48.3 x 34.3 cm | | Kit Weight | 80 lb / 36.3 kg | | | | Package Weight | 89.2 lb | | Box Dimensions (LxWxH) | 41.0 x 21.0 x 14.0" |
