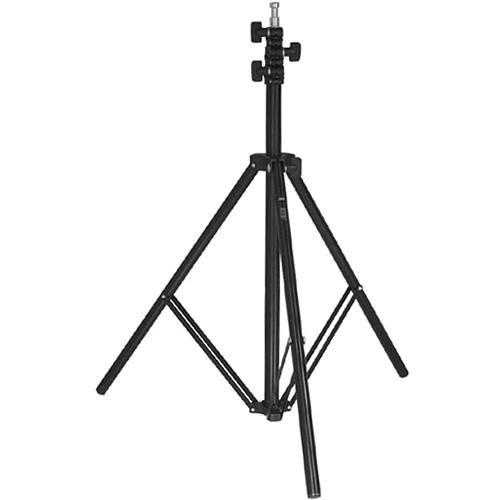

Product description Light like a Boy Scout: "Be Prepared" with this ARRI Fresnel 5-Light Kit. It has one 300W Fresnel, two 650W Fresnels, and two 150W Fresnel fixtures. It's got barndoors, scrims, filter frames, an accessory pack, light stands, a Super Clamp with mounting stud, a ceiling scissor clamp, and a heavy-duty kit case to store and transport everything. The ARRI 150W is a ruggedly built small Fresnel with great performance, and a 2" (50 mm) Fresnel lens. The highly efficient 300W Plus Fresnel sports a 3.2" (80 mm) low expansion, borosilicate Fresnel lens, producing a soft, even field of light. The 650W Fresnel features the same lens, reflector, housing, and power cord as the 300W Fresnel, with a beam angle in the flood position of 52° and a narrow 14.5° in the spot position. You'll be ready for just about any lighting situation. - Accessory Pack

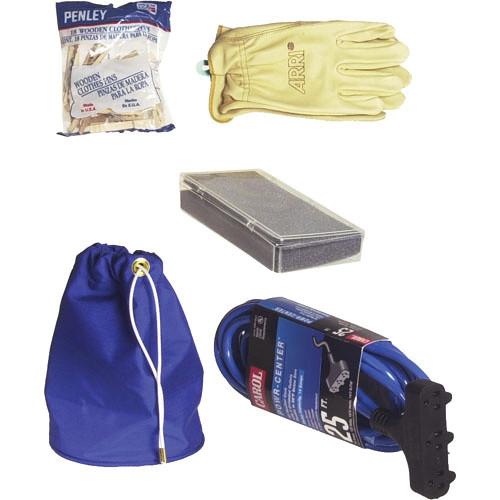

- Accessory pack contains ditty bag, clothes pins (18-pack), 25' extension cable with triple tap, lamp pack, and leather grip gloves
- Small Size

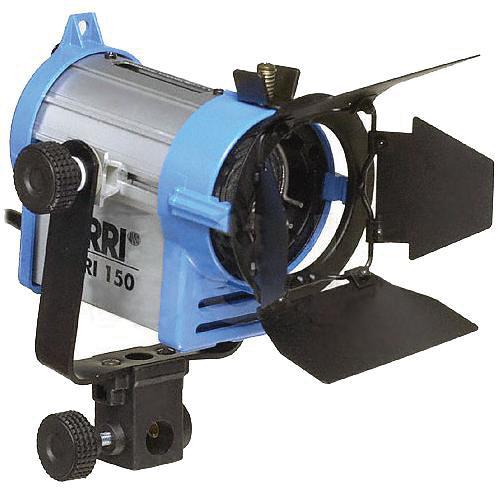

- The 150W Fresnel is very compact and tough
- Light Spread

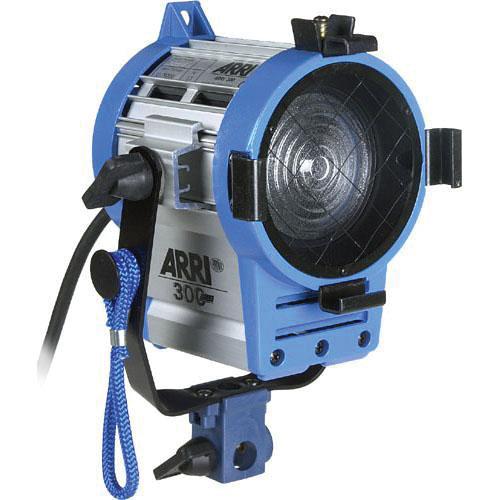

- The 300W Fresnel produces a soft, even field of light
- Large Lens

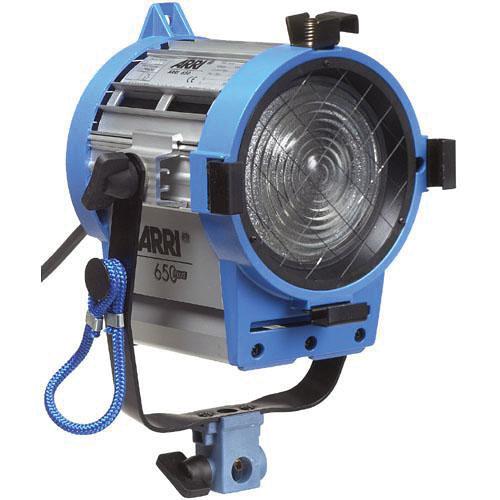

- The 650W Fresnel has a 4.3" (110 mm) low expansion, borosilicate Fresnel lens
- Light Shapers

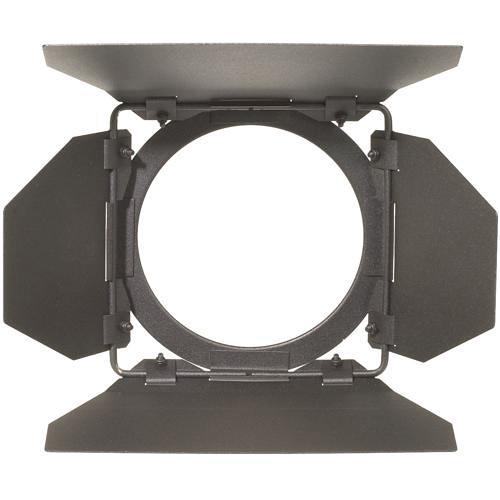

- Barndoors, scrims, and filter frames (with your filters) to alter the shape, intensity and color of the light
- Kit Case

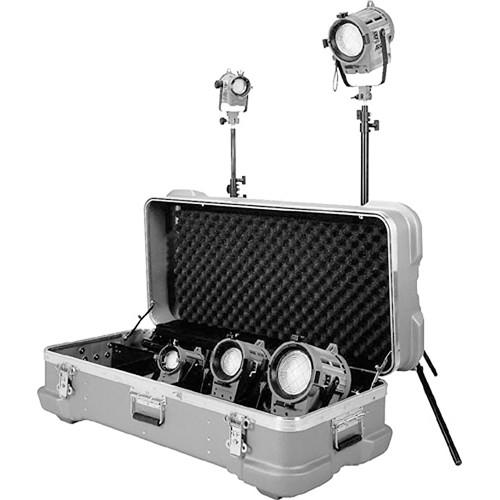

- Hard shell, heavy-duty carrying case holds all kit components

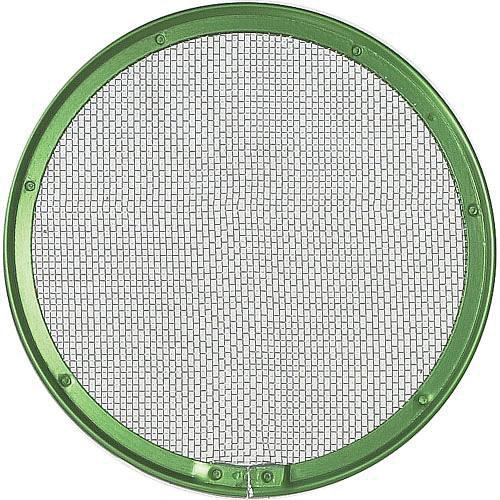

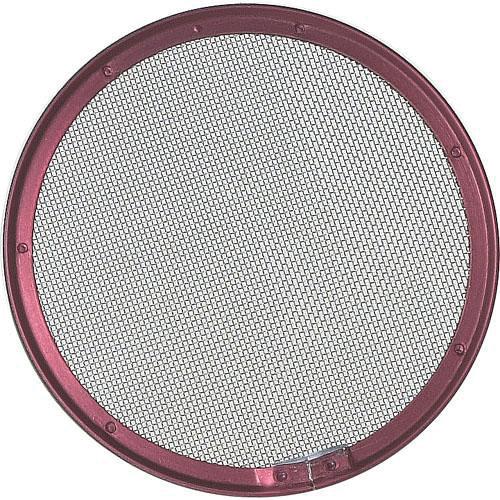

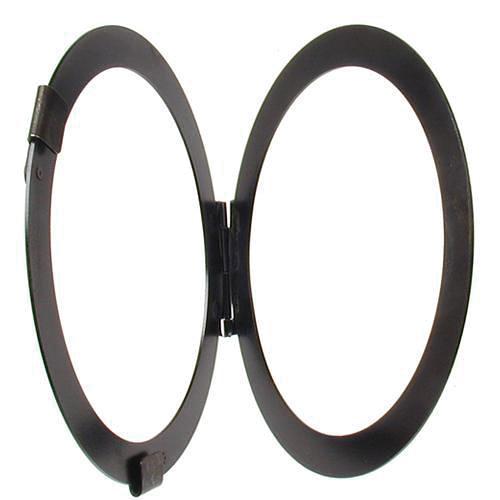

In the Box ARRI Fresnel 5-Light Kit 2 x 650W Plus Tungsten Fresnel (120-240 VAC) suewxuvzxywwrqtavswryqvqyqswuussrt 2 x 150-Watt Tungsten Fresnel Light (120 VAC) 300 Plus Tungsten Fresnel (Silver/Blue) 2 x Full Double Scrim for 650W Fresnel and Arrisun 2 HMI 200W 6-5/8" 2 x Full Double Scrim for 150W Fresnel (3") Full Double Scrim for Arrilite 600, Fresnel 300W, 125W (5") Full Double Scrim for Arrilite 600, Fresnel 300W, 125W (5") 2 x ESP Lamp - 150 Watts/120 Volts 4-Leaf Barndoor Set for 300W Fresnel, 125W HMI, 200W Pocket PAR 2 x 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR 2 x 4-Leaf Barndoor Set for ARRI 150W Fresnel Filter Frame for Plus 300, HMI 125W Fresnels 2 x Filter Frame for 1K Fresnel, Compact HMI 575W 2 x Filter Frame for 150 Watt Fresnel suewxuvzxywwrqtavswryqvqyqswuussrt Full Single Scrim for Arrilite 600, 300W Fresnel, 125W HMI Fresnel (5") 2 x Full Single Scrim for 650 Fresnel, Arrisun 2, HMI Fresnel 200 (6 5/8") 2 x Full Single Scrim for 150W Fresnel (3") 2 x Full Single Scrim for Arrilite 600, 300W Fresnel, 125W HMI Fresnel (5") FKW Lamp - 300 Watts/120 Volts 2 x FRK Lamp - 650 Watts/120 Volts Accessory Pack for Fresnel Lights Super Clamp With 5/8" Stud Ceiling Scissor Clamp with 5/8" Stud 4 x AS-2 Lightweight Light Stand (8.5') 571197 Heavy-duty Location Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Fresnel 5-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI LK.0005660 Specs | Rating | Fresnel 150: 150 W
Fresnel 300: 300 W
Fresnel 650: 650 W | | Socket (Lampholder) | All: GY9.5 | | Lens (Condenser) | Fresnel 150: 2" / 50 mm
Fresnel 300: 3.2" / 80 mm
Fresnel 650: 4.3" / 110 mm
All: Low expansion borosilicate Fresnel lens | | Reflector (Mirror) | Spherical, specular, high purity aluminum | | Mounting | 5/8" / 16 mm stand mount | | Yoke | Fits on standard 5/8" stand or mounting stud | | Cable | Fresnel 150: 15' / 4.6 m
Fresnel 300, 650: 25' / 7.6 m with in-line switch | | Focusing | All: Worm-gear driven | | Weight | Fresnel 150: 2.3 lb / 1 kg
Fresnel 300: 6.5 lb / 2.9 kg
Fresnel 650: 7.2 lb / 3.3 kg | | Dimensions | Fresnel 150: 5.25 x 7.75 x 6.1" / 13.3 x 19.7 x 15.6 cm
Fresnel 300: 7.1 x 10 x 6.3" / 18 x 25.4 x 16 cm
Fresnel 650: 9 x 12 x 7.5" / 23 x 30.5 x 19 cm
Kit in Case: 40 x 19 x 13.5" / 102 x 48 x 34 cm | | Kit Weight | 75 lb / 34 kg | | | | Package Weight | 87.8 lb | | Box Dimensions (LxWxH) | 41.0 x 20.5 x 14.5" |
