User Manual for ARRI Fresnel Combo 4-Light Kit Click to enlarge the picture
Contents of the user manual for the ARRI Fresnel Combo 4-Light Kit
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
 |
User manual for the ARRI Fresnel Combo 4-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description We can't promise inner peace and happiness, but truly harmonious lighting can be achieved using the quartet of lights in this Arri Fresnel Combo 4-Light Kit. The two highly efficient ARRI 300W Plus Fresnels each have a 3.2" (80mm) low expansion borosilicate Fresnel lens to produce a soft, even field of light. The two 650W Fresnels feature the same lens, reflector, housing, and power cord as the 300W Fresnels. The beam angle in the flood position is 52° and a narrow 14.5° in the spot position. Barndoors and scrim sets can alter the shape and intensity of the lights. A convenient accessory pack is included, and you can store everything, including the light stands, in the heavy-duty ABS plastic case. This kit is set up for 220 VAC. Fresnels - Light Spread

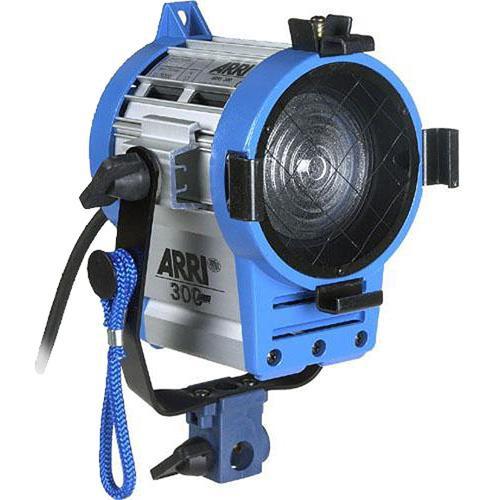

- The ARRI Fresnel 300 produces a soft, even field of light
- Large Lens

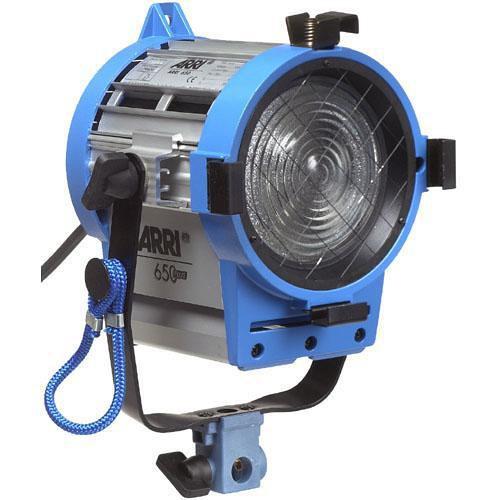

- The ARRI Fresnel 650 each has a 4.3" (110 mm) low expansion, borosilicate Fresnel lens

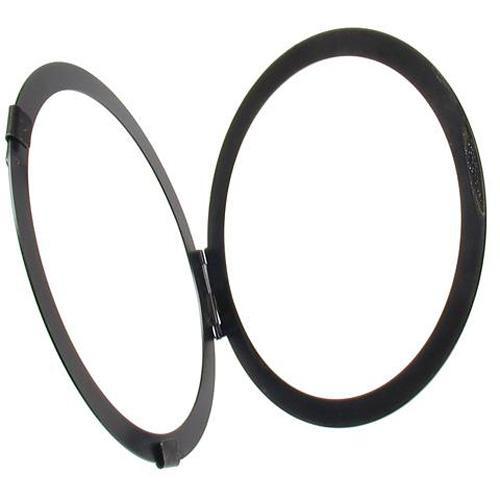

Accessories - Light Shapers

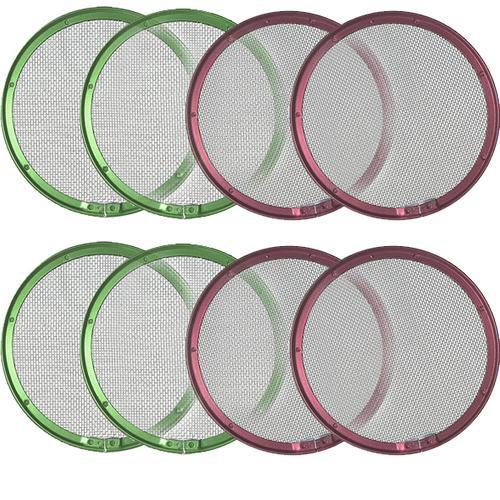

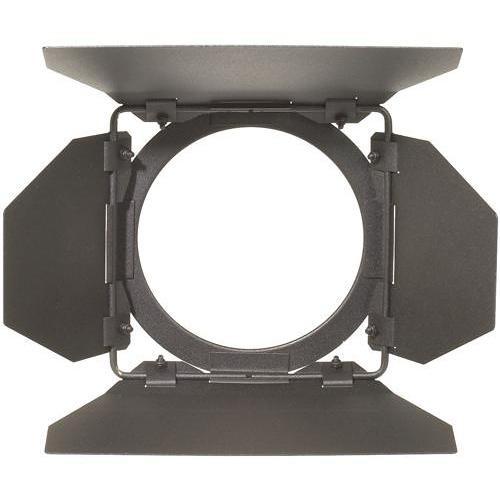

- Barndoors, filter frames and scrims to alter the shape, color and intensity of the light

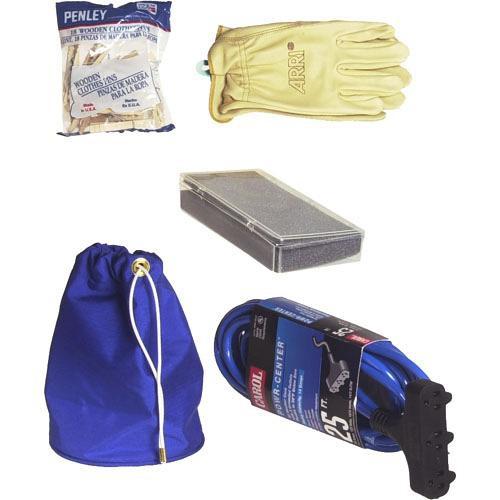

- Accessory Kit
- Includes a ditty bag, clothes pins, bulb storage case, 3-outlet extension cord, and heat-resistant gloves

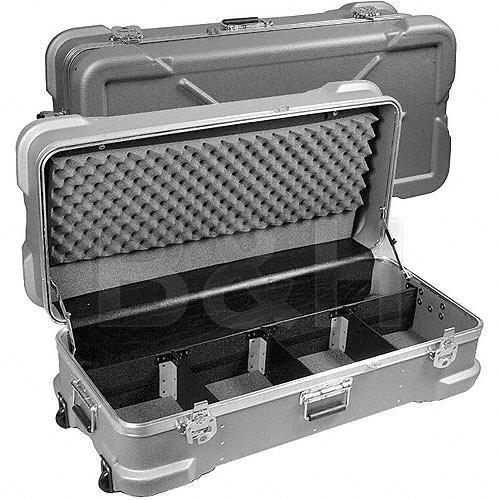

- Heavy Duty Case
-
- Hard shell plastic, aluminum trim, latches and piano hinge
- Fixed interior dividers provides easy storage and transport

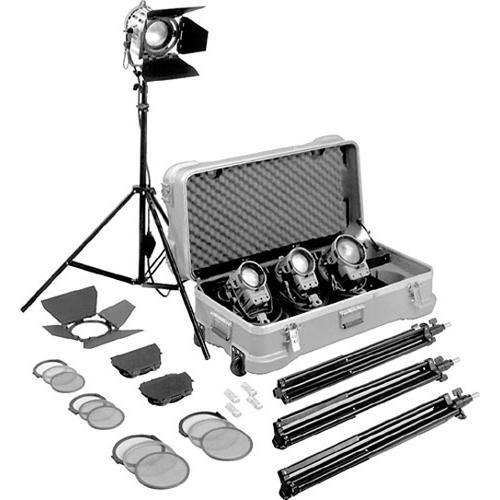

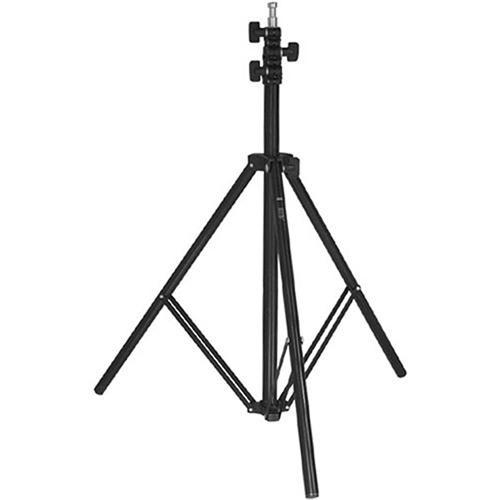

In the Box ARRI Fresnel Combo 4-Light Kit (220V) 2 x 300 Plus Tungsten Fresnel (Silver/Blue) sfzdwqvrxrrcccsyuvbfuwq 2 x 4-Leaf Barndoor Set for 300W Fresnel, 125W HMI, 200W Pocket PAR 2 x Filter Frame for Plus 300, HMI 125W Fresnels 2 x Full Single Scrim for Arrilite 600, 300W Fresnel, 125W HMI Fresnel (5") 2 x Full Double Scrim for Arrilite 600, Fresnel 300W, 125W (5") 2 x FKW Lamp - 300 Watts/120 Volts sfzdwqvrxrrcccsyuvbfuwq 2 x 650W Plus Tungsten Fresnel (120-240 VAC) 2 x 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR 2 x Filter Frame for 650W Fresnel, 200W HMI Fresnel 2 x Full Single Scrim for 650 Fresnel, Arrisun 2, HMI Fresnel 200 (6 5/8") 2 x Full Double Scrim for 650W Fresnel and Arrisun 2 HMI 200W 6-5/8" 2 x FRK Lamp - 650 Watts/120 Volts 4 x AS-2 Lightweight Light Stand (8.5') sfzdwqvrxrrcccsyuvbfuwq Accessory Pack for Fresnel Lights 571197 Heavy-duty Location Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Fresnel Combo 4-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI LK.0005627 Specs | Rating | ARRI 300: 300 W
ARRI 650: 650 W | | Socket (Lampholder) | GY9.5 | | Lens (Condenser) | ARRI 300: 3.2" / 80 mm borosilicate Fresnel
ARRI 650: 4.3" / 109 mm borosilicate Fresnel | | Reflector (Mirror) | Spherical, specular, high purity aluminum | | Mounting | 5/8" / 16 mm stand mount | | Yoke | Attaches to any 5/8" (16 mm) stud | | Cable | 25' / 7.6 m cable with in-line switch | | Focusing | Worm-gear driven | | Weight | ARRI 300: 6.5 lb / 2.9 kg
ARRI 650: 7.2 lb / 3.3 kg | | Dimensions | ARRI 300: 7.1 x 10 x 6.3" / 18 x 25.4 x 16 cm
ARRI 650: 10.5 x 14 x 9.5" / 26.7 x 35.6 x 24.1 cm
Kit in Case: 40 x 19 x 13.5" / 102 x 48 x 34 cm | | Kit Weight | 45 lb / 20.4 kg | | | | Package Weight | 85.0 lb | | Box Dimensions (LxWxH) | 41.0 x 20.5 x 14.4" |
