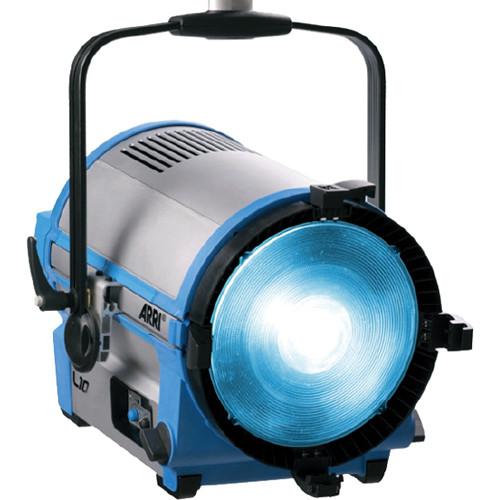

User Manual for ARRI L10-C Color LED Fresnel Click to enlarge the picture
Contents of the user manual for the ARRI L10-C Color LED Fresnel
- Product category: LED Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI LED Lights
|
User manual for the ARRI L10-C Color LED Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description This pole-operated 15 to 50 degree focusable ARRI L10-C Color LED Fresnel is part of the company's L10 series of Fresnels. The L10-C is the most versatile of the series with regard to color tunability, producing vivid colors with saturation control.The light's 10" Fresnel lens and powerful output allow for more distant fixture placement and the wrapping of light around objects in a natural and pleasing way. Consuming only 400 watts, it is extremely energy efficient, requiring one-fifth of the power as a traditional 2K light while outputting light equivalent to a 1700W bulb. - Attributes
-
- Fully color tuneable from 2800-10,000K
- Plus/Minus Green correction
- Vibrant color selection (RGB+W color gamut)
- Hue and saturation control
- High color rendering
- Low power consumption
- Fully dimmable
- True Fresnel lens light characteristics
- Onboard DMX in and out
- RDM implementation
- USB Mini connection for firmware updates
- Fan mode selection
- powerCON TRUE1 power connector
- Photometrics
- Spot: 15 Degrees 3200K
13,222 lux / 1228 fc at 9.8' (3.0 m)
2429 lux / 226 fc at 23' (7.0 m)
826 lux / 77 fc at 39.37' (12 m)
Spot: 15 Degrees 5600K
13,889 lux / 1290 fc at 9.8' (3.0 m)
2551 lux / 237 fc at 23' (7.0 m)
868 lux / 81 fc at 39.37' (12 m)
Middle: 30 Degrees 3200K
4733 lux / 440 fc at 9.8' (3.0 m)
869 lux / 81 fc at 23' (7.0 m)
296 lux / 27 fc at 39.37' (12 m)
Middle: 30 Degrees 5600K
4956 lux / 460 fc at 9.8' (3.0 m)
910 lux / 85 fc at 23' (7.0 m)
310 lux / 29 fc at 39.37' (12 m)
Flood: 50 Degrees 3200K
1878 lux / 174 fc at 9.8' (3.0 m)
345 lux / 32 fc at 23' (7.0 m)
117 lux / 11 fc at 39.37' (12 m)
Flood: 50 Degrees 5600K
1978 lux / 184 fc at 9.8' (3.0 m)
363 lux / 34 fc at 23' (7.0 m)
124 lux / 11 fc at 39.37' (12 m) In the Box ARRI L10-C Color LED Fresnel (Black, Pole Operated) Limited 1-Year Warranty Data Sheet PDF 624.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI L10-C Color LED Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI L10-C Specs | Light Source | LED, 50,000 estimated lamp life
Approximate 1700 W tungsten equivalent | | Optical System | Focusable Fresnel: 10" / 274 mm lens | | Beam Angle | 15-50°, half peak angle | | Color Range | Full RGB+W color gamut with hue and saturation control
2800-10,000K continuously variable correlated color temperature
Full Minus Green to full Plus Green
Estimated Color Shift over Lifetime: < 200K | | Color Temperature Tolerance | +/- 100K (nominal), +/- 1/8 Green-Magenta (nominal) | | CRI | Average >95 (3200 to 6500K), TLCI Average >91 | | Dimming | 0-100% Continuous | | Control | 5-pin DMX in and through, onboard controller, Mini-USB
Hour counter and standard RDM commands | | Operating Voltage | 100-250 VAC, 50/60 Hz | | Power Consumption | 400 W (nominal), 510 W (maximum) | | IP Rating | IP20 | | Cooling | Fan with speed and on/off selection | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Control | 5-pin DMX + RDM, on-board controller, USB | | Mount | Pole operated with 1 1/8" / 28 mm spigot (Junior pin) | | Cable | 5.0' / 1.5 m cable with bare ends | | Connectors | 5-pin DMX in and through
Mini-USB for firmware updates | | Certifications | CE, GS, FCC, cNRTL, CB, ISO9001:2000 | | Operating Temperature | -4 to 113ºF / -20 to 45ºC | | Adjustments | Adjustable sliding stirrup, high strength tilt lock
Tilt angle: +/- 90° | | Dimensions | 23.8 x 19.3 x 22" / 60.5 x 49 x 56 cm
Lens diameter: 10" / 274 mm | | Weight | 47 lb / 21.3 kg | | | | Package Weight | 63.0 lb | | Box Dimensions (LxWxH) | 29.0 x 24.0 x 18.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
