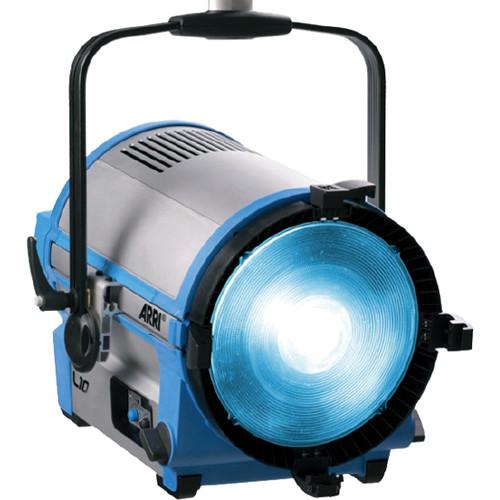

User Manual for ARRI L10-DT LED Daylight Fresnel Click to enlarge the picture
Contents of the user manual for the ARRI L10-DT LED Daylight Fresnel
- Product category: LED Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI LED Lights
|
User manual for the ARRI L10-DT LED Daylight Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description This hanging 15 to 50 degree focusable ARRI L10-DT Daylight LED Fresnel is part of the company’s L10 series of Fresnels. It is daylight-balanced, though it allows for color tuning between 5000 and 6500K.The light’s 10" Fresnel lens and powerful output allow for more distant fixture placement and the wrapping of light around objects in a natural and pleasing way. Consuming only 410W, it is extremely energy efficient, requiring just over one-fifth of the power of a traditional 2000W bulb while outputting equivalent light. This hanging version of the L10-TT has a 1-1/8" pin and a 5' power cable with bare ends. - Attributes
-
- Fully color tuneable from 5000 - 6500K
- Plus/Minus Green correction
- 15% Brighter than L10-C at 5600K
- Perfect for TV studios switching to daylight color temperatures
- High Color Rendering
- Low power consumption
- Fully dimmable
- True Fresnel lens light characteristics
- Onboard DMX in and out
- RDM implementation
- USB Mini connection for firmware updates
- Fan mode selection
- powerCON TRUE1 power connector
- Photometrics
- Spot: 15 Degrees 5600K
15778 lux / 1456 fc @ 9.8' (3.0 m)
2898 lux / 269 fc @ 23' (7.0 m)
986 lux / 92 fc @ 39.37' (12 m)
Middle: 30 Degrees 5600K
5422 lux / 504 fc @ 9.8' (3.0 m)
996 lux / 93 fc @ 23' (7.0 m)
339 lux / 31 fc @ 39.37' (12 m)
Flood: 50 Degrees 5600K
2167 lux / 201 fc @ 9.8' (3.0 m)
398 lux / 37 fc @ 23' (7.0 m)
135 lux / 13 fc @ 39.37' (12 m) In the Box ARRI L10-DT LED Daylight Fresnel (Blue/Silver, Hanging) Limited 1-Year Warranty Data Sheet PDF 624.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI L10-DT LED Daylight Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI L10-DT Specs | | | Beam Angle | 15 to 50° | | Color Temperature | 5000 to 6500K ± 100K (with 200K Shift over Lifetime) | | Color Accuracy Standard | CRI 95
TLCI 91 | | Cooling System | Fan | | Dimming | Yes, 0 to 100% (Continuous) | | Display | None | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 23.8 x 19.3 x 22.0" / 60.5 x 49.0 x 56.0 cm | | Fixture Weight | 43.4 lb / 19.7 kg | | | | Power Input Connector | powerCON | | DMX Connector | 5-Pin XLR | | Service Connector | Mini-USB | | | | Lens Diameter | 10" / 27.4 cm | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 1-1/8" Stud | | Accessory Mount | None | | | | AC Input Power | 100 to 250 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 510 W | | | | Cable Length | 5' / 1.5 m | | Cable Type | Attached to Bare Ends | | | | IP Rating | IP20 | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Storage Temperature | -4 to 113°F / -20 to 45°C | | | | Package Weight | 59.0 lb | | Box Dimensions (LxWxH) | 28.5 x 24.0 x 17.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
