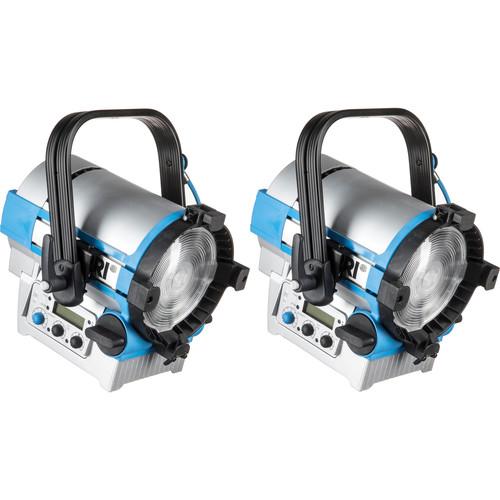

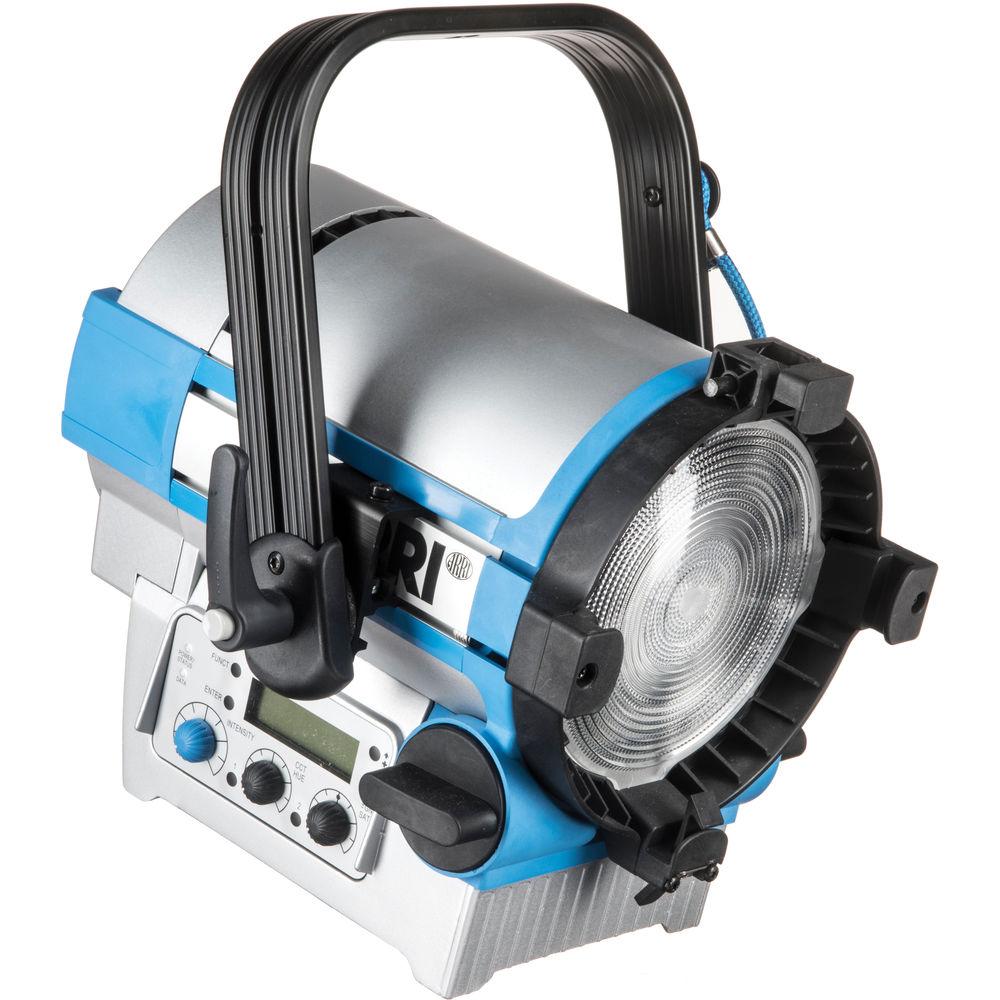

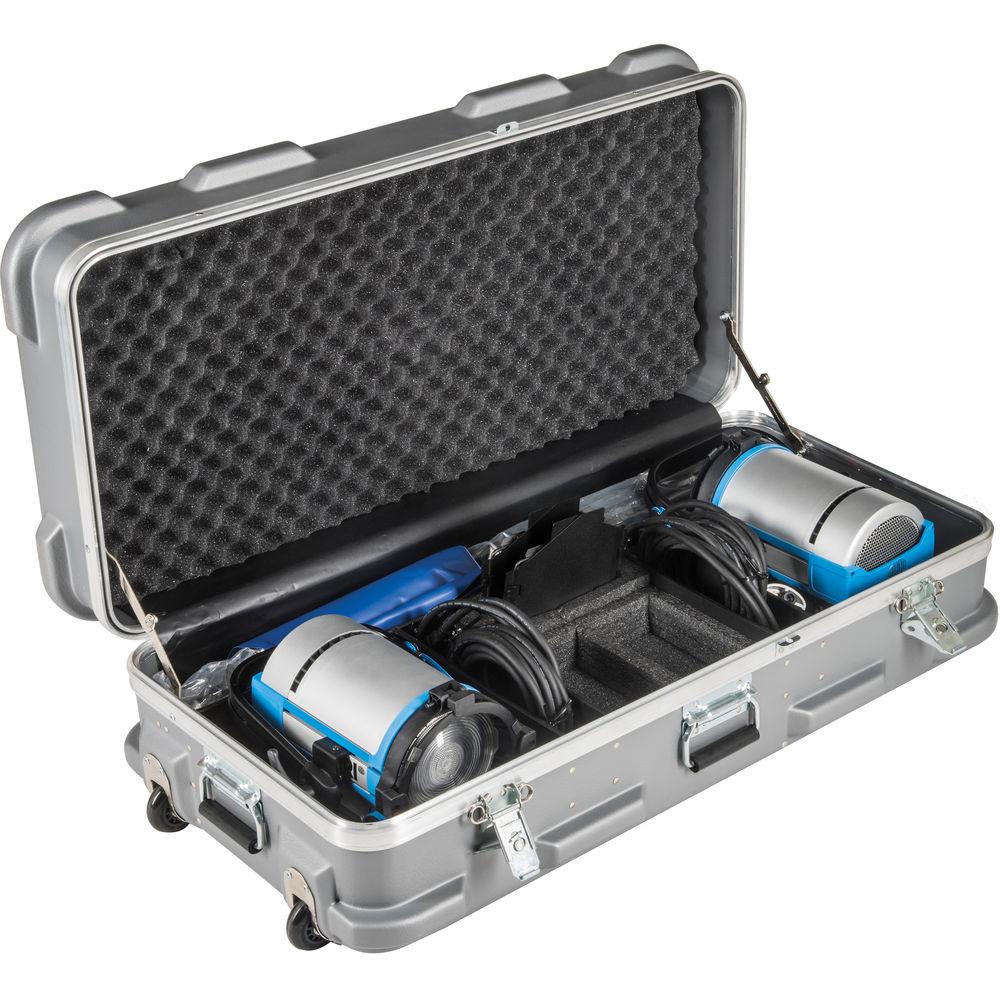

Product description ARRI continues to expand its L-Series with the introduction of the L5-C 5" LED Fresnel. The ARRI L5-C 2-Light LED Kit III features two L5-C color-tuneable 5" LED Fresnel lights, which both come with four-leaf barndoors, a filter frame, and an AS-01 stand, and a heavy-duty case is included for storage and transport of the entire kit.
The key characteristic of any Fresnel is flood to spot capability and the L5-C offers an impressive beam angle adjustment of 14-50°. The 100-0% dimmable L5-C is a "fully tunable" white light source, allowing you to match existing fixtures with color temperatures from 2800K to 10,000K. The on-board controller allows full minus green to plus green adjustment as well as RGB+W color gamut color mixing with hue and saturation control enabling matching of specific shades and skin tones. All functions can be controlled via DMX, an ideal feature for broadcast studios, while RDM permits monitoring of the light's status. The L5-C produces the equivalent of a 450W tungsten light while drawing only 115W. Power options include the L5-C's 90-250 VAC on-board power supply or 23-36 VDC battery options. Both of the L5-C lights in this kit have a silver/blue finish. - L5-C 5" LED Fresnel (Silver/Blue, Stand Mount) ARRI continues to expand its L-Series with the introduction of the L5-C 5" LED Fresnel The key characteristic of any Fresnel is flood to spot capability and the L5-C offers an impressive beam angle adjustment of 14-50°. The 100-0% dimmable L5-C is a "fully tunable" white light source, allowing you to match existing fixtures with color temperatures from 2,800K to 10,000K. The on-board controller allows full minus green to plus green adjustment as well as RGB+W color gamut color mixing with hue and saturation control, enabling matching of specific shades and skin tones. All functions can be controlled via DMX, an ideal feature for broadcast studios, while RDM permits monitoring of the light's status. The L5-C produces the equivalent of a 450W tungsten light while drawing only 115W for a savings of up to 75% over traditional fixtures. And low draw and heat means lower HVAC costs in the studio and a quick return on investment. You can run about fifteen L5-Cs from a 20A, 120V outlet as opposed to three or four 500W tungsten fixtures. Power options include the L5-C's 90 - 250 VAC on-board power supply or 22-36 VDC battery options. This version of the L5-C has a silver/blue finish.
- Variable Beam Angle: 14 to 50 Degree
- A key element of the versatility of traditional Fresnels is the ability to spot and flood the beam as needed. Whether it's a flood field for a pullback shot or a tight spot for a bright highlight, the continuous focus-ability of the L-Series performs lives up to your expectations. And, unlike traditional Fresnels, which have significant light waste in spot focus, the efficient L-Series optical system maintains the same field lumens in all focus positions.
- True Fresnel Lens Light Characteristics
- Whether shaping the beam to isolate talent and set elements or cutting the field to eliminate spill light, controllability is crucial to lighting. L-Series Fresnels provide the same ability to cut and shape with barndoors and flags that we have come to expect from conventional Fresnels.
- Even Light Field
- Clear, defined shadows traditionally have been solely a trait of single source tungsten and daylight fixtures. ARRI L-Series Fresnels provide the same single shadow properties lighting designers expect, delivering natural results.
- Vibrant, Full-spectrum Lighting
- With the L5-C, fully tunable white light can be adjusted for different skin tones, camera sensors and mixed-light environments, while specific color shades can be matched through full gamut color mixing. Unlike other LED fixtures, this level of color control does not involve compromising the quality of the light field. The L-Series is unique in combining uniform light and single shadow rendition with full control of color attributes.

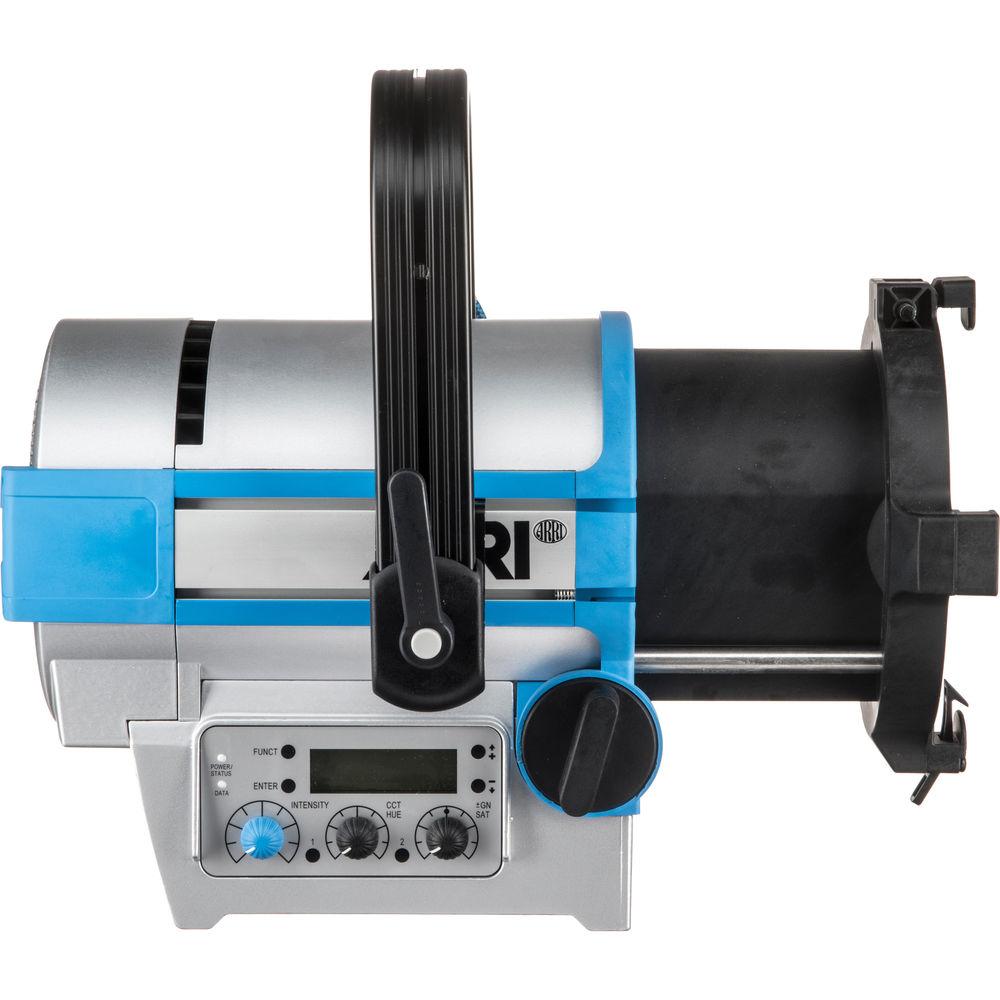

- Focus Knobs
- True Blue-style focus knobs provide the precise adjustment and rapid flood-to-spot that users enjoy from manual, mechanical control. Knobs on both sides of the fixture ensure easy access from all positions, eliminating the need for awkward reaching around the fixture. Full flood-to-spot can be achieved in only three turns.
- Sliding Stirrups
- The ARRI sliding stirrup design enables precise adjustment of the fixture's center of gravity, to compensate for front-end accessories. It also gives the option of pulling the fixture back and reducing its hanging height.
- Tilt-Lock
- The strong tilt-lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them.
- DMX Control
- For broadcast studios, remote fixture control is of paramount importance, and all functions of the L5-C are controllable through DMX. The L5-C is also RDM compatible, providing bi-directional feedback and reporting of system status, hours on the light engine, calibration data from the internal color sensor and current DMX address with the ability to remotely assign and address all fixtures in a DMX network.

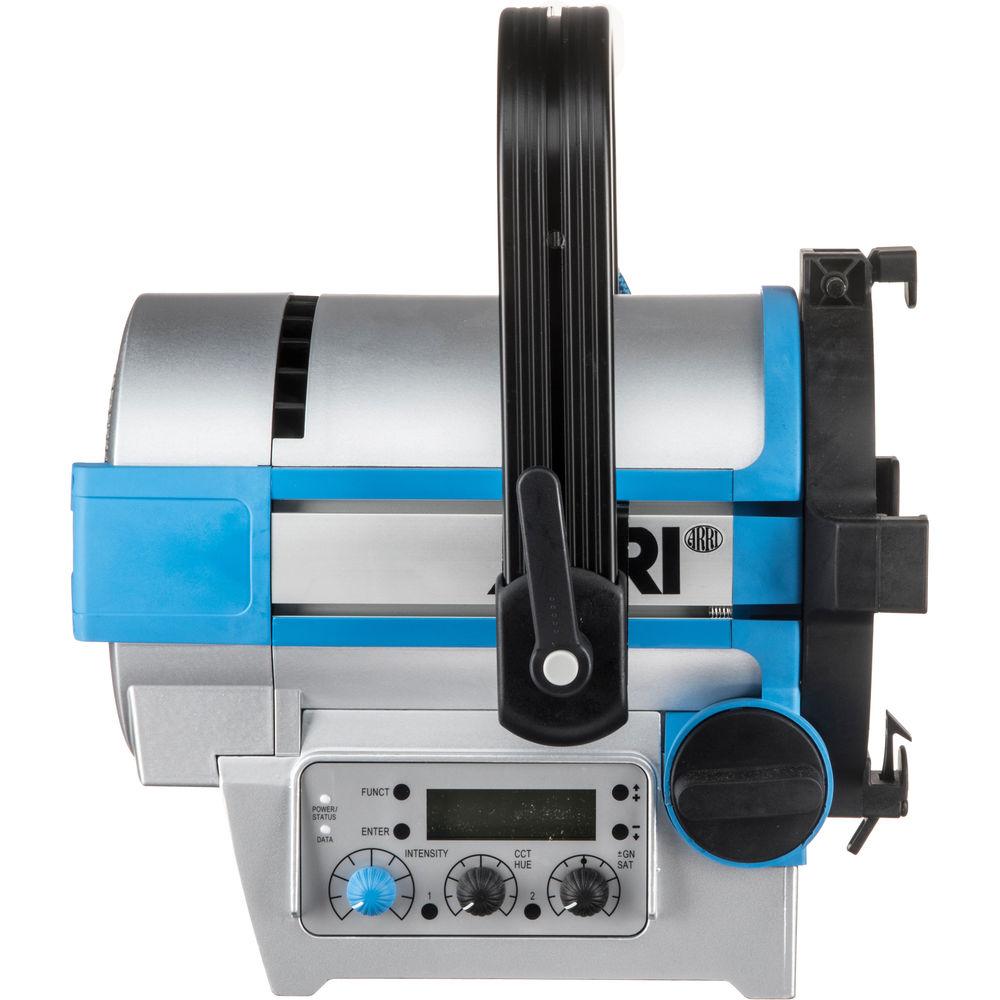

- On-board Control
- The on-board controller has manual intensity adjustment and additional controls for color temperature as well as plus/minus green to adjust hue and saturation at the touch of a button.
- Energy Savings
- L-Series fixtures reduce electricity usage by 75% and their LED light engines last 200 times longer than normal bulbs, when compared to conventional tungsten Fresnels. These and other cost-saving attributes will combine to affect a rapid return on your investment.
- Location Applications
- Lighting teams working on location will love the versatility they can achieve in small to medium-size packages. Several ARRI L5 Fresnels can be run off a single 20A, 120V outlet, as opposed to only two or three 500W tungsten Fresnels.
- Upgradeable Technology

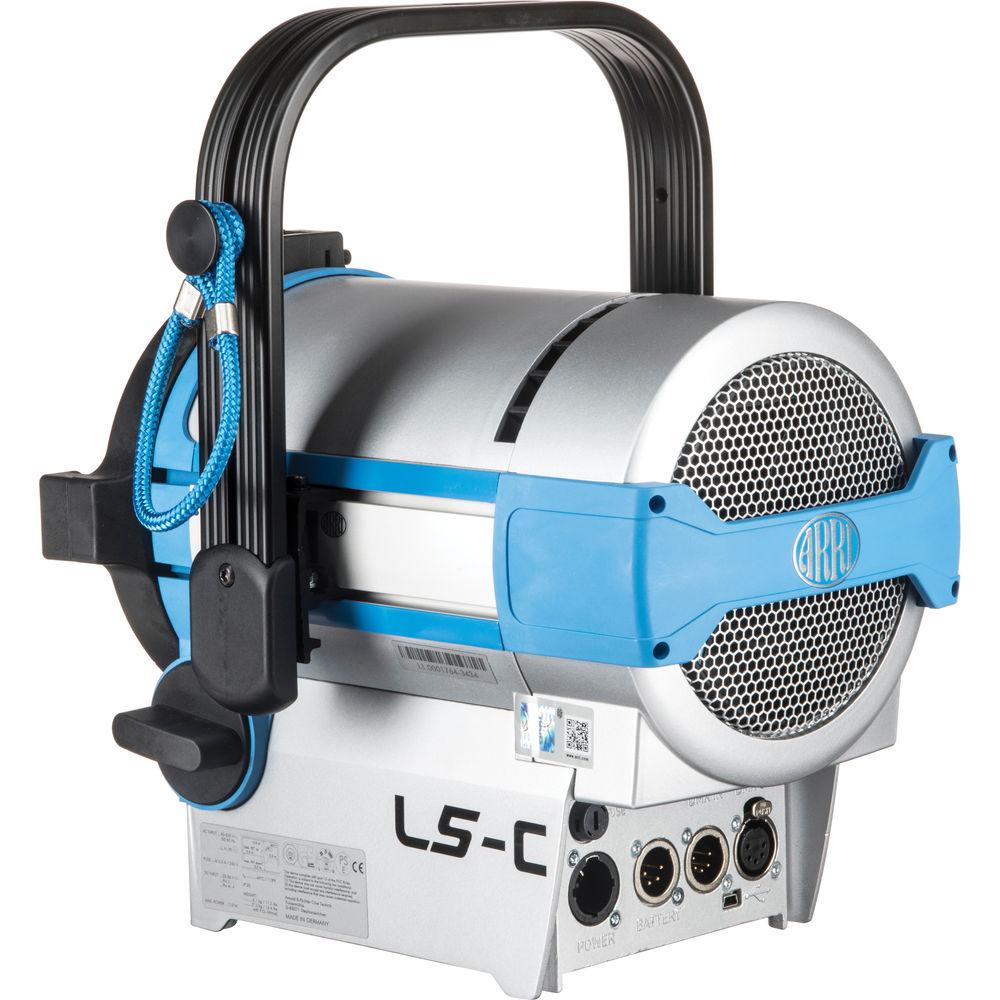

- The L5-C is an expandable platform designed to adapt with the latest enhancements in LED chip performance. The firmware is upgradeable through the USB port on the rear of each unit, accommodating future control protocols such as ACN and incorporating other system enhancements that may become available in due course.
- Photometrics
- At 3,200K, 50°
372 lux/35 fc at 9.8' (3.0 m)
134 lux/12 fc at 16.4' (5.0 m)
68 lux/6.0 fc at 23' (7.0 m)
41 lux/4.0 fc at 29.5' (9.0 m)
At 3,200K, 30°
917 lux/85 fc at 9.8' (3.0 m)
330 lux/31 fc at 16.4' (5.0 m)
168 lux/16 fc at 23' (7.0 m)
102 lux 9.0 fc at 29.5' (9.0 m)
At 3,200K, 15°
3,122 lux/290 fc at 9.8' (3.0 m)
1,124 lux/104 fc at 16.4' (5.0 m)
573 lux/53 fc at 23' (7.0 m)
347 lux/32 fc at 29.5' (9.0 m)
At 5,600K, 50°
406 lux/38 fc at 9.8' (3.0 m)
146 lux/14 fc at 16.4' (5.0 m)
74 lux/7.0 fc at 23' (7.0 m)
45 lux/4.0 fc at 29.5' (9.0 m)
At 5,600K, 30°
989 lux/92 fc at 9.8' (3.0 m)
356 lux/33 fc at 16.4' (5.0 m)
182 lux/17 fc at 23' (7.0 m)
110 lux/10 fc at 29.5' (9.0 m)
At 5,600K, 15°
3,361 lux/312 fc at 9.8' (3.0 m)
1,210 lux/112 fc at 16.4' (5.0 m)
617 lux/57 fc at 23' (7.0 m)

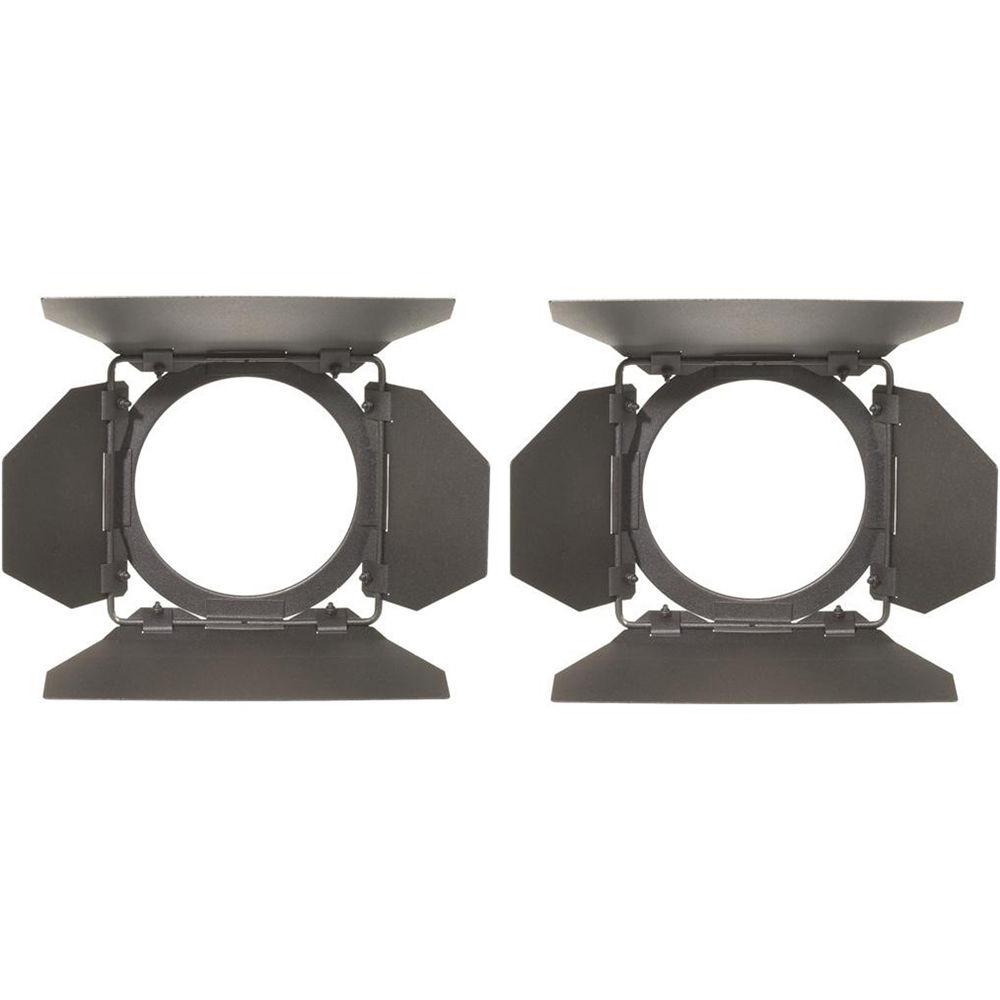

373 lux/35 fc at 29.5' (9.0 m) - 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR This is an ARRI 4-Leaf Barndoor Set for the 650W Fresnel, 200W HMI, 400W Pocket PAR, and Pocket Lite. Barndoors attach to the front of a light and are used to restrict light from areas of a set. They have either four or eight leaves that can be adjusted. ARRI barndoors are heat resistant and rotatable.

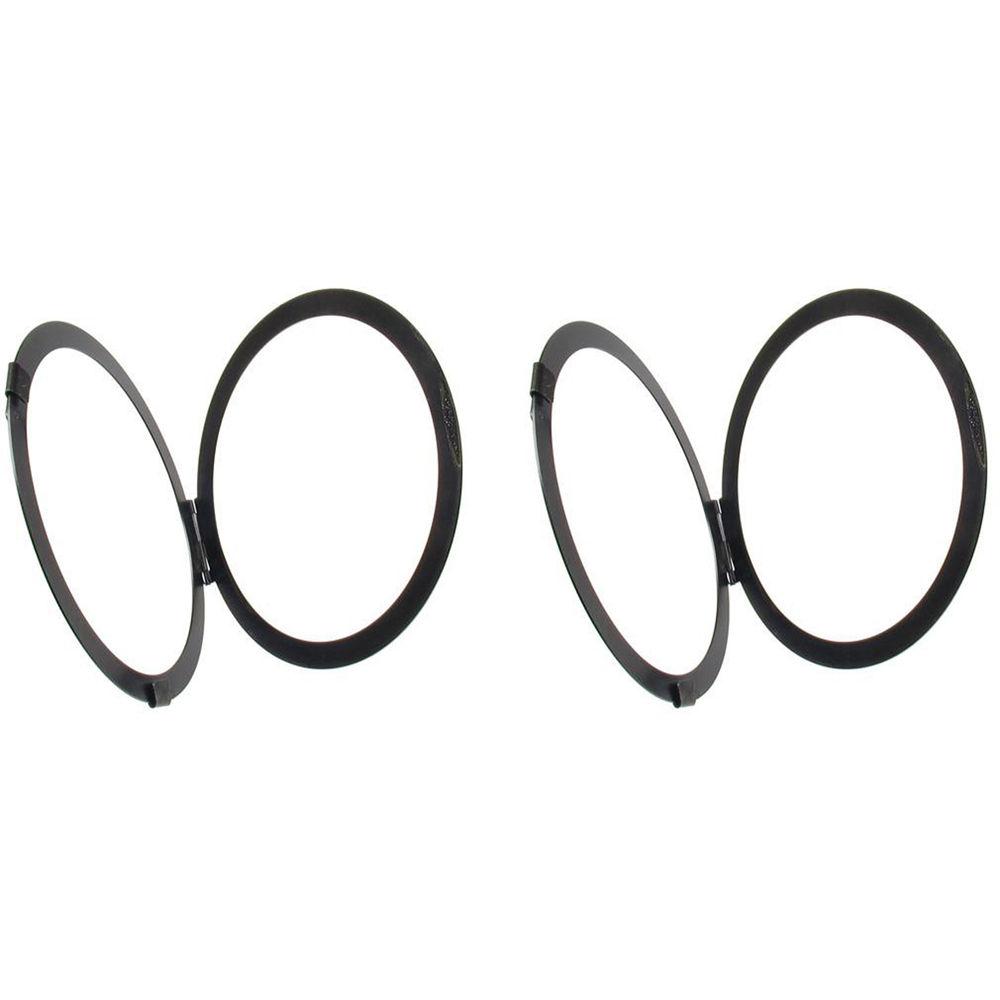

- Filter Frame for 650W Fresnel, 200W HMI Fresnel Arri Filter Frames are circular and heat resistant. Filters can be cut and sandwiched into them, and they slide into lamphead accessory holders. Sizes are a little bit larger than the fresnels.

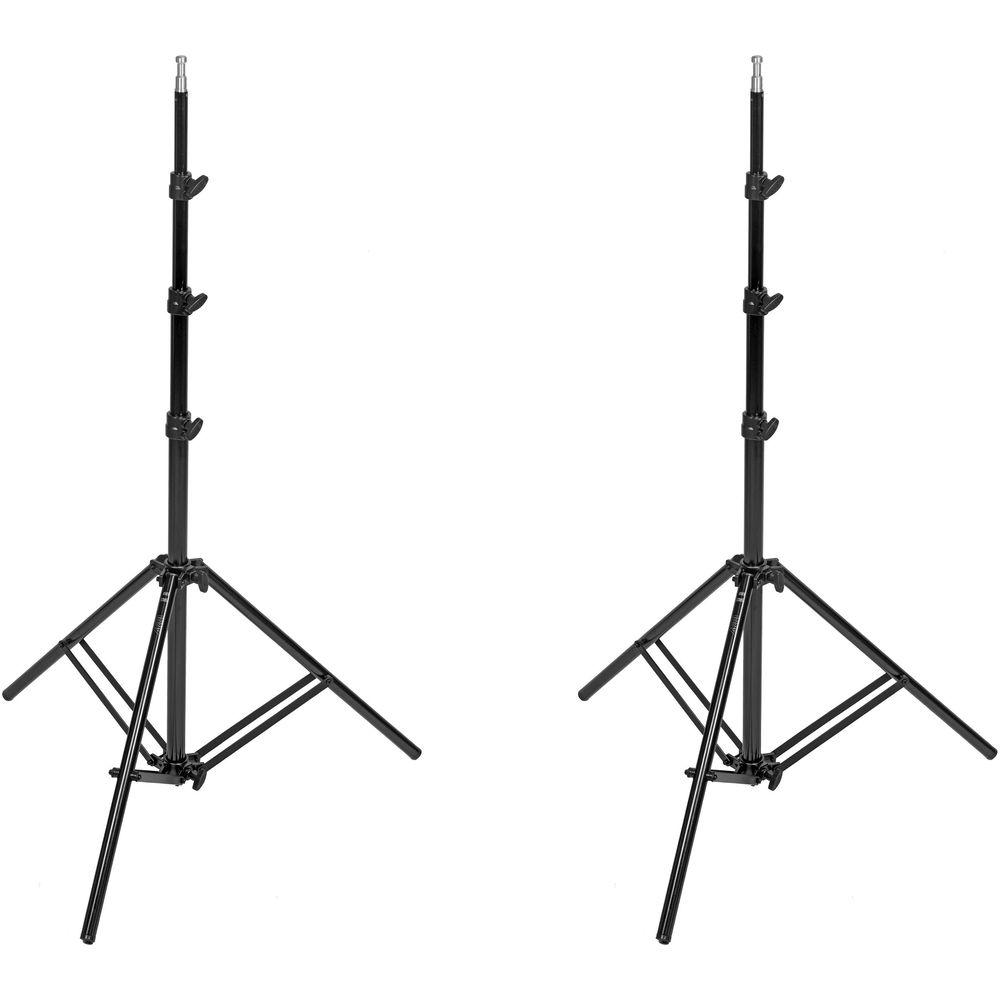

- AS-01 Lightweight Light Stand 8.5' The 8.5' ARRI Lightweight Light Stand is designed to hold small light fixtures like the ARRI Fresnel 150. It packs easily for location work.

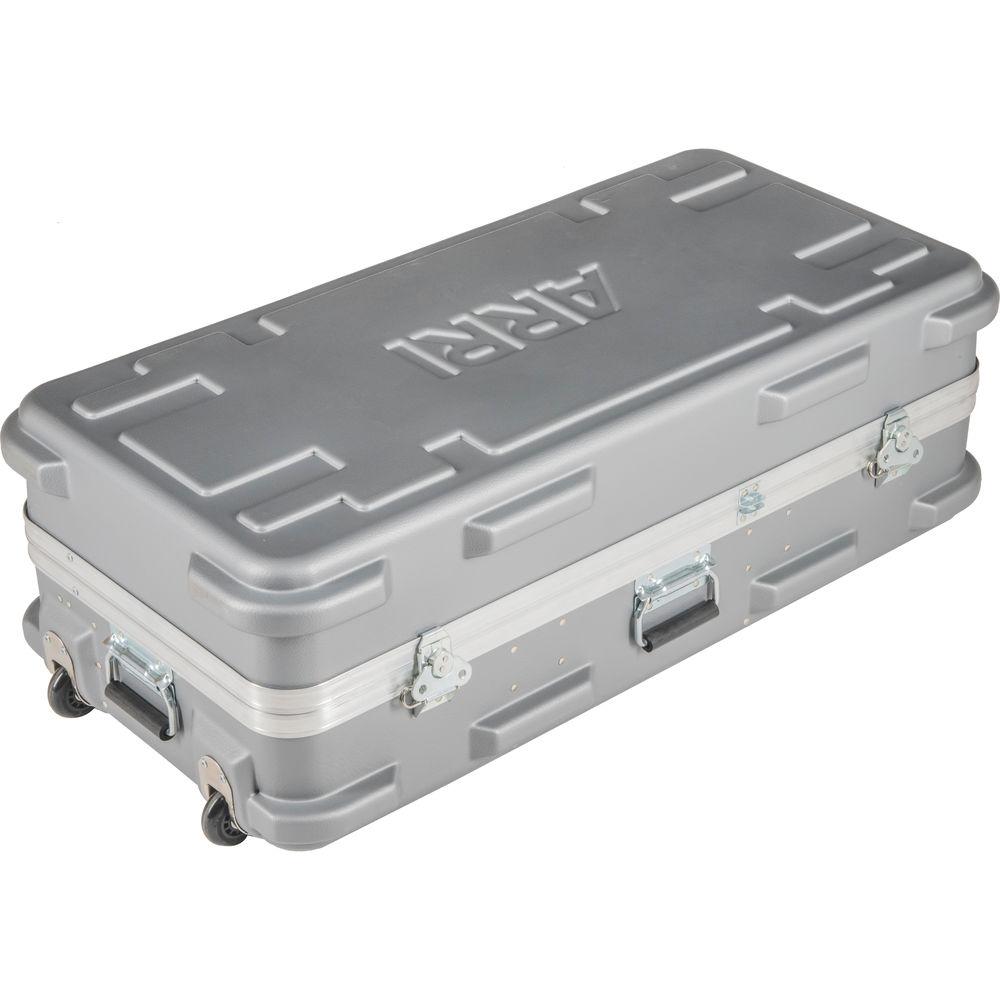

- Heavy Duty Case for Arrisoft This is a hard shell, aluminum reinforced case designed to hold the Arrisoft 1000 Head, or any other light head with dimensions of 5.5 x 13 x 12.5 inches or less. A section is provided for storage of cables.
In the Box Bundle Items 2 x L5-C 5" LED Fresnel (Silver/Blue, Stand Mount) essseaffrzdevyzdfaxqxbzetqeq 2 x 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR essseaffrzdevyzdfaxqxbzetqeq 2 x Filter Frame for 650W Fresnel, 200W HMI Fresnel - One Year Manufacturer's Warranty
2 x AS-01 Lightweight Light Stand 8.5' essseaffrzdevyzdfaxqxbzetqeq Heavy Duty Case for Arrisoft User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI L5-C 2-Light LED Kit III in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - L5-C 5" LED Fresnel (Silver/Blue, Stand Mount)
| | | Beam Angle | 14 to 50° | | Color Temperature | 2800 to 10,000K ± 100K (with 200K Shift over Lifetime) | | Color Accuracy Standard | CRI 95 at 3200K
CRI 95 at 6600K | | Cooling System | Fan | | Dimming | Yes, 0 to 100% | | Display | None | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | Flood: 15.5 x 10.9 x 11.0" / 394.0 x 278.0 x 280.0 mm (Including Yoke)
Spot: 15.5 x 10.9 x 14.7" / 394.0 x 278.0 x 373.0 mm (Including Yoke) | | Fixture Weight | 11.2 lb / 5.1 kg | | | | DMX Connector | 5-Pin XLR | | Service Connector | Mini-USB | | | | Lens Diameter | 5.39" / 137 mm | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 90 to 250 VAC, 50 / 60 Hz | | DC Input Power | 22 to 36 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 450 W | | | | Cable Type | powerCON to NEMA 5-15 | | | | IP Rating | IP20 | | Operating Temperature | -4 to 113°F / -20 to 45°C | | | | Box Dimensions (LxWxH) | 18.7 x 15.6 x 15.5" | - 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR
| | | Box Dimensions (LxWxH) | 10.45 x 8.05 x 1.45" | - Filter Frame for 650W Fresnel, 200W HMI Fresnel
| | | Box Dimensions (LxWxH) | 8.189 x 7.244 x 0.236" | - AS-01 Lightweight Light Stand 8.5'
| Load Capacity | 9 lb / 4.1 kg | | Mounting Options | 5/8" Stud | | Maximum Working Height | 8.5' / 2.6 m | | Minimum Working Height | 2.2' / 0.1 m | | Collapsed Height | 2.5' / 0.8 m | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 3.0 lb / 1.4 kg | | | | Box Dimensions (LxWxH) | 30.709 x 3.937 x 3.858" | - Heavy Duty Case for Arrisoft
| | | Box Dimensions (LxWxH) | 40.2 x 21.0 x 14.5" |
