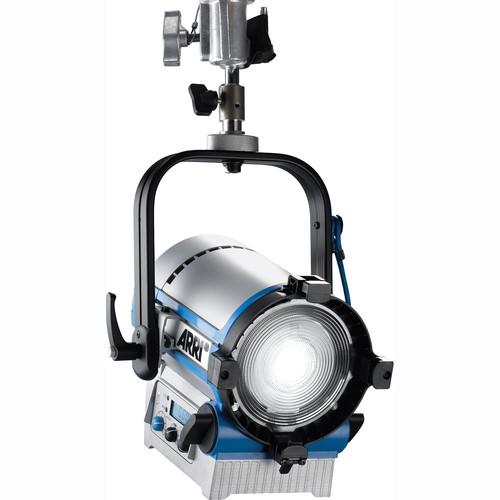

ARRI L5-DT 5" Daylight LED Fresnel

User Manual for ARRI L5-DT 5" Daylight LED Fresnel

• Product category: LED Lights ARRI
• Brand: ARRI
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ARRI LED Lights

Product description

Variable Beam Angle: 14 to 50 Degree
• A key element of the versatility of traditional Fresnels is the ability to spot and flood the beam as needed. Whether it's a flood field for a pullback shot or a tight spot for a bright highlight, the continuous focus-ability of the L-Series performs lives up to your expectations. And, unlike traditional Fresnels, which have significant light waste in spot focus, the efficient L-Series optical system maintains the same field lumens in all focus positions.

True Fresnel Lens Light Characteristics
• Whether shaping the beam to isolate talent and set elements or cutting the field to eliminate spill light, controllability is crucial to lighting. L-Series Fresnels provide the same ability to cut and shape with barndoors and flags that we have come to expect from conventional Fresnels.

Even Light Field
• Clear, defined shadows traditionally have been solely a trait of single source tungsten and daylight fixtures. ARRI L-Series Fresnels provide the same single shadow properties lighting designers expect, delivering natural results.

Tunable Daylight Output
• The L5-DT's on-board controller has manual dimming adjustment. Additional controls enable color temperature tune-ability from 5,000 to 6,500K with full minus green to plus green hue control to match existing fixtures or ambient light conditions.

Focus Knobs
• True Blue-style focus knobs provide the precise adjustment and rapid flood-to-spot that users enjoy from manual, mechanical control. Knobs on both sides of the fixture ensure easy access from all positions, eliminating the need for awkward reaching around the fixture. Full flood-to-spot can be achieved in only three turns.

Sliding Stirrups
• The ARRI sliding stirrup design enables precise adjustment of the fixture's center of gravity, to compensate for front-end accessories. It also gives the option of pulling the fixture back and reducing its hanging height.

Tilt Lock
• The strong tilt lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them.

DMX Control
• For broadcast studios, remote fixture control is of paramount importance, and all functions of the L5-DT are controllable through DMX. The L5-DT is also RDM compatible, providing bi-directional feedback and reporting of system status, hours on the light engine, calibration data from the internal color sensor and current DMX address with the ability to remotely assign and address all fixtures in a DMX network.

Energy Savings
• L-Series fixtures reduce electricity usage by 75% and their LED light engines last 200 times longer than normal bulbs, when compared to conventional tungsten Fresnels. These and other cost-saving attributes will combine to affect a rapid return on your investment.

Location Applications
• Lighting teams working on location will love the versatility they can achieve in small to medium-size packages. Several ARRI L5-DT Fresnels can be run off a single 20A, 120V outlet, as opposed to only two or three 500W tungsten Fresnels.

Upgradeable Technology
• The L5-DT is an expandable platform designed to adapt with the latest enhancements in LED chip performance. The firmware is upgradeable through the USB port on the rear of each unit, accommodating future control protocols such as ACN and incorporating other system enhancements that may become available in due course.

Photometrics
• At 5,600K, 50°
  508 lux/48 fc at 9.8' (3.0 m)
  183 lux/18 fc at 16.4' (5.0 m)
  93 lux/9.0 fc at 23' (7.0 m)
  56 lux/5.0 fc at 29.5' (9.0 m)
  At 5,600K, 30°
  1,236 lux/115 fc at 9.8' (3.0 m)
  445 lux/41 fc at 16.4' (5.0 m)
  228 lux/21 fc at 23' (7.0 m)
  138 lux/13 fc at 29.5' (9.0 m)
  At 5,600K, 15°
  4,201 lux/390 fc at 9.8' (3.0 m)
  1,513 lux/140 fc at 16.4' (5.0 m)
  771 lux/71 fc at 23' (7.0 m)
  466 lux/44 fc at 29.5' (9.0 m)
