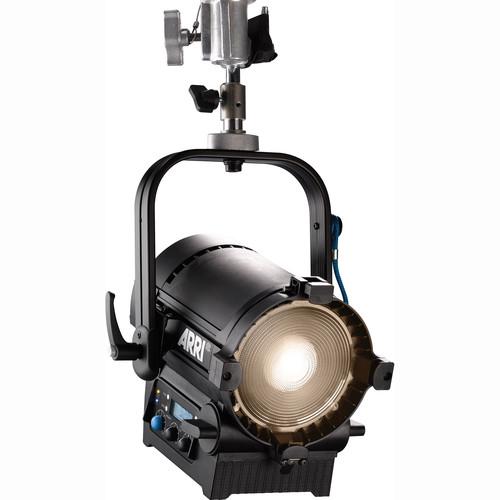

Product description ARRI continues to expand its L-Series with the introduction of the L5-DT 5" Tungsten LED Fresnel. The key characteristic of any Fresnel is flood-to-spot capability and the L5-TT offers an impressive beam angle adjustment of 14-50°.The 100-0% dimmable L5-TT is a tunable light source, allowing you to match existing fixtures with color temperatures from 2,600 - 3,600K. The on-board controller allows full minus green to plus green adjustment enabling matching of specific shades and skin tones. All functions can be controlled via DMX, an ideal feature for broadcast studios, while RDM permits monitoring of the light's status.The L5-TT LED source produces the equivalent of a 450W tungsten light while drawing only 115W for a savings of up to 75% over traditional fixtures. And low draw and heat means lower HVAC costs in the studio and a quick return on investment. You can run about fifteen L5-Cs from a 20A, 120V outlet as opposed to three or four 500W tungsten fixtures. Power options include the L5-TT's 90 - 250 VAC on-board power supply or 22-36 VDC battery options. This pole-operated version of the light has a black finish. - Variable Beam Angle: 14 to 50 Degree
- A key element of the versatility of traditional Fresnels is the ability to spot and flood the beam as needed. Unlike traditional Fresnels, which have significant light waste in spot focus, the efficient L-Series optical system maintains the same field lumens in all focus positions.
- True Fresnel Lens Light Characteristics
- Whether shaping the beam to isolate talent and set elements, or cutting the field to eliminate spill light, controllability is crucial to lighting. L-Series Fresnels provide the same ability to cut and shape with barndoors and flags that we have come to expect from conventional Fresnels.
- Even Light Field
- Clear, defined shadows traditionally have been solely a trait of single source tungsten and daylight fixtures. ARRI L-Series Fresnels provide the same single shadow properties lighting designers expect, delivering natural results.
- Tunable Tungsten Output
- The L5-TT's on-board controller has manual dimming adjustment. Additional controls enable color temperature tunability from 2,600 to 3,600K with full minus green to plus green hue control to match existing fixtures or ambient light conditions.
- Focus Knobs
- True Blue-style focus knobs provide the precise adjustment and rapid flood-to-spot that users enjoy from manual, mechanical control. Knobs on both sides of the fixture ensure easy access from all positions, eliminating the need for awkward reaching around the fixture. Full flood-to-spot can be achieved in only three turns.
- Sliding Stirrups
- The ARRI sliding stirrup design enables precise adjustment of the fixture's center of gravity, to compensate for front-end accessories. It also gives the option of pulling the fixture back and reducing its hanging height.
- Tilt Lock
- The strong tilt lock provides extremely secure locking, eliminating movement and slippage and ensuring that the fixtures will stay where you put them.
- DMX Control
- For broadcast studios, remote fixture control is of paramount importance, and all functions of the L5-TT are controllable through DMX. The L5-TT is also RDM-compatible, providing bi-directional feedback and reporting of system status, hours on the light engine, calibration data from the internal color sensor, and current DMX address with the ability to remotely assign and address all fixtures in a DMX network.
- Energy Savings
- L-Series fixtures reduce electricity usage by 75%, and their LED light engines last 200 times longer than normal bulbs when compared to conventional tungsten Fresnels. These and other cost-saving attributes will combine to affect a rapid return on your investment.
- Location Applications
- Lighting teams working on location will love the versatility they can achieve in small to medium-size packages. Several ARRI L5-TT Fresnels can be run off a single 20A, 120V outlet, as opposed to only two or three 500W tungsten Fresnels.
- Upgradeable Technology
- The L5-TT is an expandable platform designed to adapt with the latest enhancements in LED chip performance. The firmware is upgradeable through the USB port on the rear of each unit, accommodating future control protocols such as ACN and incorporating other system enhancements that may become available in due course.
- Photometrics
- At 3,200K, 50°
400 lux/37 fc at 9.8' (3.0 m)
144 lux/13 fc at 16.4' (5.0 m)
73 lux/7.0 fc at 23' (7.0 m)
44 lux/4.0 fc at 29.5' (9.0 m)
At 3,200K, 30°
1,056 lux/98 fc at 9.8' (3.0 m)
380 lux/35 fc at 16.4' (5.0 m)
194 lux/18 fc at 23' (7.0 m)
117 lux/11 fc at 29.5' (9.0 m)
At 3,200K, 15°
3,489 lux/324 fc at 9.8' (3.0 m)
1,256 lux/117 fc at 16.4' (5.0 m)
641 lux/60 fc at 23' (7.0 m)
388 lux/36 fc at 29.5' (9.0 m) In the Box ARRI L5-TT 5" Tungsten LED Fresnel (Black, Pole Operated) Limited 1-Year Warranty User Manual PDF 470.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI L5-TT 5" Tungsten LED Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI L5-TT Specs | Light Source | LED | | Type | 5.39" (137 mm) Fresnel | | Yoke | Pole operated | | Beam Angle | 14 - 50° (Half peak angle) | | Rating | 450 W | | Color Range | Tungsten balance, color tunable: 2,600 - 3,600K
Full plus/minus green adjustment
Tolerance: +/- 100K (nominal), +/- 1/8 Green-Magenta (nominal)
Estimated lifetime color shift: < 200K | | Lamp Life | 50,000 Hours | | CRI | > 94 | | Dimming Range | 100 - 0% | | Operating Voltage | 90-250 VAC, 50/60 Hz
22-36 VDC | | Power Consumption | 115 V Nominal | | IP Rating | IP20 | | Cooling | Fan | | Operating Temperature | -4 to 113°F (-20 to +45°C) | | Control | 5-Pin DMX in and through, on-board controller
Mini-USB: DMX setup, fixture status and firmware upgrade through software
Remote Device Management (RDM): DMX setup, hour counter and standard RDM commands | | Power Connections | powerCON TRUE1 to bare ends | | Tilt | +/- 90° | | Mount | Baby 5/8" (16 mm) / Junior 1 1/8" (28 mm) combo pin | | Certification and Compliance | CE, GS, FCC, cNRTL, CB, ISO9001:2000 | | Finish | Black | | Dimensions | Full flood position including yoke: 15.5 x 10.9 x 11" (394 x 278 x 280 mm)
Full spot position including yoke: 15.5 x 10.9 x 14.7" (394 x 278 x 373 mm)
Accessory size: 6.62" (168 mm) | | Weight | 15.4 lb (7.0 kg) |
