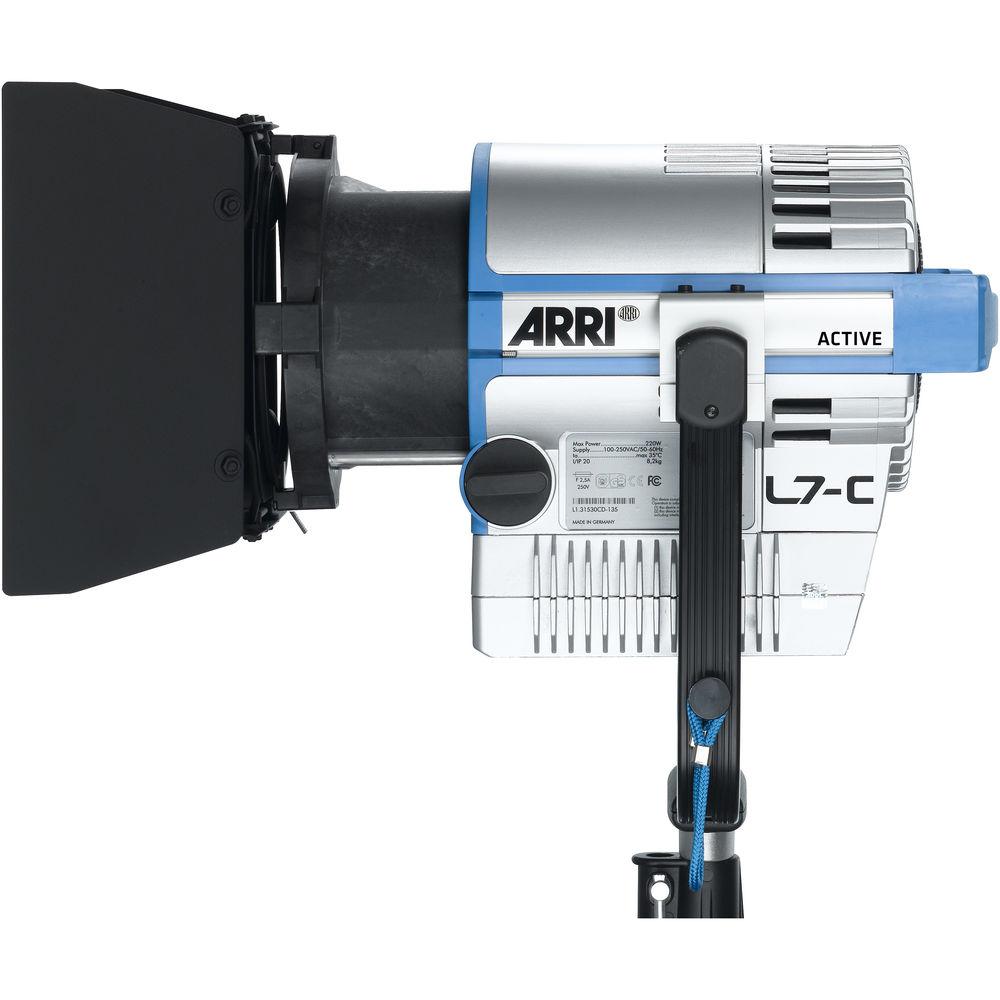

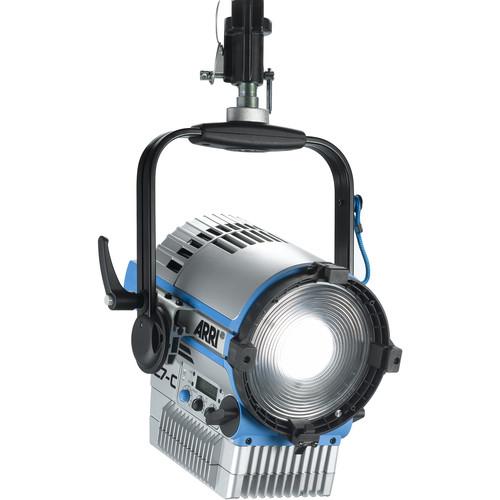

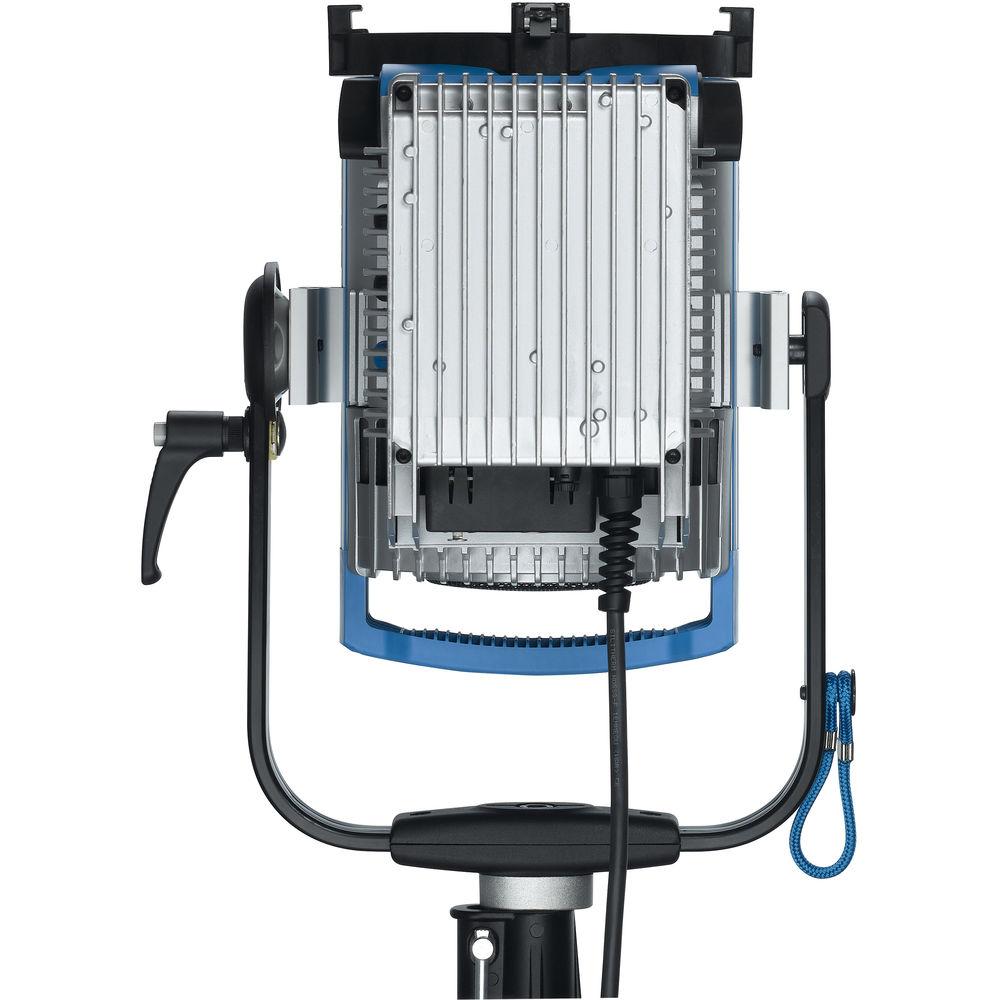

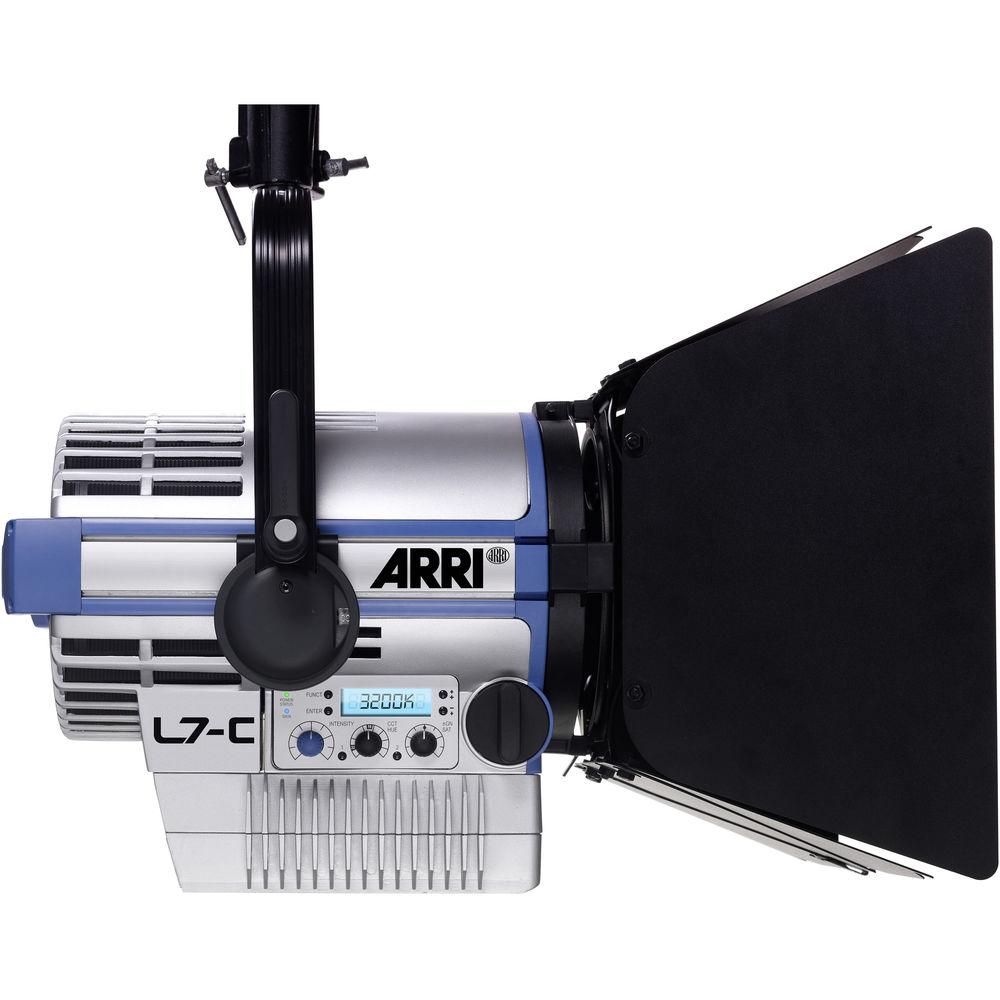

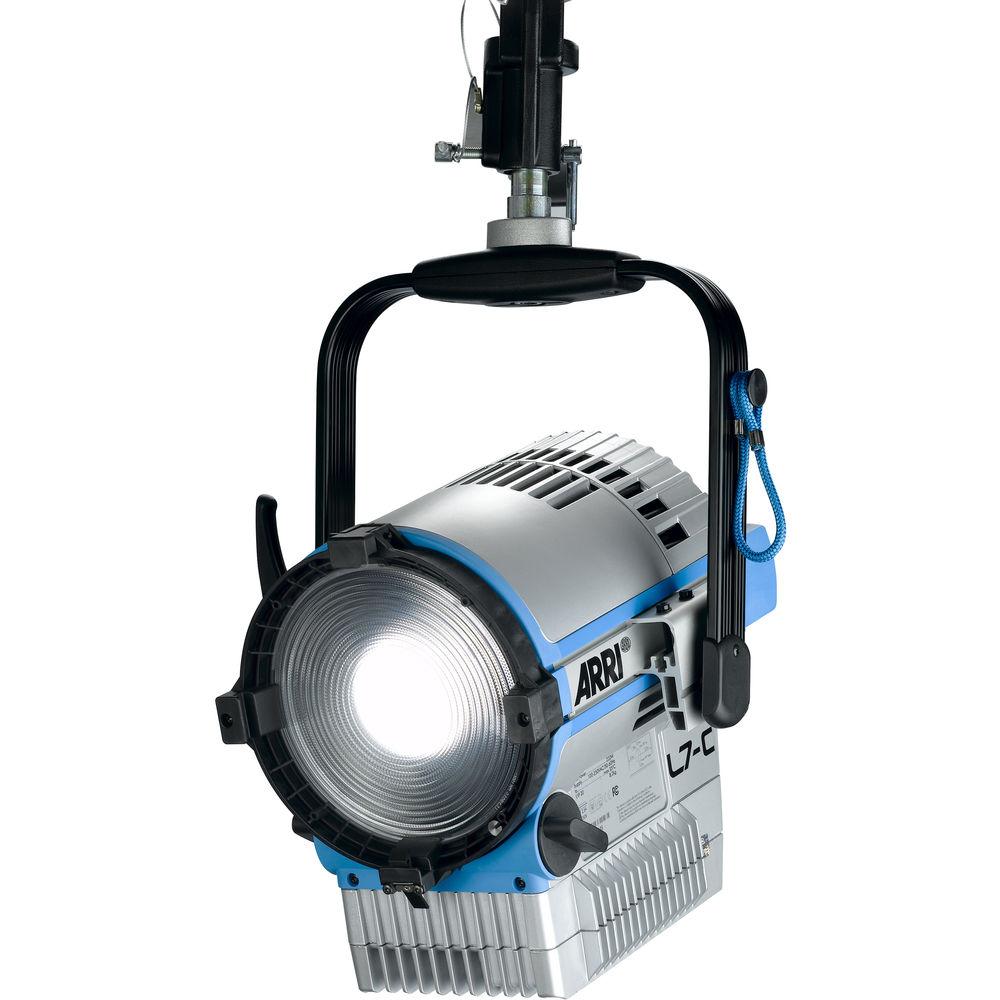

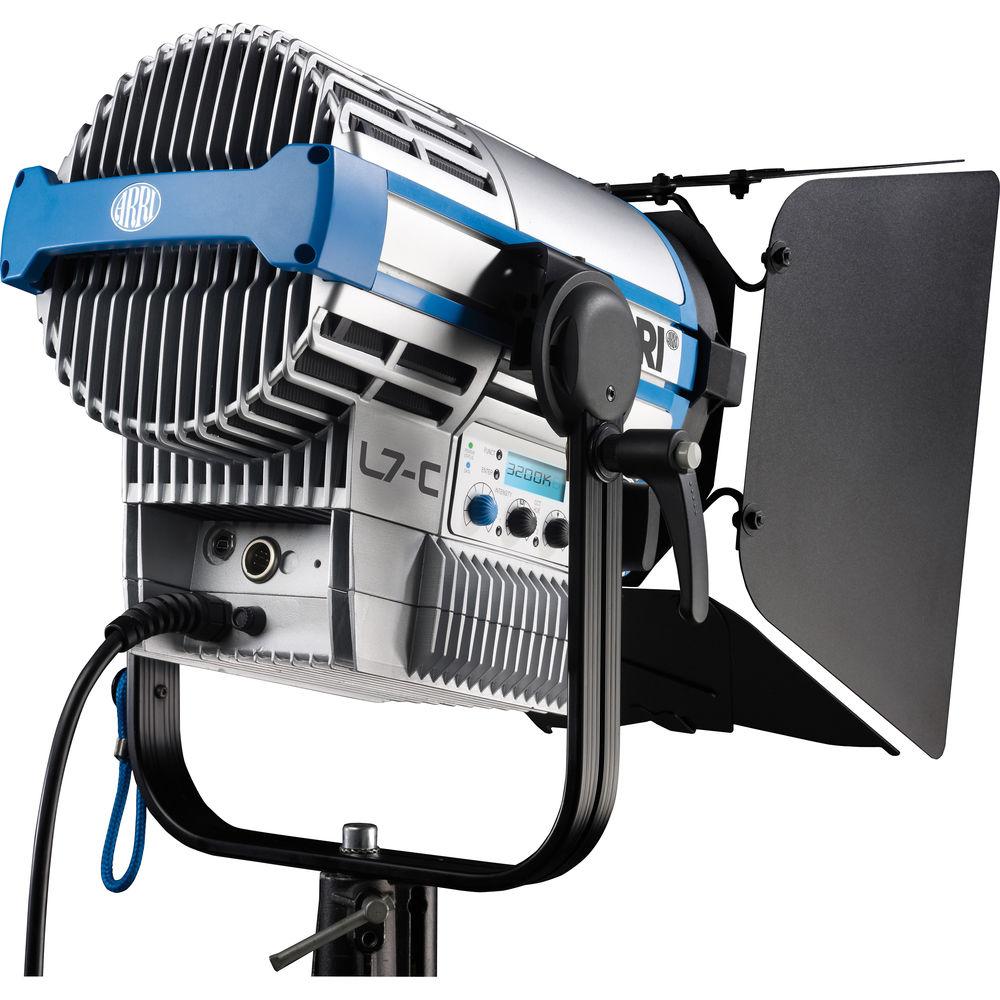

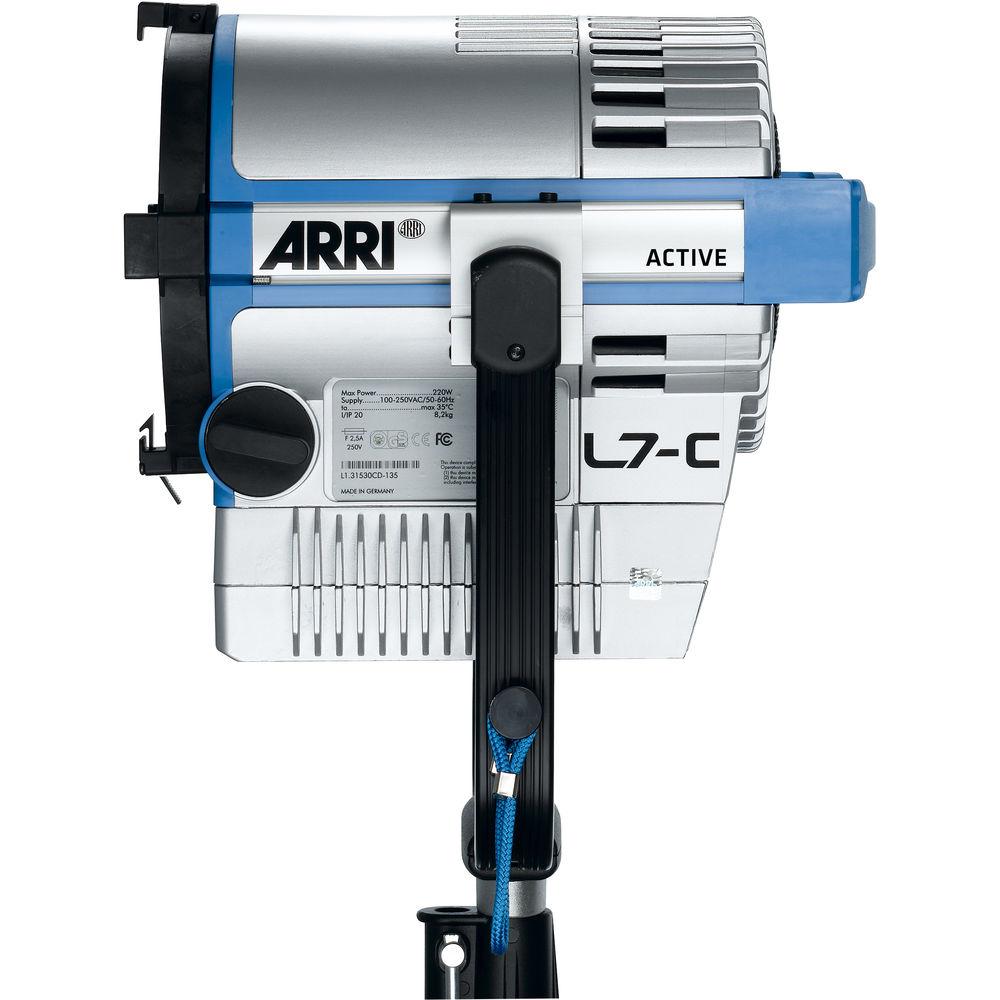

Product description The Black, Pole Operated L7-C LE2 Color LED Fresnel with powerCON Cable is part of ARRI's continuing effort to replace traditional Fresnels with powerful LED versions that offer unprecedented color control. The L7-C LE2 shares many characteristics with its predecessor, but the most obvious improvement is a 25% boost in power, increasing the light's tungsten equivalency from 750W to 1000W. This pole-operated version is meant for overhead mounting on pipe lengths or a grid. Pan, tilt, and focus are controlled from below with an optional pole using the 3 corresponding cups on the unit's special yoke.The key characteristic of any Fresnel is flood-to-spot capability, and the L7-C LE2 meets and exceeds expectations with an impressive beam angle of 15-50°. There's no learning curve when swapping out L7-C LE2 fixtures for fixtures with standard Fresnels. In fact, you're not going to be moving them around or juggling scrims in high places thanks to the 100 - 0% on-board dimming.The L7-C LE2 is a "fully tune-able" white light source too, allowing you to match existing fixtures from a warm 2800K to ice-blue 10,000K. The on-board controller allows manual intensity control as well as color temperature and +/- green. Specific color shades and skin tones can be matched through the full gamut color mixing feature. All functions can be controlled via DMX, an ideal feature for broadcast studios. The hybrid cooling system allows for cooling both actively (with a fan) or passively (without a fan) for times when the set needs to be dead quiet. The L7-C LE2's 1000W equivalent output draws only 160W during normal operation, making possible a savings of a 75% over similar output tungsten lights. And low heat means lower AC bills in the studio. You can actually run 9x L7-C LE2's from a 20A, 120VAC outlet as opposed to two 1000W or three 650W standard fixtures. - Attributes and Benefits
-
- L7-C LE2s with Light Engine 2 are 25% brighter than previous versions
- Fully tuneable from 2800 - 10,000K
- Plus/Minusgreen correction
- Vibrant color selection (RGB+W color gamut)
- Hue and saturation control
- High color rendering
- Low power consumption (160W nominal)
- Fully dimmable

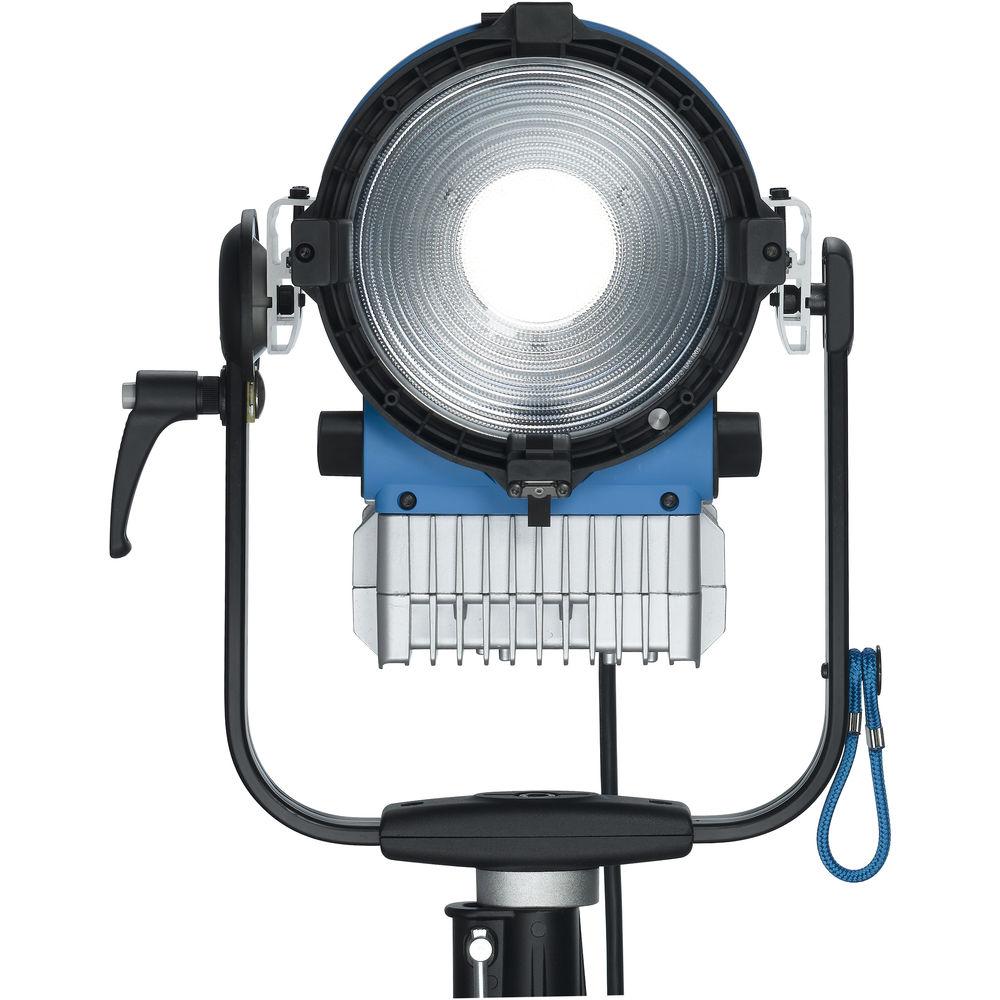

- True Fresnel lens light characteristics from LEDs

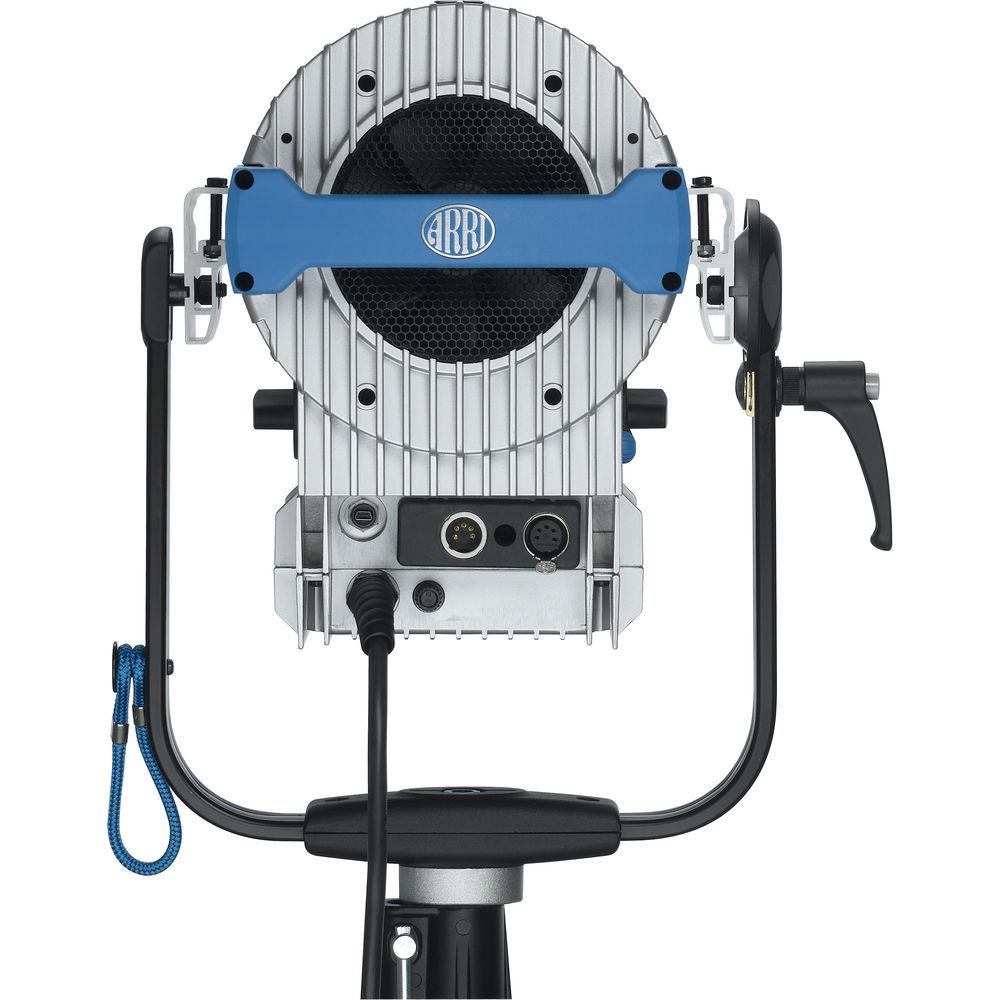

- Onboard DMX In and Out
- RDM implementation
- USB Mini connection for firmware updates
- Available in blue/silver and black

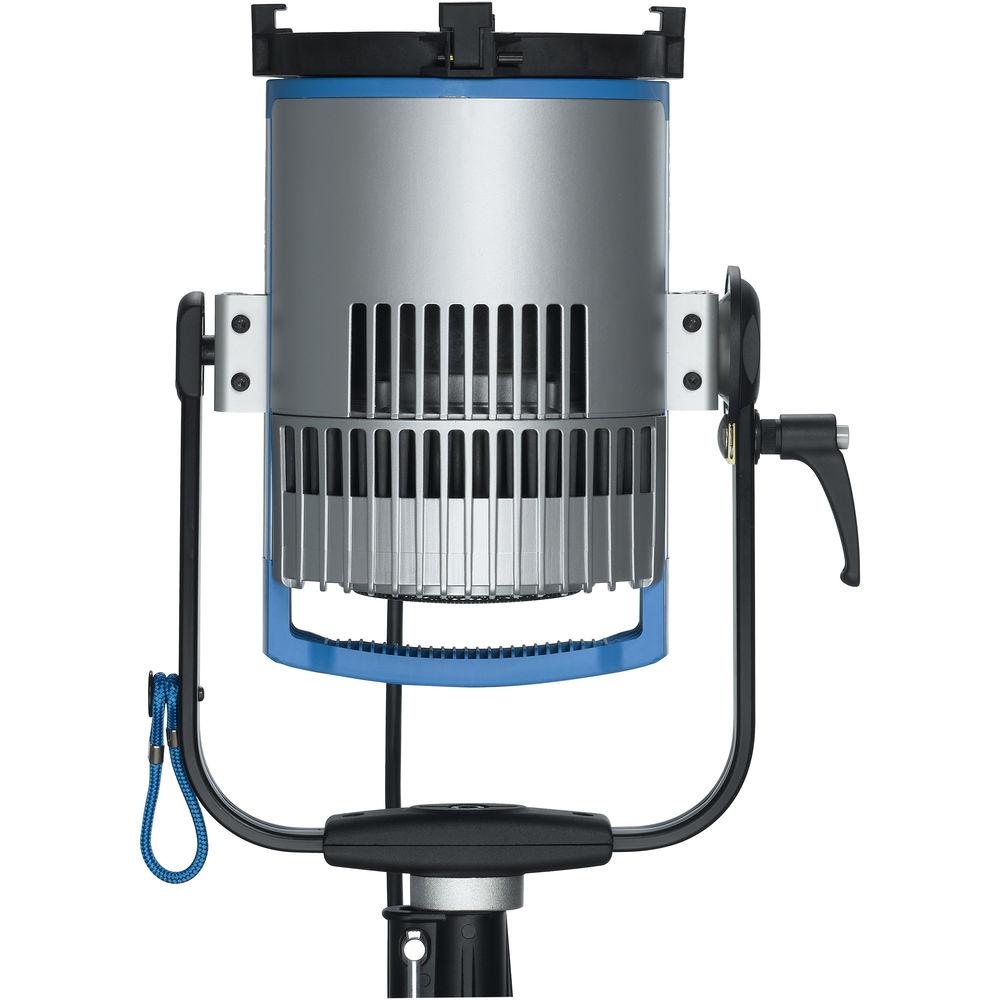

- Fan mode selection
- Photometrics
- @ 3200K
Spot 15°:
• 9.8' (3.0 m): 6689 lux / 621 fc
• 16.4' (5.0 m): 2408 lux / 224 fc
• 23' (7.0 m): 1229 lux / 114 fc
• 29.5' (9.0 m): 743 lux / 69 fc
Medium: 30°:
• 9.8' (3.0 m): 1980 lux / 184 fc
• 16.4' (5.0 m): 713 lux / 66 fc
• 23' (7.0 m): 364 lux / 34 fc
• 29.5' (9.0 m): 220 lux / 20 fc
Flood: 50°
• 9.8' (3.0 m): 807 lux / 75 fc
• 16.4' (5.0 m): 290 lux / 27 fc
• 23' (7.0 m): 148 lux / 14 fc
• 29.5' (9.0 m): 90 lux / 8 fc
@ 5600K
Spot 15°:
• 9.8' (3.0 m): 7511 lux / 698 fc
• 16.4' (5.0 m): 2704 lux / 251 fc
• 23' (7.0 m): 1380 lux / 128 fc
• 29.5' (9.0 m): 835 lux / 78 fc
Medium: 30°:
• 9.8' (3.0 m): 2210 lux / 205 fc
• 16.4' (5.0 m): 796 lux / 74 fc
• 23' (7.0 m): 406 lux / 38 fc
• 29.5' (9.0 m): 246 lux / 23 fc
Flood: 50°
• 9.8' (3.0 m): 898 lux / 83 fc
• 16.4' (5.0 m): 323 lux / 30 fc
• 23' (7.0 m): 165 lux / 15 fc
• 29.5' (9.0 m): 100 lux / 9 fc In the Box ARRI L7-C LE2 LED Fresnel with powerCON Cable (Black, Pole Operated) Limited 1-Year Warranty Data Sheet PDF 590.2kbcwsdturefd Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI L7-C LE2 LED Fresnel with powerCON Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI L7-C Specs | Rating | 160 W
1000 W tungsten equivalent | | Light Source | LED, Estimated Lamp Life: 50,000 hr | | Lens | 7.0" (175 mm) | | Beam Angle | 15 - 50° (Half peak angle) | | Color Range | Color Tune-able: 2800 - 10,000K continuously variable Correlated Color Temperature
Full RGB+W color gamut with hue and saturation control
Full Minusgreen to Full Plusgreen, full gamut color mixing
Color Temperature Tolerance: +/- 100K (nominal), +/- 1/8 green-magenta (nominal)
Estimated Color Shift over Time: < 200K | | CRI | CRI 94 (3200 to 6500K), TLCI Average >90 | | Dimming | 0 - 100% Continuous | | Control | 5-Pin DMX in and through, optional on-board controller, Mini-USB
RDM: DMX setup, hour counter and standard RDM commands
Mini-USB Interface: DMX setup, fixture status and firmware upgrade through PC software | | Weather Resistance | IP20 | | Cooling | Hybrid: Runs with or without fan | | Mount | 1-1/8" (28 mm) Junior stud, pan, tilt and focus | | Cable | Bare ends cable: 5.0' (1.5 m) | | Operating Temperature | -4 to 113°F (120 to +45°C) | | Tilt Angle | +/- 90° | | Control | 5-Pin DMX + RDM, on-board controller, Mini-USB | | Voltage | 100 - 250 VAC, 50/60 Hz | | Power Consumption | 160 W nominal, 220 W maximum | | Certifications | CE, GS, CB, FCC, cNRTLus, ISO9001:2000 | | Dimensions | 18.4 x 13.9 x 13.8" (46.7 x 35.2 x 35 cm) | | Weight | 22 lb (10 kg) | | | | Package Weight | 31.4 lb | | Box Dimensions (LxWxH) | 21.0 x 19.0 x 14.0" |
