Product description

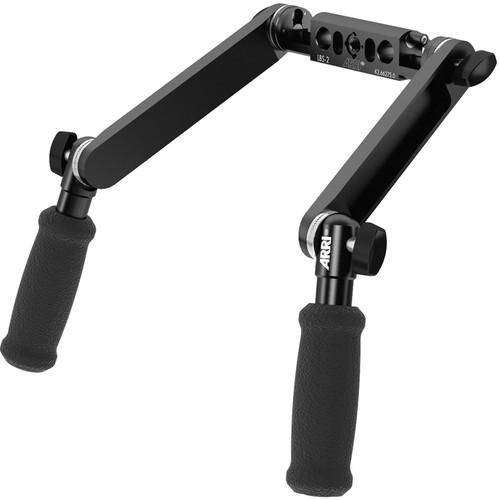

Use the ARRI LBS-2 Handgrip Set without On/Off Switch to support any 15mm rod–based video camera. This handheld rig is designed with two camera handgrips, two long extensions, and an LBS-2 lightweight bridge support. Each component features standard ARRI rosettes with individual rotation angles of 360°. The extended length and adjustable angles of the handles enable an operator to configure the rig to their preference.This lightweight set is designed for physical camera support only, and does not include an electronic on/off switch. An integrated ARRI 3/8"-16 mount enables you to attach an accessory to the included LBS-2 bridge support.
  • Handgrip without On/Off Switch The ARRI Handgrip features a contoured rubber grip and a standard ARRI rosette connection. Designed for physical camera support only, this handgrip does not include an electronic on/off switch. The handgrip can be rotated 360°, and fastens via its integrated thumb-lever.
    • Standard 360° ARRI rosette connector
    • Contoured rubber handle for a comfortable grip
    • Thumb-lever fastener
  • Long Handgrip Extension (7.7") The ARRI Long Handgrip Extension fits between an ARRI handgrip and a rosette-based camera, bridgeplate, or other support component. This longer version of two available flat extensions adds over 7" of length to the handgrip. Standard ARRI rosettes at both ends enable each operator to set the angles of the handgrip and the extension as they prefer.The rosettes' design ensures stability, and the extension fastens with an integrated thumb-lever. The ARRI Long Handgrip Extension can also be used to mount rosette-based camera accessories.

    Features

    • Compatible with ARRI standard rosettes
    • Extends handgrip over 7", and provides 360° of rotation
  • LBS-2 Lightweight Bridge Support The ARRI LBS-2 Lightweight Bridge Support enables you to add 15mm rods and accessories to your camera rig. Mount the LBS-2 on a pair of 15mm LWS rods and fasten using the thumb-levers. A handgrip can be attached to each of the two integrated rosettes, and an accessory can be added using the ARRI 3/8"-16 mount in the center of the LBS-2.

    Features

    • Two handgrip rosettes
    • One ARRI 3/8"-16 accessory mount
    • Thumb-lever rod locks
In the Box Bundle Items 2 x Handgrip without On/Off Switch vtbtbvscabvwteasffxtfydbsr
  • Limited 1-Year Warranty
2 x Long Handgrip Extension (7.7")
  • Limited 1-Year Warranty
LBS-2 Lightweight Bridge Support
  • Limited 1-Year Warranty
