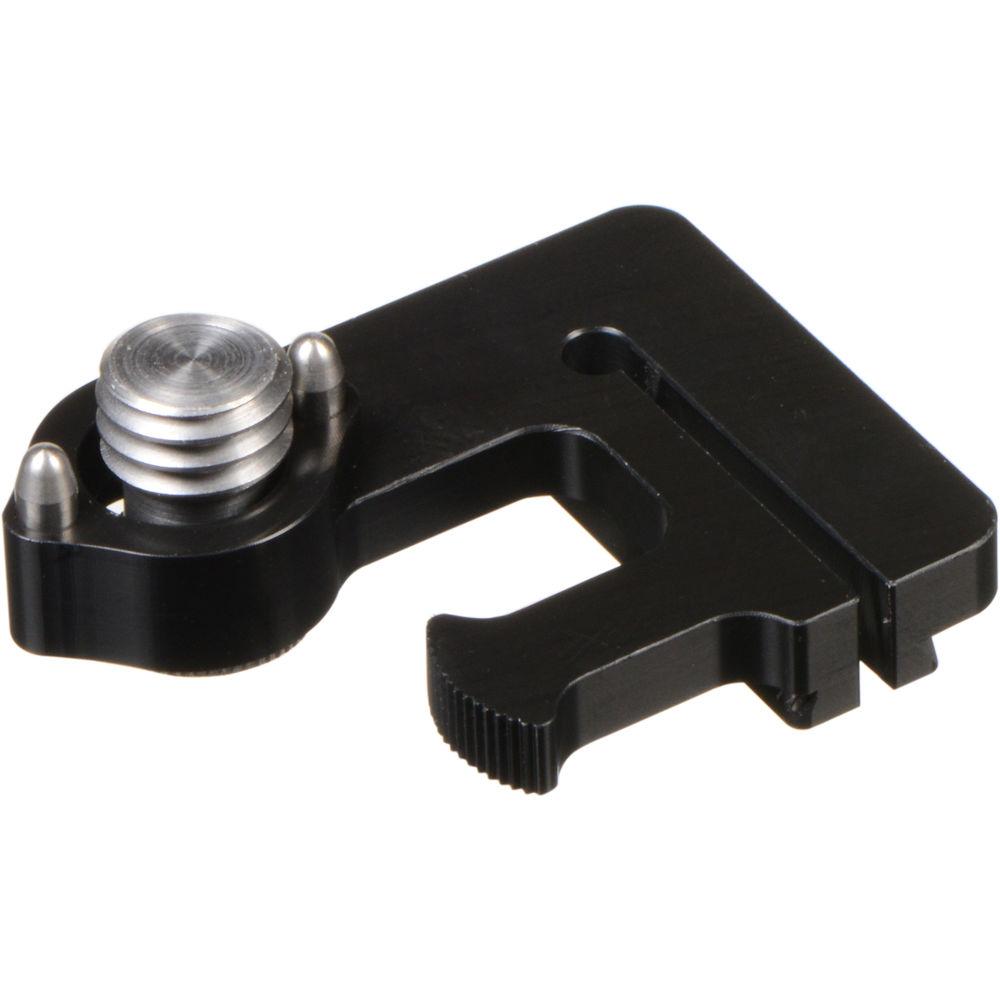

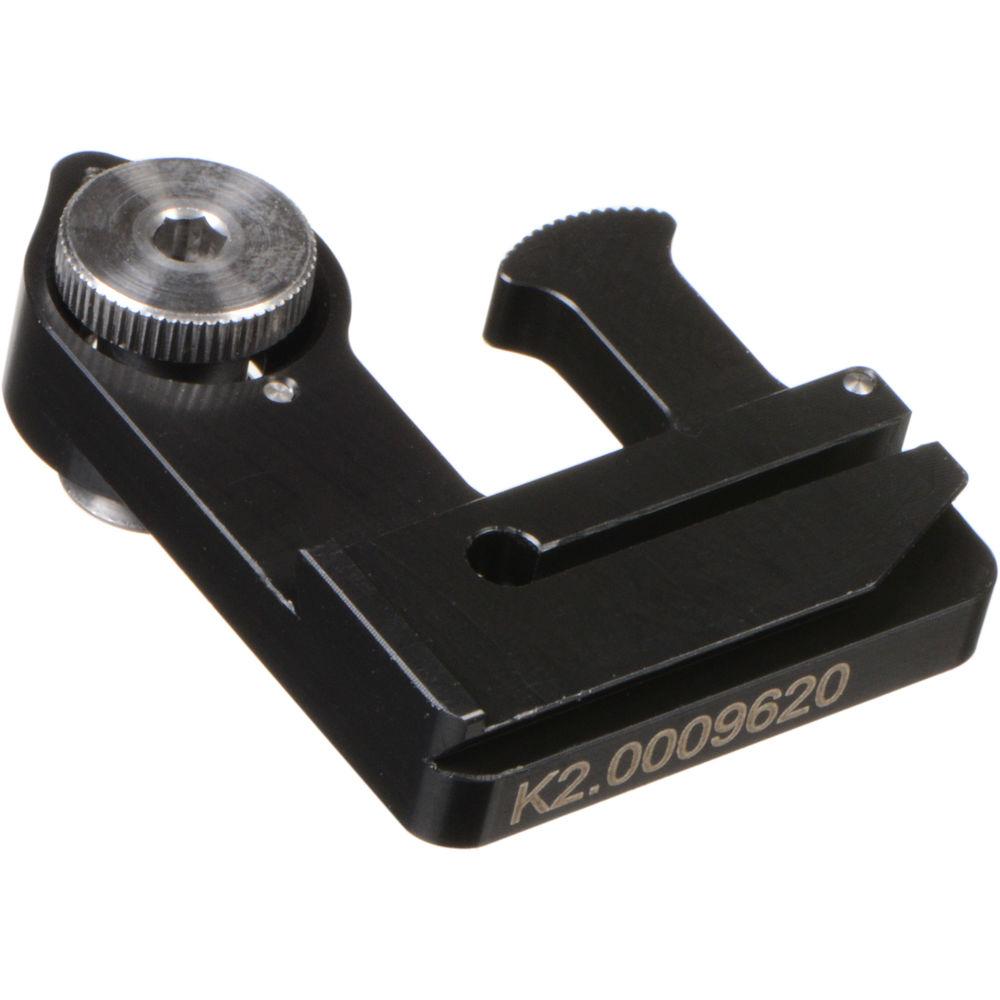

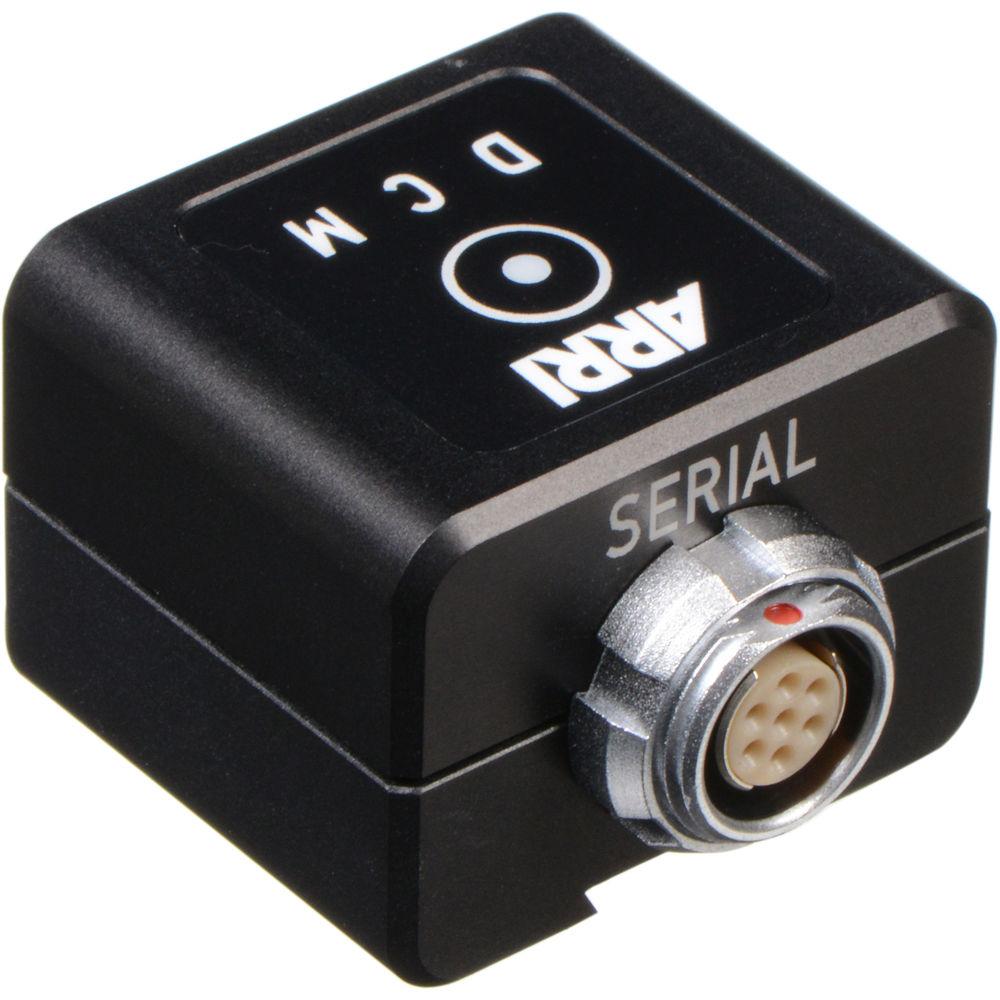

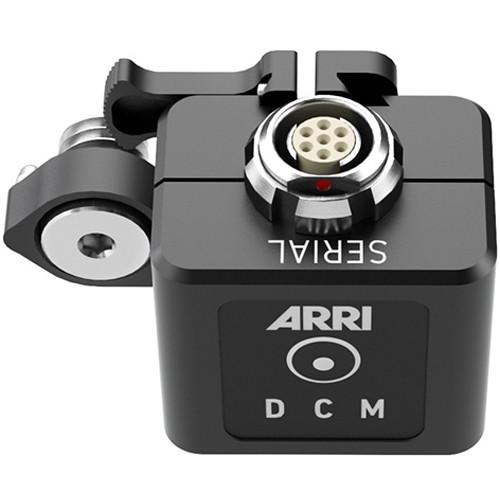

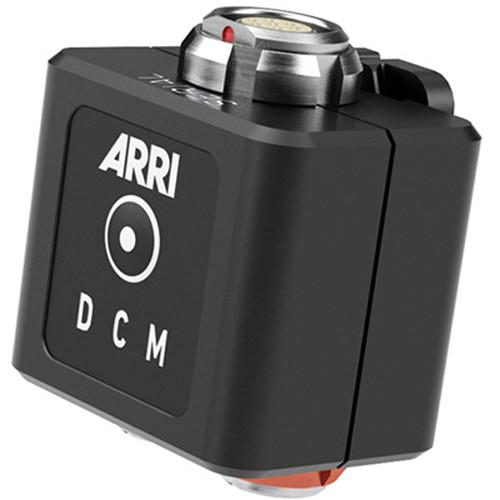

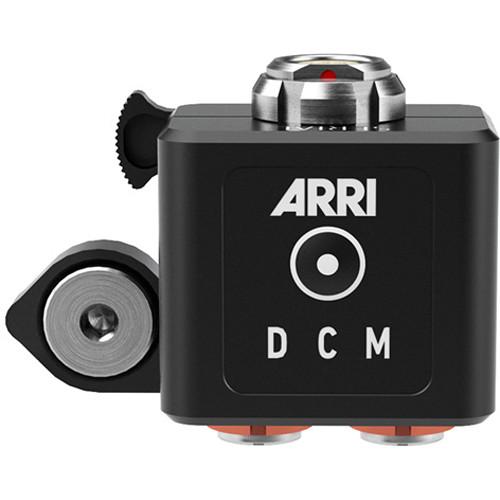

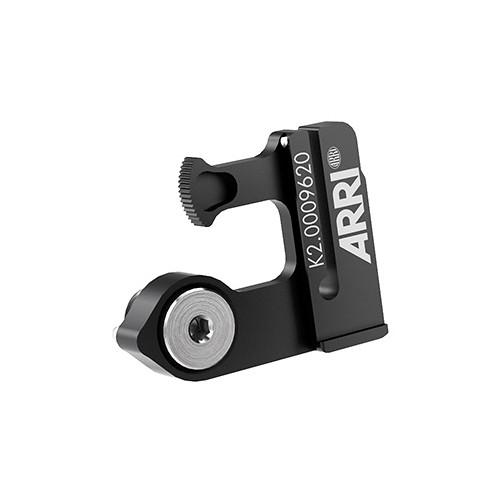

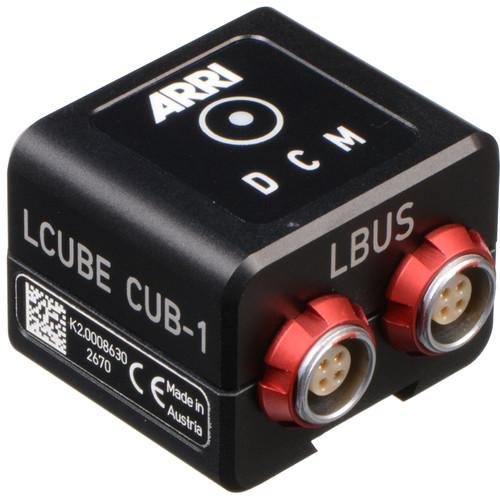

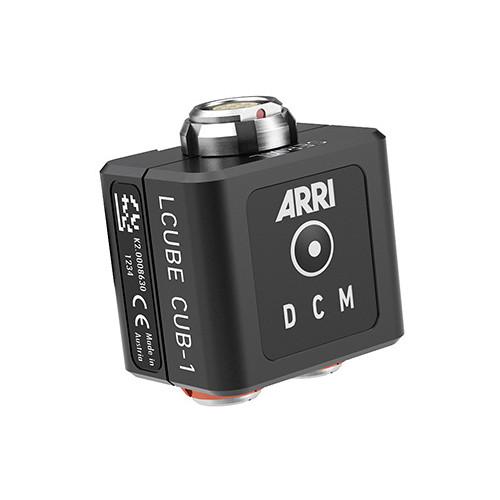

Product description The ARRI LCUBE CUB-1 Serial Converter changes LBUS protocols to serial protocols and vice versa. This multi-purpose protocol converter can be used for different functions in various camera setups. Use the CUB-1 and one or more cforce motors (not included) to connect a UDM-1 Distance Measure to an ALEXA Mini. The CUB-1 will also enable ARRI electronic control system accessories such as Master Grips to communicate with select 3rd-party cameras. A vari-colored LED indicates the status of the CUB-1's SETUP button. A quick-release bracket with a 3/8"-16 screw is included with the converter. The CUB-1 does not include an LBUS cable (available separately). Features - Converts serial protocol (RS232, RS485, RS422) to LBUS and vice versa
- Use for 3rd-party cameras and ARRI Master Grips
- Lightweight and compact form factor
- Vari-colored LED status button
Compatibility - Distance-Measuring Devices
- ARRI UDM-1 Ultrasonic Distance Measure
Cinematography Electronics CTM CINE TAPE MEASURE - Cameras
- Including but not limited to:
ALEXA Mini: Distance measure
Sony F5/F55: REC start/stop
RED Epic/Dragon: REC start/stop, user buttons In the Box ARRI LCUBE CUB-1 LBUS to Serial Converter with Bracket LCUBE Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI LCUBE CUB-1 LBUS to Serial Converter with Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI KK.0009001 Specs | Serial Interfaces | RS232, RS422, RS485 | | Connectors | 2 x 4-pin LBUS
1 x 7-pin serial | | Supply Voltage | 12 to 34 V | | Current Consumption | 18 mA @ 24 V | | Temperature Range | -4 to 122°F (-20 to 50°C) | | Dimensions (W x H) | 1.3 x 1.5 x 0.9" (32 x 37.3 x 24 mm) | | Weight | CUB-1: 1.66 oz (47 g)
LCUBE Bracket: 0.46 oz (13 g) | | | | Package Weight | 0.405 lb | | Box Dimensions (LxWxH) | 6.95 x 5.0 x 2.6" |
